Toyota Lexus rx270/350/450h GYL15 RADIATOR GRILLE

GYL15L-AWXGKV (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015

Engine 2GRFXE

Transmission CVFC ATM

Displacement 2500cc

Power 168 HP (125 kW)

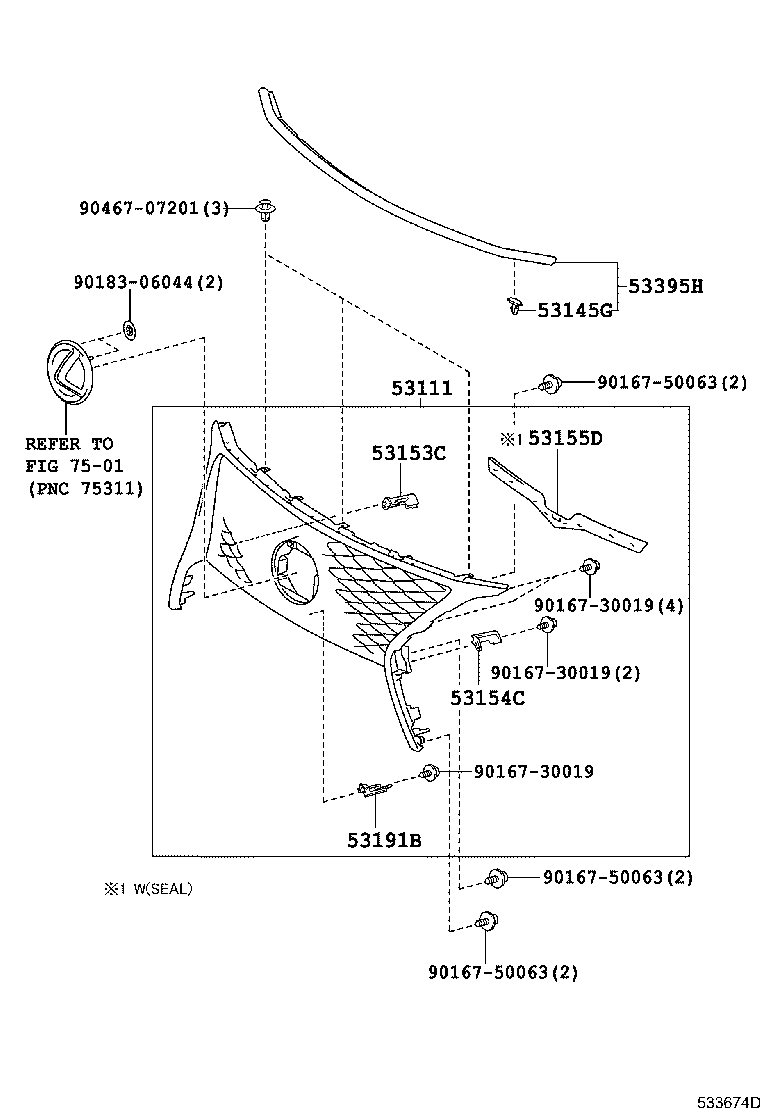

Click highlighted areas on diagram

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53101-48900	GGL15,GYL15..GCC	03/2012 - 08/2013	1
53101-48903	GGL15,GYL15..GCC F SPORT&PRE-COLLISION SYSTEM-WITH(PSB & PBA & *PB)	03/2012 - 08/2013	1
53101-48903	GGL15,GYL15..GCC F SPORT	03/2012 - 08/2013	1
53101-48906	GGL15,GYL15..GCC AERO BUMPER(FRONT)	03/2012 - 08/2013	1
53101-48906	GGL15,GYL15..GCC AERO BUMPER(FRONT)&PRE-COLLISION SYSTEM-WITH(PSB & PBA & *PB)	03/2012 - 08/2013	1
53101-48401	GGL15,GYL15..GCC	08/2013 - 09/2015	1
53101-48491	GGL15,GYL15..GCC F SPORT	08/2013 - 09/2015	1
53101-48581	GGL15,GYL15..GCC AERO BUMPER(FRONT)	08/2013 - 09/2015	1
53145G - CLIP, RADIATOR GRILLE
53145-60030	AGL10,GGL15,GYL1#	12/2008 - 03/2012	16
53145-60030	AGL10,GGL15,GYL1#	03/2012 - 12/2999	16
53153C - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-48010	AGL10,GGL15,GYL1#	03/2012 - 12/2999	1
53154C - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-48010	AGL10,GGL15,GYL1#	03/2012 - 12/2999	1
53191B - RETAINER, RADIATOR GRILEE, UPPER
53191-48010	AGL10,GGL15,GYL1#	03/2012 - 12/2999	1
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-48040	AGL10,GGL15,GYL1#	12/2008 - 03/2012	1
53395-48060	AGL10,GGL15,GYL1#	03/2012 - 09/2015	1
Common parts
90167-30019
90167-50063
90183-06044
90467-07201
Linked diagrams
7501

Click highlighted areas on diagram

F SPORT

Part #	Description	Period	Qty
53111 - GRILLE, RADIATOR
53101-48900	GGL15,GYL15..GCC	03/2012 - 08/2013	1
53101-48903	GGL15,GYL15..GCC F SPORT&PRE-COLLISION SYSTEM-WITH(PSB & PBA & *PB)	03/2012 - 08/2013	1
53101-48903	GGL15,GYL15..GCC F SPORT	03/2012 - 08/2013	1
53101-48906	GGL15,GYL15..GCC AERO BUMPER(FRONT)	03/2012 - 08/2013	1
53101-48906	GGL15,GYL15..GCC AERO BUMPER(FRONT)&PRE-COLLISION SYSTEM-WITH(PSB & PBA & *PB)	03/2012 - 08/2013	1
53101-48401	GGL15,GYL15..GCC	08/2013 - 09/2015	1
53101-48491	GGL15,GYL15..GCC F SPORT	08/2013 - 09/2015	1
53101-48581	GGL15,GYL15..GCC AERO BUMPER(FRONT)	08/2013 - 09/2015	1
53145G - CLIP, RADIATOR GRILLE
53145-60030	AGL10,GGL15,GYL1#	12/2008 - 03/2012	16
53145-60030	AGL10,GGL15,GYL1#	03/2012 - 12/2999	16
53153C - GUIDE, RADIATOR GRILLE SIDE AIR, RH
53153-48010	AGL10,GGL15,GYL1#	03/2012 - 12/2999	1
53154C - GUIDE, RADIATOR GRILLE SIDE AIR, LH
53154-48010	AGL10,GGL15,GYL1#	03/2012 - 12/2999	1
53191B - RETAINER, RADIATOR GRILEE, UPPER
53191-48010	AGL10,GGL15,GYL1#	03/2012 - 12/2999	1
53395H - SEAL, HOOD TO RADIATOR GRILLE
53395-48040	AGL10,GGL15,GYL1#	12/2008 - 03/2012	1
53395-48060	AGL10,GGL15,GYL1#	03/2012 - 09/2015	1
Common parts
90167-30019
90167-50063
90183-06044
90467-07201
Linked diagrams
7501
