GYL15L-AWXGKV (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

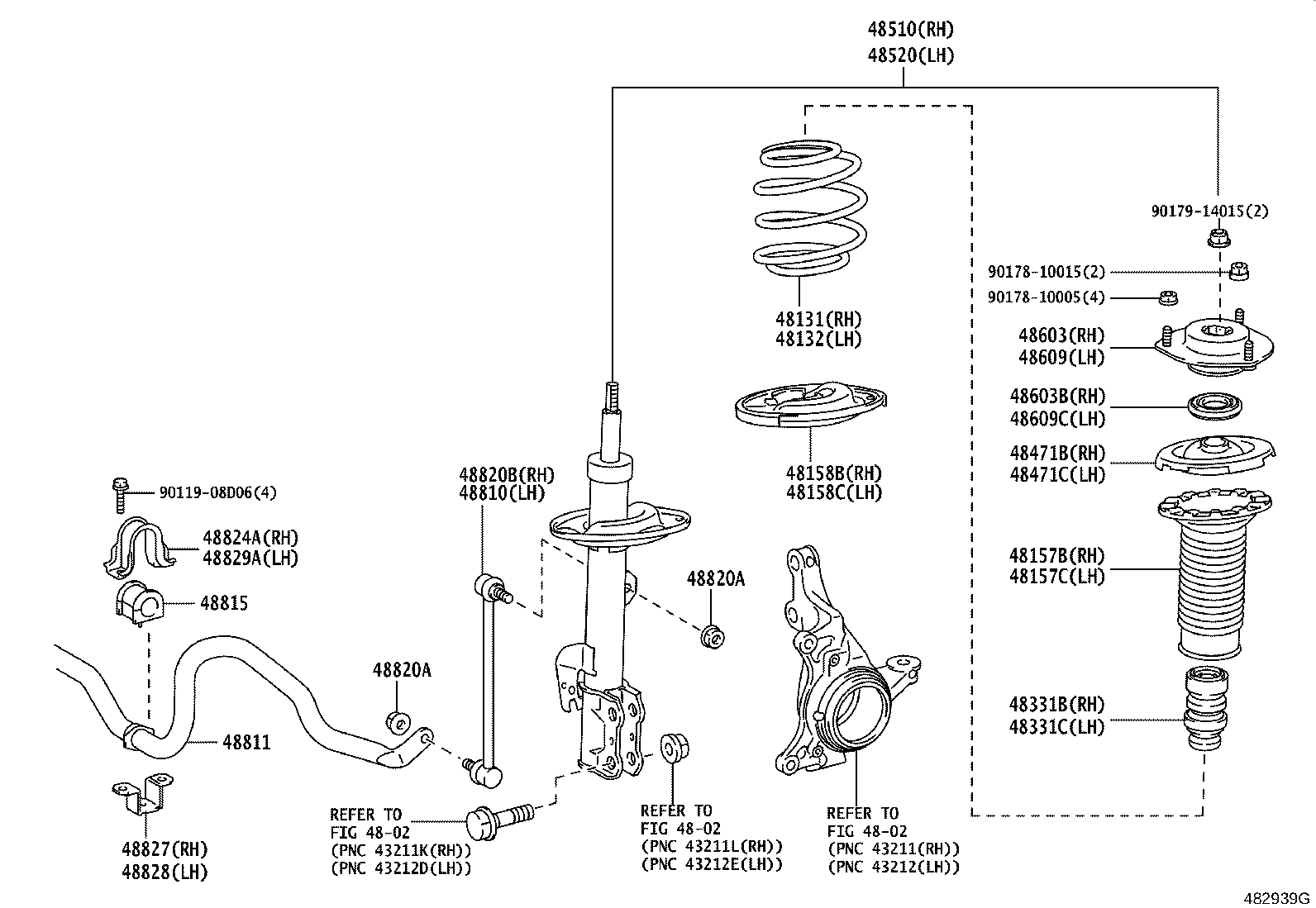

Click highlighted areas on diagram

diagram 4802 4802 4802 48131 48132 48157B 48157C 48158B 48158C 48331B 48331C 48471B 48471C 48510 48520 48603 48603B 48609 48609C 48810 48811 48815 48820A 48820A 48820B 48824A 48827 48828 48829A 9011908D06 9017810005 9017810015 9017914015
Part # Description Qty Price
48131 - SPRING, FRONT COIL, RH
48131-48710

GYL1#

 1
48132 - SPRING, FRONT COIL, LH
48132-48090

GYL1#

 1
48157B - INSULATOR, FRONT COIL SPRING, UPPER RH
48157-48030

AGL10,GGL15,GYL1#

 1
48157-48030

AGL10,GGL15,GYL1#

 1
48157C - INSULATOR, FRONT COIL SPRING, UPPER LH
48157-48030

AGL10,GGL15,GYL1#

 1
48157-48030

AGL10,GGL15,GYL1#

 1
48158B - INSULATOR, FRONT COIL SPRING, LOWER RH
48158-48060

AGL10,GGL15,GYL1#

 1
48158-48040

AGL10,GGL15,GYL1#

 1
48158-48040

AGL10,GGL15,GYL1#

 1
48158C - INSULATOR, FRONT COIL SPRING, LOWER LH
48158-48030

AGL10,GGL15,GYL1#

 1
48158-48070

AGL10,GGL15,GYL1#

 1
48158-48030

AGL10,GGL15,GYL1#

 1
48331B - BUMPER, FRONT SPRING, RH
48331-48050

AGL10,GGL15,GYL1#

 1
48331-48050

AGL10,GGL15,GYL1#

 1
48331C - BUMPER, FRONT SPRING, LH
48331-48050

AGL10,GGL15,GYL1#

 1
48331-48050

AGL10,GGL15,GYL1#

 1
48471B - SEAT, FRONT COIL SPRING, UPPER RH
48471-41012

AGL10,GGL15,GYL1#

 1
48471-41012

AGL10,GGL15,GYL1#

 1
48471C - SEAT, FRONT COIL SPRING, UPPER LH
48471-41012

AGL10,GGL15,GYL1#

 1
48471-41012

AGL10,GGL15,GYL1#

 1
48510 - ABSORBER ASSY, SHOCK, FRONT RH
48510-80576

GYL15..GCC

MARK 48510-48340,LATIN AMERICA SPEC W/O(CHILE)&F SPORT

 1
48510-80576

GYL15..GCC

MARK 48510-48340,F SPORT

 1
48510-80581

GYL15..GCC

MARK 48510-48281

 1
48520 - ABSORBER ASSY, SHOCK, FRONT LH
48520-80296

GYL15..GCC

MARK 48520-48340,F SPORT

 1
48520-80296

GYL15..GCC

MARK 48520-48340,LATIN AMERICA SPEC W/O(CHILE)&F SPORT

 1
48520-80301

GYL15..GCC

MARK 48520-48281

 1
48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48609-48060

AGL10,GGL15,GYL1#

 1
48609-48060

AGL10,GGL15,GYL1#

 1
48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH)
90903-63014

AGL10,GGL15,GYL1#

 1
90903-63014

AGL10,GGL15,GYL1#

 1
48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609-48060

AGL10,GGL15,GYL1#

 1
48609-48060

AGL10,GGL15,GYL1#

 1
48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH)
90903-63014

AGL10,GGL15,GYL1#

 1
90903-63014

AGL10,GGL15,GYL1#

 1
48810 - LINK ASSY, FRONT STABILIZER, LH
48820-28050

AGL10,GGL15,GYL1#

 1
48820-28050

AGL10,GGL15,GYL1#

 1
48811 - BAR, STABILIZER, FRONT
48811-48120

AGL10,GYL1#

 1
48815 - BUSH, FRONT STABILIZER BAR, NO.1
48815-48070

AGL10,GGL15,GYL1#

 2
48815-48070

AGL10,GGL15,GYL1#

 2
48815-48070

AGL10,GGL15,GYL1#

 2
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12151

AGL10,GGL15,GYL1#

 4
90179-12151

AGL10,GGL15,GYL1#

 4
48820A - NUT(FOR FRONT STABILIZER LINK)
90179-12151

AGL10,GGL15,GYL1#

 4
90179-12151

AGL10,GGL15,GYL1#

 4
48820B - LINK ASSY, FRONT STABILIZER, RH
48820-28050

AGL10,GGL15,GYL1#

 1
48820-28050

AGL10,GGL15,GYL1#

 1
48824A - BRACKET, FRONT STABILIZER, NO.1 RH
48824-48010

AGL10,GGL15,GYL1#

 1
48824-48010

AGL10,GGL15,GYL1#

 1
48827 - BRACKET, FRONT STABILIZER, NO.2 RH
48827-48020

AGL10,GGL15,GYL1#

 1
48827-48020

AGL10,GGL15,GYL1#

 1
48828 - BRACKET, FRONT STABILIZER, NO.2 LH
48827-48020

AGL10,GGL15,GYL1#

 1
48827-48020

AGL10,GGL15,GYL1#

 1
48829A - BRACKET, FRONT STABILIZER, NO.1 LH
48824-48010

AGL10,GGL15,GYL1#

 1
48824-48010

AGL10,GGL15,GYL1#

 1
Common parts
90119-08D06
90178-10005
90178-10015
90179-14015
Linked diagrams
4802
