GYL15L-AWXGKV (2012)
Toyota Lexus Rx270/350/450h
Production
Mar 2012
-
Sep 2015
Engine
2GRFXE
Transmission
CVFC ATM
Displacement
2500cc
Power
168 HP (125 kW)

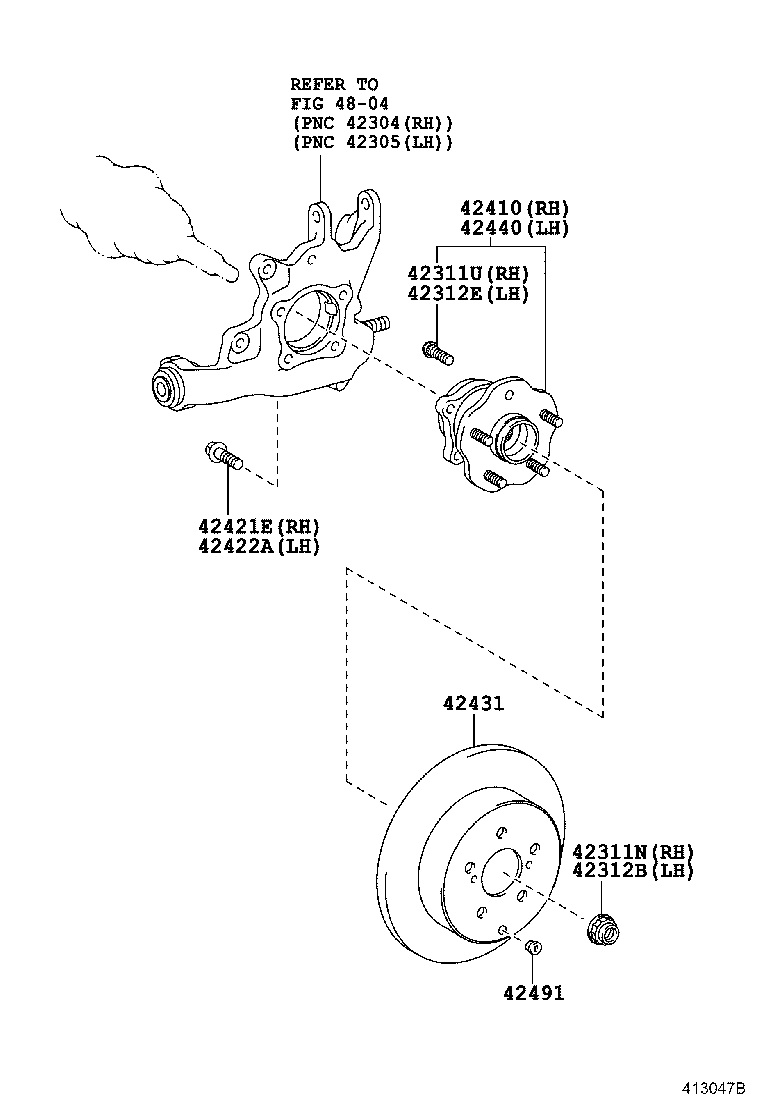

ILLUST NO. 2 OF 2(0812- )GGL15,GYL15
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42311N - NUT (FOR REAR AXLE SHAFT RH) | ||||
| 90177-22001 |
GGL15,GYL15 |
1 | ||
| 90177-22001 |
GGL15,GYL15 |
1 | ||
| 42311U - BOLT, HUB (FOR REAR AXLE RH) | ||||
| 90942-02049 |
AGL10,GGL15,GYL1# |
5 | ||
| 90942-02052 |
AGL10,GGL15,GYL1# |
5 | ||
| 90942-02049 |
AGL10,GGL15,GYL1# |
5 | ||
| 42312B - NUT (FOR REAR AXLE SHAFT LH) | ||||
| 90177-22001 |
GGL15,GYL15 |
1 | ||
| 90177-22001 |
GGL15,GYL15 |
1 | ||
| 42312E - BOLT, HUB (FOR REAR AXLE LH) | ||||
| 90942-02049 |
AGL10,GGL15,GYL1# |
5 | ||
| 90942-02052 |
AGL10,GGL15,GYL1# |
5 | ||
| 90942-02049 |
AGL10,GGL15,GYL1# |
5 | ||
| 42410 - HUB & BEARING ASSY, REAR AXLE, RH | ||||
| 42410-48060 |
GGL15,GYL15 |
1 | ||
| 42410-48060 |
GGL15,GYL15 |
1 | ||
| 42421E - BOLT (FOR REAR AXLE BEARING CASE RH) | ||||
| 90105-14097 |
AGL10,GGL15,GYL1# |
4 | ||
| 90105-14097 |
AGL10,GGL15,GYL1# |
4 | ||
| 42422A - BOLT (FOR REAR AXLE BEARING CASE LH) | ||||
| 90105-14097 |
AGL10,GGL15,GYL1# |
4 | ||
| 90105-14097 |
AGL10,GGL15,GYL1# |
4 | ||
| 42431 - DISC, REAR | ||||
| 42431-48080 |
GGL15,GYL1# |
2 | ||
| 42431-48080 |
GGL15,GYL1# |
2 | ||
| 42431-48070 |
GGL15,GYL15..GCC LATIN AMERICA SPEC W/O(CHILE) |
2 | ||
| 42440 - HUB & BEARING ASSY, REAR AXLE, LH | ||||
| 42410-48060 |
GGL15,GYL15 |
1 | ||
| 42410-48060 |
GGL15,GYL15 |
1 | ||
| 42491 - PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE) | ||||
| 47491-22020 |
AGL10,GGL15,GYL1# |
2 | ||
| 47491-22020 |
AGL10,GGL15,GYL1# |
2 | ||
| Linked diagrams | ||||
| 4804 | ||||
