GYL15L-AWXGKV (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )

Click highlighted areas on diagram

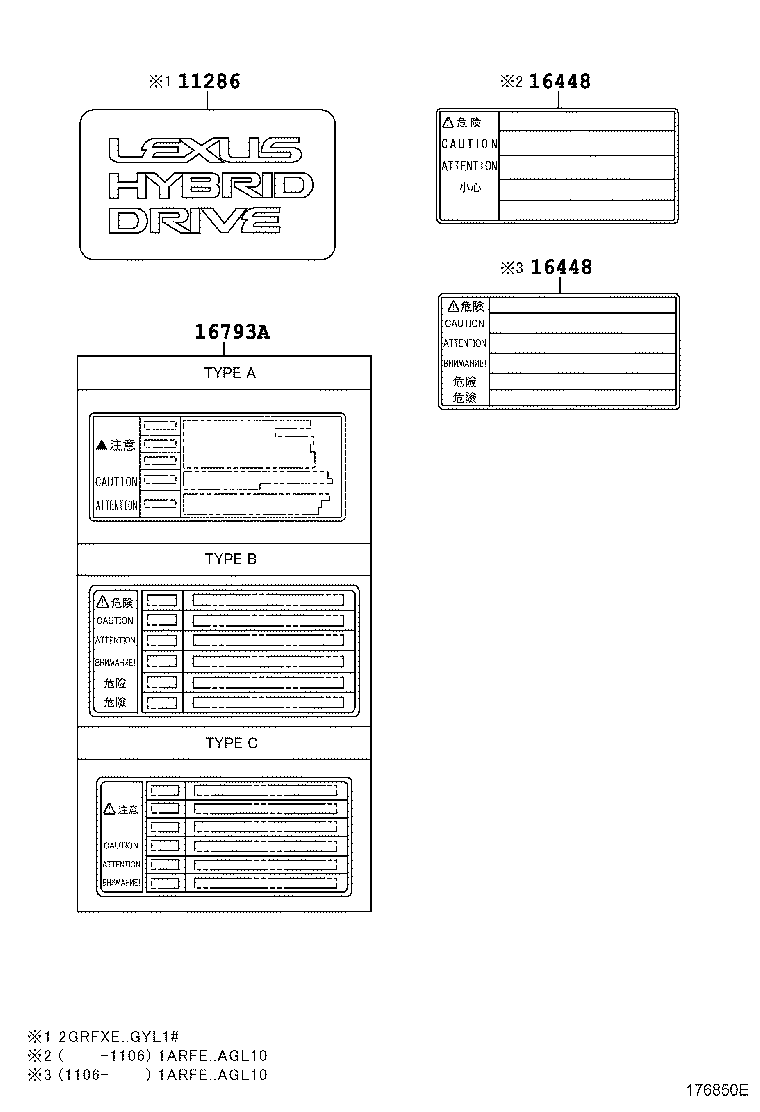

diagram 11286 16448 16448 16793A
Part # Description Qty Price
11286 - PLATE, ENGINE SPECIFICATION
11286-31030

2GRFXE..GYL1#

 1
16793A - LABEL, COOLING FAN CAUTION
16793-31050

1ARFE,2GR#..AGL10,GGL15,GYL1#

TYPE B:REFER ILLUST.

 1
16793-28020

1ARFE,2GR#..AGL10,GGL15,GYL1#

TYPE A:REFER ILLUST.

 1
16793-37040

2GRFXE..GYL1#

TYPE C:REFER ILLUST.

 1
16793-31050

2GRFXE..GYL1#

TYPE B:REFER ILLUST.

 2
