GYL15L-AWXGKV (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFXE
Transmission CVFC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )2GR#

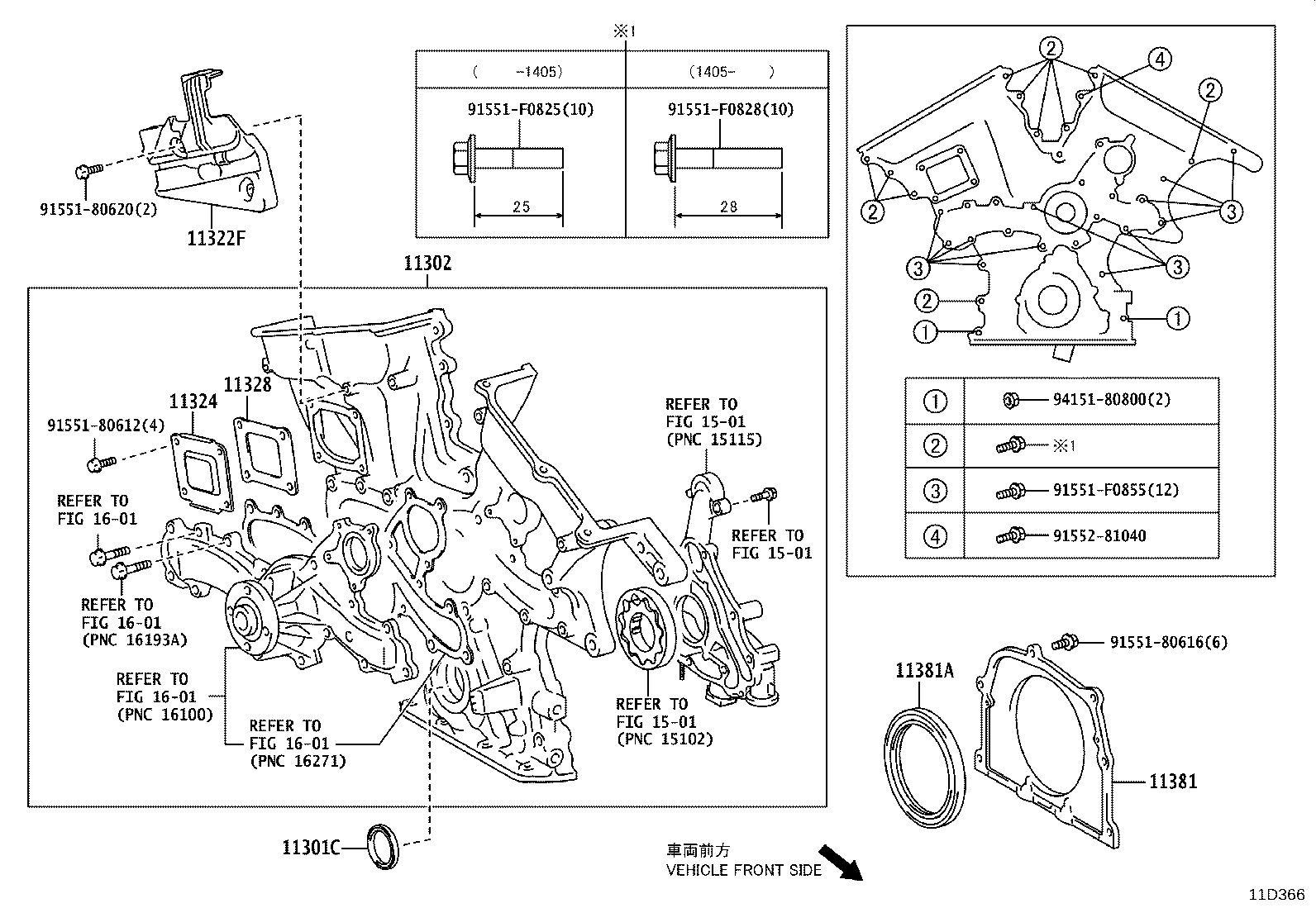

Click highlighted areas on diagram

diagram 11301C 11302 11322F 11324 11328 11381 11381A 1501 1501 1501 1601 1601 1601 1601 9155180612 9155180616 9155180620 91551F0825 91551F0828 91551F0855 9155281040 9415180800
Part # Description Qty Price
11301C - SEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)
90311-42037

2GR#..GGL15,GYL15

 1
90311-42045

2GR#..GGL15,GYL1#

 1
11302 - COVER SUB-ASSY, TIMING CHAIN OR BELT
11310-31020

2GR#..GGL15,GYL1#

 1
11310-31020

2GR#..GGL15,GYL1#

 1
11322F - COVER, TIMING GEAR, NO.2
11322-31021

2GR#..GGL15,GYL1#

 1
11322-31021

2GR#..GGL15,GYL1#

 1
11324 - PLATE, TIMING CHAIN COVER
11324-31020

2GR#..GGL15,GYL1#

 1
11324-31020

2GR#..GGL15,GYL1#

 1
11328 - GASKET, TIMING GEAR OR CHAIN COVER
11328-31030

2GR#..GGL15,GYL1#

 1
11328-31030

2GR#..GGL15,GYL1#

 1
11381 - RETAINER, ENGINE REAR OIL SEAL
11381-31021

2GR#..GGL15,GYL1#

 1
11381-31021

2GR#..GGL15,GYL1#

 1
11381A - SEAL, ENGINE REAR OIL
90311-92011

2GR#..GGL15,GYL1#

 1
90311-92010

2GR#..GGL15,GYL1#

 1
90311-92009

2GR#..GGL15,GYL1#

 1
Common parts
91551-80612
91551-80616
91551-80620
91551-F0825
91551-F0828
91551-F0855
91552-81040
94151-80800
Linked diagrams
1501
1601
