GGL15R-AWTGKW (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0812- )

Click highlighted areas on diagram

COMBINATION METER

diagram 83100 83100G 9356855016
Part # Description Qty Price
83100 - METER ASSY, COMBINATION
83800-48B90

GGL15..RHD

NEW ZEALAND SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)

 1
83800-48B90

GGL15..RHD

HONG KONG SPEC

 1
83800-48B90

GGL15..RHD

SINGAPORE SPEC

 1
83800-48B90

GGL15..RHD

INDONESIA SPEC

 1
83800-48B90

GGL15..RHD

MALAYSIA SPEC

 1
83800-48B90

GGL15..RHD

SOUTH AFRICA SPEC

 1
83800-48B90

GGL15..RHD

BRUNEI SPEC

 1
83800-48B90

GGL15..RHD

AUSTRALIA SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)

 1
83800-48B90

GGL15..RHD

THAILAND SPEC

 1
83800-48B80

GGL15..RHD

SUSPENSION-AIR SUSPENTION

 1
83800-48B70

GGL15..RHD

 1
83800-48C50

GGL15..RHD

CYPRUS SPEC

 1
83800-48C50

GGL15..RHD

IRELAND SPEC

 1
83800-48C60

GGL15..RHD

CYPRUS SPEC&SUSPENSION-AIR SUSPENTION

 1
83800-48C00

GGL15..RHD

HONG KONG SPEC&SUSPENSION-AIR SUSPENTION

 1
83800-48B91

GGL15..RHD

NEW ZEALAND SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)

 1
83800-48B91

GGL15..RHD

MALAYSIA SPEC

 1
83800-48B91

GGL15..RHD

SINGAPORE SPEC

 1
83800-48B91

GGL15..RHD

SOUTH AFRICA SPEC

 1
83800-48B91

GGL15..RHD

AUSTRALIA SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)

 1
83800-48B91

GGL15..RHD

THAILAND SPEC

 1
83800-48B91

GGL15..RHD

INDONESIA SPEC

 1
83800-48B91

GGL15..RHD

HONG KONG SPEC

 1
83800-48B91

GGL15..RHD

BRUNEI SPEC

 1
83800-48G80

GGL15..RHD

SUSPENSION-AIR SUSPENTION

 1
83800-48G90

GGL15..RHD

AUSTRALIA SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)

 1
83800-48G70

GGL15..RHD

 1
83800-48G90

GGL15..RHD

HONG KONG SPEC

 1
83800-48G90

GGL15..RHD

NEW ZEALAND SPEC&SUSPENSION-COIL SPRING(AUSTRALIA)

 1
83800-48G90

GGL15..RHD

BRUNEI SPEC

 1
83800-48G90

GGL15..RHD

SINGAPORE SPEC

 1
83800-48G90

GGL15..RHD

SOUTH AFRICA SPEC

 1
83800-48G90

GGL15..RHD

THAILAND SPEC

 1
83800-48G90

GGL15..RHD

MALAYSIA SPEC

 1
83800-48J30

GGL15..RHD

IRELAND SPEC

 1
83800-48J00

GGL15..RHD

HONG KONG SPEC&SUSPENSION-AIR SUSPENTION

 1
83800-48G90

GGL15..RHD

INDONESIA SPEC

 1
83800-48J40

GGL15..RHD

CYPRUS SPEC&SUSPENSION-AIR SUSPENTION

 1
83800-48J30

GGL15..RHD

CYPRUS SPEC

 1
83800-48B92

GGL15..RHD

SOUTH AFRICA SPEC

 1
83800-48B92

GGL15..RHD

THAILAND SPEC

 1
83800-48B92

GGL15..RHD

HONG KONG SPEC

 1
83800-48B92

GGL15..RHD

MALAYSIA SPEC

 1
83800-48B92

GGL15..RHD

NEW ZEALAND SPEC

 1
83800-48B71

GGL15..RHD

 1
83800-48B92

GGL15..RHD

BRUNEI SPEC

 1
83800-48B92

GGL15..RHD

AUSTRALIA SPEC

 1
83800-48B92

GGL15..RHD

INDONESIA SPEC

 1
83800-48B92

GGL15..RHD

SINGAPORE SPEC

 1
83800-48K60

GGL15..RHD

 1
83800-48K70

GGL15..RHD

AUSTRALIA SPEC

 1
83800-48K70

GGL15..RHD

NEW ZEALAND SPEC

 1
83800-48K70

GGL15..RHD

THAILAND SPEC

 1
83800-48K70

GGL15..RHD

SOUTH AFRICA SPEC

 1
83800-48K70

GGL15..RHD

HONG KONG SPEC

 1
83800-48K70

GGL15..RHD

MALAYSIA SPEC

 1
83800-48K70

GGL15..RHD

BRUNEI SPEC

 1
83800-48K70

GGL15..RHD

SINGAPORE SPEC

 1
83800-48K70

GGL15..RHD

INDONESIA SPEC

 1
83100G - GLASS, COMBINATION METER
83852-48B50

AGL10,GGL15,GYL1#

 1
Common parts
93568-55016

ILLUST NO. 2 OF 2(0812- )RHD

Click highlighted areas on diagram

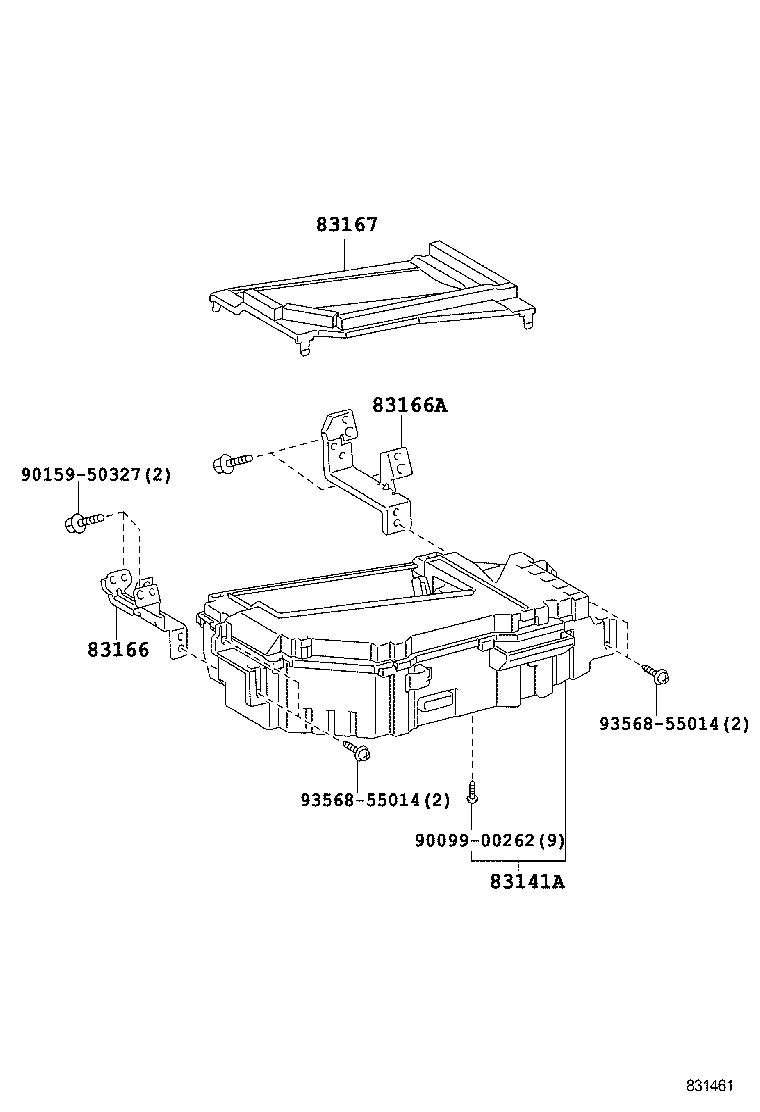

HEAD UP DISPLAY

diagram 83141A 83166 83166A 83167 9009900262 9015950327 9356855014 9356855014
Part # Description Qty Price
83141A - COMPUTER, COMBINATION METER MIRROR
83141-48020

GGL15,GYL1#..RHD

HEAD UP DISPLAY-WITH

 1
83141-48021

AGL10,GGL15,GYL1#..RHD

HEAD UP DISPLAY-WITH

 1
83166 - BRACKET, COMBINATION METER MIRROR, NO.1
83166-48020

AGL10,GGL15,GYL1#..RHD

HEAD UP DISPLAY-WITH

 1
83166A - BRACKET, COMBINATION METER MIRROR, NO.1
83166-48040

AGL10,GGL15,GYL1#..RHD

HEAD UP DISPLAY-WITH

 1
83167 - GLASS, COMBINATION METER MIRROR
83167-48020

AGL10,GGL15,GYL1#..RHD

HEAD UP DISPLAY-WITH

 1
Common parts
90099-00262
90159-50327
93568-55014
