GGL15L-AWTGKW (2012)
Toyota Lexus Rx270/350/450h

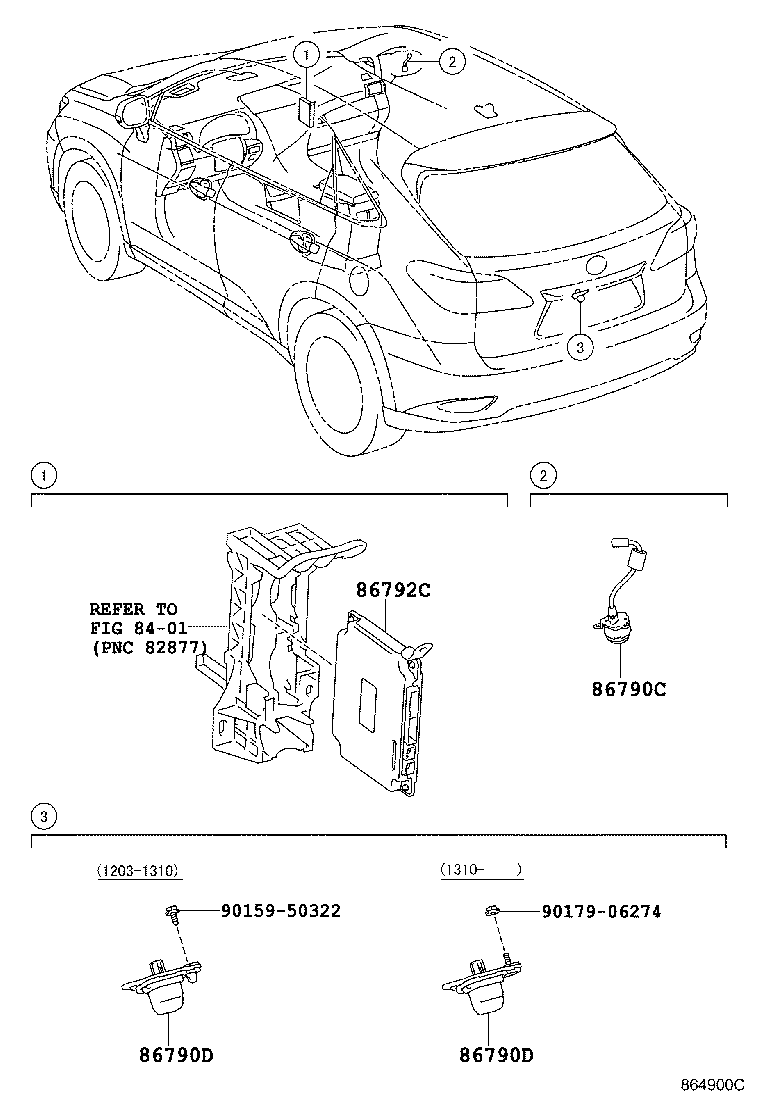

ILLUST NO. 1 OF 2(1203- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86790C - CAMERA ASSY, TELEVISION, SIDE | ||||
| 86790-48100 |
AGL10..LHD;GGL15,GYL15..EUR ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86790-48100 |
AGL10..RHD;GGL15,GYL15..EUR ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86790-48100 |
AGL10,GGL15,GYL15..EUR ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-48090 |
GGL15,GYL15..EUR INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY) |
1 | ||
| 86790-48090 |
GGL15,GYL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86790-48090 |
GGL15,GYL15..EUR EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86790-48140 |
AGL10..LHD;GGL15,GYL1#..EUR EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86790-48141 |
AGL10..LHD;GGL15,GYL1#..EUR EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86790-48141 |
AGL10..LHD;GGL15,GYL1#..EUR INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY) |
1 | ||
| 86790-48140 |
AGL10..LHD;GGL15,GYL1#..EUR INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY) |
1 | ||
| 86790-48142 |
AGL10..LHD;GGL15,GYL1#..EUR INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY) |
1 | ||
| 86790-48142 |
AGL10..LHD;GGL15,GYL1#..EUR EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-48090 |
GGL15,GYL15..EUR INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY) |
1 | ||
| 86790-48090 |
GGL15,GYL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86790-48090 |
GGL15,GYL15..EUR EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86790-48140 |
AGL10..LHD;GGL15,GYL1#..EUR EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86790-48141 |
AGL10..LHD;GGL15,GYL1#..EUR EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86790-48141 |
AGL10..LHD;GGL15,GYL1#..EUR INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY) |
1 | ||
| 86790-48140 |
AGL10..LHD;GGL15,GYL1#..EUR INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY) |
1 | ||
| 86790-48142 |
AGL10..LHD;GGL15,GYL1#..EUR INSIDE REAR VIEW MIRROR-WITH(REAR CAMERA DISPLAY) |
1 | ||
| 86790-48142 |
AGL10..LHD;GGL15,GYL1#..EUR EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-48120 |
GGL15,GYL15..EUR ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86792-48220 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86792-48230 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86792-48120 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86792-48240 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86792-48220 |
GGL15,GYL15..EUR ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86792-48230 |
GGL15,GYL1#..EUR EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| 86792-48240 |
GGL15,GYL1#..EUR EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86792-48330 |
AGL10..LHD;GGL15,GYL15..EUR ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86792-48340 |
AGL10..LHD;GGL15,GYL15..EUR ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(HDD NAVIGATION) |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| 90179-06274 | ||||
| Linked diagrams | ||||
| 8401 | ||||

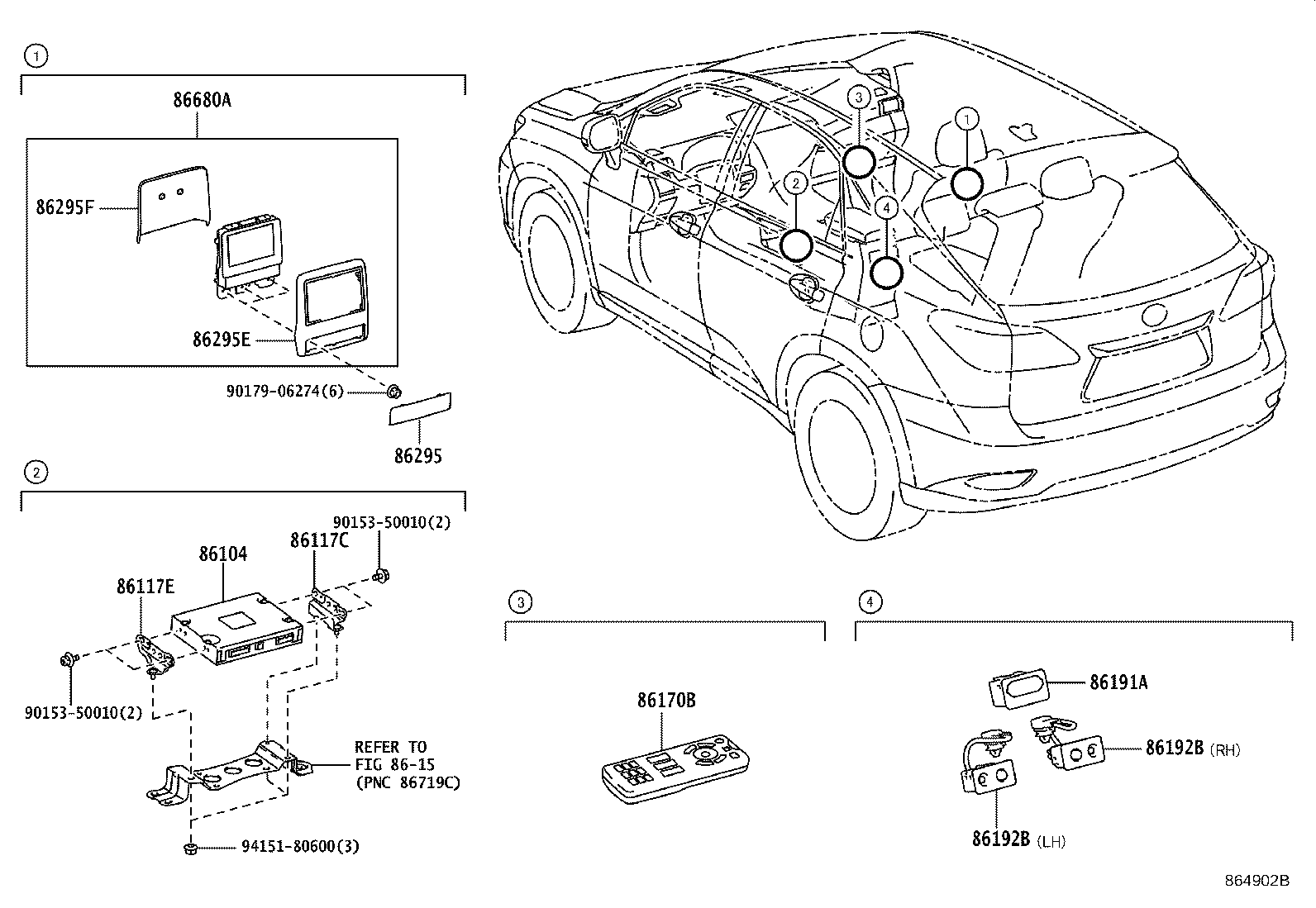

ILLUST NO. 2 OF 2(1203- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86104 - CONTROLLER SUB-ASSY, MULTI-DISPLAY | ||||
| 86104-60010 |
GYL15;GGL15..LHD WITH(REAR DISPLAY) |
1 | ||
| 86104-60010 |
GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY)&MAYDAY SYSTEM-W(TELEMATICS) |
1 | ||
| 86104-60010 |
GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY)&MAYDAY SYSTEM-W(TELEMATICS) |
1 | ||
| 86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2 | ||||
| 86117-48120 |
GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY)&MAYDAY SYSTEM-W(TELEMATICS) |
1 | ||
| 86117-48120 |
GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY)&MAYDAY SYSTEM-W(TELEMATICS) |
1 | ||
| 86117-48120 |
GYL15;GGL15..LHD WITH(REAR DISPLAY) |
1 | ||
| 86117E - BRACKET, MULTI-DISPLAY CONTROLLER, NO.3 | ||||
| 86118-48090 |
GYL15;GGL15..LHD WITH(REAR DISPLAY) |
1 | ||
| 86118-48090 |
GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY)&MAYDAY SYSTEM-W(TELEMATICS) |
1 | ||
| 86118-48090 |
GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY)&MAYDAY SYSTEM-W(TELEMATICS) |
1 | ||
| 86170B - SWITCH & VOLUME ASSY, TELEVISION | ||||
| 86170-60160 |
GGL15,GYL15..LHD..EUR RUSSIA SPEC&WITH(REAR DISPLAY) |
1 | ||
| 86170-48060 |
GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY) |
1 | ||
| 86170-60160 |
GGL15,GYL15..LHD..EUR UKRAINE SPEC&WITH(REAR DISPLAY) |
1 | ||
| 86170-60120 |
GYL15;GGL15..LHD WITH(REAR DISPLAY) |
1 | ||
| 86170-48060 |
GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY) |
1 | ||
| 86191A - TERMINAL, VIDEO(VIDEO ADAPTER) | ||||
| 86191-48050A0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),IVORY,TRIM0# |
1 | ||
| 86191-48050C0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),BLACK,TRIM1#,2#,3#,4# |
1 | ||
| 86192B - TERMINAL, HEADPHONE | ||||
| 86192-48010C0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),BLACK,TRIM1#,2#,3#,4#,LH |
1 | ||
| 86192-48020C0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),BLACK,TRIM1#,2#,3#,4#,RH |
1 | ||
| 86192-48010A0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),IVORY,TRIM0#,LH |
1 | ||
| 86192-48020A0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),IVORY,TRIM0#,RH |
1 | ||
| 86192B - TERMINAL, HEADPHONE | ||||
| 86192-48010C0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),BLACK,TRIM1#,2#,3#,4#,LH |
1 | ||
| 86192-48020C0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),BLACK,TRIM1#,2#,3#,4#,RH |
1 | ||
| 86192-48010A0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),IVORY,TRIM0#,LH |
1 | ||
| 86192-48020A0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),IVORY,TRIM0#,RH |
1 | ||
| 86295 - BASE, TELEVISION | ||||
| 86295-48080A0 |
GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY),IVORY,TRIM0# |
2 | ||
| 86295-48080A0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),IVORY,TRIM0# |
2 | ||
| 86295-48080A0 |
GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY),IVORY,TRIM0# |
2 | ||
| 86295-48080B0 |
GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 86295-48080B0 |
GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 86295-48080B0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 86295-48080C0 |
GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY),BLACK,TRIM2#,3#,4# |
2 | ||
| 86295-48080C0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),BLACK,TRIM2#,3#,4# |
2 | ||
| 86295-48080C0 |
GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY),BLACK,TRIM2#,3#,4# |
2 | ||
| 86295E - BASE, TELEVISION, NO.2 | ||||
| 86295-48060A0 |
GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY),IVORY,TRIM0# |
2 | ||
| 86295-48060B0 |
GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 86295-48060B0 |
GYL15..EUR;GGL15..LHD..EUR WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 86295-48060A0 |
GYL15;GGL15..LHD WITH(REAR DISPLAY),IVORY,TRIM0# |
2 | ||
| 86295-48060B0 |
GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 86295-48060A0 |
GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY),IVORY,TRIM0# |
2 | ||
| 86295-48060C0 |
GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY),BLACK,TRIM2#,3#,4# |
2 | ||
| 86295-48060C0 |
GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY),BLACK,TRIM2#,3#,4# |
2 | ||
| 86295-48060C0 |
GYL15..EUR;GGL15..LHD..EUR WITH(REAR DISPLAY),BLACK,TRIM2#,4# |
2 | ||
| 86295F - BASE, TELEVISION, NO.3 | ||||
| 86295-48070 |
GGL15,GYL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY) |
2 | ||
| 86295-48070 |
GGL15,GYL15..LHD..EUR BEIJING SPEC&WITH(REAR DISPLAY) |
2 | ||
| 86295-48070 |
GYL15;GGL15..LHD WITH(REAR DISPLAY) |
2 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86430-48230A0 |
GGL15,GYL15..LHD..EUR PANASONIC,CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY),IVORY,TRIM0# |
2 | ||
| 86430-48230A0 |
GGL15,GYL15..LHD..EUR PANASONIC,BEIJING SPEC&WITH(REAR DISPLAY),IVORY,TRIM0# |
2 | ||
| 86430-48230C0 |
GGL15,GYL15..LHD..EUR PANASONIC,BEIJING SPEC&WITH(REAR DISPLAY),BLACK,TRIM2#,3#,4# |
2 | ||
| 86430-48230B0 |
GGL15,GYL15..LHD..EUR PANASONIC,BEIJING SPEC&WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 86430-48230C0 |
GGL15,GYL15..LHD..EUR PANASONIC,CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY),BLACK,TRIM2#,3#,4# |
2 | ||
| 86430-48230B0 |
GGL15,GYL15..LHD..EUR PANASONIC,CHINA(EXCEPT BEIJING) SPEC&WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 86430-48240A0 |
GYL15;GGL15..LHD PANASONIC,WITH(REAR DISPLAY),IVORY,TRIM0# |
2 | ||
| 86430-48240B0 |
GYL15..EUR;GGL15..LHD..EUR PANASONIC,WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 86430-48240C0 |
GYL15..EUR;GGL15..LHD..EUR PANASONIC,WITH(REAR DISPLAY),BLACK,TRIM2#,4# |
2 | ||
| Common parts | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 8615 | ||||
