GGL15L-AWTGKW (2012)
Toyota Lexus Rx270/350/450h

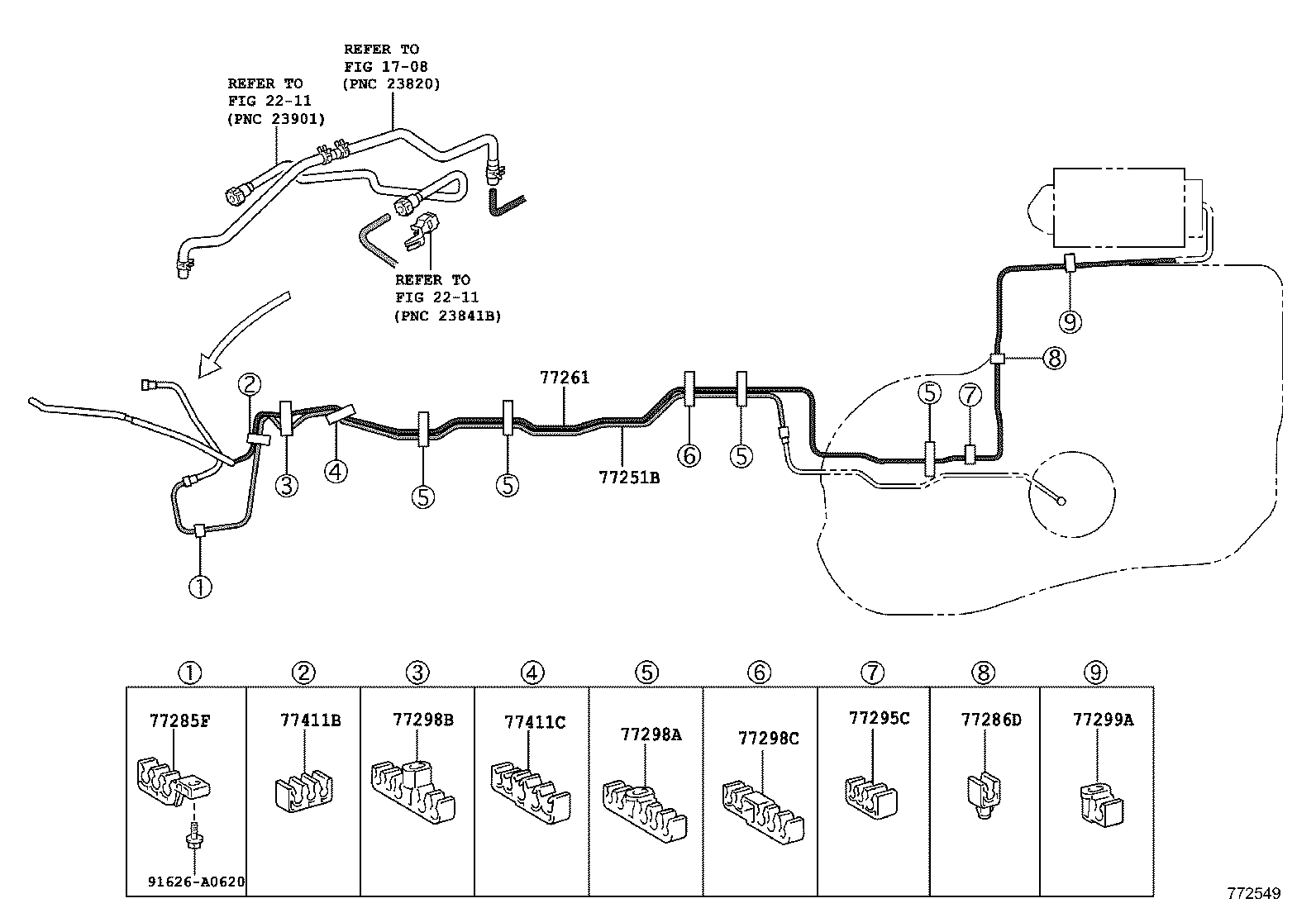

ILLUST NO. 3 OF 3(0812- )AGL10,GGL15
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-48200 |
GGL15 |
1 | ||
| 77251-48200 |
GGL15 |
1 | ||
| 77261 - TUBE SUB-ASSY, FUEL EMISSION | ||||
| 77261-48180 |
AGL10,GGL15 |
1 | ||
| 77261-48180 |
AGL10,GGL15 |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 77285-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-48040 |
AGL10,GGL15 |
1 | ||
| 77286-48040 |
AGL10,GGL15 |
1 | ||
| 77295C - GROMMET, FUEL TUBE | ||||
| 77295-42030 |
AGL10,GGL15 |
1 | ||
| 77295-42030 |
AGL10,GGL15 |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48020 |
AGL10,GGL15 |
4 | ||
| 77298-48020 |
AGL10,GGL15 |
4 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48040 |
AGL10,GGL15,GYL1# |
1 | ||
| 77298-48040 |
AGL10,GGL15,GYL1# |
1 | ||
| 77298C - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-68030 |
AGL10,GGL15 |
1 | ||
| 77298-68030 |
AGL10,GGL15 |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48020 |
AGL10,GGL15 |
1 | ||
| 77299-48020 |
AGL10,GGL15 |
1 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 77411-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 77411C - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-48040 |
AGL10,GGL15 |
1 | ||
| 77411-48041 |
AGL10,GGL15 |
1 | ||
| Common parts | ||||
| 91626-A0620 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
ILLUST NO. 2 OF 3(0812- )AGL10,GGL15
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77030A - LOCK ASSY, FUEL LID W/MOTOR | ||||
| 77030-48050 |
AGL10,GGL15,GYL1# |
1 | ||
| 77030-48050 |
AGL10,GGL15,GYL1# |
1 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
AGL10,GGL15,GYL1# |
2 | ||
| 90469-06005 |
AGL10,GGL15,GYL1# |
2 | ||
| 77035A - CLAMP (FOR FUEL LID LOCK CONTROL CABLE) | ||||
| 90469-06005 |
AGL10,GGL15,GYL1# |
2 | ||
| 90469-06005 |
AGL10,GGL15,GYL1# |
2 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-48090 |
AGL10,GGL15,GYL1# |
1 | ||
| 77350-48090 |
AGL10,GGL15,GYL1# |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77366-48030 |
AGL10,GGL15,GYL1# |
1 | ||
| 77366-48030 |
AGL10,GGL15,GYL1# |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-12060 |
AGL10,GGL15,GYL1# |
1 | ||
| 77377-12060 |
AGL10,GGL15,GYL1# |
1 | ||
| 77519 - SPACER, FUEL TANK BRACKET | ||||
| 77529-48010 |
AGL10,GGL15 |
3 | ||
| 77529-48010 |
AGL10,GGL15 |
3 | ||
| 77601B - BAND SUB-ASSY, FUEL TANK, NO.1 RH | ||||
| 77601-48080 |
AGL10,GGL15..EUR |
1 | ||
| 77601-48080 |
AGL10,GGL15 |
1 | ||
| 77601-48190 |
AGL10,GGL15..EUR |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-48170 |
AGL10,GGL15..EUR |
1 | ||
| 77602-48070 |
AGL10,GGL15..EUR |
1 | ||
| 77602-48070 |
AGL10,GGL15 |
1 | ||
| 77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77606-48110 |
AGL10,GGL15 |
1 | ||
| 77606-48110 |
AGL10,GGL15 |
1 | ||
| 77651A - CUSHION, FUEL TANK, NO.1 | ||||
| 77651-12070 |
AGL10,GGL15,GYL1# |
3 | ||
| 77651-12070 |
AGL10,GGL15,GYL1# |
3 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-48020 |
AGL10,GGL15 |
1 | ||
| 77652-48020 |
AGL10,GGL15 |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-48050 |
AGL10,GGL15 |
1 | ||
| 77681-48050 |
AGL10,GGL15 |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-48050 |
AGL10,GGL15 |
1 | ||
| 77682-48050 |
AGL10,GGL15 |
1 | ||
| Common parts | ||||
| 90119-10922 | ||||
| 90119-10971 | ||||
| 90179-06159 | ||||
| 90179-06168 | ||||
| 90269-06017 | ||||
| 91672-A1020 | ||||

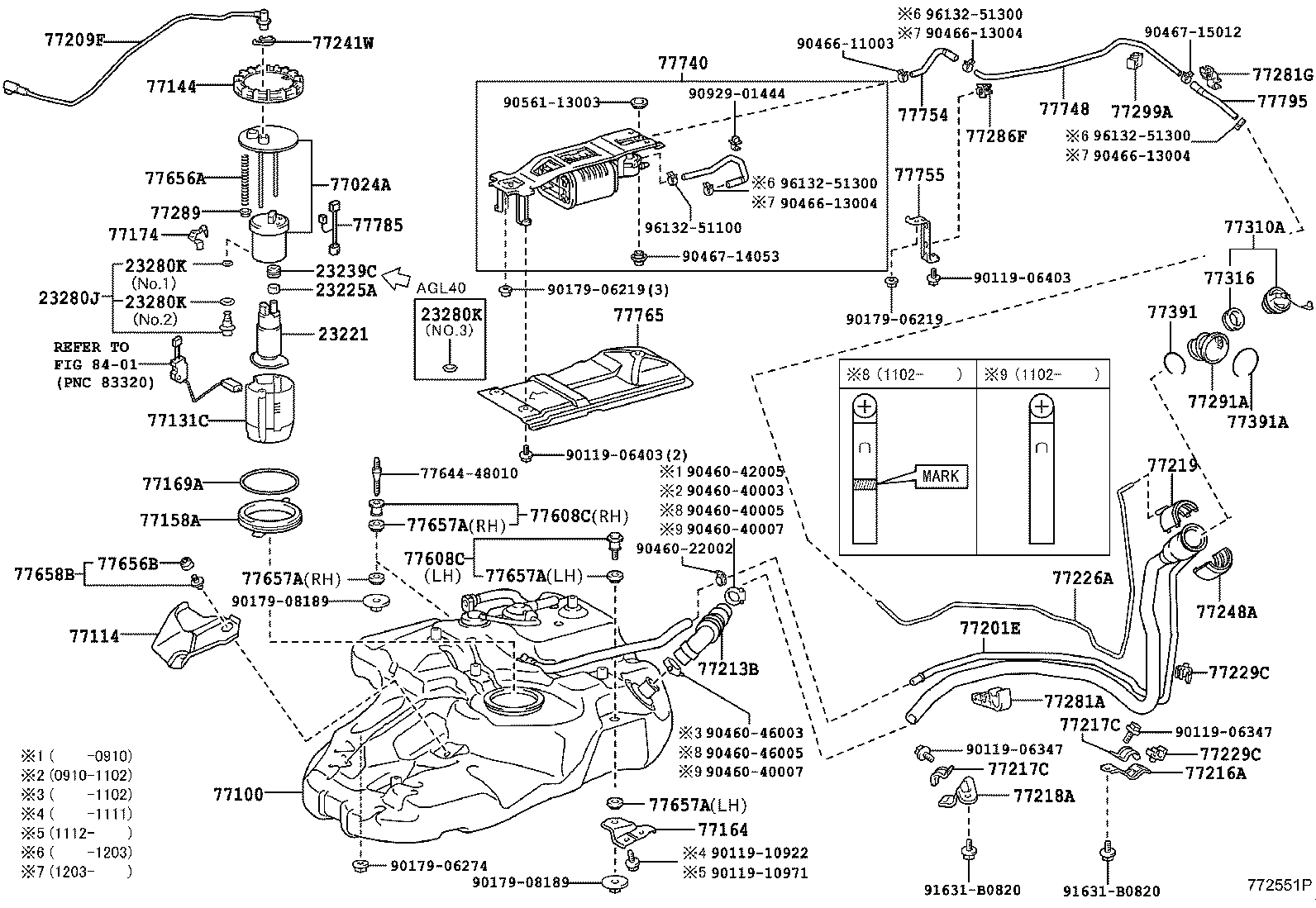

ILLUST NO. 1 OF 3(0812- )AGL10,GGL15
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23221 - PUMP, FUEL | ||||
| 23220-31380 |
2GRFE..GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC |
1 | ||
| 23220-31370 |
2GRFE..GGL15 |
1 | ||
| 23220-31370 |
2GRFE..GGL15 |
1 | ||
| 23220-31380 |
2GRFE..GGL15..LHD..EUR BEIJING SPEC |
1 | ||
| 23220-31380 |
2GRFE..GGL15..LHD..EUR BEIJING SPEC |
1 | ||
| 23220-31380 |
2GRFE..GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21010 |
2GR#..GGL15,GYL1# |
1 | ||
| 23225-21010 |
2GR#..GGL15,GYL1# |
1 | ||
| 23239C - SEAL, FUEL PUMP FILTER | ||||
| 23239-21010 |
2GR#..GGL15,GYL1# |
1 | ||
| 23239-21010 |
2GR#..GGL15,GYL1# |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-38020 |
2GRFE..GGL15 |
1 | ||
| 23280-38020 |
2GRFE..GGL15 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1ARFE,2GRFE..AGL10,GGL15 NO.2 |
1 | ||
| 90301-04013 |
1ARFE,2GRFE..AGL10,GGL15 NO.1 |
1 | ||
| 90301-04013 |
1ARFE,2GRFE..AGL10,GGL15 NO.1 |
1 | ||
| 90301-15024 |
1ARFE,2GRFE..AGL10,GGL15 NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1ARFE,2GRFE..AGL10,GGL15 NO.2 |
1 | ||
| 90301-04013 |
1ARFE,2GRFE..AGL10,GGL15 NO.1 |
1 | ||
| 90301-04013 |
1ARFE,2GRFE..AGL10,GGL15 NO.1 |
1 | ||
| 90301-15024 |
1ARFE,2GRFE..AGL10,GGL15 NO.2 |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-15024 |
1ARFE,2GRFE..AGL10,GGL15 NO.2 |
1 | ||
| 90301-04013 |
1ARFE,2GRFE..AGL10,GGL15 NO.1 |
1 | ||
| 90301-04013 |
1ARFE,2GRFE..AGL10,GGL15 NO.1 |
1 | ||
| 90301-15024 |
1ARFE,2GRFE..AGL10,GGL15 NO.2 |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-48050 |
GGL15 |
1 | ||
| 77024-48050 |
GGL15 |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-48170 |
AGL10,GGL15 |
1 | ||
| 77001-48170 |
AGL10,GGL15 |
1 | ||
| 77114 - PLATE, FUEL TANK SIDE, REAR | ||||
| 77114-48020 |
AGL10,GGL15 |
1 | ||
| 77114-48020 |
AGL10,GGL15 |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-48032 |
AGL10,GGL15 |
1 | ||
| 77131-48032 |
AGL10,GGL15 |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-48020 |
AGL10,GGL15 |
1 | ||
| 77144-48020 |
AGL10,GGL15 |
1 | ||
| 77158A - SUPPORT, TANK SUCTION TUBE | ||||
| 77158-48020 |
AGL10,GGL15 |
1 | ||
| 77158-48020 |
AGL10,GGL15 |
1 | ||
| 77164 - BRACKET, FUEL TANK, REAR LH | ||||
| 77142-48010 |
AGL10,GGL15 |
1 | ||
| 77142-48010 |
AGL10,GGL15 |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-48040 |
GGL15 |
1 | ||
| 77169-48060 |
AGL10,GGL15 |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-48010 |
GGL15 |
1 | ||
| 77174-48010 |
GGL15 |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-48310 |
AGL10,GGL15..EUR |
1 | ||
| 77201-48250 |
AGL10,GGL15 |
1 | ||
| 77201-48250 |
AGL10,GGL15..EUR |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-48090 |
AGL10,GGL15 |
1 | ||
| 77209-48090 |
AGL10,GGL15 |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-48110 |
AGL10,GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC |
1 | ||
| 77213-48110 |
AGL10,GGL15 |
1 | ||
| 77213-48110 |
AGL10,GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC |
1 | ||
| 77213-48110 |
AGL10,GGL15 |
1 | ||
| 77213-48110 |
AGL10,GGL15..LHD..EUR BEIJING SPEC |
1 | ||
| 77213-48110 |
AGL10,GGL15..LHD..EUR BEIJING SPEC |
1 | ||
| 77216A - SUPPORT, FUEL TANK FILLER PIPE, NO.1 | ||||
| 77216-48060 |
AGL10,GGL15..EUR |
1 | ||
| 77216-48060 |
AGL10,GGL15 |
1 | ||
| 77216-48080 |
AGL10,GGL15..EUR |
1 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-48060 |
AGL10,GGL15..EUR |
2 | ||
| 77217-48060 |
AGL10,GGL15 |
2 | ||
| 77217-48080 |
AGL10,GGL15..EUR |
2 | ||
| 77217C - SUPPORT, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77217-48060 |
AGL10,GGL15..EUR |
2 | ||
| 77217-48060 |
AGL10,GGL15 |
2 | ||
| 77217-48080 |
AGL10,GGL15..EUR |
2 | ||
| 77218A - SUPPORT, FUEL TANK FILLER PIPE, NO.3 | ||||
| 77218-48110 |
AGL10,GGL15..EUR |
1 | ||
| 77218-48090 |
AGL10,GGL15..EUR |
1 | ||
| 77218-48090 |
AGL10,GGL15 |
1 | ||
| 77219 - COVER, FUEL TANK FILLER PIPE | ||||
| 77219-33040 |
AGL10,GGL15,GYL1# |
1 | ||
| 77219-33040 |
AGL10,GGL15,GYL1# |
1 | ||
| 77226A - TUBE, FUEL TANK BREATHER, NO.6 | ||||
| 77226-48100 |
AGL10,GGL15..EUR |
1 | ||
| 77226-48130 |
AGL10,GGL15..EUR |
1 | ||
| 77226-48100 |
AGL10,GGL15 |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48050 |
AGL10,GGL15,GYL1# |
2 | ||
| 77229-48050 |
AGL10,GGL15,GYL1# |
2 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48050 |
AGL10,GGL15,GYL1# |
2 | ||
| 77229-48050 |
AGL10,GGL15,GYL1# |
2 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
AGL10,GGL15,GYL1# |
1 | ||
| 77241-33011 |
AGL10,GGL15,GYL1# |
1 | ||
| 77248A - HOLDER, FUEL TANK FILLER PIPE COVER | ||||
| 77248-33040 |
AGL10,GGL15,GYL1# |
1 | ||
| 77248-33040 |
AGL10,GGL15,GYL1# |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-48090 |
AGL10,GGL15 |
1 | ||
| 77281-48090 |
AGL10,GGL15 |
1 | ||
| 77281G - CLAMP, FUEL HOSE | ||||
| 77281-48120 |
AGL10,GGL15 |
1 | ||
| 77281-48120 |
AGL10,GGL15 |
1 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-42060 |
AGL10,GGL15 |
1 | ||
| 77286-42060 |
AGL10,GGL15 |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52090 |
AGL10,GGL15 |
1 | ||
| 77289-52090 |
AGL10,GGL15 |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-48080 |
AGL10,GGL15,GYL1# |
1 | ||
| 77291-48080 |
AGL10,GGL15,GYL1# |
1 | ||
| 77299A - CLAMP, FUEL TUBE, NO.5 | ||||
| 77299-48020 |
AGL10,GGL15 |
1 | ||
| 77299-48020 |
AGL10,GGL15 |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-52030 |
AGL10,GGL15,GYL1# |
1 | ||
| 77300-52030 |
AGL10,GGL15,GYL1# |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
AGL10,GGL15,GYL1# |
1 | ||
| 77316-52040 |
AGL10,GGL15,GYL1# |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AGL10,GGL15,GYL1# |
1 | ||
| 77391-12020 |
AGL10,GGL15,GYL1# |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-30020 |
AGL10,GGL15,GYL1# |
1 | ||
| 77391-30020 |
AGL10,GGL15,GYL1# |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-48011 |
AGL10,GGL15 RH |
1 | ||
| 77608-48040 |
AGL10,GGL15 LH |
1 | ||
| 77608-48011 |
AGL10,GGL15 RH |
1 | ||
| 77608-48040 |
AGL10,GGL15 LH |
1 | ||
| 77608C - CUSHION SET, FUEL TANK | ||||
| 77608-48011 |
AGL10,GGL15 RH |
1 | ||
| 77608-48040 |
AGL10,GGL15 LH |
1 | ||
| 77608-48011 |
AGL10,GGL15 RH |
1 | ||
| 77608-48040 |
AGL10,GGL15 LH |
1 | ||
| 77656A - CUSHION, FUEL TANK, NO.4 | ||||
| 77652-48030 |
AGL10,GGL15 |
1 | ||
| 77652-48030 |
AGL10,GGL15 |
1 | ||
| 77656B - CUSHION, FUEL TANK, NO.6 | ||||
| 77656-48020 |
AGL10,GGL15 |
1 | ||
| 77656-48020 |
AGL10,GGL15 |
1 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48011 |
AGL10,GGL15 RH |
2 | ||
| 77655-48020 |
AGL10,GGL15 LH |
2 | ||
| 77655-48020 |
AGL10,GGL15 LH |
2 | ||
| 77655-48011 |
AGL10,GGL15 RH |
2 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48011 |
AGL10,GGL15 RH |
2 | ||
| 77655-48020 |
AGL10,GGL15 LH |
2 | ||
| 77655-48020 |
AGL10,GGL15 LH |
2 | ||
| 77655-48011 |
AGL10,GGL15 RH |
2 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48011 |
AGL10,GGL15 RH |
2 | ||
| 77655-48020 |
AGL10,GGL15 LH |
2 | ||
| 77655-48020 |
AGL10,GGL15 LH |
2 | ||
| 77655-48011 |
AGL10,GGL15 RH |
2 | ||
| 77657A - CUSHION, FUEL TANK, NO.5 | ||||
| 77655-48011 |
AGL10,GGL15 RH |
2 | ||
| 77655-48020 |
AGL10,GGL15 LH |
2 | ||
| 77655-48020 |
AGL10,GGL15 LH |
2 | ||
| 77655-48011 |
AGL10,GGL15 RH |
2 | ||
| 77658B - CUSHION, FUEL TANK, NO.6 | ||||
| 77651-48020 |
AGL10,GGL15 |
1 | ||
| 77651-48020 |
AGL10,GGL15 |
1 | ||
| 77740 - CANISTER ASSY, CHARCOAL | ||||
| 77740-48150 |
AGL10,GGL15 |
1 | ||
| 77740-48150 |
AGL10,GGL15 |
1 | ||
| 77748 - PIPE, CHARCOAL CANISTER, NO.2 | ||||
| 77748-48050 |
AGL10,GGL15 |
1 | ||
| 77748-48050 |
AGL10,GGL15 |
1 | ||
| 77754 - HOSE, CHARCOAL CANISTER OUTLET, NO.1 | ||||
| 77754-48080 |
AGL10,GGL15 |
1 | ||
| 77754-48080 |
AGL10,GGL15 |
1 | ||
| 77755 - BRACKET, CHARCOAL CANISTER OUTLET HOSE | ||||
| 77755-48030 |
AGL10,GGL15 |
1 | ||
| 77755-48030 |
AGL10,GGL15 |
1 | ||
| 77765 - PROTECTOR, CHARCOAL CANISTER | ||||
| 77765-48040 |
AGL10,GGL15 |
1 | ||
| 77765-48050 |
AGL10,GGL15 |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-48030 |
GGL15 |
1 | ||
| 77785-48030 |
GGL15 |
1 | ||
| 77795 - HOSE, CHARCOAL CANISTER OUTLET, NO.2 | ||||
| 77795-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 77795-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| Common parts | ||||
| 77644-48010 | ||||
| 90119-06347 | ||||
| 90119-06403 | ||||
| 90119-10922 | ||||
| 90119-10971 | ||||
| 90179-06219 | ||||
| 90179-06274 | ||||
| 90179-08189 | ||||
| 90460-22002 | ||||
| 90460-40003 | ||||
| 90460-40005 | ||||
| 90460-40007 | ||||
| 90460-42005 | ||||
| 90460-46003 | ||||
| 90460-46005 | ||||
| 90466-11003 | ||||
| 90466-13004 | ||||
| 90467-14053 | ||||
| 90467-15012 | ||||
| 90561-13003 | ||||
| 90929-01444 | ||||
| 91631-B0820 | ||||
| 96132-51100 | ||||
| 96132-51300 | ||||
| Linked diagrams | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
