GGL15L-AWTGKW (2012)

Toyota Lexus Rx270/350/450h

Production Mar 2012 - Sep 2015
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1203- )AGL10,GGL15..LHD

Click highlighted areas on diagram

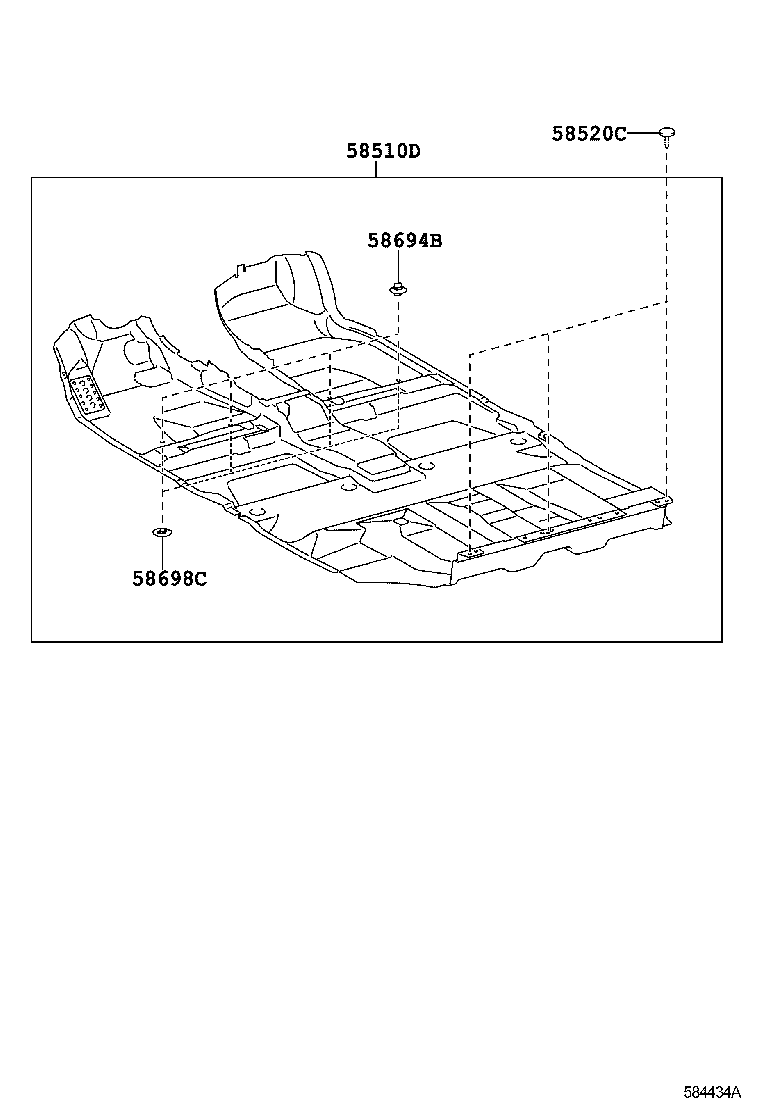

diagram 58510D 58520C 58694B 58698C
Part # Description Qty Price
58510D - CARPET ASSY, FLOOR, FRONT
58510-48270B0

AGL10,GGL15..LHD

LT.GRAY,TRIM1#

 1
58510-48271B0

GGL15..LHD..EUR

LT.GRAY,TRIM10

 1
58510-48271C0

GGL15..LHD..EUR

BLACK,TRIM11,2#,3#,4#

 1
58510-48270C0

AGL10,GGL15..LHD

BLACK,TRIM2#

 1
58510-48270A0

AGL10,GGL15..LHD

IVORY,TRIM0#

 1
58510-48380C0

GGL15..LHD..EUR

ACCELERATOR PEDAL-ALUMINUM TYPE,BLACK,TRIM1#,2#,3#,4#

 1
58510-48272B0

GGL15..LHD..EUR

LT.GRAY,TRIM10

 1
58510-48272C0

GGL15..LHD..EUR

BLACK,TRIM11,2#,3#,4#

 1
58510-48271A0

AGL10,GGL15..LHD

IVORY,TRIM0#

 1
58510-48381C0

GGL15..LHD..EUR

ACCELERATOR PEDAL-ALUMINUM TYPE,BLACK,TRIM1#,2#,3#,4#

 1
58510-48272A0

AGL10,GGL15..LHD

IVORY,TRIM0#

 1
58520C - CLIP(FOR FRONT FLOOR CARPET)
90467-07049C0

AGL10,GGL15,GYL1#

BLACK

 3
90467-07049C0

AGL10,GGL15,GYL1#

BLACK

 3
58694B - PLATE, MAT SET, UPPER
58694-76010

AGL10,GGL15,GYL1#

 4
58698C - PLATE, MAT SET, LOWER
58698-76010

AGL10,GGL15,GYL1#

 4
