GGL15L-AWTGKW (2012)
Toyota Lexus Rx270/350/450h

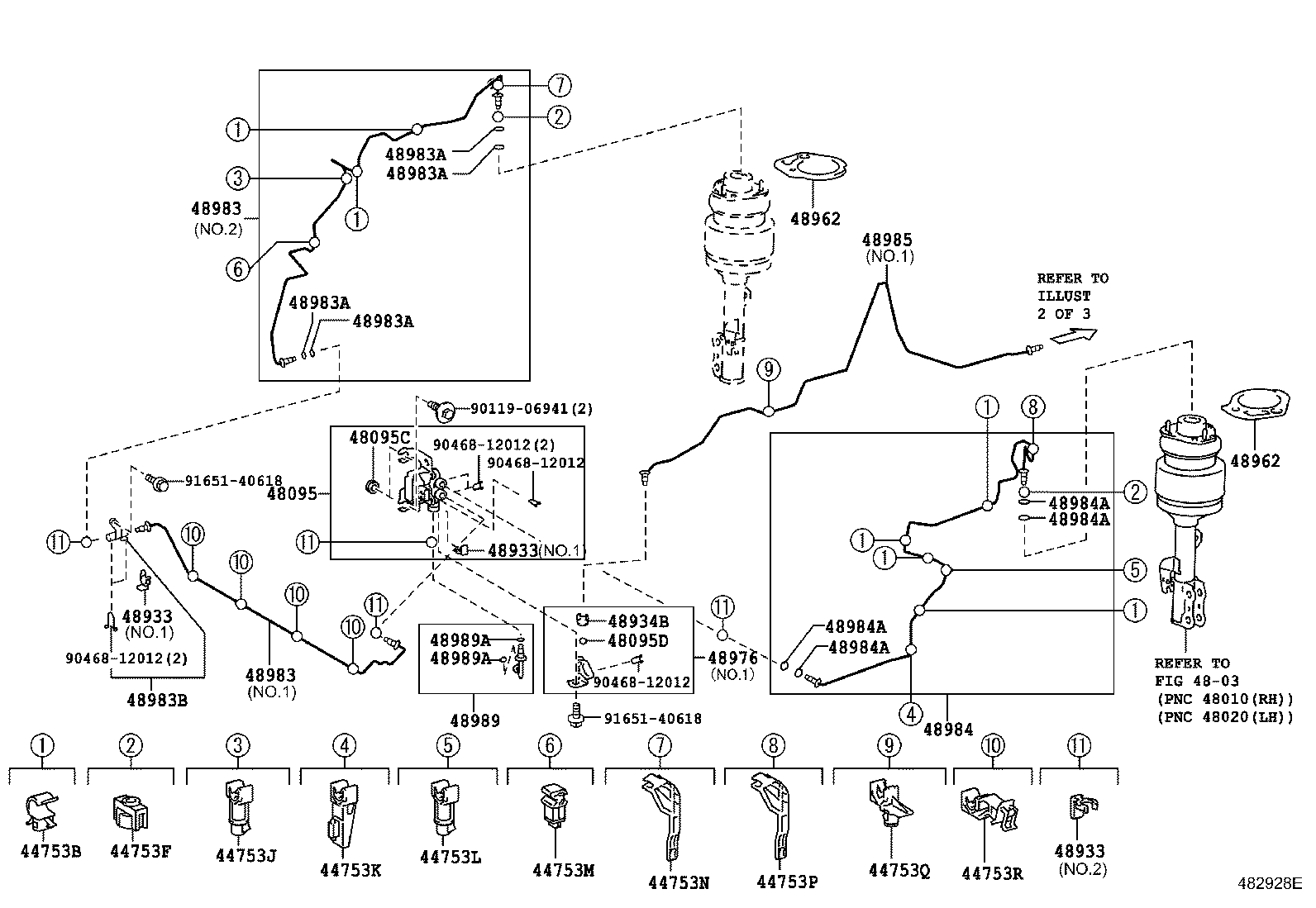

ILLUST NO. 1 OF 3(0812- )GGL15 ; (0812- )GYL15..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44753B - CLAMP, HEIGHT CONTROL TUBE, NO.1 | ||||
| 44753-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
9 | ||
| 44753-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
9 | ||
| 44753F - CLAMP, HEIGHT CONTROL TUBE, NO.4 | ||||
| 44753-48090 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 44753-48090 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 44753J - CLAMP, HEIGHT CONTROL TUBE NO.7 | ||||
| 44753-48140 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48140 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753K - CLAMP, HEIGHT CONTROL TUBE NO.8 | ||||
| 44753-48170 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48170 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753L - CLAMP, HEIGHT CONTROL TUBE NO.9 | ||||
| 44753-48180 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48180 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753M - CLAMP, HEIGHT CONTROL TUBE NO.10 | ||||
| 44753-48230 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48230 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753N - CLAMP, HEIGHT CONTROL TUBE NO.11 | ||||
| 44753-48240 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48240 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753P - CLAMP, HEIGHT CONTROL TUBE NO.12 | ||||
| 44753-48250 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48250 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753Q - CLAMP, HEIGHT CONTROL TUBE NO.13 | ||||
| 44753-48260 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48260 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753R - CLAMP, HEIGHT CONTROL TUBE NO.14 | ||||
| 44753-48270 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 44753-48270 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 48095 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.1 | ||||
| 48095-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48095-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48095C - BUSH(FOR HEIGHT CONTROL VALVE NO.1) | ||||
| 90385-09010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90385-09010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48933-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48933-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48933-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48962 - CUSHION, HEIGT CONTROL TUBE COVER | ||||
| 48962-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48962-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48962 - CUSHION, HEIGT CONTROL TUBE COVER | ||||
| 48962-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48962-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48976 - WAY, HEIGHT CONTROL | ||||
| 48976-48070 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48976-48050 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48976-48080 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.4 |
1 | ||
| 48976-48070 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48976-48050 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48976-48060 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48976-48060 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48976-48080 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.4 |
1 | ||
| 48983 - TUBE, HEIGHT CONTROL, NO.3 | ||||
| 48983-48030 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48983-48040 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48983-48040 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48983-48030 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48983 - TUBE, HEIGHT CONTROL, NO.3 | ||||
| 48983-48030 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48983-48040 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48983-48040 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48983-48030 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48983A - RING, O(FOR HEIGHT CONTROL TUBE NO.3) | ||||
| 90301-04004 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 90301-04004 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 48983A - RING, O(FOR HEIGHT CONTROL TUBE NO.3) | ||||
| 90301-04004 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 90301-04004 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 48983A - RING, O(FOR HEIGHT CONTROL TUBE NO.3) | ||||
| 90301-04004 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 90301-04004 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 48983A - RING, O(FOR HEIGHT CONTROL TUBE NO.3) | ||||
| 90301-04004 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 90301-04004 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 48983B - WAY, NO.3(FOR FRONT HEIGHT CONTROL TUBE) | ||||
| 48976-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48976-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48984 - TUBE, HEIGHT CONTROL, NO.4 | ||||
| 48984-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48984-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48984A - RING, O(FOR HEIGHT CONTROL TUBE NO.4) | ||||
| 90301-04004 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 90301-04004 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 48984A - RING, O(FOR HEIGHT CONTROL TUBE NO.4) | ||||
| 90301-04004 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 90301-04004 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 48984A - RING, O(FOR HEIGHT CONTROL TUBE NO.4) | ||||
| 90301-04004 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 90301-04004 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 48984A - RING, O(FOR HEIGHT CONTROL TUBE NO.4) | ||||
| 90301-04004 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 90301-04004 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
4 | ||
| 48985 - TUBE, HEIGHT CONTROL, NO.5 | ||||
| 48985-48040 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48985-48050 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48985-48040 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48985-48050 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48989 - TUBE, HEIGHT CONTROL, NO.9 | ||||
| 48989-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48989-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48989A - RING, O(FOR HEIGHT CONTROL TUBE NO.9) | ||||
| 90301-04006 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90301-04006 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48989A - RING, O(FOR HEIGHT CONTROL TUBE NO.9) | ||||
| 90301-04006 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90301-04006 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| Common parts | ||||
| 90119-06941 | ||||
| 90468-12012 | ||||
| 91651-40618 | ||||
| Linked diagrams | ||||
| 4803 | ||||
ILLUST NO. 3 OF 3(0812- )GGL15 ; (0812- )GYL15..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44753U - CLAMP, HEIGHT CONTROL TUBE NO.17 | ||||
| 44753-48030 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48030 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753V - CLAMP, HEIGHT CONTROL TUBE NO.18 | ||||
| 44753-48040 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48040 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753W - CLAMP, HEIGHT CONTROL TUBE NO.19 | ||||
| 44753-30150 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-30150 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753X - CLAMP, HEIGHT CONTROL TUBE NO.20 | ||||
| 44753-48230 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48230 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753Y - CLAMP, HEIGHT CONTROL TUBE NO.21 | ||||
| 44753-48300 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
3 | ||
| 44753-48300 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
3 | ||
| 44753Y - CLAMP, HEIGHT CONTROL TUBE NO.21 | ||||
| 44753-48300 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
3 | ||
| 44753-48300 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
3 | ||
| 44753Y - CLAMP, HEIGHT CONTROL TUBE NO.21 | ||||
| 44753-48300 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
3 | ||
| 44753-48300 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
3 | ||
| 47256 - GROMMET, CAP | ||||
| 47256-48040 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 47256-48040 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48097A - BUSH(FOR HEIGHT CONTROL VALVE SUB-ASSY NO.3) | ||||
| 90389-06054 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90389-06054 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48097B - CUSHION(FOR HEIGHT CONTROL VALVE SUB-ASSY NO.3) | ||||
| 90541-07039 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90541-07039 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48910B - COMPRESSOR ASSY, HEIGHT CONTROL | ||||
| 48910-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48910-48021 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48910-48022 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48910D - BUSH, NO.2(FOR HEIGHT CONTROL COMPRESSOR) | ||||
| 90389-06033 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
3 | ||
| 90389-06033 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
3 | ||
| 48911 - BRACKET, HEIGHT CONTROL COMPRESSOR | ||||
| 48911-48030 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48911-48040 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48911-48040 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48911-48030 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48911 - BRACKET, HEIGHT CONTROL COMPRESSOR | ||||
| 48911-48030 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48911-48040 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48911-48040 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48911-48030 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48925 - FILTER, HEIGHT CONTROL | ||||
| 48925-60050 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48925-60050 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48933-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48933-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48933-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48943 - HOSE, HEIGHT CONTROL, NO.1 | ||||
| 48943-48030 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48943-48030 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48943B - HOSE, HEIGHT CONTROL, NO.2 | ||||
| 48943-48040 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48943-48040 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48957 - CAP, HEIGHT CONTROL COMPRESSOR | ||||
| 48957-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48957-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48965F - CLIP, HEIGHT CONTROL AIR HOSE | ||||
| 48965-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48965-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48980C - HARNESS ASSY, HEIGHT CONTROL VALVE | ||||
| 48980-48070 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48980-48070 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48980-48050 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48980-48050 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48980-48060 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48980-48071 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48980-48060 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48980C - HARNESS ASSY, HEIGHT CONTROL VALVE | ||||
| 48980-48070 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48980-48070 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48980-48050 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48980-48050 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48980-48060 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48980-48071 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48980-48060 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48980C - HARNESS ASSY, HEIGHT CONTROL VALVE | ||||
| 48980-48070 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48980-48070 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48980-48050 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48980-48050 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48980-48060 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48980-48071 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48980-48060 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48981 - TUBE, HEIGHT CONTROL, NO.1 | ||||
| 48981-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48981-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48981B - RING, O(FOR HEIGHT CONTROL TUBE NO.1) | ||||
| 90301-04004 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90301-04004 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48981B - RING, O(FOR HEIGHT CONTROL TUBE NO.1) | ||||
| 90301-04004 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90301-04004 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48982 - TUBE, HEIGHT CONTROL, NO.2 | ||||
| 48982-48030 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48982-48040 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48982-48040 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48982-48030 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04004 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90301-04004 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48982A - RING, O(FOR HEIGHT CONTROL TUBE NO.2) | ||||
| 90301-04004 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90301-04004 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48990 - TANK ASSY, PNEUMATIC W/TUBE | ||||
| 48990-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48990-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48990-48021 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48990B - NUT(FOR PNEUMATIC TANK ASSY) | ||||
| 90179-06169 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90179-06169 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48990C - CLIP(FOR PNEUMATIC TANK ASSY) | ||||
| 90468-12012 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90468-12012 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48990C - CLIP(FOR PNEUMATIC TANK ASSY) | ||||
| 90468-12012 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90468-12012 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| Common parts | ||||
| 82711-52010 | ||||
| 90119-06368 | ||||
| 90119-06813 | ||||
| 90119-08C49 | ||||
| 90179-08057 | ||||
| 90179-08233 | ||||
| 90301-04011 | ||||
| 90468-12012 | ||||
| 91641-H0820 | ||||
| 91673-80820 | ||||
| 96132-51300 | ||||
ILLUST NO. 2 OF 3(0812- )GGL15 ; (0812- )GYL15..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44753B - CLAMP, HEIGHT CONTROL TUBE, NO.1 | ||||
| 44753-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
9 | ||
| 44753-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
9 | ||
| 44753G - CLAMP, HEIGHT CONTROL TUBE NO.5 | ||||
| 44753-48100 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
5 | ||
| 44753-48100 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
5 | ||
| 44753H - CLAMP, HEIGHT CONTROL TUBE NO.6 | ||||
| 44753-48110 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48110 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753S - CLAMP, HEIGHT CONTROL TUBE NO.15 | ||||
| 44753-48280 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48280 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753T - CLAMP, HEIGHT CONTROL TUBE NO.16 | ||||
| 44753-48290 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 44753-48290 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48095D - RING, O(FOR HEIGHT CONTROL VALVE) | ||||
| 90301-04011 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 90301-04011 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
13 | ||
| 48096 - VALVE SUB-ASSY, HEIGHT CONTROL, NO.2 | ||||
| 48096-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48096-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48096A - BUSH, NO.2(FOR HEIGHT CONTROL VALVE) | ||||
| 48912-30020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48912-30020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48096B - CUSHION, NO.2(FOR HEIGHT CONTROL VALVE) | ||||
| 90541-05023 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 90541-05023 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48932A - PLATE, HEIGHT CONTROL TUBE | ||||
| 48932-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48932-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48932A - PLATE, HEIGHT CONTROL TUBE | ||||
| 48932-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48932-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
2 | ||
| 48933 - HOLDER, AIR CONNECTOR CLIP | ||||
| 48933-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48933-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
5 | ||
| 48933-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
5 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934B - CONNECTOR, HEIGHT CONTROL TUBE | ||||
| 48934-30010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48934-30010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
11 | ||
| 48976 - WAY, HEIGHT CONTROL | ||||
| 48976-48070 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48976-48050 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48976-48080 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.4 |
1 | ||
| 48976-48070 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48976-48050 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48976-48060 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48976-48060 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48976-48080 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.4 |
1 | ||
| 48976 - WAY, HEIGHT CONTROL | ||||
| 48976-48070 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48976-48050 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48976-48080 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.4 |
1 | ||
| 48976-48070 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48976-48050 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48976-48060 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48976-48060 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48976-48080 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.4 |
1 | ||
| 48976 - WAY, HEIGHT CONTROL | ||||
| 48976-48070 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48976-48050 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48976-48080 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.4 |
1 | ||
| 48976-48070 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.3 |
1 | ||
| 48976-48050 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48976-48060 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48976-48060 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48976-48080 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.4 |
1 | ||
| 48982 - TUBE, HEIGHT CONTROL, NO.2 | ||||
| 48982-48030 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48982-48040 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48982-48040 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48982-48030 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48985 - TUBE, HEIGHT CONTROL, NO.5 | ||||
| 48985-48040 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48985-48050 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48985-48040 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48985-48050 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48986 - TUBE, HEIGHT CONTROL, NO.6 | ||||
| 48986-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48986-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48987 - TUBE, HEIGHT CONTROL, NO.7 | ||||
| 48987-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48987-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48987-48030 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48988 - TUBE, HEIGHT CONTROL, NO.8 | ||||
| 48988-48030 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48988-48020 |
GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48988-48030 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48988-48020 |
GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48988 - TUBE, HEIGHT CONTROL, NO.8 | ||||
| 48988-48030 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48988-48020 |
GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| 48988-48030 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.2 |
1 | ||
| 48988-48020 |
GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION,NO.1 |
1 | ||
| Common parts | ||||
| 90179-06250 | ||||
| 90179-06264 | ||||
| 90468-12012 | ||||
| 90480-01555 | ||||
| 91651-40618 | ||||
| Linked diagrams | ||||
| 4804 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
