GGL15L-AWTGKW (2012)
Toyota Lexus Rx270/350/450h
(0812- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-48660 |
GGL15 |
1 | ||
| 48131-48660 |
GGL15 |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48132-48040 |
GGL15 |
1 | ||
| 48132-48040 |
GGL15 |
1 | ||
| 48157B - INSULATOR, FRONT COIL SPRING, UPPER RH | ||||
| 48157-48030 |
AGL10,GGL15,GYL1# |
1 | ||
| 48157-48030 |
AGL10,GGL15,GYL1# |
1 | ||
| 48157C - INSULATOR, FRONT COIL SPRING, UPPER LH | ||||
| 48157-48030 |
AGL10,GGL15,GYL1# |
1 | ||
| 48157-48030 |
AGL10,GGL15,GYL1# |
1 | ||
| 48158B - INSULATOR, FRONT COIL SPRING, LOWER RH | ||||
| 48158-48060 |
AGL10,GGL15,GYL1# |
1 | ||
| 48158-48040 |
AGL10,GGL15,GYL1# |
1 | ||
| 48158-48040 |
AGL10,GGL15,GYL1# |
1 | ||
| 48158C - INSULATOR, FRONT COIL SPRING, LOWER LH | ||||
| 48158-48030 |
AGL10,GGL15,GYL1# |
1 | ||
| 48158-48070 |
AGL10,GGL15,GYL1# |
1 | ||
| 48158-48030 |
AGL10,GGL15,GYL1# |
1 | ||
| 48331B - BUMPER, FRONT SPRING, RH | ||||
| 48331-48050 |
AGL10,GGL15,GYL1# |
1 | ||
| 48331-48050 |
AGL10,GGL15,GYL1# |
1 | ||
| 48331C - BUMPER, FRONT SPRING, LH | ||||
| 48331-48050 |
AGL10,GGL15,GYL1# |
1 | ||
| 48331-48050 |
AGL10,GGL15,GYL1# |
1 | ||
| 48471B - SEAT, FRONT COIL SPRING, UPPER RH | ||||
| 48471-41012 |
AGL10,GGL15,GYL1# |
1 | ||
| 48471-41012 |
AGL10,GGL15,GYL1# |
1 | ||
| 48471C - SEAT, FRONT COIL SPRING, UPPER LH | ||||
| 48471-41012 |
AGL10,GGL15,GYL1# |
1 | ||
| 48471-41012 |
AGL10,GGL15,GYL1# |
1 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-80467 |
GGL15..LHD..EUR MARK 48510-48270,BRAZIL SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80467 |
GGL15..LHD..EUR MARK 48510-48270,ISRAEL SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80467 |
GGL15..LHD..EUR MARK 48510-48270,TURKEY SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80467 |
GGL15..LHD..EUR MARK 48510-48270,ARGENTINA SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80471 |
AGL10,GGL15..EUR MARK 48510-48300 |
1 | ||
| 48510-80467 |
GGL15..LHD..EUR MARK 48510-48270,TAIWAN SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80467 |
GGL15..LHD..EUR MARK 48510-48270,PHILIPPINE SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80467 |
GGL15..LHD..EUR MARK 48510-48270,BEIJING SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80467 |
GGL15..LHD..EUR MARK 48510-48270,CHILE SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80467 |
GGL15..LHD..EUR MARK 48510-48270,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80580 |
GGL15..LHD..EUR MARK 48510-48271,PHILIPPINE SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80577 |
AGL10,GGL15..EUR MARK 48510-48350 |
1 | ||
| 48510-80580 |
GGL15..LHD..EUR MARK 48510-48271,TAIWAN SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80580 |
GGL15..LHD..EUR MARK 48510-48271,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80580 |
GGL15..LHD..EUR MARK 48510-48271,BEIJING SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80580 |
GGL15..LHD..EUR MARK 48510-48271,BRAZIL SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48510-80580 |
GGL15..LHD..EUR MARK 48510-48271,CHILE SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-80208 |
GGL15..LHD..EUR MARK 48520-48270,TURKEY SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80208 |
GGL15..LHD..EUR MARK 48520-48270,BRAZIL SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80211 |
AGL10,GGL15..EUR MARK 48520-48300 |
1 | ||
| 48520-80208 |
GGL15..LHD..EUR MARK 48520-48270,ISRAEL SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80208 |
GGL15..LHD..EUR MARK 48520-48270,ARGENTINA SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80208 |
GGL15..LHD..EUR MARK 48520-48270,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80208 |
GGL15..LHD..EUR MARK 48520-48270,TAIWAN SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80208 |
GGL15..LHD..EUR MARK 48520-48270,BEIJING SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80208 |
GGL15..LHD..EUR MARK 48520-48270,CHILE SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80208 |
GGL15..LHD..EUR MARK 48520-48270,PHILIPPINE SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80297 |
AGL10,GGL15..EUR MARK 48520-48350 |
1 | ||
| 48520-80300 |
GGL15..LHD..EUR MARK 48520-48271,TAIWAN SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80300 |
GGL15..LHD..EUR MARK 48520-48271,BRAZIL SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80300 |
GGL15..LHD..EUR MARK 48520-48271,PHILIPPINE SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80300 |
GGL15..LHD..EUR MARK 48520-48271,CHINA(EXCEPT BEIJING) SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80300 |
GGL15..LHD..EUR MARK 48520-48271,BEIJING SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48520-80300 |
GGL15..LHD..EUR MARK 48520-48271,CHILE SPEC&SUSPENSION-COIL SPRING |
1 | ||
| 48603 - SUPPORT SUB-ASSY, FRONT SUSPENSION, RH | ||||
| 48609-48060 |
AGL10,GGL15,GYL1# |
1 | ||
| 48609-48060 |
AGL10,GGL15,GYL1# |
1 | ||
| 48603B - BEARING(FOR FRONT SUSPENSION SUPPORT RH) | ||||
| 90903-63014 |
AGL10,GGL15,GYL1# |
1 | ||
| 90903-63014 |
AGL10,GGL15,GYL1# |
1 | ||
| 48609 - SUPPORT SUB-ASSY, FRONT SUSPENSION, LH | ||||
| 48609-48060 |
AGL10,GGL15,GYL1# |
1 | ||
| 48609-48060 |
AGL10,GGL15,GYL1# |
1 | ||
| 48609C - BEARING(FOR FRONT SUSPENSION SUPPORT LH) | ||||
| 90903-63014 |
AGL10,GGL15,GYL1# |
1 | ||
| 90903-63014 |
AGL10,GGL15,GYL1# |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-28050 |
AGL10,GGL15,GYL1# |
1 | ||
| 48820-28050 |
AGL10,GGL15,GYL1# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-48130 |
GGL15 |
1 | ||
| 48811-48130 |
GGL15 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-48070 |
AGL10,GGL15,GYL1# |
2 | ||
| 48815-48070 |
AGL10,GGL15,GYL1# |
2 | ||
| 48815-48070 |
AGL10,GGL15,GYL1# |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
AGL10,GGL15,GYL1# |
4 | ||
| 90179-12151 |
AGL10,GGL15,GYL1# |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
AGL10,GGL15,GYL1# |
4 | ||
| 90179-12151 |
AGL10,GGL15,GYL1# |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-28050 |
AGL10,GGL15,GYL1# |
1 | ||
| 48820-28050 |
AGL10,GGL15,GYL1# |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 48824-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 48827-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 48827-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 48824-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| Common parts | ||||
| 90119-08D06 | ||||
| 90178-10005 | ||||
| 90178-10015 | ||||
| 90179-14015 | ||||
| Linked diagrams | ||||
| 4802 | ||||

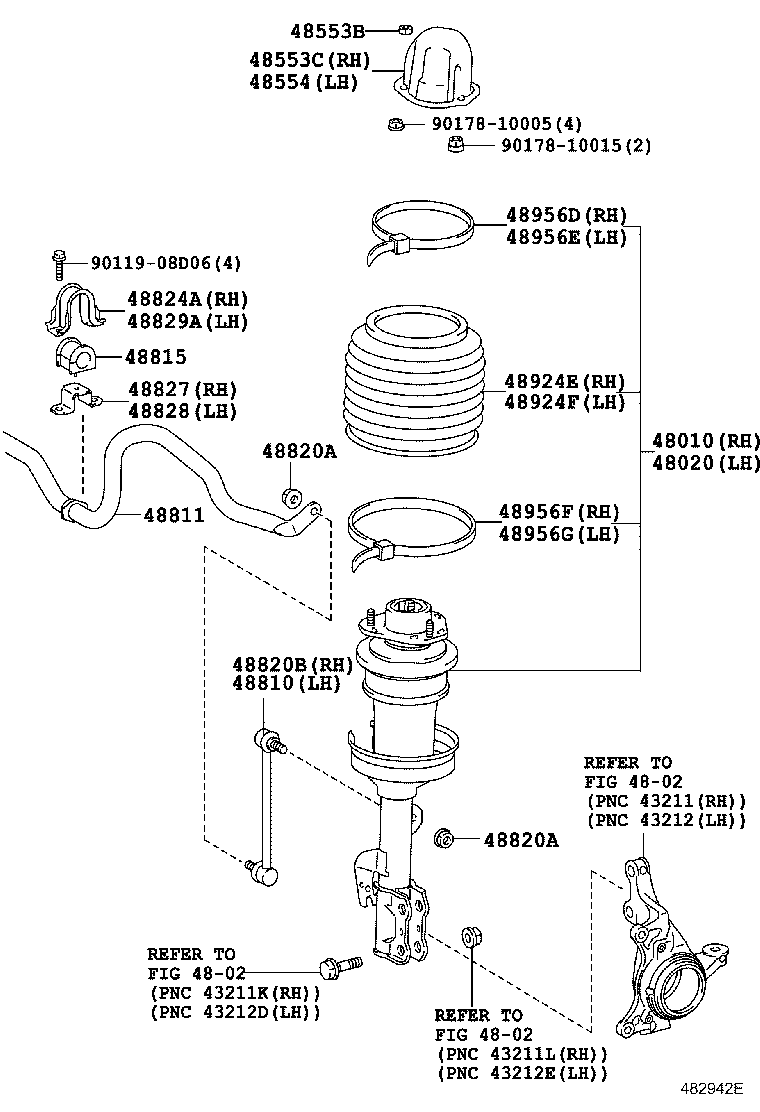

(0812- )GGL15 ; (0812- )GYL15..EUR
W(AIR SUSPENSION)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48010 - CYLINDER ASSY, PNEUMATIC, FRONT RH W/SHOCK ABSORBER | ||||
| 48010-48070 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48010-48070 |
GGL15,GYL15..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48010-48070 |
GGL15,GYL15..LHD..EUR ISRAEL SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48010-48074 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48010-48074 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48010-48073 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48010-48073 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48010-48075 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48010-48075 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48020 - CYLINDER ASSY, PNEUMATIC, FRONT LH W/SHOCK ABSORBER | ||||
| 48020-48070 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48020-48070 |
GGL15,GYL15..LHD..EUR ISRAEL SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48020-48070 |
GGL15,GYL15..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48020-48073 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48020-48073 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48020-48075 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48020-48074 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48020-48074 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48020-48075 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48553B - NUT(FOR FRONT SHOCK ABSORBER CAP) | ||||
| 90170-10017 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
6 | ||
| 90170-10017 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
6 | ||
| 48553C - CAP, FRONT SHOCK ABSORBER, RH | ||||
| 48553-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48553-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48554 - CAP, FRONT SHOCK ABSORBER, LH | ||||
| 48554-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48554-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48810 - LINK ASSY, FRONT STABILIZER, LH | ||||
| 48820-28050 |
AGL10,GGL15,GYL1# |
1 | ||
| 48820-28050 |
AGL10,GGL15,GYL1# |
1 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-48130 |
GGL15 |
1 | ||
| 48811-48130 |
GGL15 |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-48070 |
AGL10,GGL15,GYL1# |
2 | ||
| 48815-48070 |
AGL10,GGL15,GYL1# |
2 | ||
| 48815-48070 |
AGL10,GGL15,GYL1# |
2 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
AGL10,GGL15,GYL1# |
4 | ||
| 90179-12151 |
AGL10,GGL15,GYL1# |
4 | ||
| 48820A - NUT(FOR FRONT STABILIZER LINK) | ||||
| 90179-12151 |
AGL10,GGL15,GYL1# |
4 | ||
| 90179-12151 |
AGL10,GGL15,GYL1# |
4 | ||
| 48820B - LINK ASSY, FRONT STABILIZER, RH | ||||
| 48820-28050 |
AGL10,GGL15,GYL1# |
1 | ||
| 48820-28050 |
AGL10,GGL15,GYL1# |
1 | ||
| 48824A - BRACKET, FRONT STABILIZER, NO.1 RH | ||||
| 48824-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 48824-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 48827 - BRACKET, FRONT STABILIZER, NO.2 RH | ||||
| 48827-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 48827-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 48828 - BRACKET, FRONT STABILIZER, NO.2 LH | ||||
| 48827-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 48827-48020 |
AGL10,GGL15,GYL1# |
1 | ||
| 48829A - BRACKET, FRONT STABILIZER, NO.1 LH | ||||
| 48824-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 48824-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 48924E - COVER, FRONT PNEUMATIC CYLINDER, INNER RH | ||||
| 48924-48050 |
GGL15,GYL15..LHD..EUR ISRAEL SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48924-48050 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48924-48050 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48924-48050 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48924-48050 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48924F - COVER, FRONT PNEUMATIC CYLINDER, INNER LH | ||||
| 48924-48050 |
GGL15,GYL15..LHD..EUR ISRAEL SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48924-48050 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48924-48050 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48924-48050 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48924-48050 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956D - BAND, FRONT PNEUMATIC CYLINDER COVER, UPPER RH | ||||
| 48956-48010 |
GGL15,GYL15..LHD..EUR ISRAEL SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48010 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48010 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956E - BAND, FRONT PNEUMATIC CYLINDER COVER, UPPER LH | ||||
| 48956-48010 |
GGL15,GYL15..LHD..EUR ISRAEL SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48010 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48010 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48010 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48010 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956F - BAND, FRONT PNEUMATIC CYLINDER COVER, LOWER RH | ||||
| 48956-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48020 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48020 |
GGL15,GYL15..LHD..EUR ISRAEL SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48020 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956G - BAND, FRONT PNEUMATIC CYLINDER COVER, LOWER LH | ||||
| 48956-48020 |
GYL15;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48020 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48020 |
GGL15,GYL15..LHD..EUR TAIWAN SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48020 |
GGL15,GYL15..LHD..EUR ISRAEL SPEC&SUSPENSION-AIR SUSPENTION |
1 | ||
| 48956-48020 |
GYL15..EUR;GGL15..LHD..EUR SUSPENSION-AIR SUSPENTION |
1 | ||
| Common parts | ||||
| 90119-08D06 | ||||
| 90178-10005 | ||||
| 90178-10015 | ||||
| Linked diagrams | ||||
| 4802 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
