GGL15L-AWTGKW (2012)
Toyota Lexus Rx270/350/450h

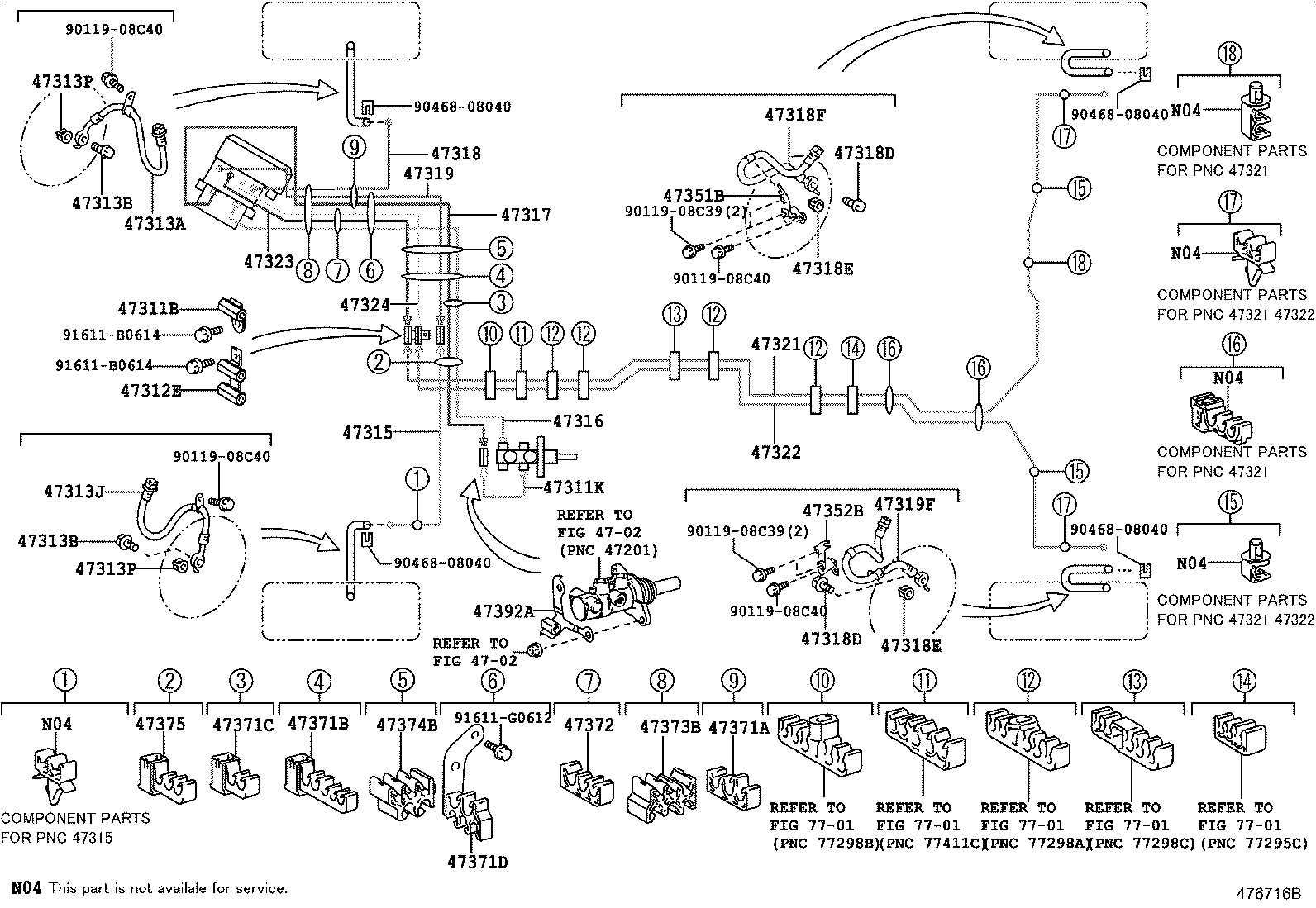

ILLUST NO. 1 OF 2(0812- )AGL10,GGL15..LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10213 |
AGL10,GGL15 |
1 | ||
| 90412-10213 |
AGL10,GGL15 |
1 | ||
| 47311K - TUBE, BRAKE MASTER CYLINDER TO WAY | ||||
| 47311-48040 |
AGL10,GGL15..LHD |
1 | ||
| 47311-48040 |
AGL10,GGL15..LHD |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90412-10246 |
AGL10,GGL15,GYL1# |
1 | ||
| 90412-10246 |
AGL10,GGL15,GYL1# |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02F79 |
AGL10,GGL15,GYL1# |
1 | ||
| 90947-02F79 |
AGL10,GGL15,GYL1# |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AGL10,GGL15,GYL1# |
2 | ||
| 90401-10058 |
AGL10,GGL15,GYL1# |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
AGL10,GGL15,GYL1# |
2 | ||
| 90401-10058 |
AGL10,GGL15,GYL1# |
2 | ||
| 47313J - HOSE, FLEXIBLE, NO.2(FOR FRONT) | ||||
| 90947-02F80 |
AGL10,GGL15,GYL1# |
1 | ||
| 90947-02F80 |
AGL10,GGL15,GYL1# |
1 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AGL10,GGL15,GYL1# |
2 | ||
| 47389-50020 |
AGL10,GGL15,GYL1# |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
AGL10,GGL15,GYL1# |
2 | ||
| 47389-50020 |
AGL10,GGL15,GYL1# |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-48190 |
AGL10,GGL15..LHD |
1 | ||
| 47315-48190 |
AGL10,GGL15..LHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-48270 |
AGL10,GGL15..LHD |
1 | ||
| 47316-48270 |
AGL10,GGL15..LHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-48270 |
AGL10,GGL15..LHD |
1 | ||
| 47317-48270 |
AGL10,GGL15..LHD |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-48170 |
AGL10,GGL15 |
1 | ||
| 47318-48170 |
AGL10,GGL15 |
1 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AGL10,GGL15,GYL1# |
2 | ||
| 90401-10058 |
AGL10,GGL15,GYL1# |
2 | ||
| 47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE) | ||||
| 90401-10058 |
AGL10,GGL15,GYL1# |
2 | ||
| 90401-10058 |
AGL10,GGL15,GYL1# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AGL10,GGL15,GYL1# |
2 | ||
| 47389-50020 |
AGL10,GGL15,GYL1# |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
AGL10,GGL15,GYL1# |
2 | ||
| 47389-50020 |
AGL10,GGL15,GYL1# |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02F78 |
AGL10,GGL15,GYL1# |
1 | ||
| 90947-02F78 |
AGL10,GGL15,GYL1# |
1 | ||
| 47319 - TUBE, FRONT BRAKE, NO.9 | ||||
| 47319-48250 |
AGL10,GGL15..LHD |
1 | ||
| 47319-48250 |
AGL10,GGL15..LHD |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02F78 |
AGL10,GGL15,GYL1# |
1 | ||
| 90947-02F78 |
AGL10,GGL15,GYL1# |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-48110 |
AGL10,GGL15 |
1 | ||
| 47321-48110 |
AGL10,GGL15 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-48120 |
AGL10,GGL15 |
1 | ||
| 47322-48120 |
AGL10,GGL15 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-48280 |
AGL10,GGL15..LHD |
1 | ||
| 47323-48280 |
AGL10,GGL15..LHD |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-48280 |
AGL10,GGL15..LHD |
1 | ||
| 47324-48280 |
AGL10,GGL15..LHD |
1 | ||
| 47351B - BRACKET, FLEXIBLE HOSE, NO.1 | ||||
| 47351-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 47351-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 47352B - BRACKET, FLEXIBLE HOSE, NO.2 | ||||
| 47352-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 47352-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00919 |
AGL10,GGL15 |
1 | ||
| 90464-00919 |
AGL10,GGL15 |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-01D51 |
AGL10,GGL15..LHD |
1 | ||
| 90949-01D51 |
AGL10,GGL15..LHD |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90949-01D49 |
AGL10,GGL15..LHD |
1 | ||
| 90949-01D49 |
AGL10,GGL15..LHD |
1 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-04045 |
AGL10,GGL15 |
1 | ||
| 90949-04045 |
AGL10,GGL15 |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90464-00894 |
AGL10,GGL15 |
1 | ||
| 90464-00894 |
AGL10,GGL15 |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D52 |
AGL10,GGL15 |
1 | ||
| 90949-01D52 |
AGL10,GGL15 |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D53 |
AGL10,GGL15..LHD |
1 | ||
| 90949-01D53 |
AGL10,GGL15..LHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-01D50 |
AGL10,GGL15..LHD |
1 | ||
| 90949-01D50 |
AGL10,GGL15..LHD |
1 | ||
| 47392A - WAY, BRAKE TUBE, NO.2 | ||||
| 47392-48010 |
AGL10,GGL15 |
1 | ||
| 47392-48010 |
GGL15 |
1 | ||
| Common parts | ||||
| 90119-08C39 | ||||
| 90119-08C40 | ||||
| 90468-08040 | ||||
| 91611-B0614 | ||||
| 91611-G0612 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7701 | ||||

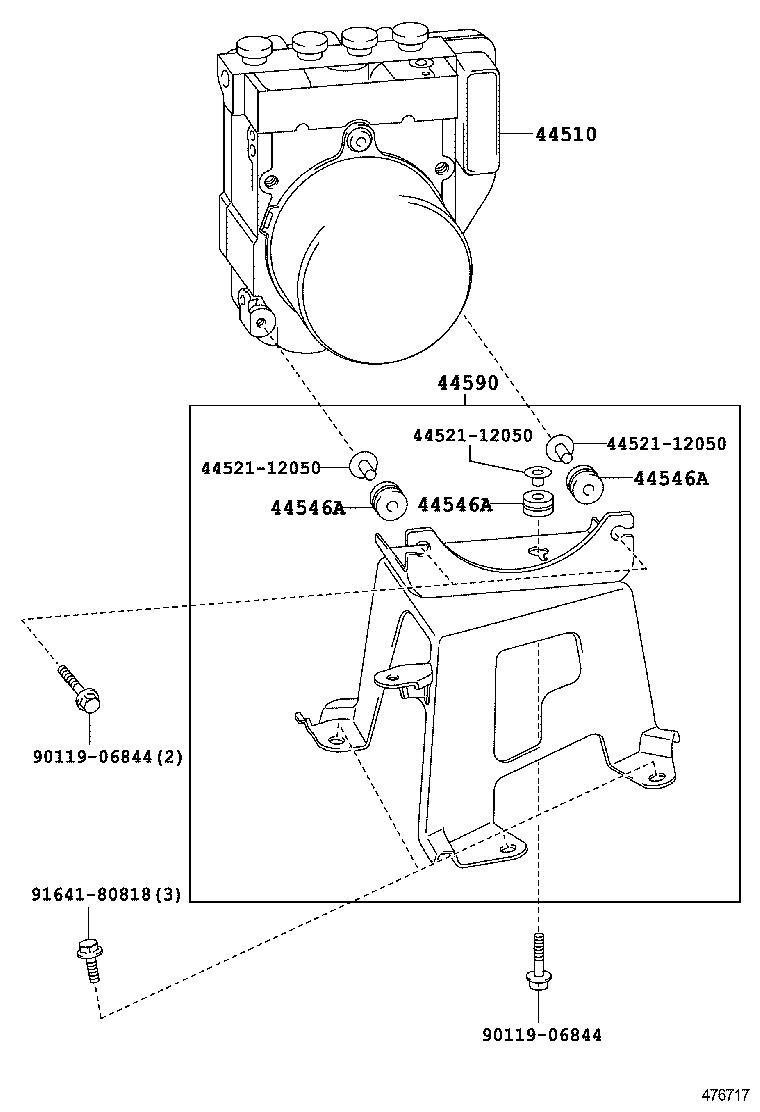

ILLUST NO. 2 OF 2(0812- )AGL10,GGL15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-48450 |
GGL15..LHD..EUR ISRAEL SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48450 |
GGL15..LHD..EUR TURKEY SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48450 |
GGL15..LHD..EUR BRAZIL SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48450 |
GGL15..LHD..EUR PHILIPPINE SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48450 |
GGL15..LHD..EUR TAIWAN SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48450 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48450 |
GGL15..LHD..EUR BEIJING SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48450 |
GGL15..LHD..EUR CHILE SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48460 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48450 |
GGL15..LHD..EUR ARGENTINA SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48460 |
GGL15..LHD..EUR TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48520 |
GGL15..LHD..EUR TURKEY SPEC |
1 | ||
| 44050-48520 |
GGL15..LHD..EUR BEIJING SPEC |
1 | ||
| 44050-48460 |
GGL15..LHD..EUR BEIJING SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48510 |
GGL15..EUR |
1 | ||
| 44050-48520 |
GGL15..LHD..EUR TAIWAN SPEC |
1 | ||
| 44050-48520 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC |
1 | ||
| 44050-48520 |
GGL15..LHD..EUR ISRAEL SPEC |
1 | ||
| 44050-48520 |
GGL15..LHD..EUR BRAZIL SPEC |
1 | ||
| 44050-48520 |
GGL15..LHD..EUR ARGENTINA SPEC |
1 | ||
| 44050-48520 |
GGL15..LHD..EUR CHILE SPEC |
1 | ||
| 44050-48520 |
GGL15..LHD..EUR PHILIPPINE SPEC |
1 | ||
| 44050-48432 |
GGL15..LHD..EUR PHILIPPINE SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48432 |
GGL15..LHD..EUR TAIWAN SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48432 |
GGL15..LHD..EUR BRAZIL SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48442 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT)&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48432 |
GGL15..LHD..EUR BEIJING SPEC&AERO BUMPER(FRONT)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48432 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48442 |
GGL15..LHD..EUR BEIJING SPEC&AERO BUMPER(FRONT)&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48432 |
GGL15..LHD..EUR CHILE SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48442 |
GGL15..LHD..EUR TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48502 |
GGL15..LHD..EUR TAIWAN SPEC |
1 | ||
| 44050-48502 |
GGL15..LHD..EUR BEIJING SPEC&AERO BUMPER(FRONT) |
1 | ||
| 44050-48502 |
GGL15..LHD..EUR BRAZIL SPEC |
1 | ||
| 44050-48502 |
GGL15..LHD..EUR PHILIPPINE SPEC |
1 | ||
| 44050-48502 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT) |
1 | ||
| 44050-48540 |
GGL15..LHD..EUR BRAZIL SPEC&F SPORT |
1 | ||
| 44050-48502 |
GGL15..LHD..EUR CHILE SPEC |
1 | ||
| 44050-48540 |
GGL15..LHD..EUR TAIWAN SPEC&F SPORT |
1 | ||
| 44050-48540 |
GGL15..LHD..EUR PHILIPPINE SPEC&F SPORT |
1 | ||
| 44050-48512 |
GGL15..EUR |
1 | ||
| 44050-48540 |
GGL15..LHD..EUR BEIJING SPEC&F SPORT |
1 | ||
| 44050-48540 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&F SPORT |
1 | ||
| 44050-48433 |
GGL15..LHD..EUR PHILIPPINE SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48433 |
GGL15..LHD..EUR CHILE SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48433 |
GGL15..LHD..EUR BEIJING SPEC&AERO BUMPER(FRONT)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48433 |
GGL15..LHD..EUR TAIWAN SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48550 |
GGL15..EUR F SPORT |
1 | ||
| 44050-48443 |
GGL15..LHD..EUR TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48433 |
GGL15..LHD..EUR BRAZIL SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48540 |
GGL15..LHD..EUR CHILE SPEC&F SPORT |
1 | ||
| 44050-48433 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48503 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT) |
1 | ||
| 44050-48443 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT)&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48503 |
GGL15..LHD..EUR PHILIPPINE SPEC |
1 | ||
| 44050-48503 |
GGL15..LHD..EUR BRAZIL SPEC |
1 | ||
| 44050-48443 |
GGL15..LHD..EUR BEIJING SPEC&AERO BUMPER(FRONT)&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48503 |
GGL15..LHD..EUR BEIJING SPEC&AERO BUMPER(FRONT) |
1 | ||
| 44050-48503 |
GGL15..LHD..EUR TAIWAN SPEC |
1 | ||
| 44050-48503 |
GGL15..LHD..EUR CHILE SPEC |
1 | ||
| 44050-48513 |
GGL15..EUR |
1 | ||
| 44050-48541 |
GGL15..LHD..EUR BRAZIL SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48541 |
GGL15..LHD..EUR BEIJING SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48541 |
GGL15..LHD..EUR TAIWAN SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48541 |
GGL15..LHD..EUR PHILIPPINE SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48541 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48551 |
GGL15..LHD F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48541 |
GGL15..LHD..EUR CHILE SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48434 |
GGL15..LHD..EUR BRAZIL SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48434 |
GGL15..LHD..EUR BEIJING SPEC&AERO BUMPER(FRONT)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48434 |
GGL15..LHD..EUR CHILE SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48434 |
GGL15..LHD..EUR PHILIPPINE SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48444 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT)&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48444 |
GGL15..LHD..EUR TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48504 |
GGL15..LHD..EUR PHILIPPINE SPEC |
1 | ||
| 44050-48504 |
GGL15..LHD..EUR BRAZIL SPEC |
1 | ||
| 44050-48504 |
GGL15..LHD..EUR TAIWAN SPEC |
1 | ||
| 44050-48444 |
GGL15..LHD..EUR BEIJING SPEC&AERO BUMPER(FRONT)&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48434 |
GGL15..LHD..EUR TAIWAN SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48504 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT) |
1 | ||
| 44050-48434 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48504 |
GGL15..LHD..EUR BEIJING SPEC&AERO BUMPER(FRONT) |
1 | ||
| 44050-48514 |
GGL15..EUR |
1 | ||
| 44050-48504 |
GGL15..LHD..EUR CHILE SPEC |
1 | ||
| 44050-48542 |
GGL15..LHD..EUR PHILIPPINE SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48542 |
GGL15..LHD..EUR BEIJING SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48542 |
GGL15..LHD..EUR BRAZIL SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48542 |
GGL15..LHD..EUR TAIWAN SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48542 |
GGL15..LHD..EUR CHILE SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48542 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48552 |
GGL15..LHD F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48435 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48445 |
GGL15..LHD..EUR TAIWAN SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48435 |
GGL15..LHD..EUR BRAZIL SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48445 |
GGL15..LHD..EUR BEIJING SPEC&AERO BUMPER(FRONT)&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48445 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT)&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48435 |
GGL15..LHD..EUR BEIJING SPEC&AERO BUMPER(FRONT)&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48505 |
GGL15..LHD..EUR TAIWAN SPEC |
1 | ||
| 44050-48505 |
GGL15..LHD..EUR BRAZIL SPEC |
1 | ||
| 44050-48505 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&AERO BUMPER(FRONT) |
1 | ||
| 44050-48435 |
GGL15..LHD..EUR TAIWAN SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48435 |
GGL15..LHD..EUR PHILIPPINE SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48505 |
GGL15..LHD..EUR CHILE SPEC |
1 | ||
| 44050-48435 |
GGL15..LHD..EUR CHILE SPEC&VEHICLE DYNAMIC MANAGEMENT-WITHOUT |
1 | ||
| 44050-48543 |
GGL15..LHD..EUR PHILIPPINE SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48505 |
GGL15..LHD..EUR BEIJING SPEC&AERO BUMPER(FRONT) |
1 | ||
| 44050-48543 |
GGL15..LHD..EUR TAIWAN SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48505 |
GGL15..LHD..EUR PHILIPPINE SPEC |
1 | ||
| 44050-48543 |
GGL15..LHD..EUR BRAZIL SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48543 |
GGL15..LHD..EUR CHINA(EXCEPT BEIJING) SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48543 |
GGL15..LHD..EUR BEIJING SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48515 |
GGL15..EUR |
1 | ||
| 44050-48553 |
GGL15..LHD F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44050-48543 |
GGL15..LHD..EUR CHILE SPEC&F SPORT&VEHICLE DYNAMIC MANAGEMENT-WITH/VDIM ALPHA(V2-H)F SPORT |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
AGL10,GGL15 |
3 | ||
| 44546-12110 |
AGL10,GGL15 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
AGL10,GGL15 |
3 | ||
| 44546-12110 |
AGL10,GGL15 |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
AGL10,GGL15 |
3 | ||
| 44546-12110 |
AGL10,GGL15 |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-48190 |
AGL10,GGL15 |
1 | ||
| 44590-48190 |
AGL10,GGL15 |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91641-80818 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
