GGL15L-AWTGKW (2012)
Toyota Lexus Rx270/350/450h

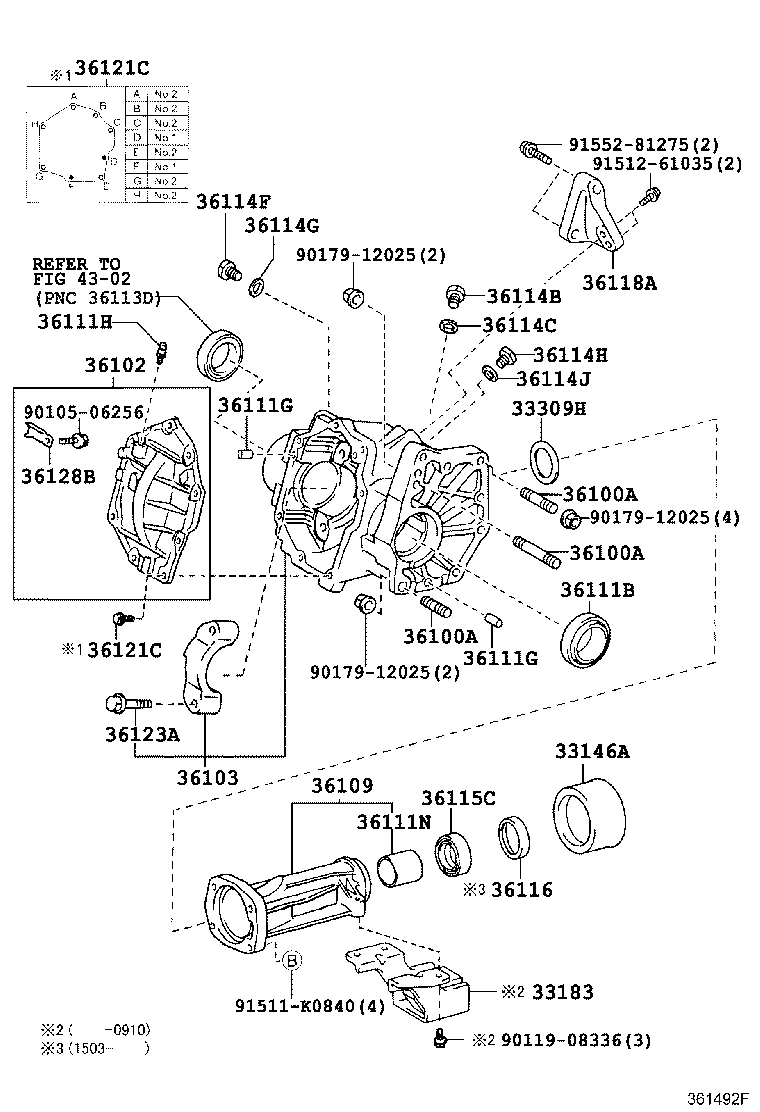

(0812-1504)GGL15..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST | ||||
| 33146-30020 |
GGL15..EUR |
1 | ||
| 33146-30020 |
GGL15..EUR |
1 | ||
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-21040 |
GGL15 |
1 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-33070 |
GGL15 T=2.16,MARK CA |
1 | ||
| 36275-33050 |
GGL15 T=2.14,MARK BB |
1 | ||
| 36275-33030 |
GGL15 T=2.12,MARK AC |
1 | ||
| 36275-33090 |
GGL15 T=2.18,MARK CC |
1 | ||
| 36275-33210 |
GGL15 T=2.30,MARK GC |
1 | ||
| 36275-33110 |
GGL15 T=2.20,MARK DB |
1 | ||
| 36275-33150 |
GGL15 T=2.24,MARK EC |
1 | ||
| 36275-33290 |
GGL15 T=2.38,MARK KB |
1 | ||
| 36275-33190 |
GGL15 T=2.28,MARK GA |
1 | ||
| 36275-33370 |
GGL15 T=2.46,MARK NA |
1 | ||
| 36275-33250 |
GGL15 T=2.34,MARK JA |
1 | ||
| 36275-33130 |
GGL15 T=2.22,MARK EA |
1 | ||
| 36275-33330 |
GGL15 T=2.42,MARK LC |
1 | ||
| 36275-33410 |
GGL15 T=2.50,MARK PB |
1 | ||
| 36275-33310 |
GGL15 T=2.40,MARK LA |
1 | ||
| 36275-33350 |
GGL15 T=2.44,MARK MB |
1 | ||
| 36275-33230 |
GGL15 T=2.32,MARK HB |
1 | ||
| 36275-33170 |
GGL15 T=2.26,MARK FB |
1 | ||
| 36275-33270 |
GGL15 T=2.36,MARK JC |
1 | ||
| 36275-48010 |
GGL15 T=2.00,MARK ZA |
1 | ||
| 36275-33450 |
GGL15 T=2.54,MARK QC |
1 | ||
| 36275-33010 |
GGL15 T=2.10,MARK AA |
1 | ||
| 36275-33390 |
GGL15 T=2.48,MARK NC |
1 | ||
| 36275-48030 |
GGL15 T=2.04,MARK ZC |
1 | ||
| 36275-48020 |
GGL15 T=2.02,MARK ZB |
1 | ||
| 36275-33430 |
GGL15 T=2.52,MARK QA |
1 | ||
| 36275-48070 |
GGL15 T=2.58,MARK RB |
1 | ||
| 36275-48120 |
GGL15 T=2.68,MARK TA |
1 | ||
| 36275-48040 |
GGL15 T=2.06,MARK ZD |
1 | ||
| 36275-33010 |
GGL15 T=2.10,MARK AA |
1 | ||
| 36275-33030 |
GGL15 T=2.12,MARK AC |
1 | ||
| 36275-48100 |
GGL15 T=2.64,MARK SB |
1 | ||
| 36275-48110 |
GGL15 T=2.66,MARK SC |
1 | ||
| 36275-48080 |
GGL15 T=2.60,MARK RC |
1 | ||
| 36275-48130 |
GGL15 T=2.70,MARK TB |
1 | ||
| 36275-48060 |
GGL15 T=2.56,MARK RA |
1 | ||
| 36275-48140 |
GGL15 T=2.72,MARK TC |
1 | ||
| 36275-48050 |
GGL15 T=2.08,MARK ZE |
1 | ||
| 36275-33130 |
GGL15 T=2.22,MARK EA |
1 | ||
| 36275-33070 |
GGL15 T=2.16,MARK CA |
1 | ||
| 36275-33190 |
GGL15 T=2.28,MARK GA |
1 | ||
| 36275-33150 |
GGL15 T=2.24,MARK EC |
1 | ||
| 36275-33210 |
GGL15 T=2.30,MARK GC |
1 | ||
| 36275-33050 |
GGL15 T=2.14,MARK BB |
1 | ||
| 36275-33250 |
GGL15 T=2.34,MARK JA |
1 | ||
| 36275-33230 |
GGL15 T=2.32,MARK HB |
1 | ||
| 36275-33090 |
GGL15 T=2.18,MARK CC |
1 | ||
| 36275-33110 |
GGL15 T=2.20,MARK DB |
1 | ||
| 36275-33170 |
GGL15 T=2.26,MARK FB |
1 | ||
| 36275-48090 |
GGL15 T=2.62,MARK SA |
1 | ||
| 36275-33330 |
GGL15 T=2.42,MARK LC |
1 | ||
| 36275-33410 |
GGL15 T=2.50,MARK PB |
1 | ||
| 36275-33290 |
GGL15 T=2.38,MARK KB |
1 | ||
| 36275-33430 |
GGL15 T=2.52,MARK QA |
1 | ||
| 36275-48010 |
GGL15 T=2.00,MARK ZA |
1 | ||
| 36275-33390 |
GGL15 T=2.48,MARK NC |
1 | ||
| 36275-48020 |
GGL15 T=2.02,MARK ZB |
1 | ||
| 36275-33310 |
GGL15 T=2.40,MARK LA |
1 | ||
| 36275-33370 |
GGL15 T=2.46,MARK NA |
1 | ||
| 36275-48070 |
GGL15 T=2.58,MARK RB |
1 | ||
| 36275-48050 |
GGL15 T=2.08,MARK ZE |
1 | ||
| 36275-33450 |
GGL15 T=2.54,MARK QC |
1 | ||
| 36275-48040 |
GGL15 T=2.06,MARK ZD |
1 | ||
| 36275-48100 |
GGL15 T=2.64,MARK SB |
1 | ||
| 36275-33270 |
GGL15 T=2.36,MARK JC |
1 | ||
| 36275-48030 |
GGL15 T=2.04,MARK ZC |
1 | ||
| 36275-48080 |
GGL15 T=2.60,MARK RC |
1 | ||
| 36275-48090 |
GGL15 T=2.62,MARK SA |
1 | ||
| 36275-33350 |
GGL15 T=2.44,MARK MB |
1 | ||
| 36275-48120 |
GGL15 T=2.68,MARK TA |
1 | ||
| 36275-48130 |
GGL15 T=2.70,MARK TB |
1 | ||
| 36275-48140 |
GGL15 T=2.72,MARK TC |
1 | ||
| 36275-48110 |
GGL15 T=2.66,MARK SC |
1 | ||
| 36275-48060 |
GGL15 T=2.56,MARK RA |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12051 |
GGL15 S=22 & 22,L=73 |
3 | ||
| 90116-12041 |
GGL15 S=30 & 22,L=64 |
4 | ||
| 90116-12052 |
GGL15 S=22 & 22,L=53 |
1 | ||
| 90116-12051 |
GGL15 S=22 & 22,L=73 |
3 | ||
| 90116-12052 |
GGL15 S=22 & 22,L=53 |
1 | ||
| 90116-12041 |
GGL15 S=30 & 22,L=64 |
4 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12051 |
GGL15 S=22 & 22,L=73 |
3 | ||
| 90116-12041 |
GGL15 S=30 & 22,L=64 |
4 | ||
| 90116-12052 |
GGL15 S=22 & 22,L=53 |
1 | ||
| 90116-12051 |
GGL15 S=22 & 22,L=73 |
3 | ||
| 90116-12052 |
GGL15 S=22 & 22,L=53 |
1 | ||
| 90116-12041 |
GGL15 S=30 & 22,L=64 |
4 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12051 |
GGL15 S=22 & 22,L=73 |
3 | ||
| 90116-12041 |
GGL15 S=30 & 22,L=64 |
4 | ||
| 90116-12052 |
GGL15 S=22 & 22,L=53 |
1 | ||
| 90116-12051 |
GGL15 S=22 & 22,L=73 |
3 | ||
| 90116-12052 |
GGL15 S=22 & 22,L=53 |
1 | ||
| 90116-12041 |
GGL15 S=30 & 22,L=64 |
4 | ||
| 36102 - COVER SUB-ASSY, TRANSFER CASE | ||||
| 36102-48030 |
GGL15 |
1 | ||
| 36102-48030 |
GGL15 |
1 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-48010 |
GGL15 |
1 | ||
| 36103-48011 |
GGL15 |
1 | ||
| 36103-48010 |
GGL15 |
1 | ||
| 36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION | ||||
| 36109-33010 |
GGL15 |
1 | ||
| 36109-48010 |
GGL15 |
1 | ||
| 36109-33010 |
GGL15 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-55002 |
GGL15 |
1 | ||
| 90311-55002 |
GGL15 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-08046 |
GGL15 L=16,OD=8 |
2 | ||
| 90250-08046 |
GGL15 L=16,OD=8 |
2 | ||
| 90250-10017 |
GGL15 L=20,OD=10 |
2 | ||
| 90250-10017 |
GGL15 L=20,OD=10 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-08046 |
GGL15 L=16,OD=8 |
2 | ||
| 90250-08046 |
GGL15 L=16,OD=8 |
2 | ||
| 90250-10017 |
GGL15 L=20,OD=10 |
2 | ||
| 90250-10017 |
GGL15 L=20,OD=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03133 |
GGL15 |
1 | ||
| 90930-03133 |
GGL15 |
1 | ||
| 36111N - BUSH (FOR TRANSFER CASE) | ||||
| 90999-73105 |
GGL15 |
1 | ||
| 90999-73105 |
GGL15 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18072 |
GGL15 |
1 | ||
| 90341-18072 |
GGL15 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
GGL15 |
1 | ||
| 12157-10010 |
GGL15 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
GGL15 |
1 | ||
| 90341-18057 |
GGL15 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 12157-10010 |
GGL15 |
1 | ||
| 12157-10010 |
GGL15 |
1 | ||
| 36114H - PLUG, NO.2 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
GGL15 |
1 | ||
| 90341-18006 |
GGL15 |
1 | ||
| 36114J - GASKET, NO.2 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
GGL15 |
1 | ||
| 12157-10010 |
GGL15 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38090 |
GGL15 |
1 | ||
| 90311-38090 |
GGL15 |
1 | ||
| 36116 - RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL | ||||
| 33145-48010 |
GGL15 |
1 | ||
| 36118A - PLATE, TRANSFER STIFFENER, RH | ||||
| 36118-45010 |
GGL15 |
1 | ||
| 36118-45010 |
GGL15 |
1 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 91511-J0820 |
GGL15 NO.2 |
6 | ||
| 90105-08435 |
GGL15 NO.1 |
2 | ||
| 90105-08435 |
GGL15 NO.1 |
2 | ||
| 91511-J0820 |
GGL15 NO.2 |
6 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 91511-J0820 |
GGL15 NO.2 |
6 | ||
| 90105-08435 |
GGL15 NO.1 |
2 | ||
| 90105-08435 |
GGL15 NO.1 |
2 | ||
| 91511-J0820 |
GGL15 NO.2 |
6 | ||
| 36123A - BOLT, DIFFERENTIAL BEARING CAP | ||||
| 41114-16010 |
GGL15 |
2 | ||
| 41114-16010 |
GGL15 |
2 | ||
| 36128B - DEFLECTOR, BREATHER OIL | ||||
| 36128-28010 |
GGL15 |
1 | ||
| 36128-28010 |
GGL15 |
1 | ||
| Common parts | ||||
| 90105-06256 | ||||
| 90119-08336 | ||||
| 90179-12025 | ||||
| 91511-K0840 | ||||
| 91512-61035 | ||||
| 91552-81275 | ||||
| Linked diagrams | ||||
| 4302 | ||||

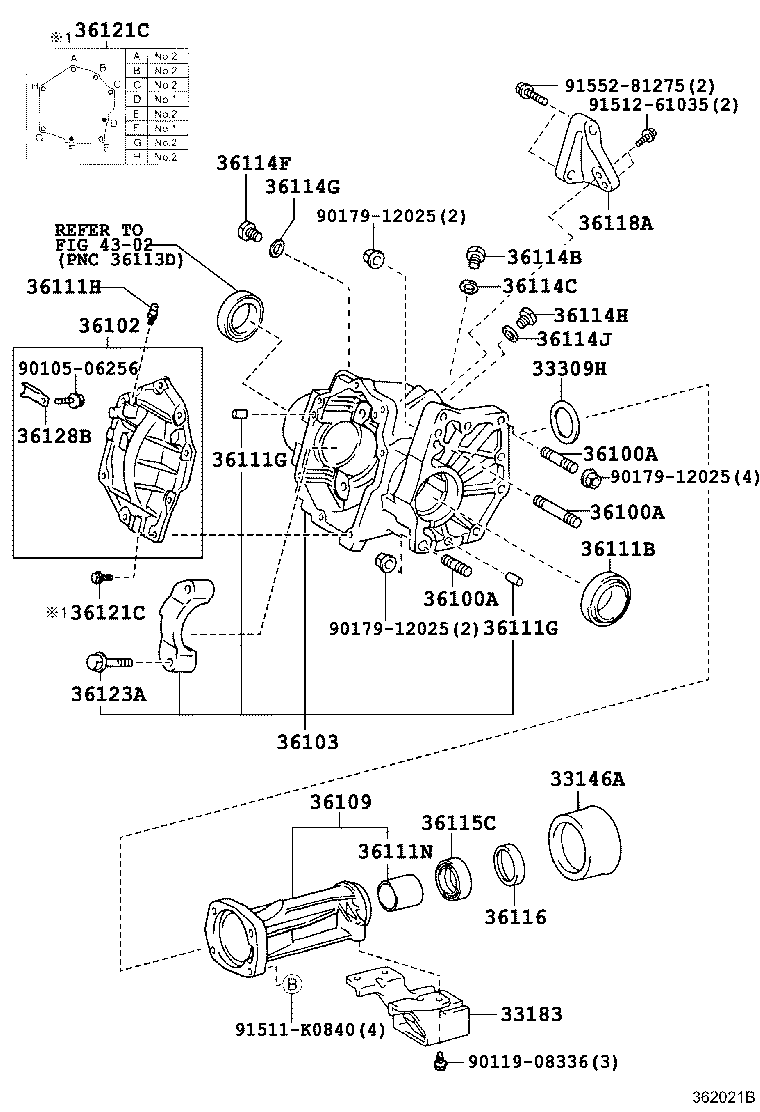

(1504- )GGL15..EUR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33146A - DEFLECTOR, TRANSFER EXTENSION HOUSING DUST | ||||
| 33146-30020 |
GGL15..EUR |
1 | ||
| 33146-30020 |
GGL15..EUR |
1 | ||
| 33183 - DAMPER, TRANSFER DYNAMIC | ||||
| 33183-21040 |
GGL15 |
1 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-33070 |
GGL15 T=2.16,MARK CA |
1 | ||
| 36275-33050 |
GGL15 T=2.14,MARK BB |
1 | ||
| 36275-33030 |
GGL15 T=2.12,MARK AC |
1 | ||
| 36275-33090 |
GGL15 T=2.18,MARK CC |
1 | ||
| 36275-33210 |
GGL15 T=2.30,MARK GC |
1 | ||
| 36275-33110 |
GGL15 T=2.20,MARK DB |
1 | ||
| 36275-33150 |
GGL15 T=2.24,MARK EC |
1 | ||
| 36275-33290 |
GGL15 T=2.38,MARK KB |
1 | ||
| 36275-33190 |
GGL15 T=2.28,MARK GA |
1 | ||
| 36275-33370 |
GGL15 T=2.46,MARK NA |
1 | ||
| 36275-33250 |
GGL15 T=2.34,MARK JA |
1 | ||
| 36275-33130 |
GGL15 T=2.22,MARK EA |
1 | ||
| 36275-33330 |
GGL15 T=2.42,MARK LC |
1 | ||
| 36275-33410 |
GGL15 T=2.50,MARK PB |
1 | ||
| 36275-33310 |
GGL15 T=2.40,MARK LA |
1 | ||
| 36275-33350 |
GGL15 T=2.44,MARK MB |
1 | ||
| 36275-33230 |
GGL15 T=2.32,MARK HB |
1 | ||
| 36275-33170 |
GGL15 T=2.26,MARK FB |
1 | ||
| 36275-33270 |
GGL15 T=2.36,MARK JC |
1 | ||
| 36275-48010 |
GGL15 T=2.00,MARK ZA |
1 | ||
| 36275-33450 |
GGL15 T=2.54,MARK QC |
1 | ||
| 36275-33010 |
GGL15 T=2.10,MARK AA |
1 | ||
| 36275-33390 |
GGL15 T=2.48,MARK NC |
1 | ||
| 36275-48030 |
GGL15 T=2.04,MARK ZC |
1 | ||
| 36275-48020 |
GGL15 T=2.02,MARK ZB |
1 | ||
| 36275-33430 |
GGL15 T=2.52,MARK QA |
1 | ||
| 36275-48070 |
GGL15 T=2.58,MARK RB |
1 | ||
| 36275-48120 |
GGL15 T=2.68,MARK TA |
1 | ||
| 36275-48040 |
GGL15 T=2.06,MARK ZD |
1 | ||
| 36275-33010 |
GGL15 T=2.10,MARK AA |
1 | ||
| 36275-33030 |
GGL15 T=2.12,MARK AC |
1 | ||
| 36275-48100 |
GGL15 T=2.64,MARK SB |
1 | ||
| 36275-48110 |
GGL15 T=2.66,MARK SC |
1 | ||
| 36275-48080 |
GGL15 T=2.60,MARK RC |
1 | ||
| 36275-48130 |
GGL15 T=2.70,MARK TB |
1 | ||
| 36275-48060 |
GGL15 T=2.56,MARK RA |
1 | ||
| 36275-48140 |
GGL15 T=2.72,MARK TC |
1 | ||
| 36275-48050 |
GGL15 T=2.08,MARK ZE |
1 | ||
| 36275-33130 |
GGL15 T=2.22,MARK EA |
1 | ||
| 36275-33070 |
GGL15 T=2.16,MARK CA |
1 | ||
| 36275-33190 |
GGL15 T=2.28,MARK GA |
1 | ||
| 36275-33150 |
GGL15 T=2.24,MARK EC |
1 | ||
| 36275-33210 |
GGL15 T=2.30,MARK GC |
1 | ||
| 36275-33050 |
GGL15 T=2.14,MARK BB |
1 | ||
| 36275-33250 |
GGL15 T=2.34,MARK JA |
1 | ||
| 36275-33230 |
GGL15 T=2.32,MARK HB |
1 | ||
| 36275-33090 |
GGL15 T=2.18,MARK CC |
1 | ||
| 36275-33110 |
GGL15 T=2.20,MARK DB |
1 | ||
| 36275-33170 |
GGL15 T=2.26,MARK FB |
1 | ||
| 36275-48090 |
GGL15 T=2.62,MARK SA |
1 | ||
| 36275-33330 |
GGL15 T=2.42,MARK LC |
1 | ||
| 36275-33410 |
GGL15 T=2.50,MARK PB |
1 | ||
| 36275-33290 |
GGL15 T=2.38,MARK KB |
1 | ||
| 36275-33430 |
GGL15 T=2.52,MARK QA |
1 | ||
| 36275-48010 |
GGL15 T=2.00,MARK ZA |
1 | ||
| 36275-33390 |
GGL15 T=2.48,MARK NC |
1 | ||
| 36275-48020 |
GGL15 T=2.02,MARK ZB |
1 | ||
| 36275-33310 |
GGL15 T=2.40,MARK LA |
1 | ||
| 36275-33370 |
GGL15 T=2.46,MARK NA |
1 | ||
| 36275-48070 |
GGL15 T=2.58,MARK RB |
1 | ||
| 36275-48050 |
GGL15 T=2.08,MARK ZE |
1 | ||
| 36275-33450 |
GGL15 T=2.54,MARK QC |
1 | ||
| 36275-48040 |
GGL15 T=2.06,MARK ZD |
1 | ||
| 36275-48100 |
GGL15 T=2.64,MARK SB |
1 | ||
| 36275-33270 |
GGL15 T=2.36,MARK JC |
1 | ||
| 36275-48030 |
GGL15 T=2.04,MARK ZC |
1 | ||
| 36275-48080 |
GGL15 T=2.60,MARK RC |
1 | ||
| 36275-48090 |
GGL15 T=2.62,MARK SA |
1 | ||
| 36275-33350 |
GGL15 T=2.44,MARK MB |
1 | ||
| 36275-48120 |
GGL15 T=2.68,MARK TA |
1 | ||
| 36275-48130 |
GGL15 T=2.70,MARK TB |
1 | ||
| 36275-48140 |
GGL15 T=2.72,MARK TC |
1 | ||
| 36275-48110 |
GGL15 T=2.66,MARK SC |
1 | ||
| 36275-48060 |
GGL15 T=2.56,MARK RA |
1 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12051 |
GGL15 S=22 & 22,L=73 |
3 | ||
| 90116-12041 |
GGL15 S=30 & 22,L=64 |
4 | ||
| 90116-12052 |
GGL15 S=22 & 22,L=53 |
1 | ||
| 90116-12051 |
GGL15 S=22 & 22,L=73 |
3 | ||
| 90116-12052 |
GGL15 S=22 & 22,L=53 |
1 | ||
| 90116-12041 |
GGL15 S=30 & 22,L=64 |
4 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12051 |
GGL15 S=22 & 22,L=73 |
3 | ||
| 90116-12041 |
GGL15 S=30 & 22,L=64 |
4 | ||
| 90116-12052 |
GGL15 S=22 & 22,L=53 |
1 | ||
| 90116-12051 |
GGL15 S=22 & 22,L=73 |
3 | ||
| 90116-12052 |
GGL15 S=22 & 22,L=53 |
1 | ||
| 90116-12041 |
GGL15 S=30 & 22,L=64 |
4 | ||
| 36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING) | ||||
| 90116-12051 |
GGL15 S=22 & 22,L=73 |
3 | ||
| 90116-12041 |
GGL15 S=30 & 22,L=64 |
4 | ||
| 90116-12052 |
GGL15 S=22 & 22,L=53 |
1 | ||
| 90116-12051 |
GGL15 S=22 & 22,L=73 |
3 | ||
| 90116-12052 |
GGL15 S=22 & 22,L=53 |
1 | ||
| 90116-12041 |
GGL15 S=30 & 22,L=64 |
4 | ||
| 36102 - COVER SUB-ASSY, TRANSFER CASE | ||||
| 36102-48030 |
GGL15 |
1 | ||
| 36102-48030 |
GGL15 |
1 | ||
| 36103 - CASE SUB-ASSY, TRANSFER | ||||
| 36103-48010 |
GGL15 |
1 | ||
| 36103-48011 |
GGL15 |
1 | ||
| 36103-48010 |
GGL15 |
1 | ||
| 36109 - HOUSING SUB-ASSY, TRANSFER EXTENSION | ||||
| 36109-33010 |
GGL15 |
1 | ||
| 36109-48010 |
GGL15 |
1 | ||
| 36109-33010 |
GGL15 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-55002 |
GGL15 |
1 | ||
| 90311-55002 |
GGL15 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-08046 |
GGL15 L=16,OD=8 |
2 | ||
| 90250-08046 |
GGL15 L=16,OD=8 |
2 | ||
| 90250-10017 |
GGL15 L=20,OD=10 |
2 | ||
| 90250-10017 |
GGL15 L=20,OD=10 |
2 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-08046 |
GGL15 L=16,OD=8 |
2 | ||
| 90250-08046 |
GGL15 L=16,OD=8 |
2 | ||
| 90250-10017 |
GGL15 L=20,OD=10 |
2 | ||
| 90250-10017 |
GGL15 L=20,OD=10 |
2 | ||
| 36111H - PLUG, BREATHER (FOR TRANSFER CASE) | ||||
| 90930-03133 |
GGL15 |
1 | ||
| 90930-03133 |
GGL15 |
1 | ||
| 36111N - BUSH (FOR TRANSFER CASE) | ||||
| 90999-73105 |
GGL15 |
1 | ||
| 90999-73105 |
GGL15 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18072 |
GGL15 |
1 | ||
| 90341-18072 |
GGL15 |
1 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
GGL15 |
1 | ||
| 12157-10010 |
GGL15 |
1 | ||
| 36114F - PLUG (FOR TRANSFER DRAIN) | ||||
| 90341-18057 |
GGL15 |
1 | ||
| 90341-18057 |
GGL15 |
1 | ||
| 36114G - GASKET (FOR TRANSFER DRAIN PLUG) | ||||
| 12157-10010 |
GGL15 |
1 | ||
| 12157-10010 |
GGL15 |
1 | ||
| 36114H - PLUG, NO.2 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
GGL15 |
1 | ||
| 90341-18006 |
GGL15 |
1 | ||
| 36114J - GASKET, NO.2 (FOR TRANSFER CASE) | ||||
| 12157-10010 |
GGL15 |
1 | ||
| 12157-10010 |
GGL15 |
1 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-38090 |
GGL15 |
1 | ||
| 90311-38090 |
GGL15 |
1 | ||
| 36116 - RETAINER, TRANSFER EXTENSION HOUSING DUST SEAL | ||||
| 33145-48010 |
GGL15 |
1 | ||
| 36118A - PLATE, TRANSFER STIFFENER, RH | ||||
| 36118-45010 |
GGL15 |
1 | ||
| 36118-45010 |
GGL15 |
1 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 91511-J0820 |
GGL15 NO.2 |
6 | ||
| 90105-08435 |
GGL15 NO.1 |
2 | ||
| 90105-08435 |
GGL15 NO.1 |
2 | ||
| 91511-J0820 |
GGL15 NO.2 |
6 | ||
| 36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE | ||||
| 91511-J0820 |
GGL15 NO.2 |
6 | ||
| 90105-08435 |
GGL15 NO.1 |
2 | ||
| 90105-08435 |
GGL15 NO.1 |
2 | ||
| 91511-J0820 |
GGL15 NO.2 |
6 | ||
| 36123A - BOLT, DIFFERENTIAL BEARING CAP | ||||
| 41114-16010 |
GGL15 |
2 | ||
| 41114-16010 |
GGL15 |
2 | ||
| 36128B - DEFLECTOR, BREATHER OIL | ||||
| 36128-28010 |
GGL15 |
1 | ||
| 36128-28010 |
GGL15 |
1 | ||
| Common parts | ||||
| 90105-06256 | ||||
| 90119-08336 | ||||
| 90179-12025 | ||||
| 91511-K0840 | ||||
| 91512-61035 | ||||
| 91552-81275 | ||||
| Linked diagrams | ||||
| 4302 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
