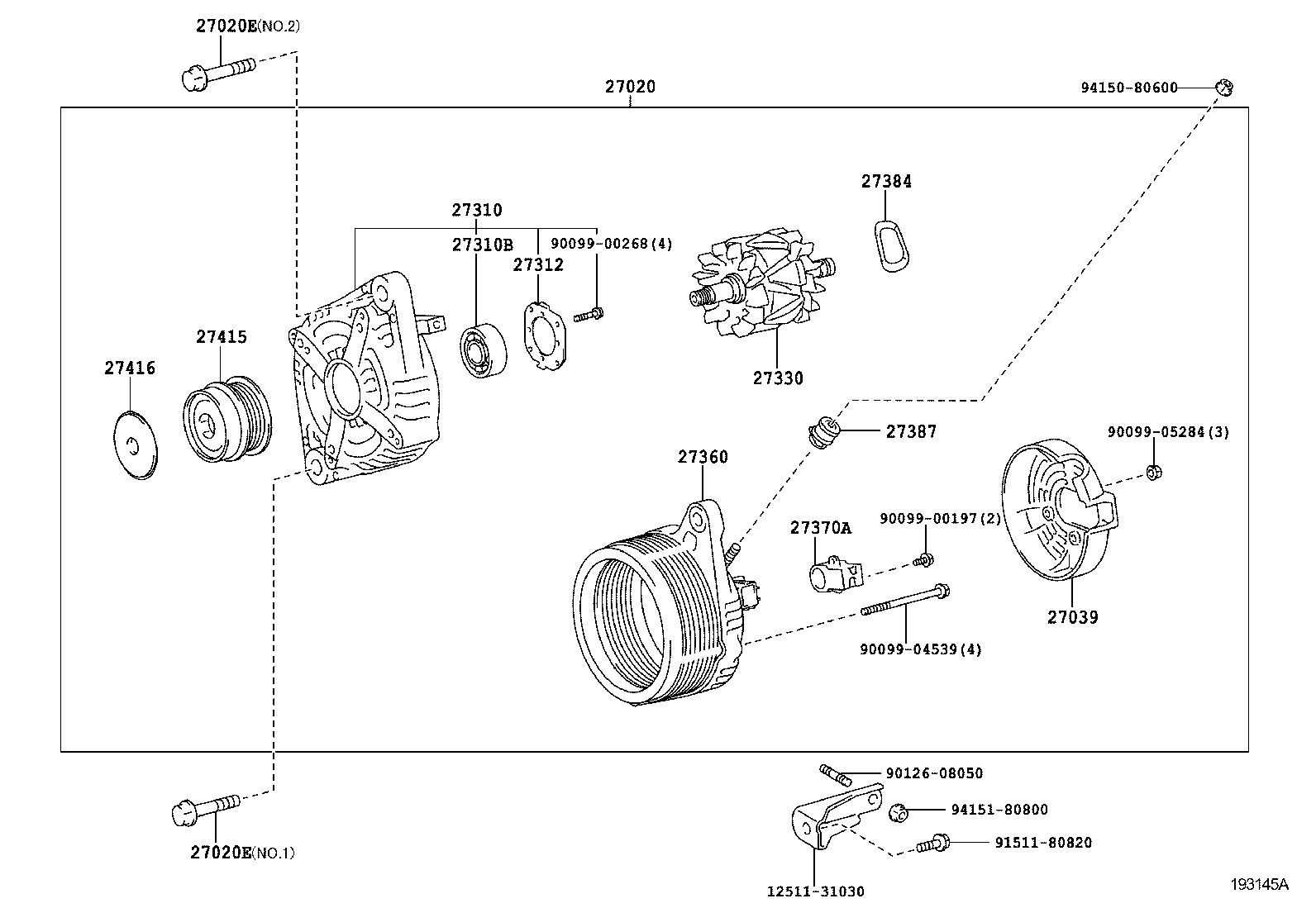

Toyota Lexus rx270/350/450h GGL15 ALTERNATOR

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-31101	2GRFE..GGL15..EUR 12V 150A	12/2008 - 07/2009	1
27060-31102	2GRFE..GGL15..EUR 12V 150A	03/2012 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
91552-81040	2GRFE..GGL15 NO.1	12/2008 - 03/2012	1
91552-81070	2GRFE..GGL15 NO.2	12/2008 - 03/2012	1
91552-81040	2GRFE..GGL15 NO.1	03/2012 - 12/2999	1
91552-81070	2GRFE..GGL15 NO.2	03/2012 - 12/2999	1
27020E - BOLT(FOR ALTERNATOR)
91552-81040	2GRFE..GGL15 NO.1	12/2008 - 03/2012	1
91552-81070	2GRFE..GGL15 NO.2	12/2008 - 03/2012	1
91552-81040	2GRFE..GGL15 NO.1	03/2012 - 12/2999	1
91552-81070	2GRFE..GGL15 NO.2	03/2012 - 12/2999	1
27039 - COVER, ALTERNATOR REAR END
27039-27060	2GRFE..GGL15..EUR	12/2008 - 07/2009	1
27039-31390	1ARFE,2GRFE..AGL10,GGL15	03/2012 - 12/2999	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-31290	2GRFE..GGL15	03/2012 - 12/2999	1
27310-31290	2GRFE..GGL15	12/2008 - 03/2012	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10223	1ARFE,2GRFE..AGL10,GGL15	03/2012 - 12/2999	1
90099-10223	1ARFE,2GRFE..AGL10,GGL15	12/2008 - 03/2012	1
27312 - PLATE, RETAINER
27312-72100	1ARFE,2GRFE..AGL10,GGL15	12/2008 - 03/2012	1
27312-72100	1ARFE,2GRFE..AGL10,GGL15	03/2012 - 12/2999	1
27330 - ROTOR ASSY, ALTERNATOR
27330-58460	1ARFE,2GRFE..AGL10,GGL15	12/2008 - 03/2012	1
27330-58460	1ARFE,2GRFE..AGL10,GGL15	03/2012 - 12/2999	1
27360 - COIL ASSY, ALTERNATOR
27360-31300	2GRFE..GGL15..EUR	12/2008 - 03/2012	1
27360-31300	2GRFE..GGL15..EUR	03/2012 - 12/2999	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-31220	2GRFE..GGL15	12/2008 - 03/2012	1
27370-31220	2GRFE..GGL15	03/2012 - 12/2999	1
27384 - WASHER
27384-50030	1ARFE,2GRFE..AGL10,GGL15	12/2008 - 03/2012	1
27384-50030	1ARFE,2GRFE..AGL10,GGL15	03/2012 - 12/2999	1
27387 - INSULATOR, TERMINAL
27387-20130	1ARFE,2GRFE..AGL10,GGL15	03/2012 - 12/2999	1
27387-20130	1ARFE,2GRFE..AGL10,GGL15	12/2008 - 03/2012	1
27415 - PULLEY, ALTERNATOR W/CLUTCH
27415-0W010	2GRFE..GGL15	12/2008 - 07/2009	1
27415-0W130	2GRFE..GGL15	03/2012 - 06/2013	1
27415-0W131	2GRFE..GGL15	07/2013 - 12/2999	1
27416 - CAP, ALTERNATOR PULLEY
27416-0W050	1ARFE,2GRFE..AGL10,GGL15	03/2012 - 12/2999	1
27416-0W010	2GRFE..GGL15	12/2008 - 07/2009	1
Common parts
12511-31030
90099-00197
90099-00268
90099-04539
90099-05284
90126-08050
91511-80820
94150-80600
94151-80800

GGL15L-AWTGKW (2012)

(0812- )2GRFE
