GGL15L-AWTGKV (2008)
Toyota Lexus Rx270/350/450h
Production
Dec 2008
-
Mar 2012
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0812- )GGL15..GCC

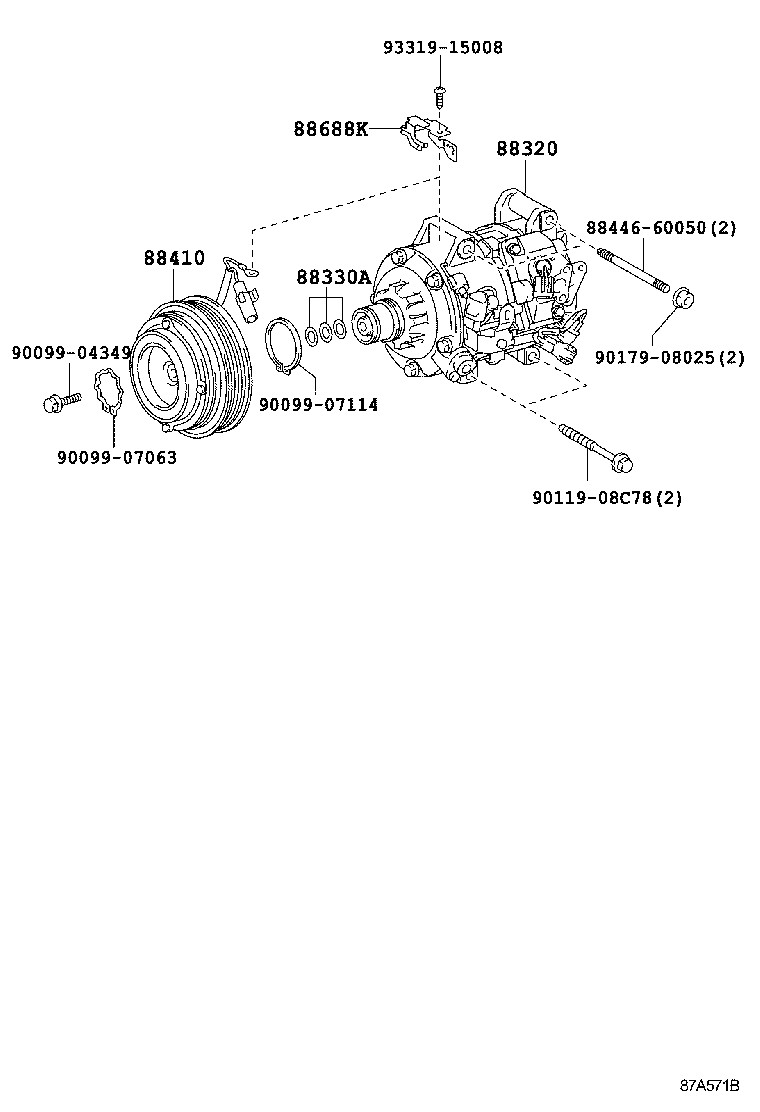

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88320 - COMPRESSOR ASSY, COOLER | ||||
| 88320-48180 |
GGL15..GCC |
1 | ||
| 88320-48230 |
GGL15..GCC |
1 | ||
| 88330A - WASHER (FOR MAGNET CLUTCH) | ||||
| 88335-14020 |
GGL15 |
1 | ||
| 88335-14020 |
GGL15 |
1 | ||
| 88410 - CLUTCH ASSY, MAGNET | ||||
| 88410-48100 |
GGL15 |
1 | ||
| 88410-48100 |
GGL15 |
1 | ||
| 88688K - BRACKET, COOLER COMPRESSOR | ||||
| 88688-48250 |
GGL15 |
1 | ||
| 88688-48250 |
GGL15 |
1 | ||
| Common parts | ||||
| 88446-60050 | ||||
| 90099-04349 | ||||
| 90099-07063 | ||||
| 90099-07114 | ||||
| 90119-08C78 | ||||
| 90179-08025 | ||||
| 93319-15008 | ||||
