GGL15L-AWTGKV (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812- )GGL15..GCC

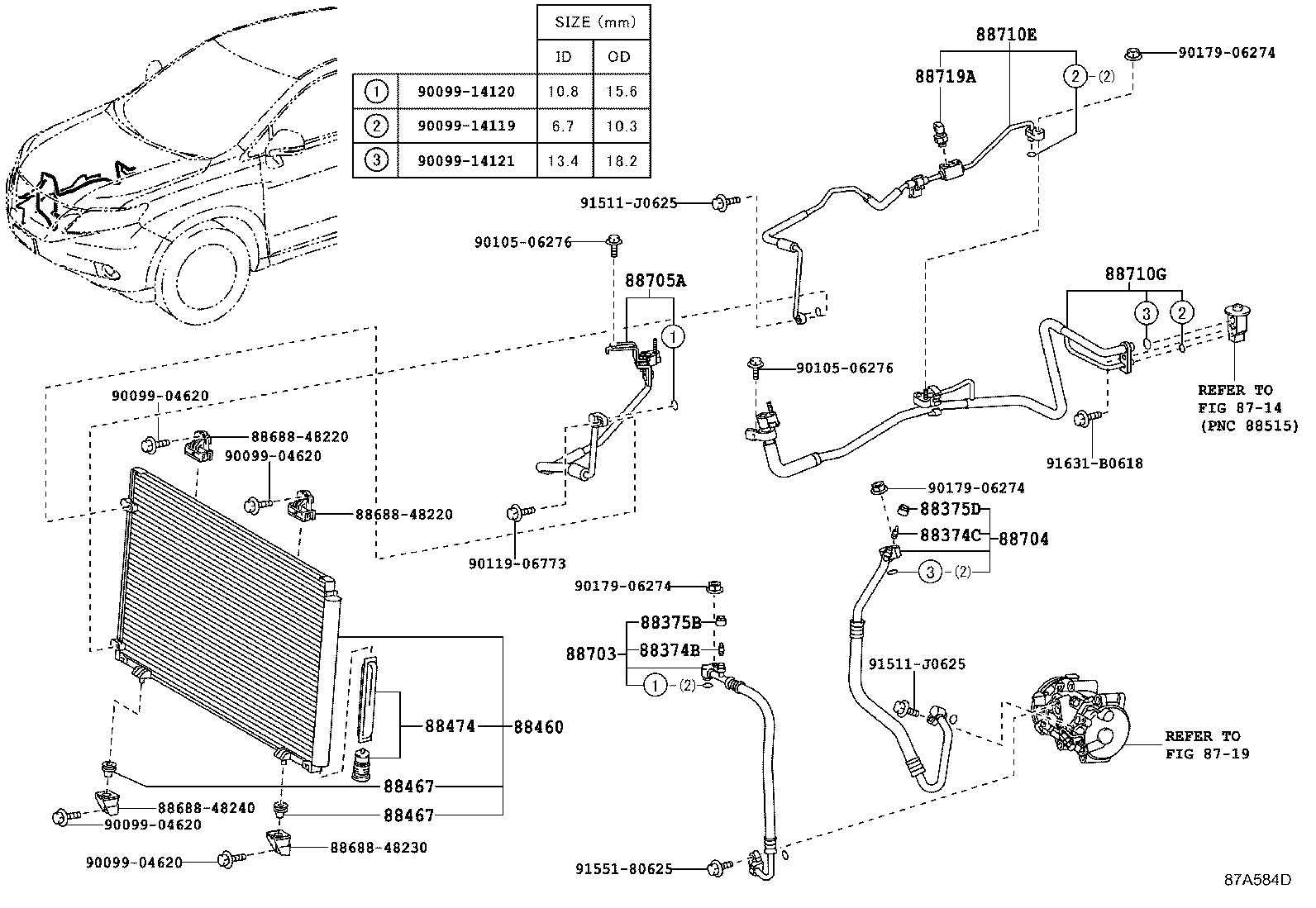

Click highlighted areas on diagram

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88467 88467 88474 8868848220 8868848220 8868848230 8868848240 88703 88704 88705A 88710E 88710G 88719A 9009904620 9009904620 9009904620 9009904620 9009914119 9009914120 9009914121 9010506276 9010506276 9011906773 9017906274 9017906274 9017906274 91511J0625 91511J0625 9155180625 91631B0618
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

AGL10,GGL15,GYL1#

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

AGL10,GGL15,GYL1#

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

AGL10,GGL15,GYL1#

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

AGL10,GGL15,GYL1#

 1
88460 - CONDENSER ASSY, COOLER
88460-48140

AGL10,GGL15

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-48020

AGL10,GGL15

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-48020

AGL10,GGL15

 2
88474 - DRYER, COOLER
88474-17010

AGL10,GGL15

 1
88703 - HOSE SUB-ASSY, DISCHARGE
88703-48180

GGL15

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-48180

GGL15..GCC

 1
88705A - TUBE SUB-ASSY, DISCHARGE
88705-48110

AGL10,GGL15

 1
88710E - TUBE & ACCESSORY ASSY, AIR CONDITIONER
88710-48360

GGL15..GCC

 1
88710G - TUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
88710-48370

GGL15..GCC

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

AGL10,GGL15,GYL1#

 1
Common parts
88688-48220
88688-48230
88688-48240
90099-04620
90099-14119
90099-14120
90099-14121
90105-06276
90119-06773
90179-06274
91511-J0625
91551-80625
91631-B0618
Linked diagrams
8714
8719
