GGL15L-AWTGKV (2008)
Toyota Lexus Rx270/350/450h

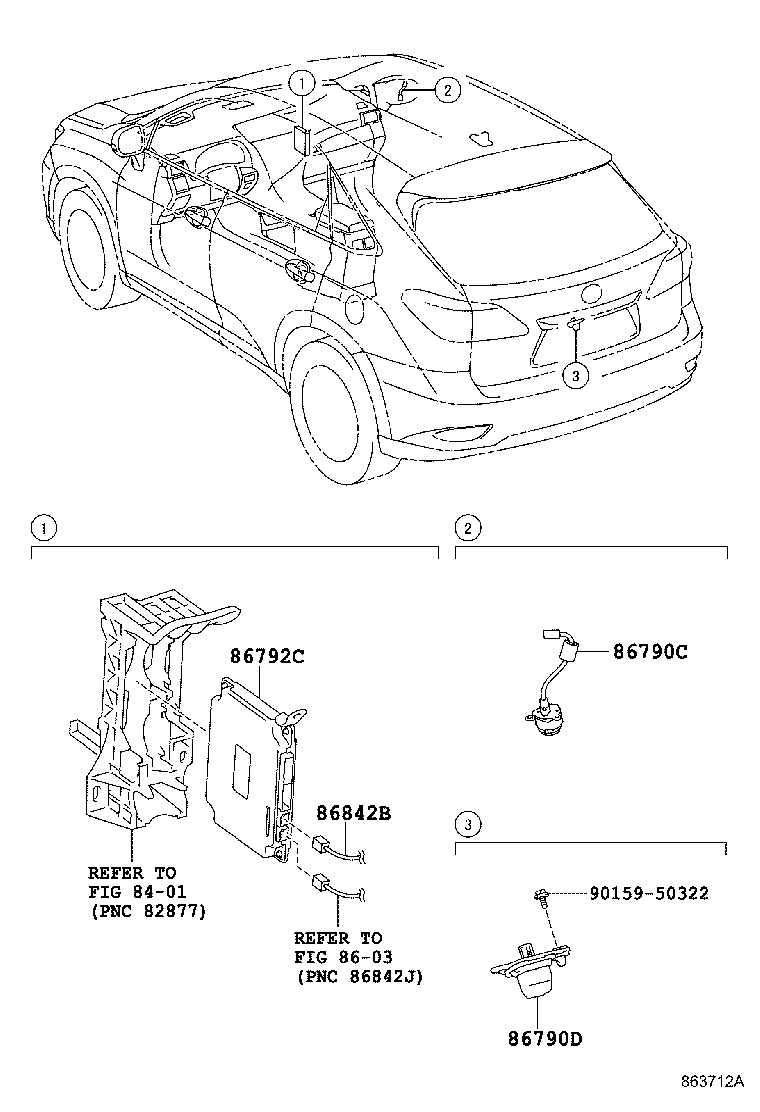

ILLUST NO. 1 OF 3(0812-1203)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86790C - CAMERA ASSY, TELEVISION, SIDE | ||||
| 86790-48100 |
GGL15..GCC ULTRA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86790-48100 |
GGL15..GCC ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86790D - CAMERA ASSY, TELEVISION, RR | ||||
| 86790-48091 |
GGL15..GCC INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY) |
1 | ||
| 86790-48091 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86790-48090 |
GGL15..GCC INSIDE REAR VIEW MIRROR-WITH(COMPUS & REAR CAMERA DISPLAY) |
1 | ||
| 86790-48090 |
GGL15,GYL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86790-48091 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86792C - COMPUTER, PARKING ASSIST | ||||
| 86792-48120 |
GGL15..GCC ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86792-48220 |
GGL15..GCC ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86792-48240 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86792-48230 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86792-48121 |
GGL15..GCC ULTRA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86792-48221 |
GGL15..GCC ULTRA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86792-48241 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86792-48231 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842B - WIRE, NAVIGATION, NO.2 | ||||
| 86842-48200 |
GGL15..GCC ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48200 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48200 |
GGL15..GCC ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86842-48200 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86842-48200 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86842-48200 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48200 |
GGL15..GCC ULTRA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86842-48200 |
GGL15..GCC ULTRA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| Common parts | ||||
| 90159-50322 | ||||
| Linked diagrams | ||||
| 8401 | ||||
| 8603 | ||||

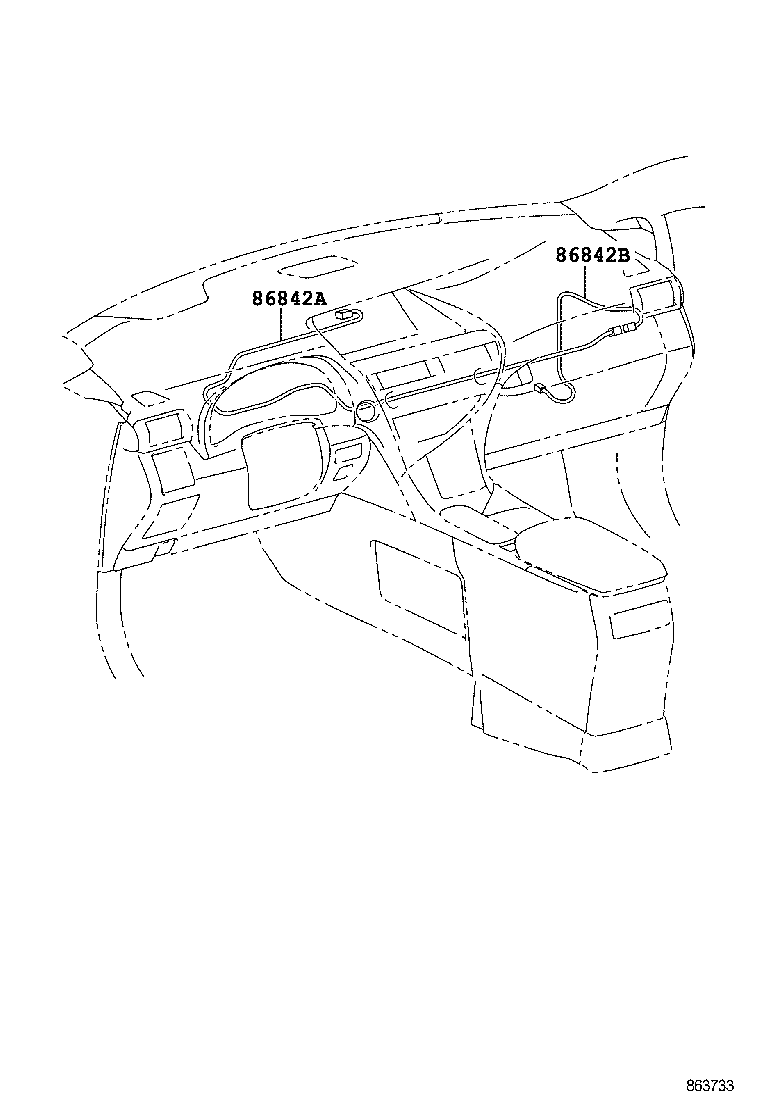

ILLUST NO. 3 OF 3(0812-1203)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86842A - WIRE, NAVIGATION, NO.1 | ||||
| 86797-48090 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86797-48090 |
GGL15..GCC ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86797-48090 |
GGL15..GCC ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86797-48090 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86797-48090 |
GGL15..GCC ULTRA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86797-48090 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86797-48090 |
GGL15..GCC ULTRA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86797-48090 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86842B - WIRE, NAVIGATION, NO.2 | ||||
| 86842-48200 |
GGL15..GCC ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48200 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48200 |
GGL15..GCC ULTRA LUXURY PACKAGE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86842-48200 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86842-48200 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86842-48200 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48200 |
GGL15..GCC ULTRA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION)&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 86842-48200 |
GGL15..GCC ULTRA LUXURY PACKAGE&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||

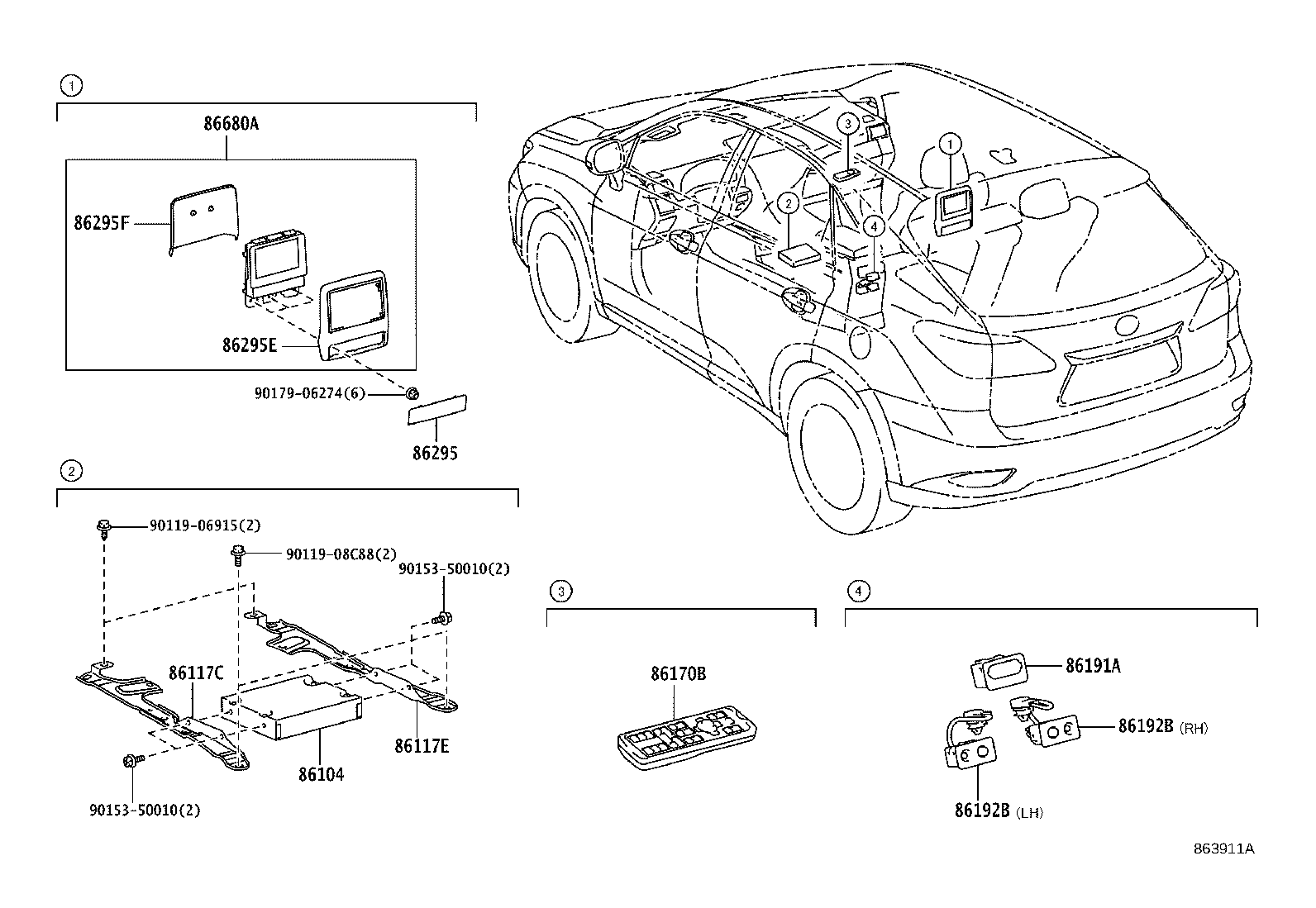

ILLUST NO. 2 OF 3(0906-1203)GCC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86104 - CONTROLLER SUB-ASSY, MULTI-DISPLAY | ||||
| 86104-48031 |
GGL15..GCC;GYL15..RHD WITH(REAR DISPLAY) |
1 | ||
| 86117C - BRACKET, MULTI-DISPLAY CONTROLLER, NO.2 | ||||
| 86117-48150 |
GGL15..GCC WITH(REAR DISPLAY) |
1 | ||
| 86117E - BRACKET, MULTI-DISPLAY CONTROLLER, NO.3 | ||||
| 86118-48120 |
GGL15..GCC WITH(REAR DISPLAY) |
1 | ||
| 86170B - SWITCH & VOLUME ASSY, TELEVISION | ||||
| 86170-48020 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY) |
1 | ||
| 86191A - TERMINAL, VIDEO(VIDEO ADAPTER) | ||||
| 86191-48050A0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),IVORY,TRIM0# |
1 | ||
| 86191-48050C0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),BLACK,TRIM2# |
1 | ||
| 86191-48050B0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
1 | ||
| 86192B - TERMINAL, HEADPHONE | ||||
| 86192-48020C0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),BLACK,TRIM2#,RH |
1 | ||
| 86192-48020B0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),LT.GRAY,TRIM1#,RH |
1 | ||
| 86192-48010C0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),BLACK,TRIM2#,LH |
1 | ||
| 86192-48020A0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),IVORY,TRIM0#,RH |
1 | ||
| 86192-48010A0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),IVORY,TRIM0#,LH |
1 | ||
| 86192-48010B0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),LT.GRAY,TRIM1#,LH |
1 | ||
| 86192B - TERMINAL, HEADPHONE | ||||
| 86192-48020C0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),BLACK,TRIM2#,RH |
1 | ||
| 86192-48020B0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),LT.GRAY,TRIM1#,RH |
1 | ||
| 86192-48010C0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),BLACK,TRIM2#,LH |
1 | ||
| 86192-48020A0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),IVORY,TRIM0#,RH |
1 | ||
| 86192-48010A0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),IVORY,TRIM0#,LH |
1 | ||
| 86192-48010B0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),LT.GRAY,TRIM1#,LH |
1 | ||
| 86295 - BASE, TELEVISION | ||||
| 86295-48080A0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),IVORY,TRIM0# |
2 | ||
| 86295-48080B0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 86295-48080C0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 86295E - BASE, TELEVISION, NO.2 | ||||
| 86295-48060C0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 86295-48060B0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 86295-48060A0 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY),IVORY,TRIM0# |
2 | ||
| 86295F - BASE, TELEVISION, NO.3 | ||||
| 86295-48070 |
AGL10..LHD;GGL15..GCC WITH(REAR DISPLAY) |
2 | ||
| 86680A - DISPLAY ASSY, TELEVISION | ||||
| 86430-48011B0 |
AGL10..LHD;GGL15..GCC PANASONIC,WITH(REAR DISPLAY),LT.GRAY,TRIM1# |
2 | ||
| 86430-48011C0 |
AGL10..LHD;GGL15..GCC PANASONIC,WITH(REAR DISPLAY),BLACK,TRIM2# |
2 | ||
| 86430-48011A0 |
AGL10..LHD;GGL15..GCC PANASONIC,WITH(REAR DISPLAY),IVORY,TRIM0# |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90119-08C88 | ||||
| 90153-50010 | ||||
| 90179-06274 | ||||
