GGL15L-AWTGKV (2008)
Toyota Lexus Rx270/350/450h

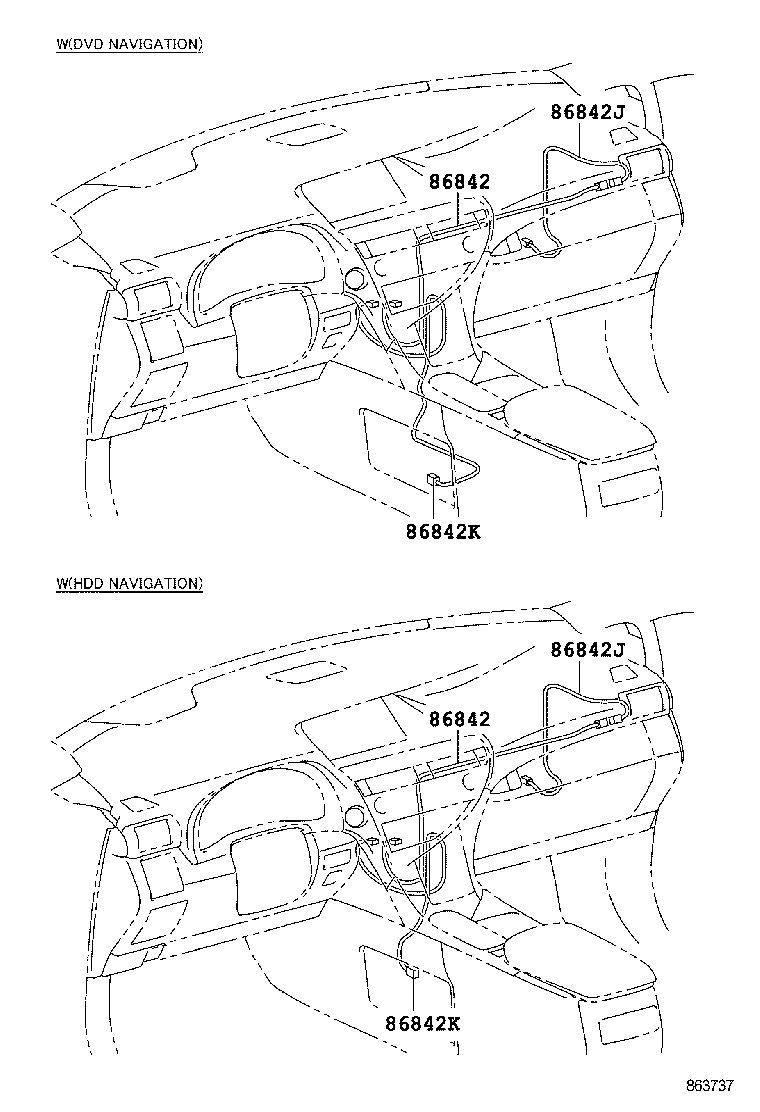

ILLUST NO. 3 OF 3(0812-1203)LHD
W(NAVIGATION SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-48130 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48130 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-48130 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48130 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842J - WIRE, NAVIGATION, NO.2 | ||||
| 86842-48200 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48200 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842J - WIRE, NAVIGATION, NO.2 | ||||
| 86842-48200 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48200 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842K - WIRE, NAVIGATION, NO.3 | ||||
| 86842-48110 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48110 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842K - WIRE, NAVIGATION, NO.3 | ||||
| 86842-48110 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48110 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||

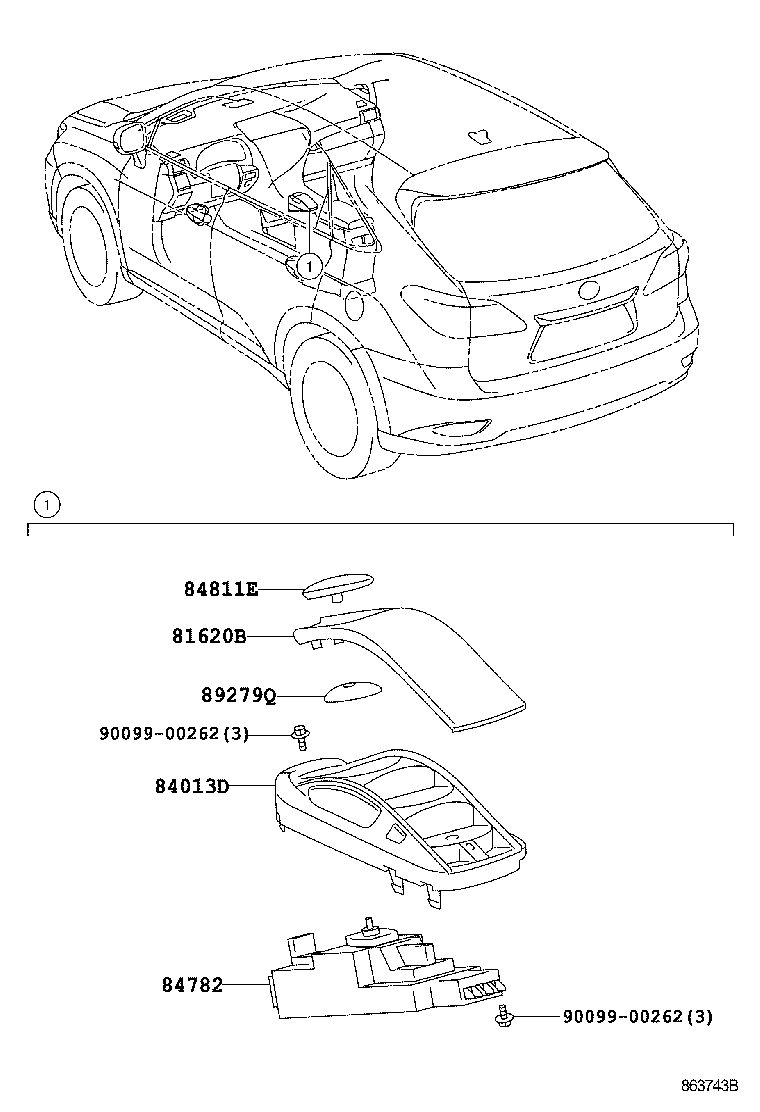

ILLUST NO. 2 OF 3(0812-1203)LHD
W(NAVIGATION SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81620B - COVER ASSY LH | ||||
| 81620-48010C0 |
GGL15..LHD EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),BLACK,TRIM1#,2# |
1 | ||
| 81620-48010E0 |
GGL15..LHD EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),DK. BROWN,TRIM0# |
1 | ||
| 81620-48010C1 |
GGL15,GYL15..LHD EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),BLACK,TRIM1#,2# |
1 | ||
| 81620-48010E1 |
GGL15,GYL15..LHD EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),DK. BROWN,TRIM0# |
1 | ||
| 84013D - PANEL SUB-ASSY, INTEGRATION | ||||
| 84013-48010E1 |
GGL15,GYL15..LHD EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),DK. BROWN,TRIM0# |
1 | ||
| 84013-48010C0 |
GGL15..LHD EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),BLACK,TRIM1#,2# |
1 | ||
| 84013-48010E0 |
GGL15..LHD EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),DK. BROWN,TRIM0# |
1 | ||
| 84013-48010C1 |
GGL15,GYL15..LHD EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),BLACK,TRIM1#,2# |
1 | ||
| 84782 - BOARD, REMOTE OPERATION | ||||
| 84782-48010 |
AGL10..RHD;GGL15,GYL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 84811E - KNOB, SWITCH | ||||
| 84811-48010C0 |
GGL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),BLACK,TRIM1#,2# |
1 | ||
| 84811-48010E0 |
GGL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),DK. BROWN,TRIM0# |
1 | ||
| 84811-48010E1 |
AGL10..RHD;GGL15,GYL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),DK. BROWN,TRIM0# |
1 | ||
| 84811-48010C1 |
AGL10..RHD;GGL15,GYL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),BLACK,TRIM1#,2# |
1 | ||
| 89279Q - COVER | ||||
| 89279-48010E0 |
GGL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),DK. BROWN,TRIM0# |
1 | ||
| 89279-48010C1 |
AGL10..RHD;GGL15,GYL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),BLACK,TRIM1#,2# |
1 | ||
| 89279-48010C0 |
GGL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),BLACK,TRIM1#,2# |
1 | ||
| 89279-48010E1 |
AGL10..RHD;GGL15,GYL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION),DK. BROWN,TRIM0# |
1 | ||
| Common parts | ||||
| 90099-00262 | ||||
(0812-1203)LHD
W/O(NAVIGATION SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

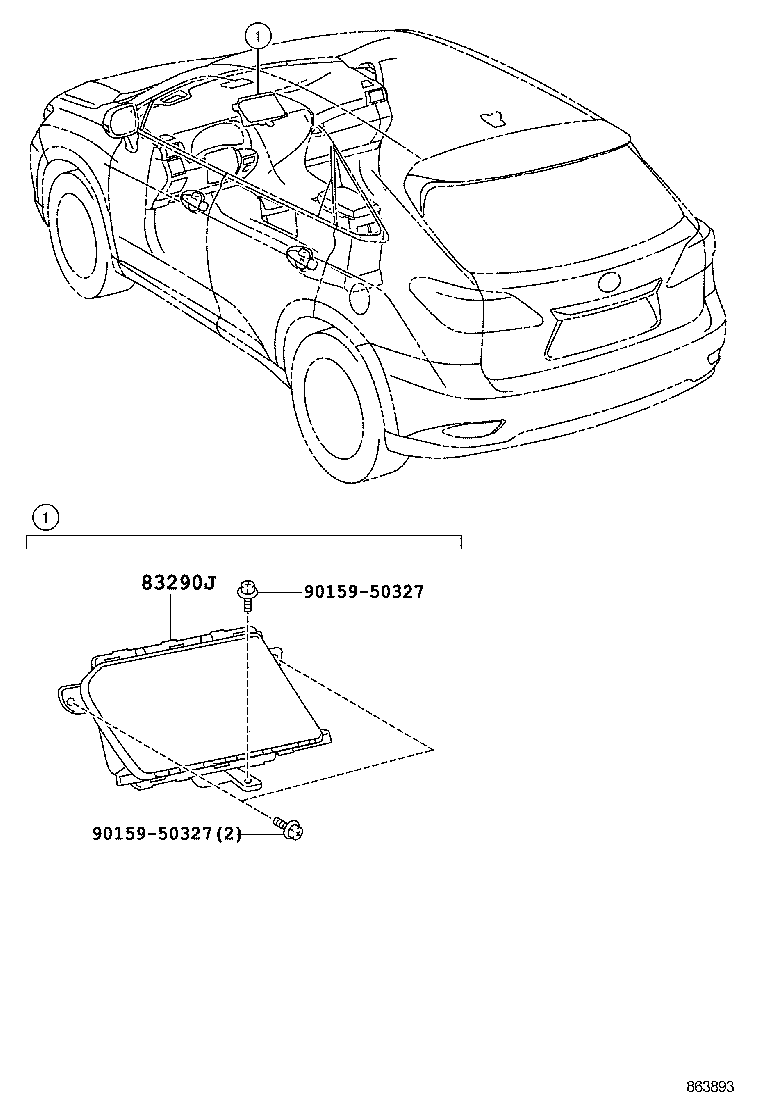

| 83290J - METER ASSY, ACCESSORY | ||||
| 83290-48020 |
GGL15..GCC |
1 | ||
| 83290-48020 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| Common parts | ||||
| 90159-50327 | ||||
ILLUST NO. 1 OF 3(0812-1203)GCC
W(NAVIGATION SYSTEM)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86101H - CORD SUB-ASSY, ANTENNA | ||||
| 86101-48C10 |
GGL15,GYL15..LHD EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86110B - MULTI-DISPLAY ASSY | ||||
| 86110-48470 |
GGL15..GCC DENSO,EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-48090 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86271-48093 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86271-48091 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86271-48092 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86271-48180 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86271-48181 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86274D - BRACKET, DISC PLAYER | ||||
| 86274-48170 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86274-48170 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86274F - BRACKET, DISC PLAYER, NO.2 | ||||
| 86274-48180 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86274-48180 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86274G - BRACKET, DISC PLAYER, NO.3 | ||||
| 86274-48190 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86274-48190 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86274K - BRACKET, DISC PLAYER, NO.4 | ||||
| 86274-48200 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86274-48200 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86421 - BOARD, NAVIGATION MODULE | ||||
| 86421-48010 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86421-48010 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86431 - DISPLAY, DISPLAY & NAVIGATION MODULE | ||||
| 86431-48020 |
GGL15..GCC AISIN AW,EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86431-48100 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842 - WIRE, NAVIGATION, NO.1 | ||||
| 86842-48130 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48130 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842K - WIRE, NAVIGATION, NO.3 | ||||
| 86842-48110 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48110 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842K - WIRE, NAVIGATION, NO.3 | ||||
| 86842-48110 |
GGL15..GCC EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86842-48110 |
GGL15..GCC INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-48160 |
GGL15,GYL15..LHD EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| Common parts | ||||
| 90119-08C81 | ||||
| 90159-50327 | ||||
| Linked diagrams | ||||
| 8606 | ||||
