GGL15L-AWTGKV (2008)
Toyota Lexus Rx270/350/450h

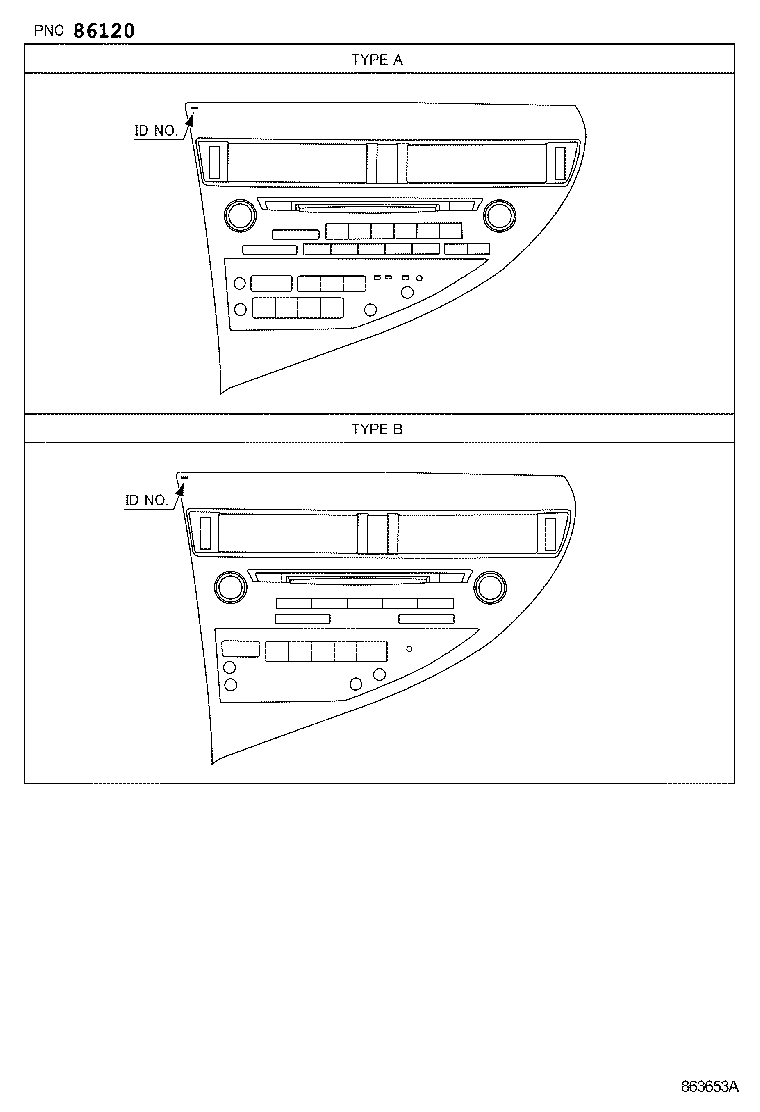

ILLUST NO. 2 OF 4(0812-1203)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-48J50 |
GGL15..GCC PIONEER,ID=P2860 |
1 | ||
| 86120-48J80 |
GGL15..GCC PIONEER,ID=P7534,AUDIO-DVD CHANGER,15SPEAKER,*MAR&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86120-48K50 |
GGL15..GCC PIONEER,ID=P2856,AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86120-48P70 |
GGL15..GCC PIONEER,ID=P10015 |
1 | ||
| 86120-48J50 |
GGL15..GCC PIONEER,ID=P2860,TYPE A:REFER ILLUST. |
1 | ||
| 86120-48J80 |
GGL15..GCC PIONEER,ID=P7534,TYPE B:REFER ILLUST. |
1 | ||
| 86120-48K50 |
GGL15..GCC PIONEER,ID=P2856,TYPE B:REFER ILLUST. |
1 | ||
| 86120-48P70 |
GGL15..GCC PIONEER,ID=P10015,TYPE A:REFER ILLUST. |
1 | ||

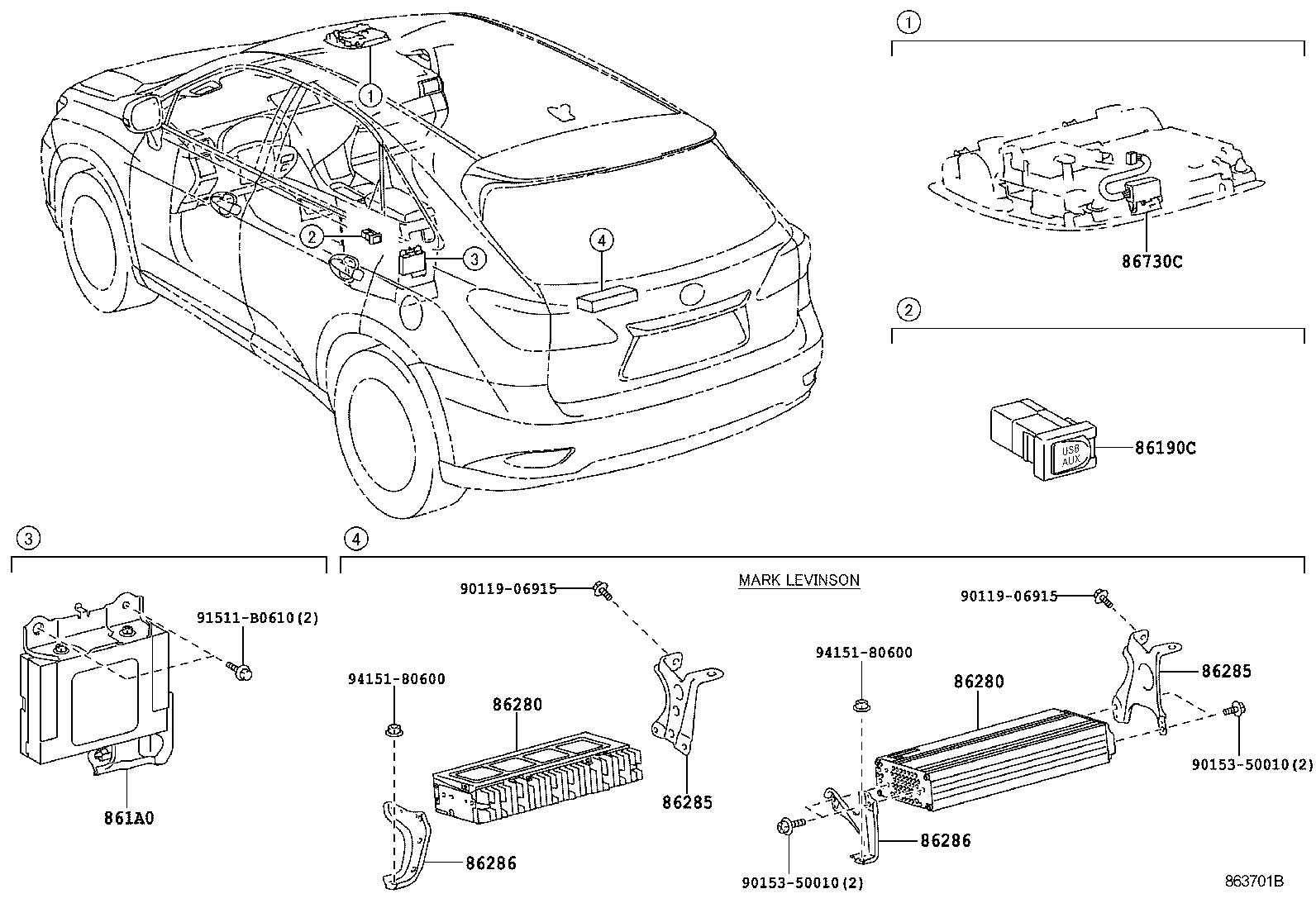

ILLUST NO. 3 OF 4(0812-1203)LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86190C - ADAPTER ASSY, STEREO JACK, NO.1 | ||||
| 86190-48050 |
GGL15,GYL15 |
1 | ||
| 86190-48040 |
GGL15,GYL15 |
1 | ||
| 861A0 - COMPUTER ASSY, MULTI-MEDIA INTERFACE | ||||
| 861A0-48010 |
AGL10..RHD;GGL15,GYL15 EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 861A0-48020 |
GGL15,GYL15 |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-48140 |
AGL10,GGL15,GYL1# |
1 | ||
| 86280-48160 |
GGL15;AGL10,GYL15..RHD AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86280-0W540 |
AGL10..RHD;GGL15,GYL15 AUDIO-DVD CHANGER,15SPEAKER,*MAR&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86280 - AMPLIFIER ASSY, STEREO COMPONENT | ||||
| 86280-48140 |
AGL10,GGL15,GYL1# |
1 | ||
| 86280-48160 |
GGL15;AGL10,GYL15..RHD AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86280-0W540 |
AGL10..RHD;GGL15,GYL15 AUDIO-DVD CHANGER,15SPEAKER,*MAR&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-48100 |
AGL10,GGL15,GYL1# |
1 | ||
| 86285-48110 |
AGL10..RHD;GGL15,GYL15 AUDIO-DVD CHANGER,15SPEAKER,*MAR&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86285 - BRACKET, AMPLIFIER, NO.1 | ||||
| 86285-48100 |
AGL10,GGL15,GYL1# |
1 | ||
| 86285-48110 |
AGL10..RHD;GGL15,GYL15 AUDIO-DVD CHANGER,15SPEAKER,*MAR&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-48080 |
AGL10,GGL15,GYL1# |
1 | ||
| 86286-48090 |
AGL10..RHD;GGL15,GYL15 AUDIO-DVD CHANGER,15SPEAKER,*MAR&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86286 - BRACKET, AMPLIFIER, NO.2 | ||||
| 86286-48080 |
AGL10,GGL15,GYL1# |
1 | ||
| 86286-48090 |
AGL10..RHD;GGL15,GYL15 AUDIO-DVD CHANGER,15SPEAKER,*MAR&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86730C - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-48040 |
AGL10,GGL15,GYL1#..LHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90153-50010 | ||||
| 91511-B0610 | ||||
| 94151-80600 | ||||

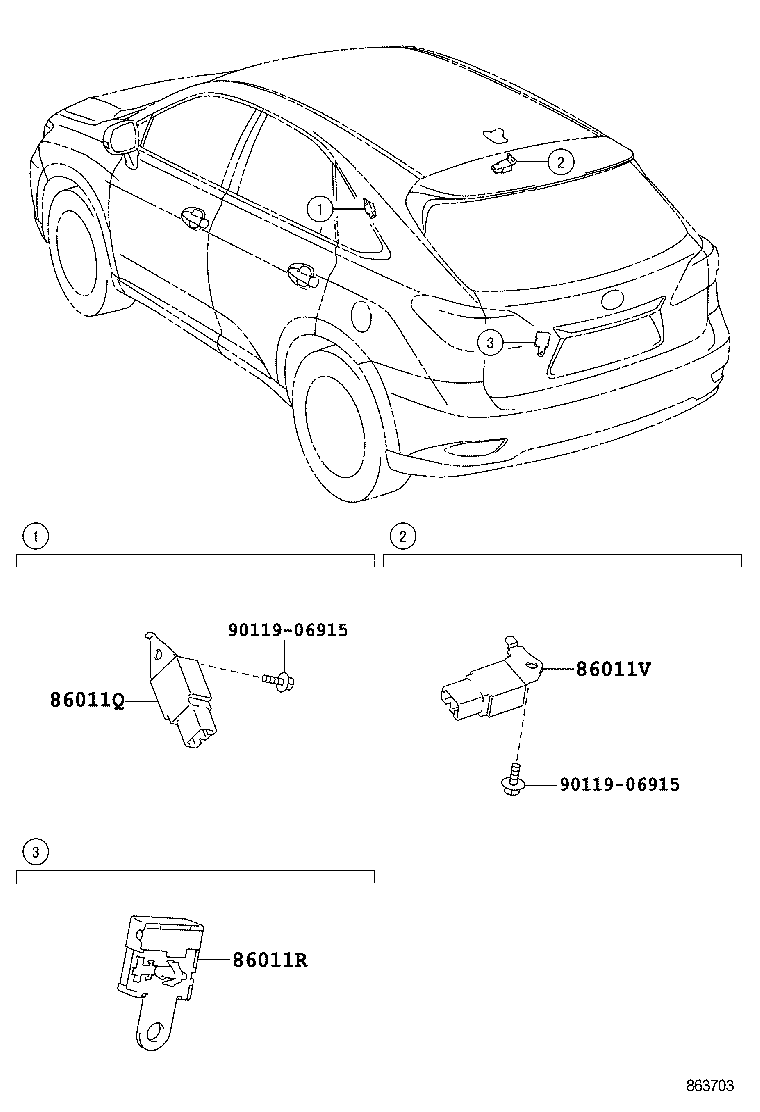

ILLUST NO. 4 OF 4(0812-1203)AGL10,GGL15
CONDENSER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86011Q - CONDENSER, RADIO SETTING | ||||
| 90980-04174 |
AGL10,GGL15,GYL1# |
1 | ||
| 86011R - CONDENSER, RADIO SETTING | ||||
| 90980-04189 |
AGL10,GGL15,GYL1# |
1 | ||
| 90980-04200 |
GGL15,GYL15 |
1 | ||
| 86011V - CONDENSER, RADIO SETTING | ||||
| 86516-48030 |
AGL10,GGL15 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 1 OF 4(0812- )LHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-48J50 |
GGL15..GCC PIONEER,ID=P2860 |
1 | ||
| 86120-48J80 |
GGL15..GCC PIONEER,ID=P7534,AUDIO-DVD CHANGER,15SPEAKER,*MAR&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86120-48K50 |
GGL15..GCC PIONEER,ID=P2856,AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
1 | ||
| 86120-48P70 |
GGL15..GCC PIONEER,ID=P10015 |
1 | ||
| 86120-48J50 |
GGL15..GCC PIONEER,ID=P2860,TYPE A:REFER ILLUST. |
1 | ||
| 86120-48J80 |
GGL15..GCC PIONEER,ID=P7534,TYPE B:REFER ILLUST. |
1 | ||
| 86120-48K50 |
GGL15..GCC PIONEER,ID=P2856,TYPE B:REFER ILLUST. |
1 | ||
| 86120-48P70 |
GGL15..GCC PIONEER,ID=P10015,TYPE A:REFER ILLUST. |
1 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22061 |
GGL15..GCC |
2 | ||
| 90010-22061 |
GGL15..GCC MOROCCO SPEC&ART WORKS&AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22061 |
GGL15..GCC |
2 | ||
| 90010-22061 |
GGL15..GCC MOROCCO SPEC&ART WORKS&AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22061 |
GGL15..GCC |
2 | ||
| 90010-22061 |
GGL15..GCC MOROCCO SPEC&ART WORKS&AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
2 | ||
| 86120A - KNOB, RADIO RECEIVER SWITCH | ||||
| 90010-22061 |
GGL15..GCC |
2 | ||
| 90010-22061 |
GGL15..GCC MOROCCO SPEC&ART WORKS&AUDIO-CD CHANGER,12SPEAKER&EMV & NAVIGATION SYSTEM-WITH(DVD NAVIGATION) |
2 | ||
| Common parts | ||||
| 91673-80616 | ||||
| Linked diagrams | ||||
| 8603 | ||||
