GGL15L-AWTGKV (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812-1203)

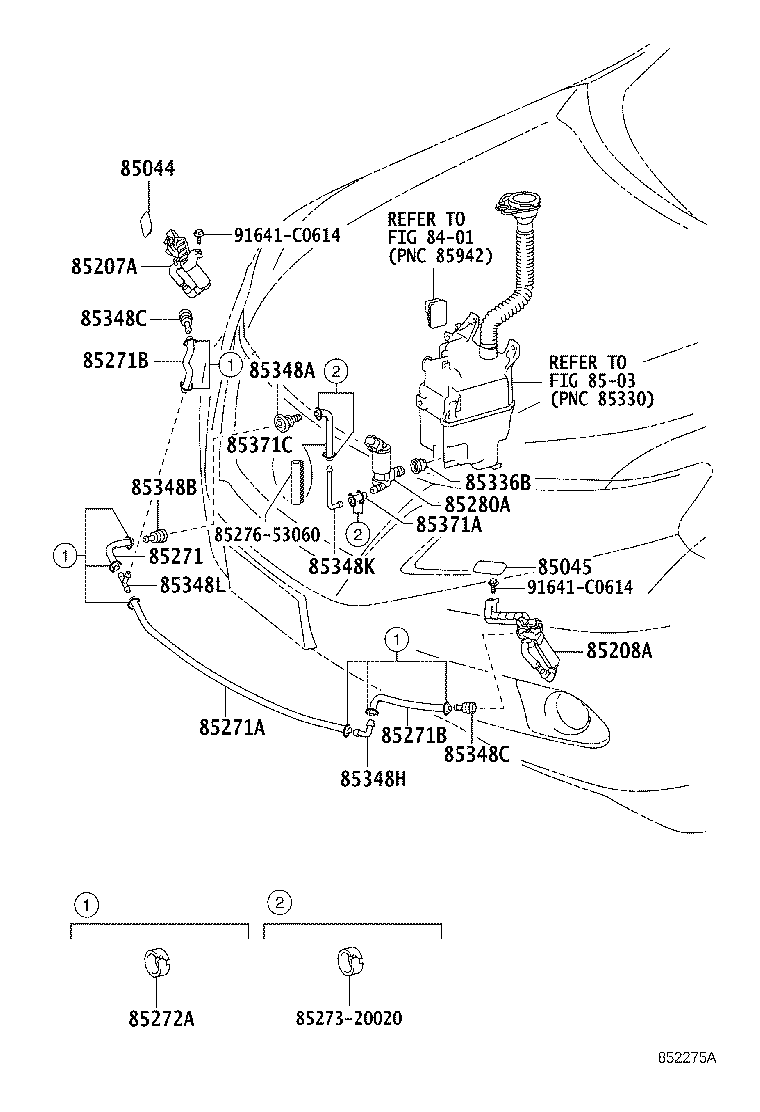

Click highlighted areas on diagram

diagram 8401 8503 85044 85045 85207A 85208A 85271 85271A 85271B 85271B 85272A 8527320020 8527653060 85280A 85336B 85348A 85348B 85348C 85348C 85348H 85348K 85348L 85371A 85371C 91641C0614 91641C0614
Part # Description Qty Price
85044 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, RH
85044-48010E0

GGL15,GYL1#

BEIGE ME.,4T1

 1
85044-48010J1

AGL10,GGL15,GYL1#

SILVERY BLUE ME.,8U9

 1
85044-48010J0

GGL15,GYL1#

DK.BLUE MC. CC.,8U0

 1
85044-48010B2

AGL10,GGL15,GYL1#

SILVER M.M.,1G1

 1
85044-48010E1

GGL15,GYL1#

SABLE M.M.,4T5

 1
85044-48010B0

AGL10,GGL15,GYL1#

DK.GRAY MC.,1G0

 1
85044-48010A1

GGL15,GYL1#

QUARTZ WHITE C.S.,078

 1
85044-48010E2

AGL10,GGL15,GYL1#

SLEEK ECRU ME.,4U7

 1
85044-48010C0

AGL10,GGL15,GYL1#

BLACK,212

 1
85044-48010A0

AGL10,GGL15,GYL1#

WHITE PEARL CS.,077

 1
85044-48010B3

AGL10,GGL15,GYL1#

MERCURY GRAY MC.,1H9

 1
85044-48010D0

AGL10,GGL15,GYL1#

RED MC.CS.,3R1

 1
85044-48010C2

AGL10,GGL15,GYL1#

STARLIGHT BLACK GF.,217

 1
85045 - NOZZLE SUB-ASSY, TYPE1 H/LAMP WASHER, LH
85045-48010J0

GGL15,GYL1#

DK.BLUE MC. CC.,8U0

 1
85045-48010B0

AGL10,GGL15,GYL1#

DK.GRAY MC.,1G0

 1
85045-48010E0

GGL15,GYL1#

BEIGE ME.,4T1

 1
85045-48010E1

GGL15,GYL1#

SABLE M.M.,4T5

 1
85045-48010C0

AGL10,GGL15,GYL1#

BLACK,212

 1
85045-48010A0

AGL10,GGL15,GYL1#

WHITE PEARL CS.,077

 1
85045-48010B2

AGL10,GGL15,GYL1#

SILVER M.M.,1G1

 1
85045-48010D0

AGL10,GGL15,GYL1#

RED MC.CS.,3R1

 1
85045-48010C2

AGL10,GGL15,GYL1#

STARLIGHT BLACK GF.,217

 1
85045-48010B3

AGL10,GGL15,GYL1#

MERCURY GRAY MC.,1H9

 1
85045-48010J1

AGL10,GGL15,GYL1#

SILVERY BLUE ME.,8U9

 1
85045-48010A1

GGL15,GYL1#

QUARTZ WHITE C.S.,078

 1
85045-48010E2

AGL10,GGL15,GYL1#

SLEEK ECRU ME.,4U7

 1
85207A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85207-48040

AGL10,GGL15,GYL1#

 1
85208A - ACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85208-48040

AGL10,GGL15,GYL1#

 1
85271 - HOSE, HEADLAMP CLEANER, NO.1
90075-15051

AGL10,GGL15,GYL1#

L=140

 1
85271A - HOSE, HEADLAMP CLEANER, NO.2
90075-15050

AGL10,GGL15,GYL1#

L=960

 1
85271B - HOSE, HEADLAMP CLEANER, NO.3
85375-12510

AGL10,GGL15,GYL1#

 2
85271B - HOSE, HEADLAMP CLEANER, NO.3
85375-12510

AGL10,GGL15,GYL1#

 2
85272A - CLAMP, HEADLAMP CLEANER, NO.1
85273-20020

AGL10,GGL15,GYL1#

 8
85280A - MOTOR AND PUMP ASSY, HEADLAMP CLEANER
85280-30040

AGL10,GGL15,GYL1#

 1
85336B - PACKING, HEADLAMP CLEANER WASHER
90099-32089

AGL10,GGL15,GYL1#

 1
85348A - JOINT, HEADLAMP CLEANER HOSE, NO.1
85279-33050

AGL10,GGL15,GYL1#

 1
85348B - JOINT, HEADLAMP CLEANER HOSE, NO.2
85279-33040

AGL10,GGL15,GYL1#

 1
85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3
85279-33040

AGL10,GGL15,GYL1#

 2
85348C - JOINT, HEADLAMP CLEANER HOSE, NO.3
85279-33040

AGL10,GGL15,GYL1#

 2
85348H - JOINT, HEADLAMP CLEANER HOSE, NO.4
85379-22080

AGL10,GGL15,GYL1#

 1
85348K - JOINT, HEADLAMP CLEANER ELBOW, NO.1
85278-20590

AGL10,GGL15,GYL1#

 1
85348L - JOINT, HEADLAMP CLEANER ELBOW, NO.2
85287-53060

AGL10,GGL15,GYL1#

 1
85371A - HOSE, HEADLAMP CLEANER(FROM MOTOR TO JOINT)
85375-16020

AGL10,GGL15,GYL1#

L=40

 1
85371C - HOSE, HEADLAMP CLEANER, NO.1
85375-89133

AGL10,GGL15,GYL1#

 1
Common parts
85273-20020
85276-53060
91641-C0614
