GGL15L-AWTGKV (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812-1203)

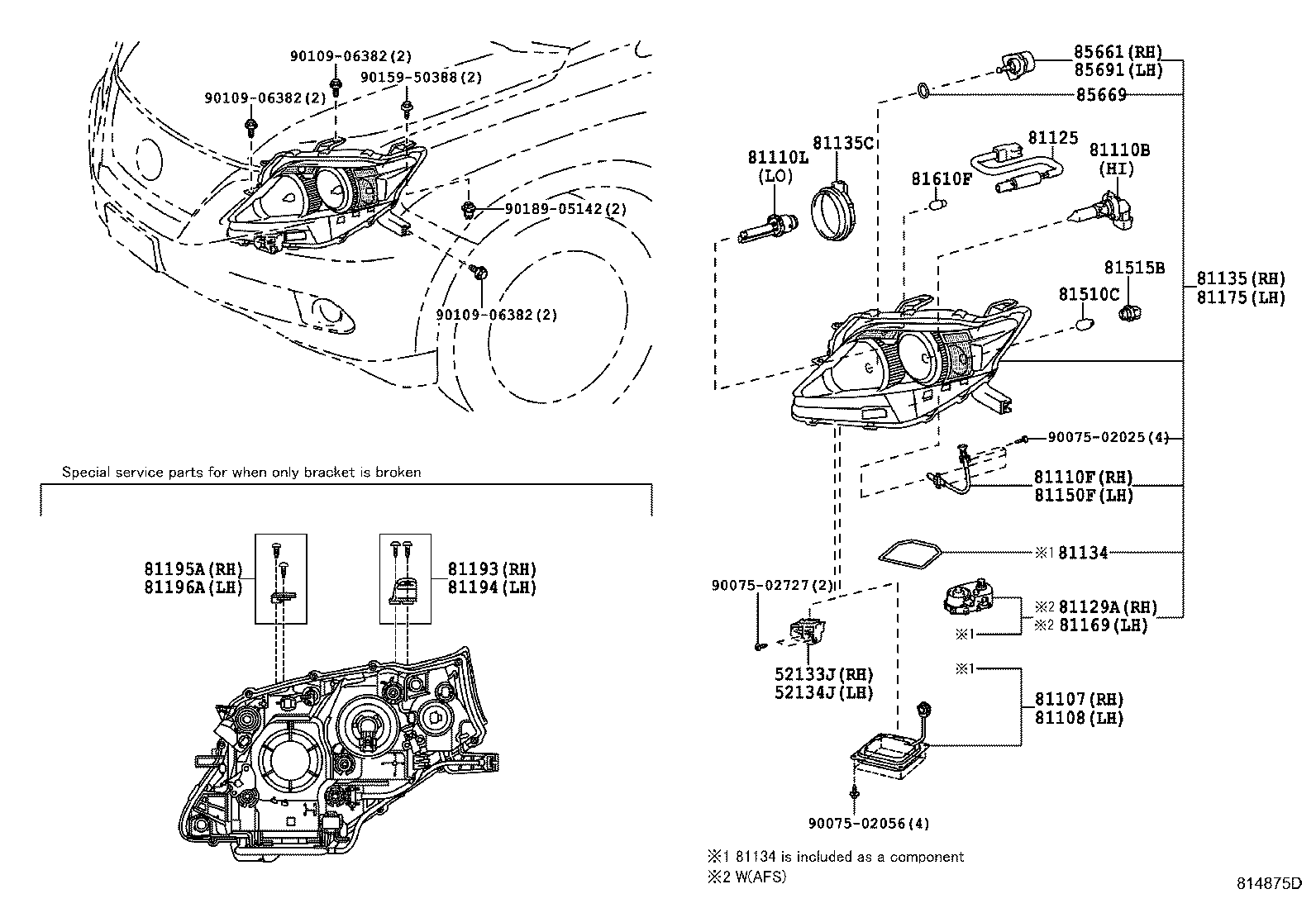

Click highlighted areas on diagram

DISCHARGE

diagram 52133J 52134J 81107 81108 81110B 81110F 81110L 81125 81129A 81134 81135 81135C 81150F 81169 81175 81193 81194 81195A 81196A 81510C 81515B 81610F 85661 85669 85691 9007502025 9007502056 9007502727 9010906382 9010906382 9010906382 9015950388 9018905142
Part # Description Qty Price
52133J - REINFORCEMENT, FRONT BUMPER BAR, RH
52133-48020

AGL10,GGL15,GYL1#

 1
52134J - REINFORCEMENT, FRONT BUMPER BAR, LH
52134-48030

AGL10,GGL15,GYL1#

 1
81107 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, RH
81107-12A81

AGL10,GGL15,GYL1#

 1
81107-12A80

GGL15,GYL1#

 1
81108 - COMPUTER SUB-ASSY, HEADLAMP LIGHT CONTROL, LH
81107-12A80

GGL15,GYL1#

 1
81107-12A81

AGL10,GGL15,GYL1#

 1
81110B - BULB(FOR HEADLAMP, NO.1)
90981-13046

AGL10,GGL15,GYL1#

12V65W(SAE),60W(ECE)

 2
90080-81041

GGL15

12V 65W

 2
81110F - GEAR UNIT ASSY, RH NO.1
90075-50025

AGL10,GGL15,GYL1#

 1
81110L - BULB, DISCHARGE HEADLAMP
90981-20024

AGL10,GGL15,GYL1#

42V 35W

 2
90981-20021

GGL15

45V 35W

 2
81125 - CORD, HEADLAMP
81125-48690

AGL10,GGL15,GYL1#

 2
81129A - REFLECTOR, HEADLAMP, RH
81129-33680

GGL15

LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81129-50381

AGL10,GGL15

LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81129-50381

AGL10,GGL15

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81129-33680

GGL15

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81134 - GASKET, HEADLAMP
90075-68007

AGL10,GGL15,GYL1#

 1
81135 - UNIT ASSY, HEADLAMP, RH
81145-48670

GGL15..LHD

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81145-48670

GGL15..LHD

LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81145-48710

GGL15..LHD

 1
81145-48671

AGL10,GGL15..LHD

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81145-48A70

GGL15..GCC

ART WORKS&HEADLAMP-DISCHARGE & SECOND LINE

 1
81145-48671

AGL10,GGL15..LHD

LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81145-48711

AGL10,GGL15..LHD

 1
81135C - COVER, HEADLAMP BACK, NO.1
81135-24160

AGL10,GGL15,GYL1#

 2
81150F - GEAR UNIT ASSY, LH NO.1
90075-50025

AGL10,GGL15,GYL1#

 1
81169 - REFLECTOR, HEADLAMP, LH
81169-33680

GGL15

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81169-50381

AGL10,GGL15

LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81169-50381

AGL10,GGL15

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81169-33680

GGL15

LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81175 - UNIT ASSY, HEADLAMP, LH
81185-48710

GGL15..LHD

 1
81185-48670

GGL15..LHD

LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81185-48671

AGL10,GGL15..LHD

LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81185-48711

AGL10,GGL15..LHD

 1
81185-48670

GGL15..LHD

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81185-48671

AGL10,GGL15..LHD

ULTRA LUXURY PACKAGE&HEADLAMP-DISCHARGE & AFS

 1
81185-48A70

GGL15..GCC

ART WORKS&HEADLAMP-DISCHARGE & SECOND LINE

 1
81193 - RETAINER, HEADLAMP PROTECTOR, UPPER RH
81193-48080

AGL10,GGL15,GYL1#

 1
81194 - RETAINER, HEADLAMP PROTECTOR, UPPER LH
81194-48080

AGL10,GGL15,GYL1#

 1
81195A - RETAINER, HEADLAMP PROTECTOR, LOWER RH
81195-48050

AGL10,GGL15,GYL1#

 1
81196A - RETAINER, HEADLAMP PROTECTOR, LOWER LH
81196-48050

AGL10,GGL15,GYL1#

 1
81510C - BULB (FOR FRONT TURN SIGNAL LAMP)
90981-15021

AGL10,GGL15,GYL1#

12V 21W,AMBER

 2
81515B - SOCKET, FRONT TURN SIGNAL LAMP
90075-60028

AGL10,GGL15,GYL1#

 2
81610F - BULB(FOR CLEARANCE LAMP)
99132-12050

AGL10,GGL15,GYL1#

12V 5W

 2
85661 - MOTOR, HEADLAMP LEVELING, RH
85661-28011

AGL10,GGL15,GYL1#

 1
85661-28010

GGL15

 1
85669 - PACKING, HEADLAMP LEVELING MOTOR BASE
90075-99120

AGL10,GGL15,GYL1#

 2
85691 - MOTOR, HEADLAMP LEVELING, LH
85691-28010

GGL15

 1
85691-28011

AGL10,GGL15,GYL1#

 1
Common parts
90075-02025
90075-02056
90075-02727
90109-06382
90159-50388
90189-05142
