GGL15L-AWTGKV (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812-1203)

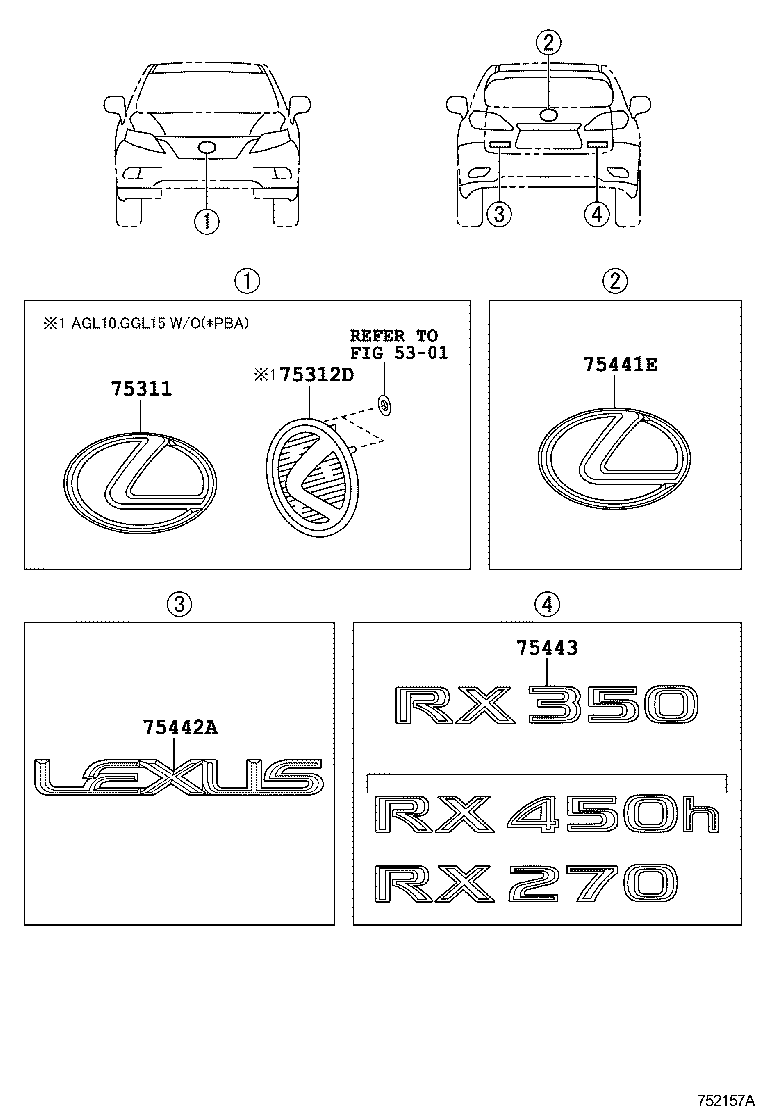

Click highlighted areas on diagram

diagram 5301 75311 75312D 75441E 75442A 75443
Part # Description Qty Price
75311 - EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)
90975-02082

AGL10,GGL15

 1
53141-48050

GGL15..GCC

GCC SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)

 1
53141-48050

GGL15..GCC

PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB)

 1
75312D - BASE, RADIATOR GRILLE EMBLEM
75312-48041

AGL10,GGL15

 1
75312-48060

GGL15..GCC

ART WORKS

 1
75312-48040

GGL15

 1
75441E - PLATE, BACK DOOR NAME, NO.1
90975-02079

AGL10,GGL15

 1
75442A - PLATE, BACK DOOR NAME, NO.2
75442-48110

AGL10,GGL15,GYL1#

LEXUS

 1
75443 - PLATE, BACK DOOR NAME, NO.3
75443-48130

GGL15

RX350

 1
Linked diagrams
5301
