GGL15L-AWTGKV (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812-1203)LHD

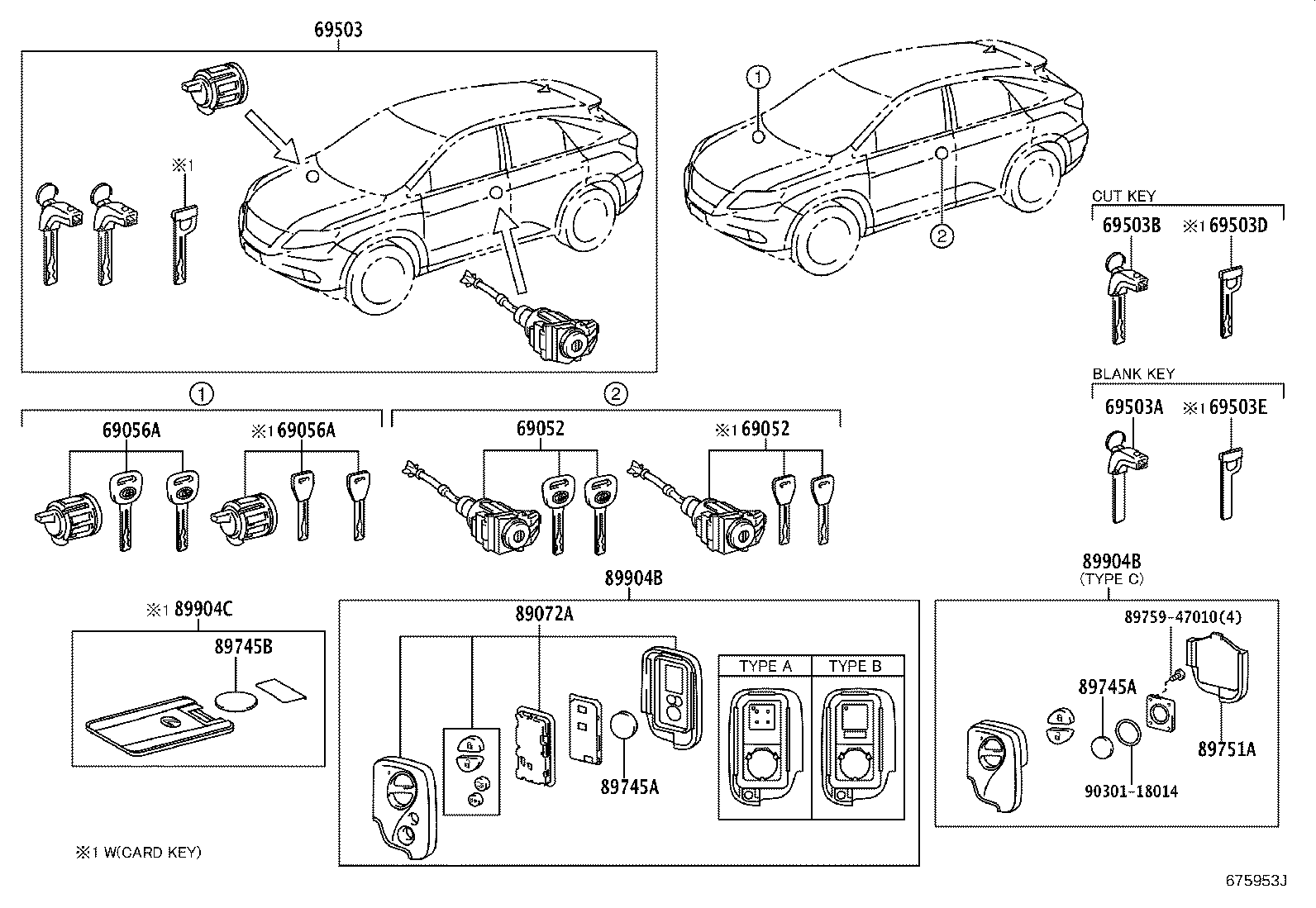

Click highlighted areas on diagram

diagram 69052 69052 69056A 69056A 69503 69503A 69503B 69503D 69503E 89072A 89745A 89745A 89745B 89751A 8975947010 89904B 89904B 89904C 9030118014
Part # Description Qty Price
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-48150

AGL10,GGL15..LHD

ELECTRICAL KEY(2) & CARD TYPE(1)

 1
69052-48140

AGL10,GGL15,GYL1#..LHD

 1
69052 - CYLINDER & KEY SET, DOOR LOCK, LH
69052-48150

AGL10,GGL15..LHD

ELECTRICAL KEY(2) & CARD TYPE(1)

 1
69052-48140

AGL10,GGL15,GYL1#..LHD

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-30250

AGL10,GGL15,GYL1#

 1
69056-50160

AGL10,GGL15

ELECTRICAL KEY(2) & CARD TYPE(1)

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-30250

AGL10,GGL15,GYL1#

 1
69056-50160

AGL10,GGL15

ELECTRICAL KEY(2) & CARD TYPE(1)

 1
69503 - CYLINDER SET, LOCK
69005-48420

AGL10,GGL15,GYL1#..LHD

 1
69005-48460

AGL10,GGL15..LHD

ELECTRICAL KEY(2) & CARD TYPE(1)

 1
69503A - KEY, BLANK
69515-30300

AGL10,GGL15,GYL1#

 1
69515-50260

AGL10,GGL15

BLANK KEY,ELECTRICAL KEY(2) & CARD TYPE(1)

 1
69503B - KEY, CUT
69515-30290

AGL10,GGL15,GYL1#

 2
69515-50240

AGL10,GGL15

MASTER KEY,ELECTRICAL KEY(2) & CARD TYPE(1)

 2
69503D - KEY, CUT(CARD KEY)
69515-50220

GGL15

MASTER KEY,ELECTRICAL KEY(2) & CARD TYPE(1)

 1
69515-30330

AGL10,GGL15

MASTER KEY,ELECTRICAL KEY(2) & CARD TYPE(1)

 1
69503E - KEY, BLANK(CARD KEY)
69515-50270

AGL10,GGL15

BLANK KEY,ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89072A - HOUSING SET, DOOR CONTROL TRANSMITTER
89072-48610

GGL15..GCC

 2
89072-48610

GGL15..GCC

EGYPT SPEC

 2
89072-48620

GGL15..GCC

EGYPT SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89072-48620

GGL15..GCC

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89072-48620

GGL15..GCC

GCC SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89072-48610

GGL15..GCC

GCC SPEC

 2
89072-48611

GGL15..GCC

GCC SPEC

 2
89072-48621

GGL15..GCC

GCC SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89745A - BATTERY, TRANSMITTER
89745-52030

AGL10,GGL15,GYL1#

 1
89745A - BATTERY, TRANSMITTER
89745-52030

AGL10,GGL15,GYL1#

 1
89745B - BATTERY, TRANSMITTER(CARD KEY)
89745-50030

GGL15..GCC

EGYPT SPEC&ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89745-50030

AGL10,GGL15

ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89745-50030

GGL15..GCC

MOROCCO SPEC&ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89745-50030

GGL15..GCC

GCC SPEC&ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89751A - COVER, TRANSMITTER HOUSING
89751-48330

GGL15..GCC

MOROCCO SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ELECTRICAL KEY(2) & CARD TYPE(1)

 2
89751-48330

GGL15..GCC

MOROCCO SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89751-48330

GGL15..GCC

MOROCCO SPEC

 2
89751-48330

GGL15..GCC

MOROCCO SPEC&ELECTRICAL KEY(2) & CARD TYPE(1)

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-48231

GGL15..GCC

 2
89904-48241

GGL15..GCC

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89904-48241

GGL15..GCC

EGYPT SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89904-48231

GGL15..GCC

EGYPT SPEC

 2
89904-48231

GGL15..GCC

GCC SPEC

 2
89904-48241

GGL15..GCC

GCC SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89904-48271

GGL15..GCC

MOROCCO SPEC&ELECTRICAL KEY(2) & CARD TYPE(1),TYPE C:REFER ILLUST.

 2
89904-48B30

GGL15..GCC

 2
89904-48281

GGL15..GCC

MOROCCO SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ELECTRICAL KEY(2) & CARD TYPE(1),TYPE C:REFER ILLUST.

 2
89904-48B40

GGL15..GCC

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89904-48631

GGL15..GCC

MOROCCO SPEC,TYPE C:REFER ILLUST.

 2
89904-48641

GGL15..GCC

MOROCCO SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),TYPE C:REFER ILLUST.

 2
89904-48232

GGL15..GCC

GCC SPEC

 2
89904-48242

GGL15..GCC

GCC SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-48231

GGL15..GCC

 2
89904-48241

GGL15..GCC

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89904-48241

GGL15..GCC

EGYPT SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89904-48231

GGL15..GCC

EGYPT SPEC

 2
89904-48231

GGL15..GCC

GCC SPEC

 2
89904-48241

GGL15..GCC

GCC SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89904-48271

GGL15..GCC

MOROCCO SPEC&ELECTRICAL KEY(2) & CARD TYPE(1),TYPE C:REFER ILLUST.

 2
89904-48B30

GGL15..GCC

 2
89904-48281

GGL15..GCC

MOROCCO SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&ELECTRICAL KEY(2) & CARD TYPE(1),TYPE C:REFER ILLUST.

 2
89904-48B40

GGL15..GCC

AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89904-48631

GGL15..GCC

MOROCCO SPEC,TYPE C:REFER ILLUST.

 2
89904-48641

GGL15..GCC

MOROCCO SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),TYPE C:REFER ILLUST.

 2
89904-48232

GGL15..GCC

GCC SPEC

 2
89904-48242

GGL15..GCC

GCC SPEC&AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)

 2
89904C - TRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
89994-48061

GGL15..GCC

ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89994-48091

GGL15..GCC

EGYPT SPEC&ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89994-48061

GGL15..GCC

GCC SPEC&ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89994-48062

GGL15..GCC

GCC SPEC&ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89994-48091

GGL15..GCC

MOROCCO SPEC&ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89994-48010

GGL15..GCC

ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89994-48063

GGL15..GCC

GCC SPEC&ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89994-48091

GGL15..GCC

MOROCCO SPEC&ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89994-48290

GGL15..GCC

ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89994-48261

GGL15..GCC

MOROCCO SPEC&ELECTRICAL KEY(2) & CARD TYPE(1)

 1
89994-48250

GGL15..GCC

GCC SPEC&ELECTRICAL KEY(2) & CARD TYPE(1)

 1
Common parts
89759-47010
90301-18014
