GGL15L-AWTGKV (2008)
Toyota Lexus Rx270/350/450h
Production
Dec 2008
-
Mar 2012
Engine
2GRFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(0812-1203)AGL10,GGL15

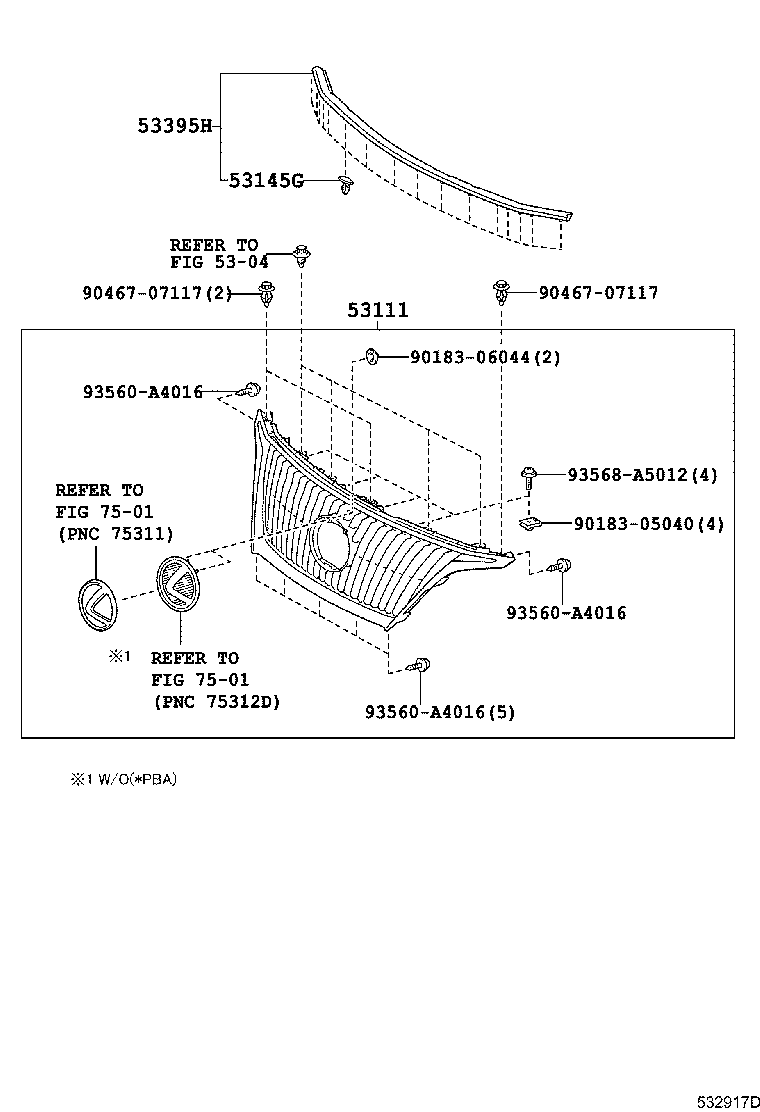

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53111 - GRILLE, RADIATOR | ||||
| 53101-48240 |
GGL15..GCC GCC SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
1 | ||
| 53101-48230 |
GGL15..GCC |
1 | ||
| 53101-48241 |
GGL15..GCC GCC SPEC&PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
1 | ||
| 53101-48390 |
GGL15..GCC ART WORKS |
1 | ||
| 53101-48231 |
GGL15..GCC |
1 | ||
| 53101-48241 |
GGL15..GCC PRE-COLLISION SYSTEM-WITH(*PSB & *PBA & *PB) |
1 | ||
| 53145G - CLIP, RADIATOR GRILLE | ||||
| 53145-60030 |
AGL10,GGL15,GYL1# |
16 | ||
| 53395H - SEAL, HOOD TO RADIATOR GRILLE | ||||
| 53395-48040 |
AGL10,GGL15,GYL1# |
1 | ||
| Common parts | ||||
| 90183-05040 | ||||
| 90183-06044 | ||||
| 90467-07117 | ||||
| 93560-A4016 | ||||
| 93568-A5012 | ||||
| Linked diagrams | ||||
| 5304 | ||||
| 7501 | ||||
