GGL15L-AWTGKV (2008)
Toyota Lexus Rx270/350/450h

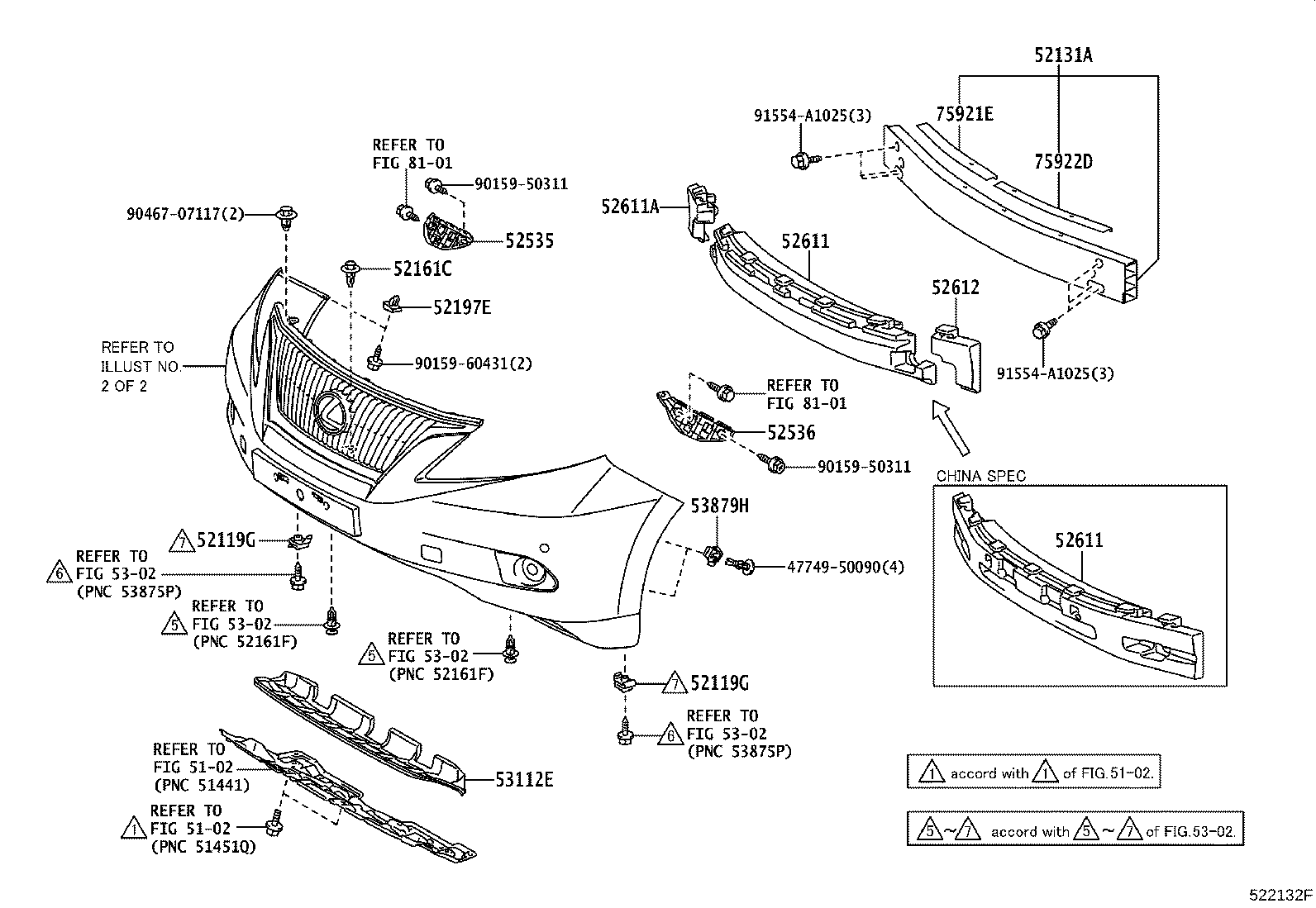

ILLUST NO. 1 OF 2(0812-0905)GGL15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119G - CLIP, NO.1 | ||||
| 90467-05114 |
AGL10,GGL15,GYL1# |
2 | ||
| 52119G - CLIP, NO.1 | ||||
| 90467-05114 |
AGL10,GGL15,GYL1# |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-48110 |
AGL10,GGL15,GYL1# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGL10,GGL15,GYL1# |
1 | ||
| 52197E - BRACKET, FRONT BUMPER SEAL | ||||
| 52197-30040 |
AGL10,GGL15,GYL1# |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-48011 |
GGL15,GYL15 |
1 | ||
| 52535-48010 |
GGL15..GCC MOROCCO SPEC |
1 | ||
| 52535-48010 |
GGL15..GCC MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52535-48012 |
AGL10,GGL15,GYL1# |
1 | ||
| 52535-48010 |
GGL15,GYL15 |
1 | ||
| 52535-48013 |
AGL10,GGL15,GYL1# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-48012 |
AGL10,GGL15,GYL1# |
1 | ||
| 52536-48010 |
GGL15..GCC MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52536-48011 |
GGL15,GYL15 |
1 | ||
| 52536-48010 |
GGL15,GYL15 |
1 | ||
| 52536-48010 |
GGL15..GCC MOROCCO SPEC |
1 | ||
| 52536-48013 |
AGL10,GGL15,GYL1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-48080 |
AGL10,GGL15,GYL1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-48080 |
AGL10,GGL15,GYL1# |
1 | ||
| 52611A - ABSORBER, FRONT BUMPER ENERGY, RH | ||||
| 52613-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 52612 - ABSORBER, FRONT BUMPER ENERGY, LH | ||||
| 52612-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-48100 |
AGL10,GGL15,GYL1# NO PAINT REQ. |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-50020 |
AGL10,GGL15,GYL1# |
4 | ||
| 75921E - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-48041 |
AGL10,GGL15,GYL1# |
1 | ||
| 75921-48040 |
GGL15,GYL15 |
1 | ||
| 75922D - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-48040 |
GGL15,GYL15 |
1 | ||
| 75922-48041 |
AGL10,GGL15,GYL1# |
1 | ||
| 75923D - TAPE, BLACK OUT, NO.2 RH | ||||
| 75923-48040 |
GGL15,GYL15 |
1 | ||
| Common parts | ||||
| 47749-50090 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90467-07117 | ||||
| 91554-A1025 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||
ILLUST NO. 1 OF 2(0905-1203)AGL10,GGL15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52119G - CLIP, NO.1 | ||||
| 90467-05114 |
AGL10,GGL15,GYL1# |
2 | ||
| 52119G - CLIP, NO.1 | ||||
| 90467-05114 |
AGL10,GGL15,GYL1# |
2 | ||
| 52131A - REINFORCEMENT, FRONT BUMPER | ||||
| 52131-48110 |
AGL10,GGL15,GYL1# |
1 | ||
| 52161C - PIECE, FRONT BUMPER | ||||
| 52161-16010 |
AGL10,GGL15,GYL1# |
1 | ||
| 52197E - BRACKET, FRONT BUMPER SEAL | ||||
| 52197-30040 |
AGL10,GGL15,GYL1# |
2 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-48011 |
GGL15,GYL15 |
1 | ||
| 52535-48010 |
GGL15..GCC MOROCCO SPEC |
1 | ||
| 52535-48010 |
GGL15..GCC MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52535-48012 |
AGL10,GGL15,GYL1# |
1 | ||
| 52535-48010 |
GGL15,GYL15 |
1 | ||
| 52535-48013 |
AGL10,GGL15,GYL1# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-48012 |
AGL10,GGL15,GYL1# |
1 | ||
| 52536-48010 |
GGL15..GCC MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52536-48011 |
GGL15,GYL15 |
1 | ||
| 52536-48010 |
GGL15,GYL15 |
1 | ||
| 52536-48010 |
GGL15..GCC MOROCCO SPEC |
1 | ||
| 52536-48013 |
AGL10,GGL15,GYL1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-48080 |
AGL10,GGL15,GYL1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-48080 |
AGL10,GGL15,GYL1# |
1 | ||
| 52611A - ABSORBER, FRONT BUMPER ENERGY, RH | ||||
| 52613-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 52612 - ABSORBER, FRONT BUMPER ENERGY, LH | ||||
| 52612-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 53112E - GRILLE, RADIATOR, LOWER NO.1 | ||||
| 53112-48100 |
AGL10,GGL15,GYL1# NO PAINT REQ. |
1 | ||
| 53879H - RETAINER, FRONT FENDER LINER | ||||
| 53879-50020 |
AGL10,GGL15,GYL1# |
4 | ||
| 75921E - TAPE, BLACK OUT, NO.1 RH | ||||
| 75921-48041 |
AGL10,GGL15,GYL1# |
1 | ||
| 75921-48040 |
GGL15,GYL15 |
1 | ||
| 75922D - TAPE, BLACK OUT, NO.1 LH | ||||
| 75922-48040 |
GGL15,GYL15 |
1 | ||
| 75922-48041 |
AGL10,GGL15,GYL1# |
1 | ||
| Common parts | ||||
| 47749-50090 | ||||
| 90159-50311 | ||||
| 90159-60431 | ||||
| 90467-07117 | ||||
| 91554-A1025 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 8101 | ||||

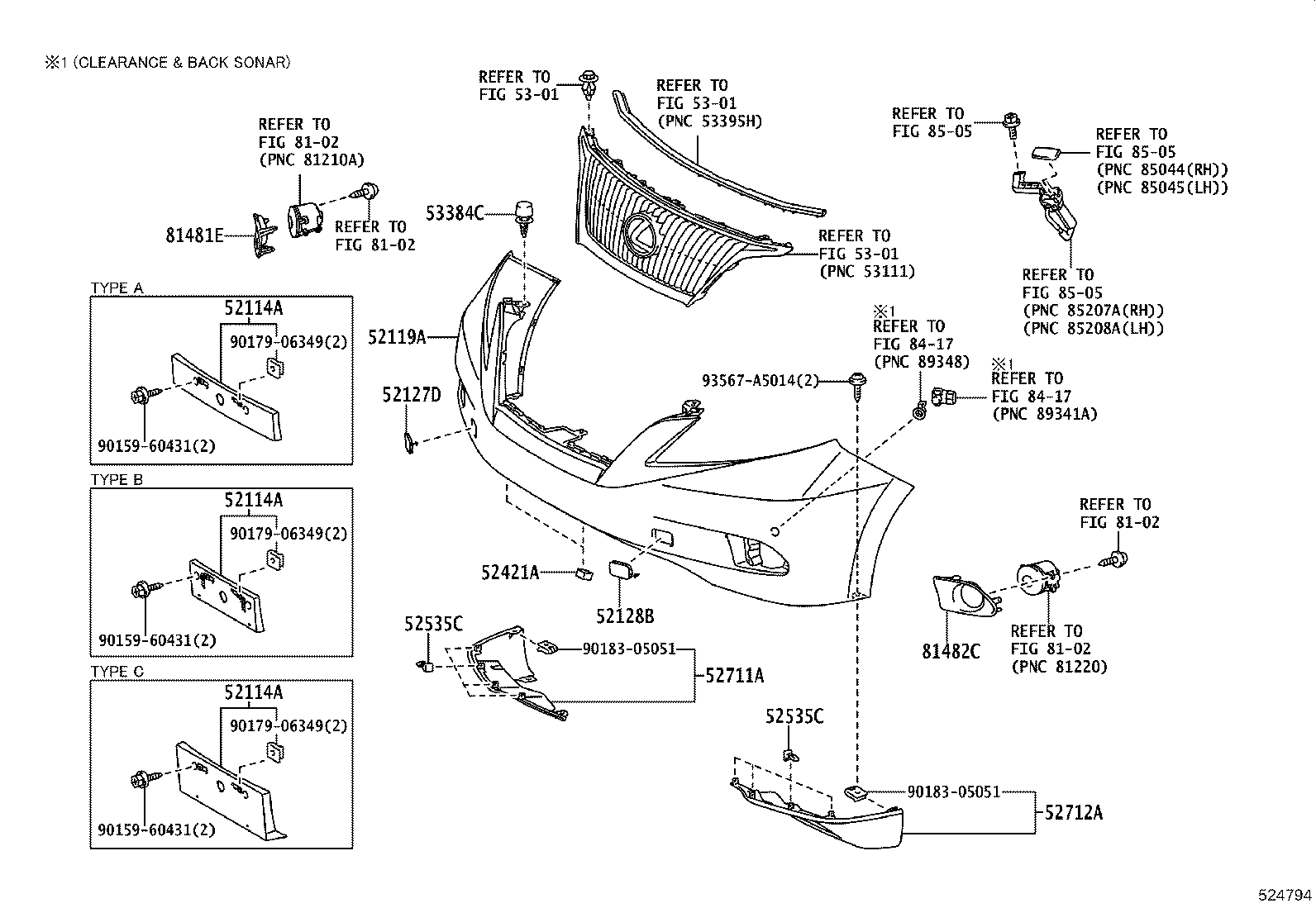

ILLUST NO. 2 OF 2(0812-0905)GGL15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48190 |
GGL15..GCC MOROCCO SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 52114-48200 |
GGL15..GCC TYPE B:REFER ILLUST. |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48190 |
GGL15..GCC MOROCCO SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 52114-48200 |
GGL15..GCC TYPE B:REFER ILLUST. |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48190 |
GGL15..GCC MOROCCO SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 52114-48200 |
GGL15..GCC TYPE B:REFER ILLUST. |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-48947 |
GGL15..GCC PAINT REQ. |
1 | ||
| 52119-48948 |
GGL15..GCC PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-48943 |
GGL15..GCC PAINT REQ.,MOROCCO SPEC |
1 | ||
| 52119-48968 |
GGL15..GCC PAINT REQ.,MOROCCO SPEC |
1 | ||
| 52119-48969 |
GGL15..GCC PAINT REQ.,MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-48944 |
GGL15..GCC PAINT REQ.,MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-48972 |
GGL15..GCC PAINT REQ. |
1 | ||
| 52119-48992 |
GGL15..GCC PAINT REQ. |
1 | ||
| 52119-48989 |
GGL15..GCC PAINT REQ.,MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-48988 |
GGL15..GCC PAINT REQ.,MOROCCO SPEC |
1 | ||
| 52119-48993 |
GGL15..GCC PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-48973 |
GGL15..GCC PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-48909 |
AGL10,GGL15 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-48905 |
AGL10,GGL15 |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52462-48010 |
AGL10,GGL15,GYL1# |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-28020 |
AGL10,GGL15,GYL1# |
8 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-28020 |
AGL10,GGL15,GYL1# |
8 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 52711-48030 |
AGL10,GGL15,GYL1# |
1 | ||
| 52712A - GARNISH, FRONT BUMPER, LH | ||||
| 52712-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
AGL10,GGL15,GYL1# |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-48080E0 |
GGL15 BEIGE ME.,4T1 |
1 | ||
| 81481-48080J0 |
GGL15 DK.BLUE MC. CC.,8U0 |
1 | ||
| 81481-48080D0 |
AGL10,GGL15 RED MC.CS.,3R1 |
1 | ||
| 81481-48080J1 |
AGL10,GGL15 SILVERY BLUE ME.,8U9 |
1 | ||
| 81481-48080A0 |
AGL10,GGL15 WHITE PEARL CS.,077 |
1 | ||
| 81481-48080B2 |
AGL10,GGL15 SILVER M.M.,1G1 |
1 | ||
| 81481-48080B0 |
AGL10,GGL15 DK.GRAY MC.,1G0 |
1 | ||
| 81481-48080E1 |
GGL15 SABLE M.M.,4T5 |
1 | ||
| 81481-48080C1 |
AGL10,GGL15 STARLIGHT BLACK GF.,217 |
1 | ||
| 81481-48080B3 |
AGL10,GGL15 MERCURY GRAY MC.,1H9 |
1 | ||
| 81481-48080E2 |
AGL10,GGL15 SLEEK ECRU ME.,4U7 |
1 | ||
| 81481-48080C0 |
AGL10,GGL15 BLACK,212 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-48080J0 |
GGL15 DK.BLUE MC. CC.,8U0 |
1 | ||
| 81482-48080B2 |
AGL10,GGL15 SILVER M.M.,1G1 |
1 | ||
| 81482-48080E0 |
GGL15 BEIGE ME.,4T1 |
1 | ||
| 81482-48080E1 |
GGL15 SABLE M.M.,4T5 |
1 | ||
| 81482-48080C0 |
AGL10,GGL15 BLACK,212 |
1 | ||
| 81482-48080A0 |
AGL10,GGL15 WHITE PEARL CS.,077 |
1 | ||
| 81482-48080J1 |
AGL10,GGL15 SILVERY BLUE ME.,8U9 |
1 | ||
| 81482-48080B3 |
AGL10,GGL15 MERCURY GRAY MC.,1H9 |
1 | ||
| 81482-48080C1 |
AGL10,GGL15 STARLIGHT BLACK GF.,217 |
1 | ||
| 81482-48080D0 |
AGL10,GGL15 RED MC.CS.,3R1 |
1 | ||
| 81482-48080E2 |
AGL10,GGL15 SLEEK ECRU ME.,4U7 |
1 | ||
| 81482-48080B0 |
AGL10,GGL15 DK.GRAY MC.,1G0 |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90179-06349 | ||||
| 90183-05051 | ||||
| 93567-A5014 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8102 | ||||
| 8417 | ||||
| 8505 | ||||
ILLUST NO. 2 OF 2(0905-1203)AGL10,GGL15
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48190 |
GGL15..GCC MOROCCO SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 52114-48200 |
GGL15..GCC TYPE B:REFER ILLUST. |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48190 |
GGL15..GCC MOROCCO SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 52114-48200 |
GGL15..GCC TYPE B:REFER ILLUST. |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-48190 |
GGL15..GCC MOROCCO SPEC,TYPE A:REFER ILLUST. |
1 | ||
| 52114-48200 |
GGL15..GCC TYPE B:REFER ILLUST. |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-48947 |
GGL15..GCC PAINT REQ. |
1 | ||
| 52119-48948 |
GGL15..GCC PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-48943 |
GGL15..GCC PAINT REQ.,MOROCCO SPEC |
1 | ||
| 52119-48968 |
GGL15..GCC PAINT REQ.,MOROCCO SPEC |
1 | ||
| 52119-48969 |
GGL15..GCC PAINT REQ.,MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-48944 |
GGL15..GCC PAINT REQ.,MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-48972 |
GGL15..GCC PAINT REQ. |
1 | ||
| 52119-48992 |
GGL15..GCC PAINT REQ. |
1 | ||
| 52119-48989 |
GGL15..GCC PAINT REQ.,MOROCCO SPEC&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-48988 |
GGL15..GCC PAINT REQ.,MOROCCO SPEC |
1 | ||
| 52119-48993 |
GGL15..GCC PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52119-48973 |
GGL15..GCC PAINT REQ.,CLEARANCE & BACK SONAR-WITH |
1 | ||
| 52127D - COVER, FRONT BUMPER HOLE, RH | ||||
| 52127-48909 |
AGL10,GGL15 |
1 | ||
| 52128B - COVER, FRONT BUMPER HOLE, LH | ||||
| 52128-48905 |
AGL10,GGL15 |
1 | ||
| 52421A - PAD, FRONT BUMPER | ||||
| 52462-48010 |
AGL10,GGL15,GYL1# |
2 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-28020 |
AGL10,GGL15,GYL1# |
8 | ||
| 52535C - RETAINER, FRONT BUMPER SIDE | ||||
| 52535-28020 |
AGL10,GGL15,GYL1# |
8 | ||
| 52711A - GARNISH, FRONT BUMPER | ||||
| 52711-48030 |
AGL10,GGL15,GYL1# |
1 | ||
| 52712A - GARNISH, FRONT BUMPER, LH | ||||
| 52712-48010 |
AGL10,GGL15,GYL1# |
1 | ||
| 53384C - CUSHION, HOOD, CENTER | ||||
| 53384-22070 |
AGL10,GGL15,GYL1# |
2 | ||
| 81481E - COVER, FOG LAMP, RH | ||||
| 81481-48080E0 |
GGL15 BEIGE ME.,4T1 |
1 | ||
| 81481-48080J0 |
GGL15 DK.BLUE MC. CC.,8U0 |
1 | ||
| 81481-48080D0 |
AGL10,GGL15 RED MC.CS.,3R1 |
1 | ||
| 81481-48080J1 |
AGL10,GGL15 SILVERY BLUE ME.,8U9 |
1 | ||
| 81481-48080A0 |
AGL10,GGL15 WHITE PEARL CS.,077 |
1 | ||
| 81481-48080B2 |
AGL10,GGL15 SILVER M.M.,1G1 |
1 | ||
| 81481-48080B0 |
AGL10,GGL15 DK.GRAY MC.,1G0 |
1 | ||
| 81481-48080E1 |
GGL15 SABLE M.M.,4T5 |
1 | ||
| 81481-48080C1 |
AGL10,GGL15 STARLIGHT BLACK GF.,217 |
1 | ||
| 81481-48080B3 |
AGL10,GGL15 MERCURY GRAY MC.,1H9 |
1 | ||
| 81481-48080E2 |
AGL10,GGL15 SLEEK ECRU ME.,4U7 |
1 | ||
| 81481-48080C0 |
AGL10,GGL15 BLACK,212 |
1 | ||
| 81482C - COVER, FOG LAMP, LH | ||||
| 81482-48080J0 |
GGL15 DK.BLUE MC. CC.,8U0 |
1 | ||
| 81482-48080B2 |
AGL10,GGL15 SILVER M.M.,1G1 |
1 | ||
| 81482-48080E0 |
GGL15 BEIGE ME.,4T1 |
1 | ||
| 81482-48080E1 |
GGL15 SABLE M.M.,4T5 |
1 | ||
| 81482-48080C0 |
AGL10,GGL15 BLACK,212 |
1 | ||
| 81482-48080A0 |
AGL10,GGL15 WHITE PEARL CS.,077 |
1 | ||
| 81482-48080J1 |
AGL10,GGL15 SILVERY BLUE ME.,8U9 |
1 | ||
| 81482-48080B3 |
AGL10,GGL15 MERCURY GRAY MC.,1H9 |
1 | ||
| 81482-48080C1 |
AGL10,GGL15 STARLIGHT BLACK GF.,217 |
1 | ||
| 81482-48080D0 |
AGL10,GGL15 RED MC.CS.,3R1 |
1 | ||
| 81482-48080E2 |
AGL10,GGL15 SLEEK ECRU ME.,4U7 |
1 | ||
| 81482-48080B0 |
AGL10,GGL15 DK.GRAY MC.,1G0 |
1 | ||
| Common parts | ||||
| 90159-60431 | ||||
| 90179-06349 | ||||
| 90183-05051 | ||||
| 93567-A5014 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 8102 | ||||
| 8417 | ||||
| 8505 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
