GGL15L-AWTGKV (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0812-1203)LHD

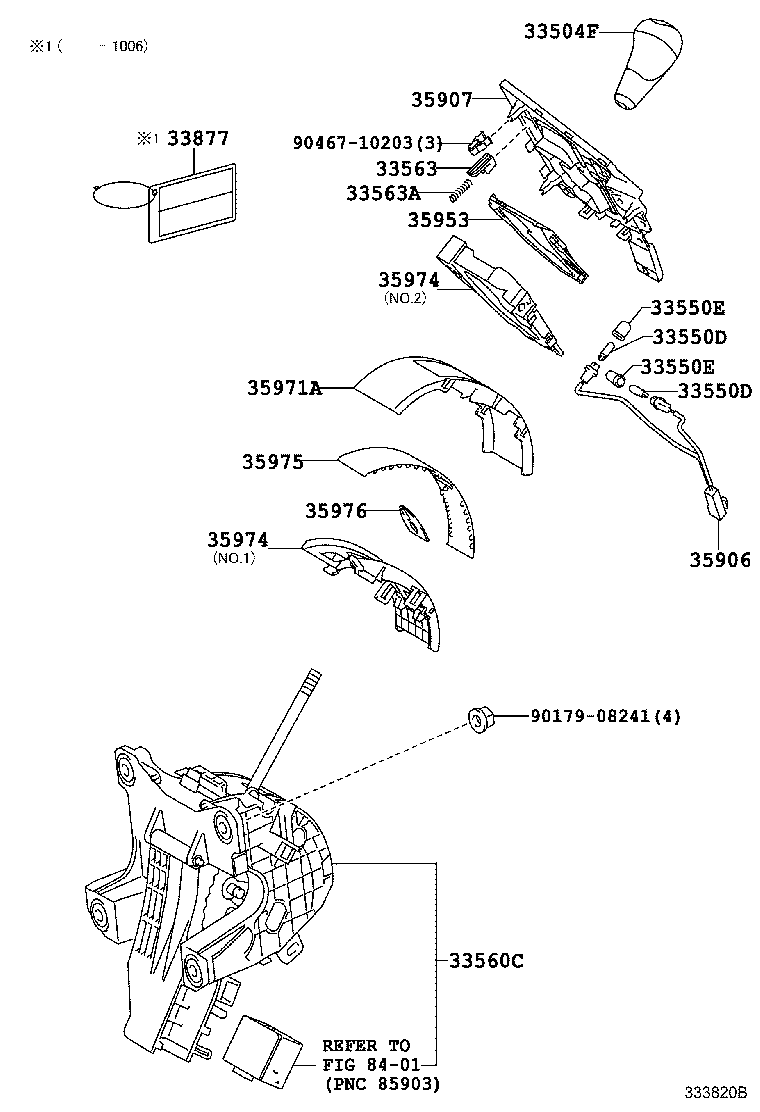

Click highlighted areas on diagram

diagram 33504F 33550D 33550D 33550E 33550E 33560C 33563 33563A 33877 35906 35907 35953 35971A 35974 35974 35975 35976 8401 9017908241 9046710203
Part # Description Qty Price
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-3035120

GGL15

STEERING WHEEL-WOOD,BLACK & MD. BROWN,TRIM20

 1
33504-30351C8

GGL15

STEERING WHEEL-WOOD,BLACK & DK. BROWN,TRIM1#,20

 1
33504-30341E4

AGL10,GGL15,GYL1#

DK. BROWN,TRIM0#

 1
33504-30351E5

GGL15,GYL1#

STEERING WHEEL-WOOD,DK. BROWN & MD. BROWN,TRIM0#

 1
33504-3035120

GGL15,GYL1#

STEERING WHEEL-WOOD,BLACK & MD. BROWN,TRIM2#

 1
33504-30351C8

AGL10,GGL15,GYL1#

STEERING WHEEL-WOOD,BLACK & DK. BROWN,TRIM1#

 1
33504-30341C2

AGL10,GGL15,GYL1#

BLACK,TRIM1#,2#

 1
33504-30351E6

AGL10,GGL15,GYL1#

STEERING WHEEL-WOOD,DK. BROWN & MD. BROWN,TRIM0#

 1
33504-3035121

AGL10,GGL15,GYL1#

STEERING WHEEL-WOOD,BLACK & MD.BROWN,TRIM2#

 1
33550D - BULB, POSITION INDICATOR LAMP
90981-11040

AGL10,GGL15,GYL1#

12V 2W

 2
33550D - BULB, POSITION INDICATOR LAMP
90981-11040

AGL10,GGL15,GYL1#

12V 2W

 2
33550E - CAP, POSITION INDICATOR LAMP
35956-48010

AGL10,GGL15,GYL1#

 2
33550E - CAP, POSITION INDICATOR LAMP
35956-48010

AGL10,GGL15,GYL1#

 2
33560C - LEVER ASSY, SHIFT, LOWER
33560-48380

AGL10,GGL15,GYL1#..LHD

 1
33563 - BUTTON, SHIFT LOCK RELEASE
33563-48130E0

AGL10,GGL15,GYL1#..LHD

DK. BROWN,TRIM0#

 1
33563-48130C0

AGL10,GGL15,GYL1#..LHD

BLACK,TRIM1#,2#

 1
33563A - SPRING, COMPRESSION (FOR SHIFT LOCK RELEASE BUTTON)
33866-12040

AGL10,GGL15,GYL1#

 1
33877 - LABEL, SHIFT LOCK INFORMATION, NO.1
33877-50030

GGL15,GYL1#

 1
35906 - WIRE SUB-ASSY, INDICATOR LAMP
35906-48110

AGL10,GGL15,GYL1#

 1
35907 - HOUSING SUB-ASSY, POSITION INDICATOR (FOR FLOOR SHIFT)
35907-48120C0

AGL10,GGL15,GYL1#..LHD

BLACK,TRIM1#,2#

 1
35907-48120E0

AGL10,GGL15,GYL1#..LHD

DK. BROWN,TRIM0#

 1
35953 - GUIDE, POSITION INDICATOR LIGHT
35953-48110

AGL10,GGL15,GYL1#..LHD

 1
35971A - HOUSING, POSITION INDICATOR, UPPER
35971-48050

AGL10,GGL15,GYL1#..LHD

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-48120

AGL10,GGL15,GYL1#..LHD

NO.1

 1
35974-48140

AGL10,GGL15,GYL1#..LHD

NO.2

 1
35974 - HOUSING, POSITION INDICATOR, LOWER
35974-48120

AGL10,GGL15,GYL1#..LHD

NO.1

 1
35974-48140

AGL10,GGL15,GYL1#..LHD

NO.2

 1
35975 - COVER, SLIDE (FOR POSITION INDICATOR)
35975-48070

AGL10,GGL15,GYL1#

 1
35976 - COVER, SLIDE, NO.2 (FOR POSITION INDICATOR)
35976-48050

AGL10,GGL15,GYL1#

 1
Common parts
90179-08241
90467-10203
Linked diagrams
8401

ILLUST NO. 2 OF 2(0812- )AGL10,GGL15..LHD

Click highlighted areas on diagram

diagram 33820B 33823 33827 3513 9011908884 9017908040 9046804193 91621J0612
Part # Description Qty Price
33820B - CABLE ASSY, TRANSMISSION CONTROL
33820-48280

GGL15..LHD

 1
33823 - BRACKET, TRANSMISSION CONTROL CABLE, NO.1
33823-48110

AGL10,GGL15

 1
33827 - BRACKET, TRANSMISSION CONTROL CABLE, NO.3
33827-48030

GGL15

 1
Common parts
90119-08884
90179-08040
90468-04193
91621-J0612
Linked diagrams
3513
