GGL15L-AWTGKV (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

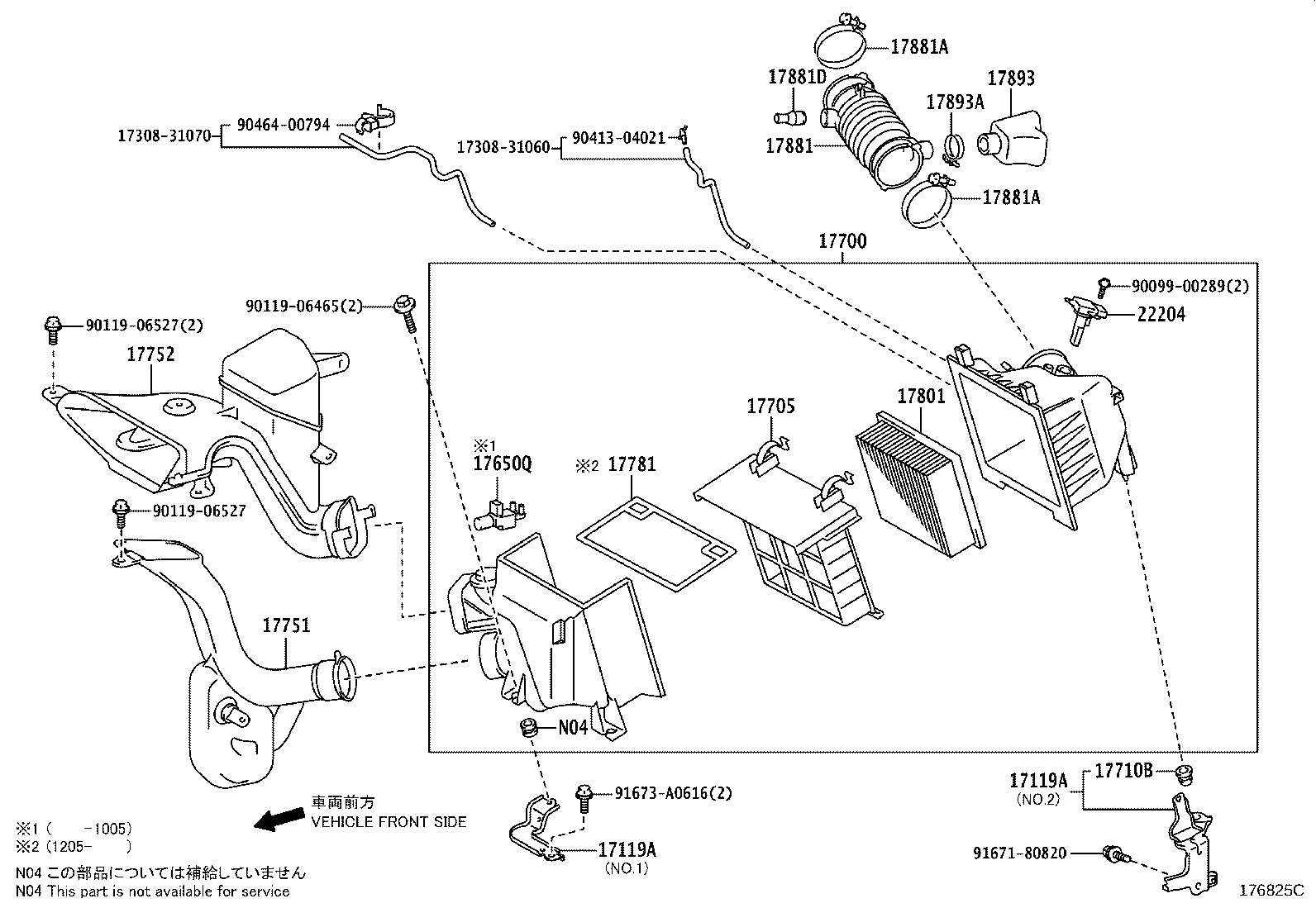

(1005- )2GRFE

Click highlighted areas on diagram

diagram 17119A 17119A 1730831060 1730831070 17650Q 17700 17705 17710B 17751 17752 17781 17801 17881 17881A 17881A 17881D 17893 17893A 22204 9009900289 9011906465 9011906527 9011906527 9041304021 9046400794 9167180820 91673A0616
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-31080

2GRFE..GGL15

NO.1

 1
17119-31090

2GRFE..GGL15

NO.2

 1
17119A - BRACKET, AIR CLEANER
17119-31080

2GRFE..GGL15

NO.1

 1
17119-31090

2GRFE..GGL15

NO.2

 1
17650Q - VALVE, VACUUM SWITCHING
90910-12088

2GRFE..GGL15

 1
17700 - CLEANER ASSY, AIR
17700-31780

2GRFE..GGL15

 1
17700-31781

2GRFE..GGL15

 1
17700-31782

2GRFE..GGL15

 1
17700-31783

2GRFE..GGL15

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31320

2GRFE..GGL15

 1
17710B - GROMMET
90480-18006

2GR#..GGL15,GYL1#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-31290

2GRFE..GGL15

 1
17752 - INLET, AIR CLEANER, NO.2
17752-31100

2GRFE..GGL15

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31131

2GRFE..GGL15

 1
17801-31130

2GRFE..GGL15

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-31220

2GRFE..GGL15

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

2GRFE..GGL15

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

2GRFE..GGL15

 2
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
90904-06008

2GRFE..GGL15

 1
17893 - RESONATOR, INTAKE AIR
17893-31100

2GRFE..GGL15

 1
17893A - CLAMP, HOSE
96111-10380

2GRFE..GGL15

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-28010

2GR#..GGL15,GYL1#

MARK 22204-28010

 1
22204-0T040

2GR#..GGL15,GYL1#

MARK 22204-0T040

 1
22204-0V010

2GR#..GGL15,GYL1#

MARK 22204-0V010

 1
22204-0V020

2GR#..GGL15,GYL1#

MARK 22204-0V020

 1
22204-37010

2GR#..GGL15,GYL1#

 1
Common parts
17308-31060
17308-31070
90099-00289
90119-06465
90119-06527
90413-04021
90464-00794
91671-80820
91673-A0616

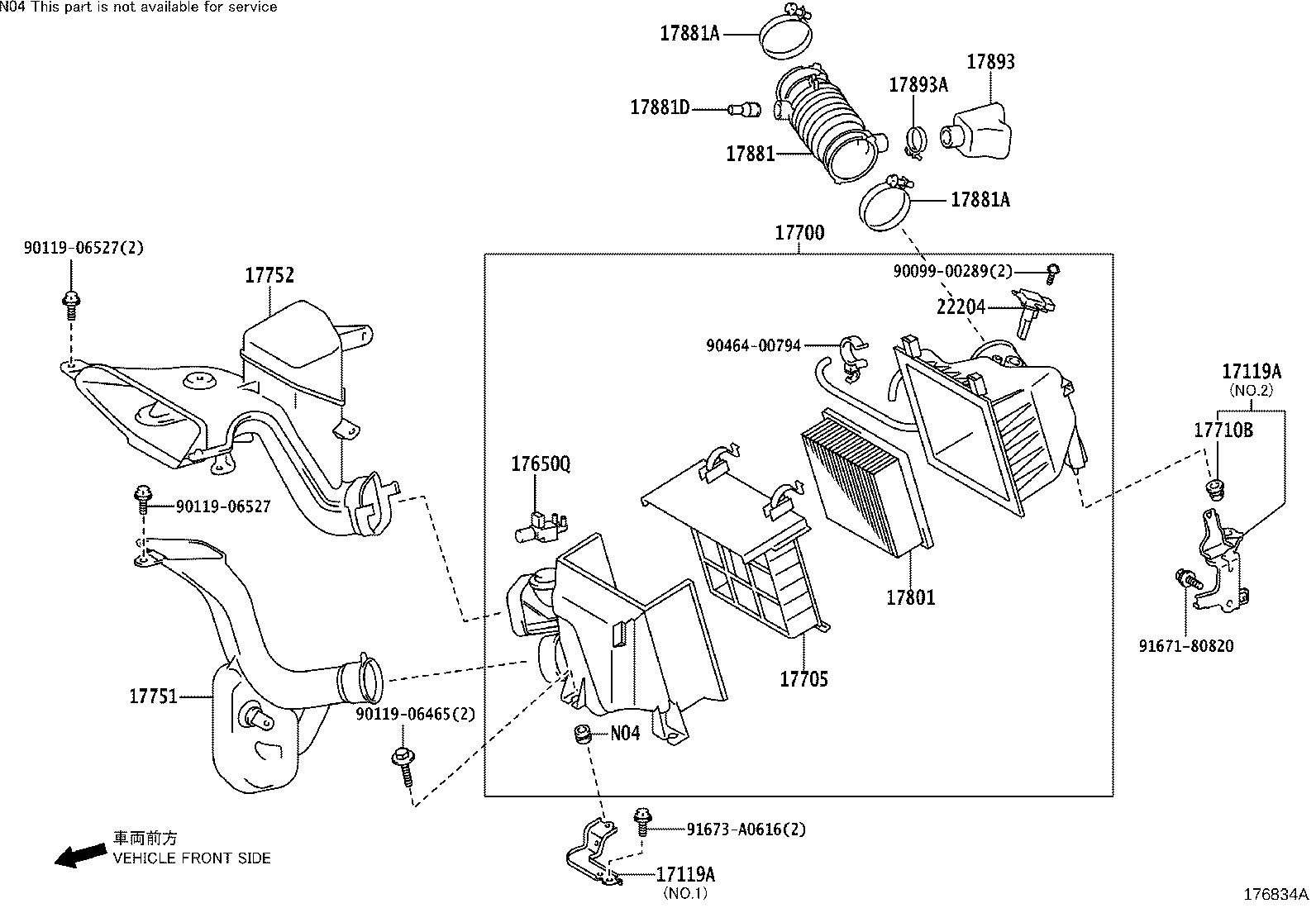

(0812-1005)2GRFE

Click highlighted areas on diagram

diagram 17119A 17119A 17650Q 17700 17705 17710B 17751 17752 17801 17881 17881A 17881A 17881D 17893 17893A 22204 9009900289 9011906465 9011906527 9011906527 9046400794 9167180820 91673A0616
Part # Description Qty Price
17119A - BRACKET, AIR CLEANER
17119-31080

2GRFE..GGL15

NO.1

 1
17119-31090

2GRFE..GGL15

NO.2

 1
17119A - BRACKET, AIR CLEANER
17119-31080

2GRFE..GGL15

NO.1

 1
17119-31090

2GRFE..GGL15

NO.2

 1
17650Q - VALVE, VACUUM SWITCHING
90910-12088

2GRFE..GGL15

 1
17700 - CLEANER ASSY, AIR
17700-31780

2GRFE..GGL15

 1
17700-31781

2GRFE..GGL15

 1
17700-31782

2GRFE..GGL15

 1
17700-31783

2GRFE..GGL15

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31320

2GRFE..GGL15

 1
17710B - GROMMET
90480-18006

2GR#..GGL15,GYL1#

 1
17751 - INLET, AIR CLEANER, NO.1
17751-31290

2GRFE..GGL15

 1
17752 - INLET, AIR CLEANER, NO.2
17752-31100

2GRFE..GGL15

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31131

2GRFE..GGL15

 1
17801-31130

2GRFE..GGL15

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-31220

2GRFE..GGL15

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

2GRFE..GGL15

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10900

2GRFE..GGL15

 2
17881D - TUBE, UNION(FOG AIR CLEANER HOSE)
90904-06008

2GRFE..GGL15

 1
17893 - RESONATOR, INTAKE AIR
17893-31100

2GRFE..GGL15

 1
17893A - CLAMP, HOSE
96111-10380

2GRFE..GGL15

 1
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-28010

2GR#..GGL15,GYL1#

MARK 22204-28010

 1
22204-0T040

2GR#..GGL15,GYL1#

MARK 22204-0T040

 1
22204-0V010

2GR#..GGL15,GYL1#

MARK 22204-0V010

 1
22204-0V020

2GR#..GGL15,GYL1#

MARK 22204-0V020

 1
22204-37010

2GR#..GGL15,GYL1#

 1
Common parts
90099-00289
90119-06465
90119-06527
90464-00794
91671-80820
91673-A0616
