GGL15L-AWTGKV (2008)

Toyota Lexus Rx270/350/450h

Production Dec 2008 - Mar 2012
Engine 2GRFE
Transmission 6FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(0812-1203)2GRFE

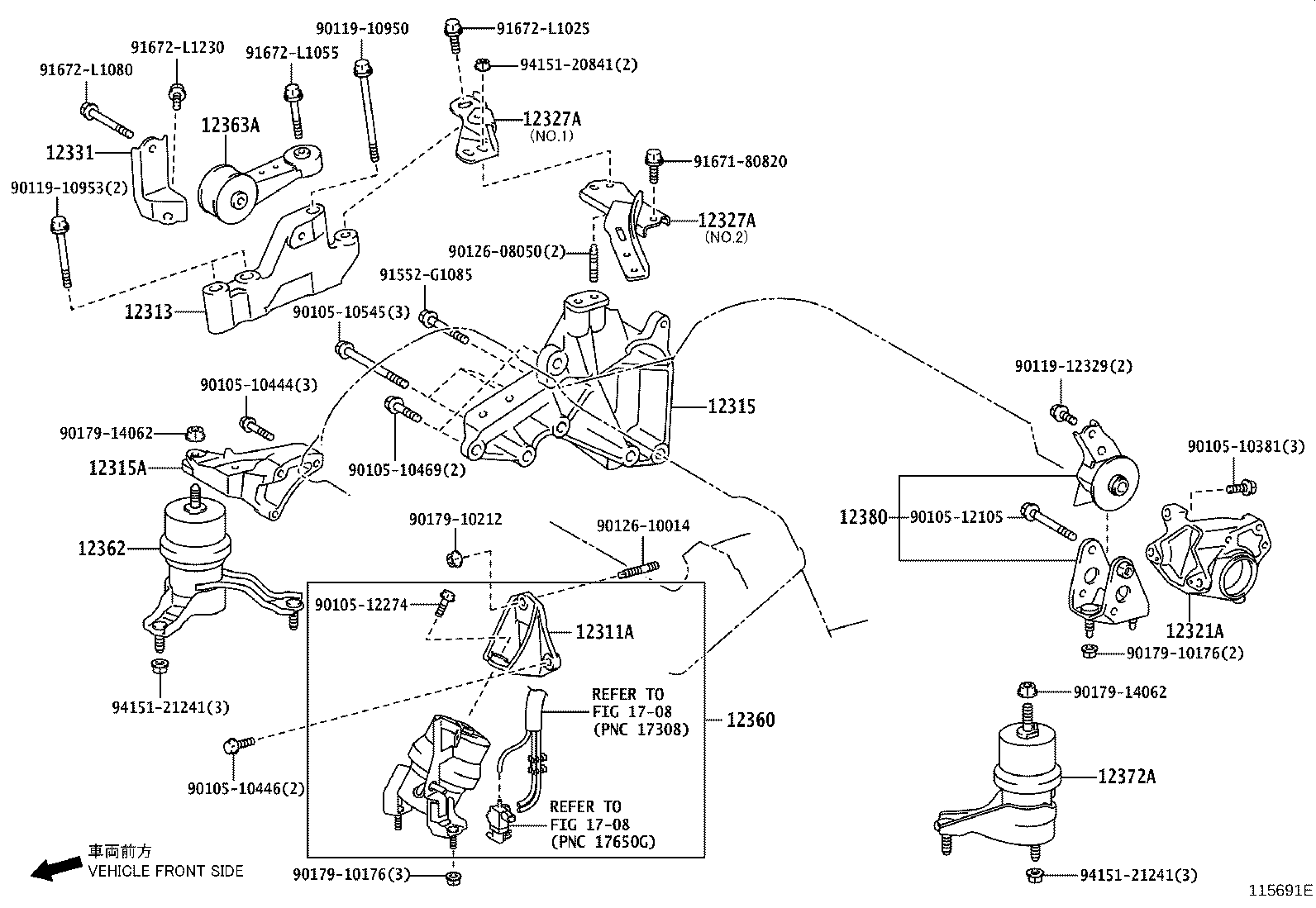

Click highlighted areas on diagram

diagram 12311A 12313 12315 12315A 12321A 12327A 12327A 12331 12360 12362 12363A 12372A 12380 1708 1708 9010510381 9010510444 9010510446 9010510469 9010510545 9010512105 9010512274 9011910950 9011910953 9011912329 9012608050 9012610014 9017910176 9017910176 9017910212 9017914062 9017914062 91552G1085 9167180820 91672L1025 91672L1055 91672L1080 91672L1230 9415120841 9415121241 9415121241
Part # Description Qty Price
12311A - BRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)
12311-31060

2GRFE..GGL15

 1
12313 - BRACKET, ENGINE MOUNTING CONTROL(FOR TRANSVERSE ENGINE)
12313-31050

2GR#..GGL15,GYL1#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-31091

2GR#..GGL15,GYL1#

 1
12315A - BRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12319-31010

2GR#..GGL15,GYL1#

 1
12321A - BRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
12321-31130

2GRFE..GGL15

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31060

2GRFE..GGL15

NO.1

 1
12327-31020

2GRFE..GGL15

NO.1

 1
12327-31070

2GRFE..GGL15

NO.2

 1
12327A - STAY, ENGINE MOUNTING, NO.2 RH
12327-31060

2GRFE..GGL15

NO.1

 1
12327-31020

2GRFE..GGL15

NO.1

 1
12327-31070

2GRFE..GGL15

NO.2

 1
12331 - STAY, ENGINE MOUNTING, NO.3 RH
12331-31010

2GR#..GGL15,GYL1#

 1
12360 - INSULATOR ASSY, ENGINE MOUNTING, FRONT
12360-31050

2GRFE..GGL15

 1
12362 - INSULATOR, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)
12362-31040

2GR#..GGL15,GYL1#

 1
12363A - ROD, ENGINE MOVING CONTROL
12363-31060

2GRFE..GGL15

 1
12372A - INSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
12372-31010

2GRFE..GGL15

 1
12380 - INSULATOR ASSY, ENGINE MOUNTING, REAR
12380-31070

2GRFE..GGL15..GCC

 1
12380-31071

2GRFE..GGL15..GCC

 1
Common parts
90105-10381
90105-10444
90105-10446
90105-10469
90105-10545
90105-12105
90105-12274
90119-10950
90119-10953
90119-12329
90126-08050
90126-10014
90179-10176
90179-10212
90179-14062
91552-G1085
91671-80820
91672-L1025
91672-L1055
91672-L1080
91672-L1230
94151-20841
94151-21241
Linked diagrams
1708
