AGL10L-AWTGKW (2010)
Toyota Lexus Rx270/350/450h
Production
Aug 2010
-
Mar 2012
Engine
1ARFE
Transmission
6FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(1008- )1ARFE

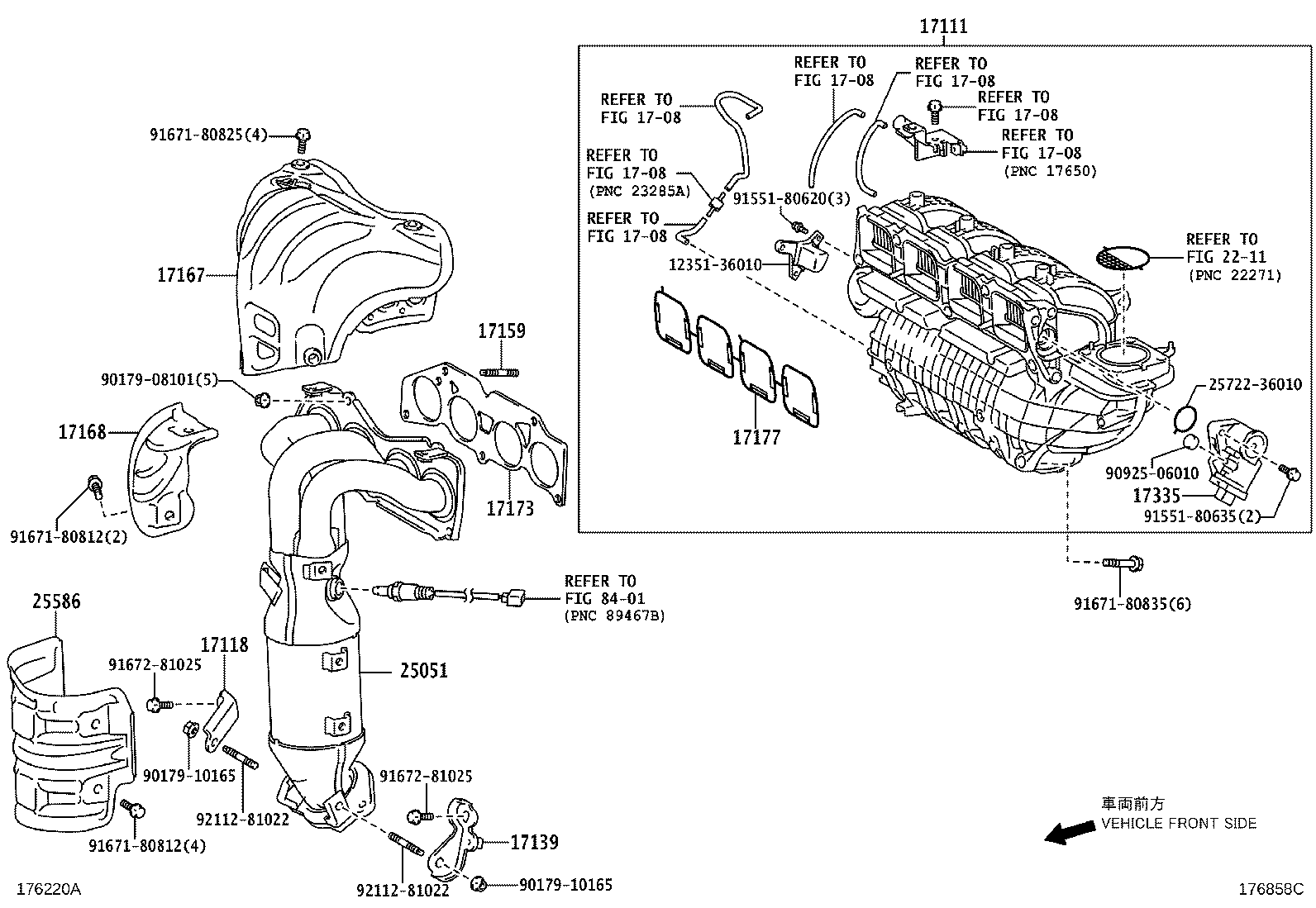

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17111 - MANIFOLD, INTAKE | ||||
| 17120-36030 |
1ARFE..AGL10 |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-36010 |
1ARFE..AGL10 |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-36020 |
1ARFE..AGL10 |
1 | ||
| 17159 - BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD) | ||||
| 90126-08037 |
1ARFE..AGL10 |
5 | ||
| 17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1 | ||||
| 17167-36011 |
1ARFE..AGL10 |
1 | ||
| 17168 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.2 | ||||
| 17168-36010 |
1ARFE..AGL10 |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-36020 |
1ARFE..AGL10 |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17171-36010 |
1ARFE..AGL10 |
1 | ||
| 17335 - ACTUATOR, INTAKE AIR CONTROL VALVE | ||||
| 17335-36010 |
1ARFE..AGL10 |
1 | ||
| 25051 - CONVERTER SUB-ASSY, EXHAUST MANIFOLD | ||||
| 25051-36060 |
1ARFE..AGL10 *114=TOYOTA/36060/Y |
1 | ||
| 25586 - INSULATOR, MANIFOLD CONVERTER, NO.1 | ||||
| 25586-36010 |
1ARFE..AGL10 |
1 | ||
| Common parts | ||||
| 12351-36010 | ||||
| 25722-36010 | ||||
| 90179-08101 | ||||
| 90179-10165 | ||||
| 90925-06010 | ||||
| 91551-80620 | ||||
| 91551-80635 | ||||
| 91671-80812 | ||||
| 91671-80825 | ||||
| 91671-80835 | ||||
| 91672-81025 | ||||
| 92112-81022 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
| 8401 | ||||
