USC10R-FCZRHQ (2014)

Toyota Lexus Rc F

Production Sep 2014 - Feb 2019
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

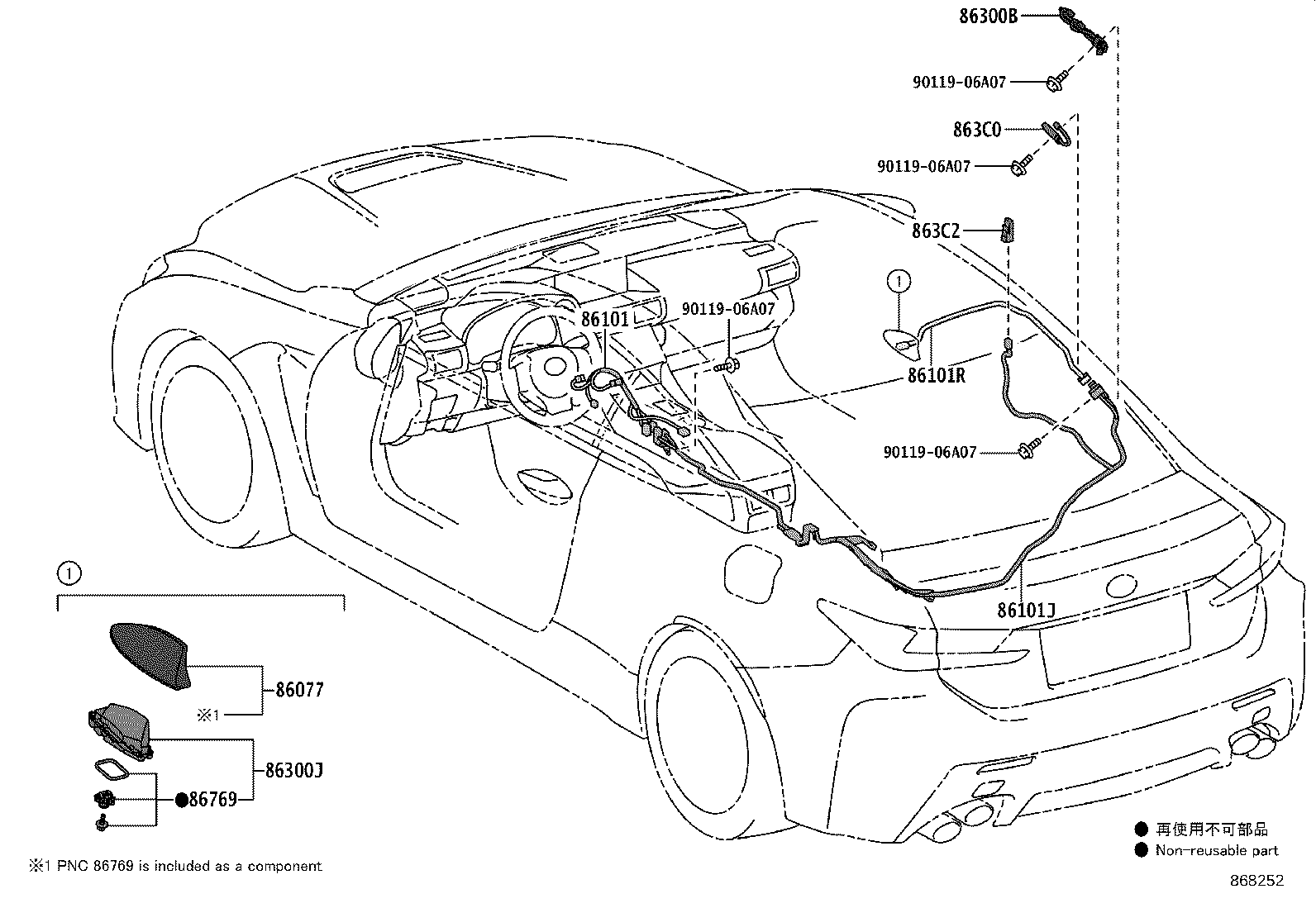

Click highlighted areas on diagram

diagram 86077 86101 86101J 86101R 86300B 86300J 863C0 863C2 86769 9011906A07 9011906A07 9011906A07 9011906A07
Part # Description Qty Price
86077 - COVER KIT, ANTENNA
86077-53010C1

USC10

STARLIGHT BLACK GF.,083 ,1H9 ,1J2 ,212 ,217 ,3T5 ,4W7 ,8X1

 1
86077-53010B3

USC10..ARL,GCC,GEN

SONIC SILVER,1J2

 1
86077-53010C1

USC10

STARLIGHT BLACK GF.,083 ,1H9 ,1J2 ,212 ,217 ,223 ,3T5 ,4W7 ,8X1

 1
86077-53010A1

USC10..ARL,GCC,GEN

WHITE NOVA GF.,083

 1
86077-53010E2

USC10..ARL,GCC,GEN

ORANGE,4W7

 1
86077-53010B2

USC10

SONIC TITANIUM,1J7

 1
86077-53010C0

USC10..ARL,GCC,GEN

BLACK,212

 1
86077-53010B0

USC10..ARL,GCC,GEN

MERCURY GRAY MC.,1H9

 1
86077-53010D1

USC10..ARL,GCC,GEN

RED,3T5

 1
86077-53010C3

USC10..ARL

GRAPHITE BLACK GF.,083 ,1H9 ,1J2 ,1J7 ,1K7 ,212 ,223 ,3T5 ,4W7 ,5C1 ,8X1

 1
86077-53010F0

USC10

NAPLES YELLOW,5C1

 1
86077-53010J2

USC10..ARL,GCC,GEN

BLUE,8X1

 1
86101 - CORD SUB-ASSY, ANTENNA
86101-53850

USC10..ARL

 1
86101-24610

USC10..ARL

 1
86101-53840

USC10..ARL

INDONESIA SPEC

 1
86101-53840

USC10..ARL

SINGAPORE SPEC

 1
86101-53840

USC10..ARL

MALAYSIA SPEC

 1
86101-53840

USC10..ARL

BRUNEI SPEC

 1
86101J - CORD SUB-ASSY, ANTENNA, NO.2
86101-24460

USC10..ARL

 1
86101-24440

USC10..ARL

SINGAPORE SPEC

 1
86101-24440

USC10..ARL

BRUNEI SPEC

 1
86101-24440

USC10..ARL

INDONESIA SPEC

 1
86101-24440

USC10..ARL

MALAYSIA SPEC

 1
86101-24420

USC10..ARL

 1
86300B - ANTENNA ASSY, AMPLIFIER, NO.1
86300-24410

USC10..ARL,GCC,GEN

 1
86300J - ANTENNA ASSY, ROOF
86760-53100

USC10..ARL,GCC,GEN

 1
863C0 - ANTENNA ASSY, DIGITAL AUDIO BROADCASTING
863C0-24010

USC10..ARL

 1
863C2 - BASE, DIGITAL AUDIO BROADCASTING ANTENNA
863C2-60010

USC10..ARL

 1
86769 - HOUSING, ROOF ANTENNA
86769-53010

USC10..ARL,GCC,GEN

 1
Common parts
90119-06A07
