USC10R-FCZRHQ (2014)

Toyota Lexus Rc F

Production Sep 2014 - Feb 2019
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1609- )

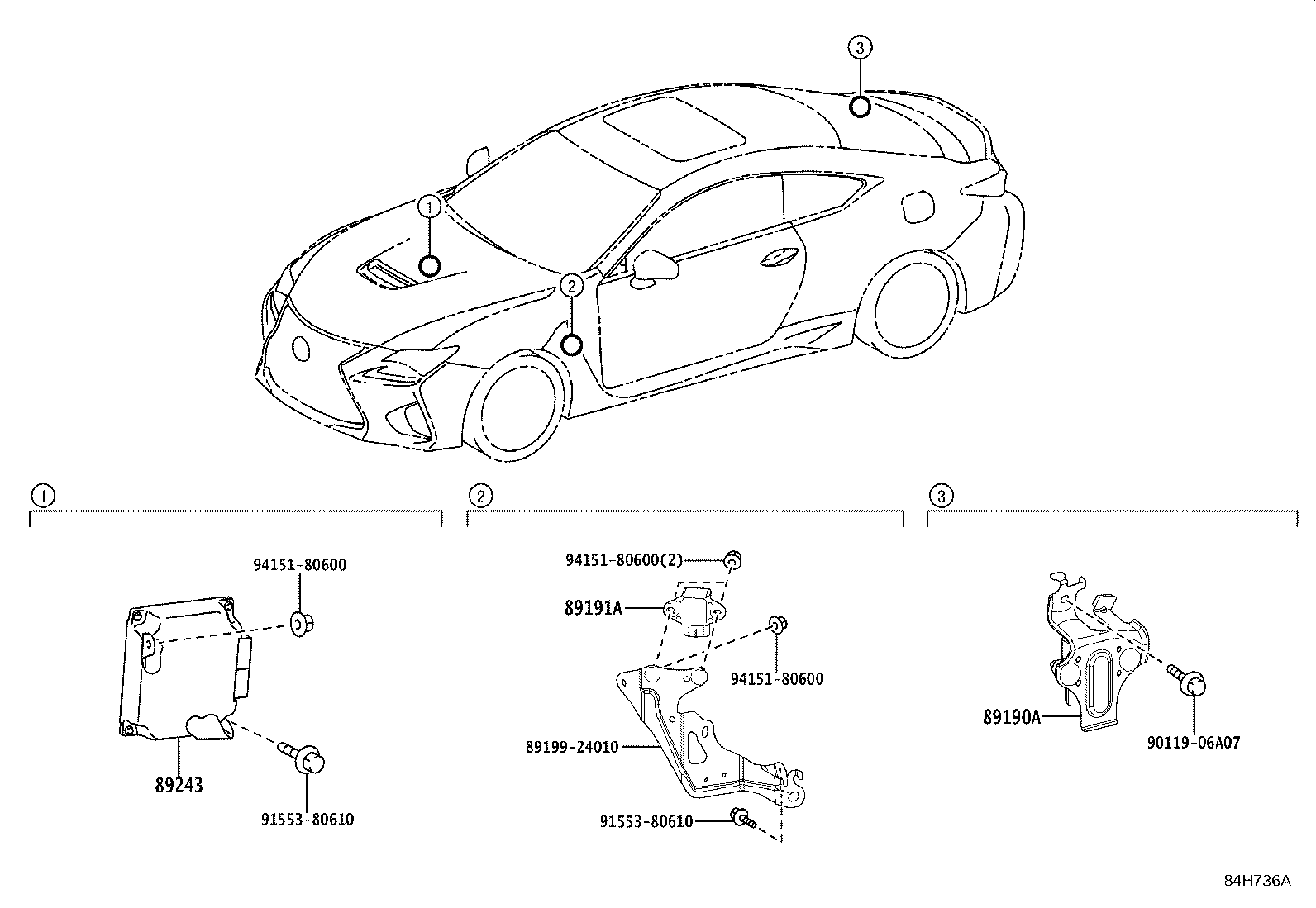

Click highlighted areas on diagram

diagram 89190A 89191A 8919924010 89243 9011906A07 9155380610 9155380610 9415180600 9415180600 9415180600
Part # Description Qty Price
89190A - SENSOR ASSY, ACCELERATION
89190-53010

USC10..ARL,GCC,GEN

 1
89191A - SENSOR, ACCELERATION
89191-22020

USC10..ARL,GCC,GEN

 1
89243 - COMPUTER, ABSORBER CONTROL
89243-24100

USC10

 1
89243-24101

USC10

 1
Common parts
89199-24010
90119-06A07
91553-80610
94151-80600
