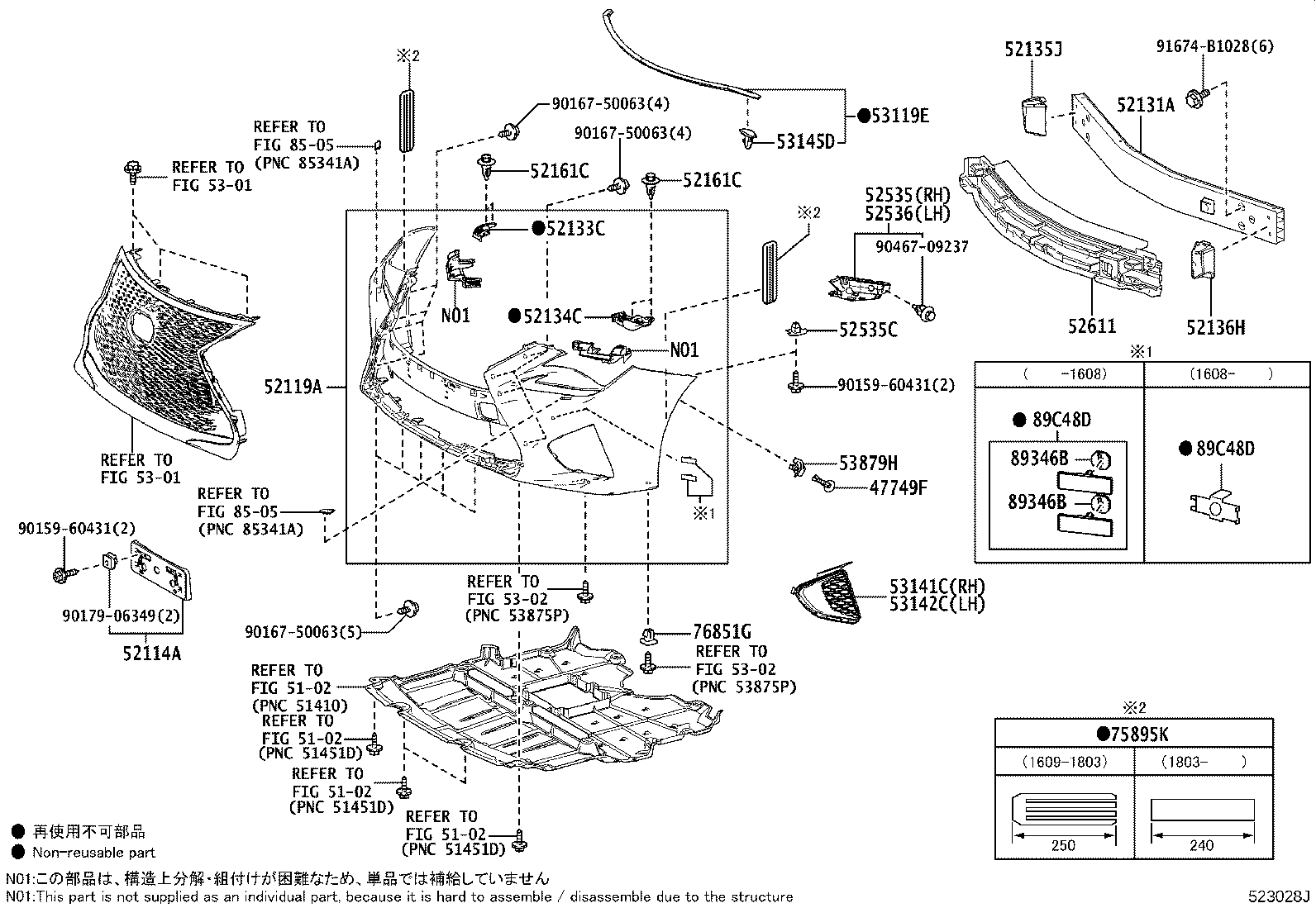

Toyota Lexus rc f USC10 FRONT BUMPER & BUMPER STAY

Part #	Description	Period	Qty
47749F - CLIP, PIN HOLD
47749-30030	USC10	10/2018 - 02/2019	2
47749-50090	USC10..ARL,GCC,GEN	09/2014 - 10/2018	2
52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING
52114-24180	USC10..ARL MACAU SPEC	10/2015 - 02/2019	1
52114-24170	USC10..ARL,GCC	09/2014 - 02/2019	1
52119A - COVER, FRONT BUMPER
52119-24981	USC10..ARL,GCC PAINT REQ.	09/2016 - 02/2019	1
52119-24950	USC10..ARL PAINT REQ.,MACAU SPEC	10/2015 - 09/2016	1
52119-24977	USC10..ARL PAINT REQ.,MACAU SPEC	09/2016 - 02/2019	1
52119-24954	USC10..ARL,GCC PAINT REQ.	09/2014 - 09/2016	1
52131A - REINFORCEMENT, FRONT BUMPER
52131-24100	USC10	09/2014 - 02/2019	1
52133C - REINFORCEMENT, FRONT BUMPER BAR, RH
52133-24070	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
52134C - REINFORCEMENT, FRONT BUMPER BAR, LH
52134-24070	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
52135J - REINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, RH
52135-24061	USC10..ARL,GCC,GEN	03/2015 - 02/2019	1
52135-24060	USC10	09/2014 - 02/2015	1
52136H - REINFORCEMENT, FRONT ENERGY ABSORBER MOUNTING, LH
52136-24051	USC10..ARL,GCC,GEN	03/2015 - 02/2019	1
52136-24050	USC10	09/2014 - 02/2015	1
52161C - PIECE, FRONT BUMPER
52161-16010	USC10..ARL,GCC,GEN	09/2014 - 02/2019	2
52161C - PIECE, FRONT BUMPER
52161-16010	USC10..ARL,GCC,GEN	09/2014 - 02/2019	2
52535 - RETAINER, FRONT BUMPER SIDE, RH
52535-24050	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
52535C - RETAINER, FRONT BUMPER SIDE
52535-50060	USC10..ARL,GCC,GEN	09/2014 - 02/2019	2
52536 - RETAINER, FRONT BUMPER SIDE, LH
52536-24050	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-24110	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
53119E - PROTECTOR, RADIATOR GRILLE
53119-24040	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
53141C - GARNISH, RADIATOR GRILLE
53141-24040	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
53142C - GARNISH, RADIATOR GRILLE, NO.2
53142-24050	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
53145D - CLIP, RADIATOR GRILLE
53145-60030	USC10..ARL,GCC,GEN	09/2014 - 02/2019	12
53879H - RETAINER, FRONT FENDER LINER
53879-30050	USC10..ARL,GCC,GEN	09/2014 - 10/2018	2
53879-30060	USC10	10/2018 - 02/2019	2
75895K - TAPE, MOULDING, NO.1
75895-53010	USC10	03/2018 - 02/2019	2
75895-28010	USC10..ARL,GCC,GEN	09/2016 - 03/2018	2
76851G - GROMMET, SCREW, NO.1
90189-06237	USC10	09/2014 - 02/2019	2
89346B - ADJUSTER, ULTRASONIC SENSOR
89346-33010	USC10	09/2014 - 09/2016	4
89346B - ADJUSTER, ULTRASONIC SENSOR
89346-33010	USC10	09/2014 - 09/2016	4
89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER
89348-33120	USC10	09/2014 - 09/2016	2
89348-78020	USC10	09/2016 - 02/2019	2
89C48D - RETAINER, ULTRASONIC SENSOR, FRONT CORNER
89348-33120	USC10	09/2014 - 09/2016	2
89348-78020	USC10	09/2016 - 02/2019	2
Common parts
90159-60431
90167-50063
90179-06349
90467-09237
91674-B1028
Linked diagrams
5102
5301
5302
8505

USC10R-FCZRHQ (2014)

(1409-1903)
