USC10L-FCZRHV (2019)

Toyota Lexus Rc F

Production Mar 2019 - Sep 9999
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

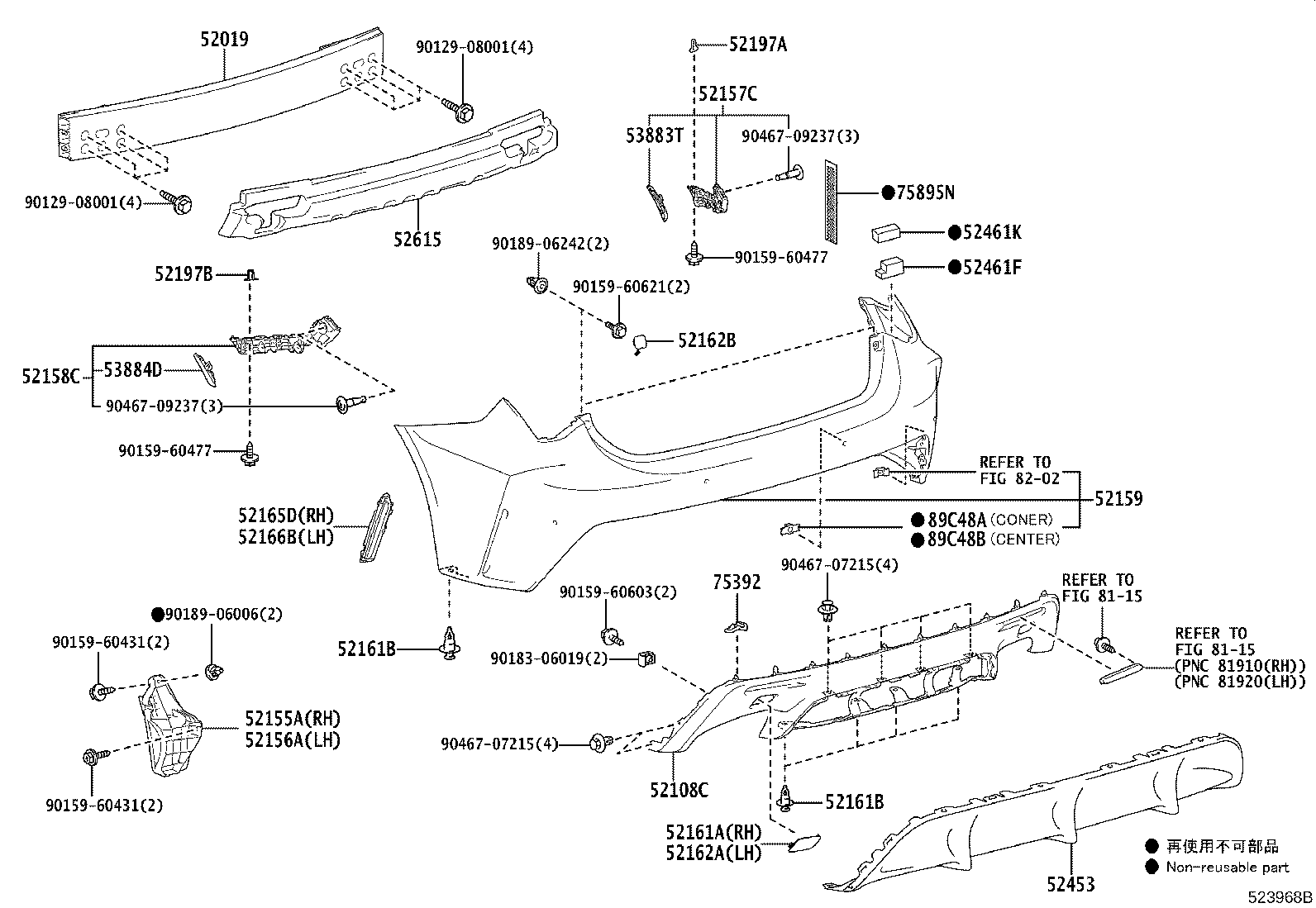

Click highlighted areas on diagram

diagram 52019 52108C 52155A 52156A 52157C 52158C 52159 52161A 52161B 52161B 52162A 52162B 52165D 52166B 52197A 52197B 52453 52461F 52461K 52615 53883T 53884D 75392 75895N 8115 8115 8202 89C48A 89C48B 9012908001 9012908001 9015960431 9015960431 9015960477 9015960477 9015960603 9015960621 9018306019 9018906006 9018906242 9046707215 9046707215 9046709237 9046709237
Part # Description Qty Price
52019 - BAR SUB-ASSY, REAR BUMPER
52019-24010

USC10

 1
52108C - EXTENSION SUB-ASSY, REAR BUMPER, CENTER
52108-24050

USC10

 1
52155A - SUPPORT, REAR BUMPER SIDE, RH
52155-24040

USC10

 1
52156A - SUPPORT, REAR BUMPER SIDE, LH
52156-24030

USC10

 1
52157C - SUPPORT, REAR BUMPER SIDE, NO.2 RH
52157-24060

USC10

 1
52158C - SUPPORT, REAR BUMPER SIDE, NO.2 LH
52158-24040

USC10

 1
52159 - COVER, REAR BUMPER
52159-24946

USC10

PAINT REQ.

 1
52161A - PIECE, REAR BUMPER, RH
52161-24060

USC10

 1
52161B - PIECE, REAR BUMPER
52161-16010

USC10

 6
52161B - PIECE, REAR BUMPER
52161-16010

USC10

 6
52162A - PIECE, REAR BUMPER, LH
52162-24050

USC10

 1
52162B - PLATE, REAR BUMPER, NO.1
52162-53904

USC10

 2
52165D - EXTENSION, REAR BUMPER CORNER, RH
52165-24030

USC10

 1
52166B - EXTENSION, REAR BUMPER CORNER, LH
52166-24030

USC10

 1
52197A - BRACKET, REAR BUMPER SEAL, RH
52197-53040

USC10

 1
52197B - BRACKET, REAR BUMPER SEAL, LH
52197-53040

USC10

 1
52453 - GUARD, REAR BUMPER, CENTER
52453-24900

USC10

 1
52453-24020

USC10

"PERFORMANCE PACKAGE"*(H)

 1
52453-24020

USC10

"CARBON EXTERIOR PACKAGE"*(C)

 1
52461F - PAD, REAR BUMPER
52462-24030

USC10

 2
52461K - PAD, REAR BUMPER, NO.1
52462-24020

USC10

 2
52615 - ABSORBER, REAR BUMPER ENERGY
52615-24110

USC10

 1
53883T - MUDGUARD, REAR RH
53883-24020

USC10

 1
53884D - MUDGUARD, REAR LH
53884-24010

USC10

 1
75392 - RETAINER, OUTSIDE MOULDING
75392-35220

USC10

 10
75895N - TAPE, MOULDING, NO.1
75895-53010

USC10

 2
89C48A - RETAINER, ULTRASONIC SENSOR, REAR CORNER
89348-78020

USC10

 2
89C48B - RETAINER, ULTRASONIC SENSOR, REAR CENTER
89348-78020

USC10

 2
Common parts
90129-08001
90159-60431
90159-60477
90159-60603
90159-60621
90183-06019
90189-06006
90189-06242
90467-07215
90467-09237
Linked diagrams
8115
8202
