USC10L-FCZRHV (2019)

Toyota Lexus Rc F

Production Mar 2019 - Sep 9999
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

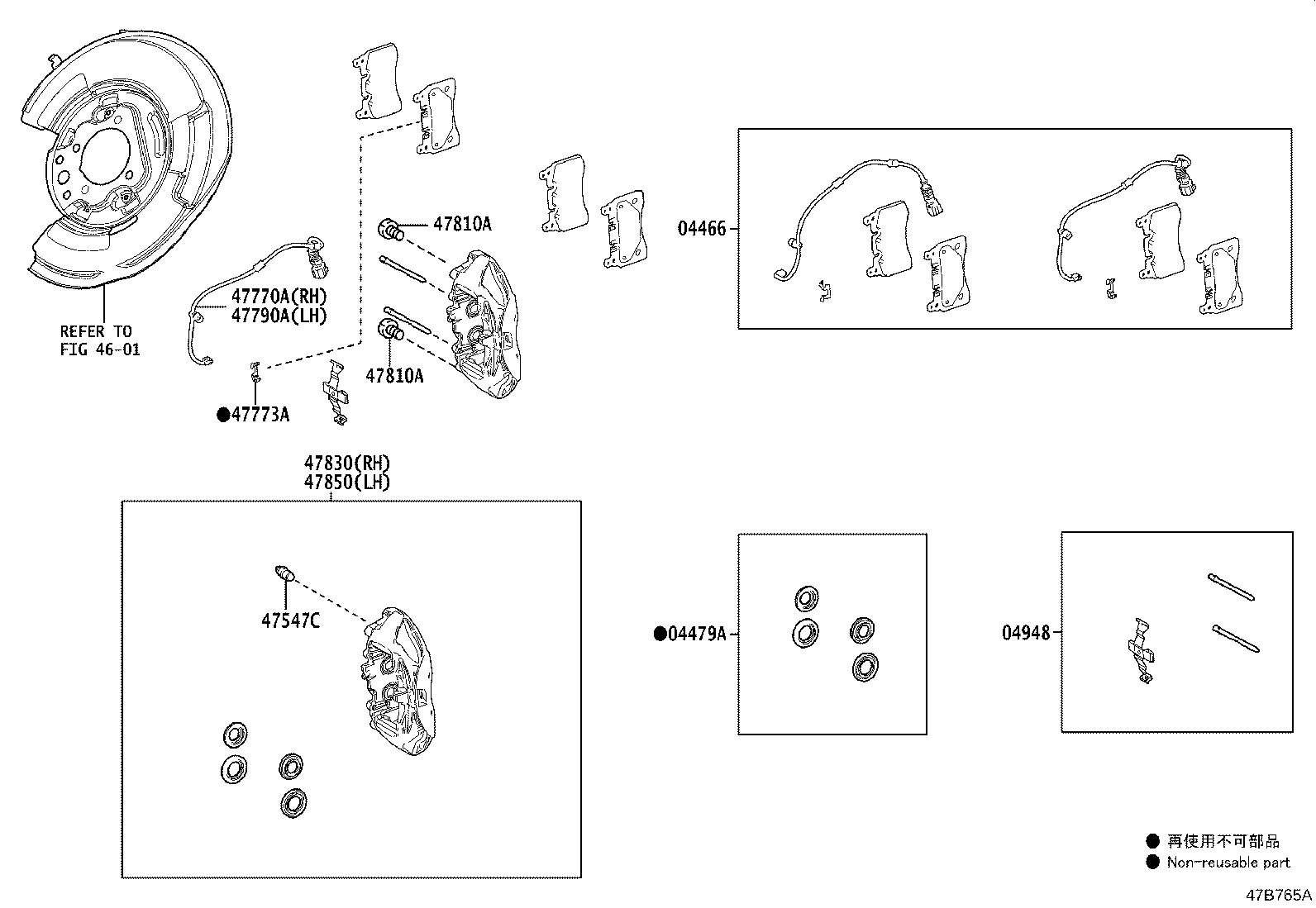

Click highlighted areas on diagram

RED PAINTED

diagram 04466 04479A 04948 4601 47547C 47770A 47773A 47790A 47810A 47810A 47830 47850
Part # Description Qty Price
04466 - PAD KIT, DISC BRAKE, REAR
04466-0W100

USC10

MARK PAGID PA4971

 1
04466-0W090

USC10

MARK HPC626,FRONT WHEEL BRAKE-RED PAINTED

 1
04466-0W091

USC10

MARK HPC626,FRONT WHEEL BRAKE-RED PAINTED

 1
04466-0W070

USC10

MARK GA 5032

 1
04479A - CYLINDER KIT, DISC BRAKE, REAR
04479-0W040

USC10

FRONT WHEEL BRAKE-RED PAINTED

 2
04479-0W030

USC10

 2
04948 - FITTING KIT, DISC BRAKE, REAR
04948-0W041

USC10

 2
04948-0W040

USC10

 2
04948-0W040

USC10

FRONT WHEEL BRAKE-ORANGE PAINTED

 2
04948-0W020

USC10

FRONT WHEEL BRAKE-RED PAINTED

 2
47547C - PLUG, BLEEDER(FOR REAR DISC BRAKE)
90069-39012

USC10

 2
47770A - WIRE ASSY, PAD WEAR INDICATOR, RH
47770-24040

USC10

FRONT WHEEL BRAKE-RED PAINTED

 1
47770-24020

USC10

 1
47773A - RETAINER, PAD WEAR INDICATOR
47773-50030

USC10

 2
47790A - WIRE ASSY, PAD WEAR INDICATOR, LH
47770-24040

USC10

FRONT WHEEL BRAKE-RED PAINTED

 1
47770-24020

USC10

 1
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12401

USC10

FRONT WHEEL BRAKE-RED PAINTED

 4
90105-12401

USC10

 4
47810A - BOLT, HEXAGON(FOR REAR CALIPER)
90105-12401

USC10

FRONT WHEEL BRAKE-RED PAINTED

 4
90105-12401

USC10

 4
47830 - CYLINDER ASSY, DISC BRAKE, REAR RH
47830-0W100

USC10

 1
47830-0W130

USC10

FRONT WHEEL BRAKE-RED PAINTED

 1
47830-0W140

USC10

FRONT WHEEL BRAKE-ORANGE PAINTED

 1
47830-0W141

USC10

FRONT WHEEL BRAKE-ORANGE PAINTED

 1
47850 - CYLINDER ASSY, DISC BRAKE, REAR LH
47850-0W130

USC10

FRONT WHEEL BRAKE-RED PAINTED

 1
47850-0W141

USC10

FRONT WHEEL BRAKE-ORANGE PAINTED

 1
47850-0W140

USC10

FRONT WHEEL BRAKE-ORANGE PAINTED

 1
47850-0W100

USC10

 1
