USC10L-FCZRHV (2019)

Toyota Lexus Rc F

Production Mar 2019 - Sep 9999
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1903- )

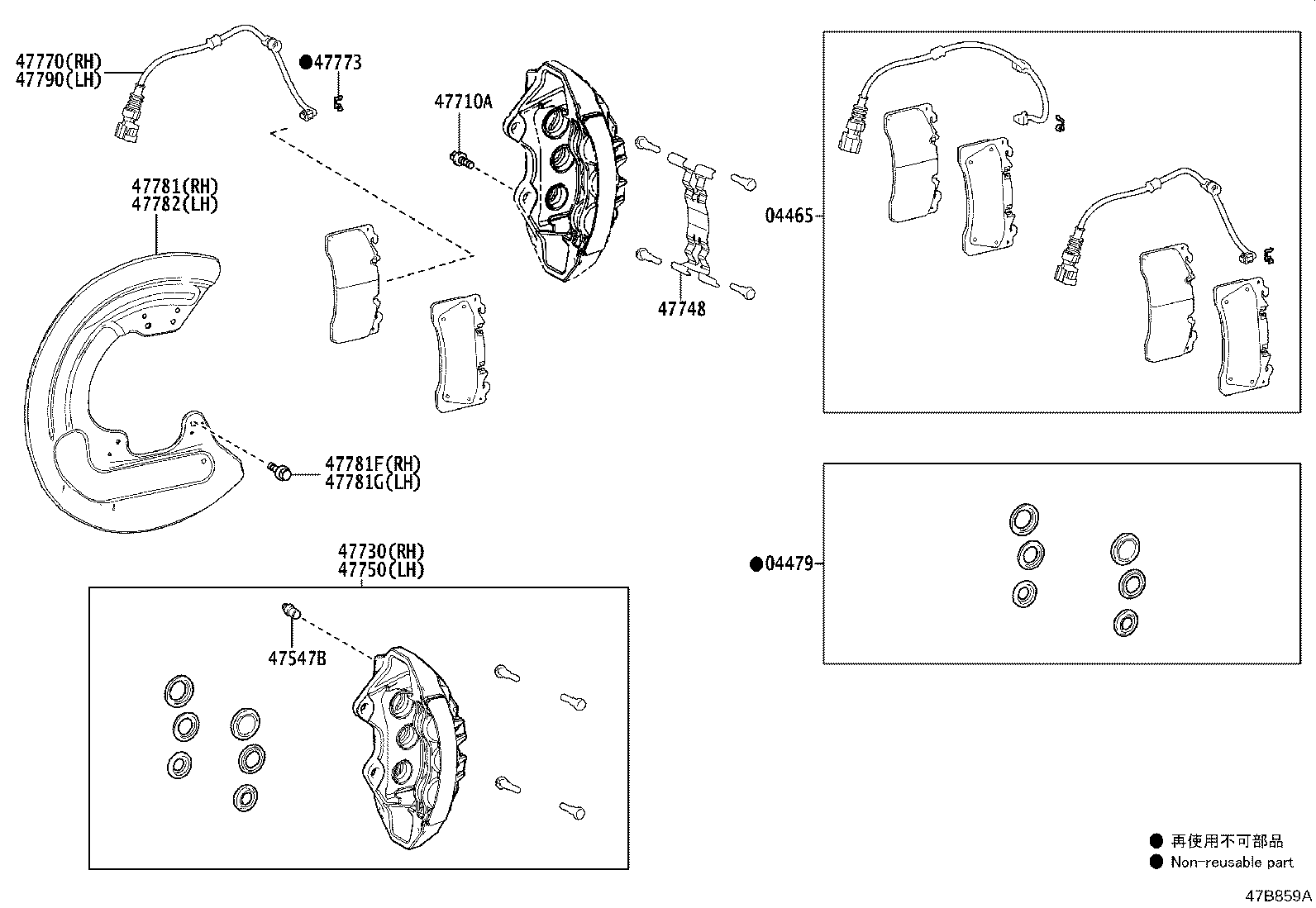

Click highlighted areas on diagram

W(RED PAINTED)

diagram 04465 04479 47547B 47710A 47730 47748 47750 47770 47773 47781 47781F 47781G 47782 47790
Part # Description Qty Price
04465 - PAD KIT, DISC BRAKE, FRONT
04465-0W220

USC10

MARK PAGID HPC626,FRONT WHEEL BRAKE-RED PAINTED

 1
04465-0W222

USC10

MARK PAGID HPC626,FRONT WHEEL BRAKE-RED PAINTED

 1
04465-0W221

USC10

MARK PAGID HPC626,FRONT WHEEL BRAKE-RED PAINTED

 1
04465-0W191

USC10

MARK GA 5032

 1
04465-0W240

USC10

MARK PAGID PA4971

 1
04479 - CYLINDER KIT, DISC BRAKE, FRONT
04478-0W010

USC10

 2
04478-0W050

USC10

FRONT WHEEL BRAKE-RED PAINTED

 2
47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE)
90069-39012

USC10

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90119-12415

USC10

*12-1.25PX45-30

 4
47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH
47730-0W180

USC10

FRONT WHEEL BRAKE-ORANGE PAINTED

 1
47730-0W140

USC10

 1
47730-0W170

USC10

FRONT WHEEL BRAKE-RED PAINTED

 1
47730-0W181

USC10

FRONT WHEEL BRAKE-ORANGE PAINTED

 1
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-0W170

USC10

FRONT WHEEL BRAKE-RED PAINTED

 2
47750 - CYLINDER ASSY, DISC BRAKE, LH
47750-0W181

USC10

FRONT WHEEL BRAKE-ORANGE PAINTED

 1
47750-0W170

USC10

FRONT WHEEL BRAKE-RED PAINTED

 1
47750-0W180

USC10

FRONT WHEEL BRAKE-ORANGE PAINTED

 1
47750-0W140

USC10

 1
47770 - WIRE ASSY, PAD WEAR INDICATOR, FRONT RH
47770-24030

USC10

FRONT WHEEL BRAKE-RED PAINTED

 1
47770-24012

USC10

 1
47773 - RETAINER, PAD WEAR INDICATOR
47773-50030

USC10

 2
47781 - COVER, DISC BRAKE DUST, FRONT RH
47781-24040

USC10

 1
47781-24060

USC10

FRONT WHEEL BRAKE-RED PAINTED

 1
47781F - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)
90119-06508

USC10

 4
47781G - BOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)
90119-06508

USC10

 4
47782 - COVER, DISC BRAKE DUST, FRONT LH
47782-24050

USC10

FRONT WHEEL BRAKE-RED PAINTED

 1
47782-24040

USC10

 1
47790 - WIRE ASSY, PAD WEAR INDICATOR, FRONT LH
47770-24012

USC10

 1
47770-24030

USC10

FRONT WHEEL BRAKE-RED PAINTED

 1
