USC10L-FCZRHC (2014)

Toyota Lexus Rc F

Production Sep 2014 - Nov 2017
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )LHD

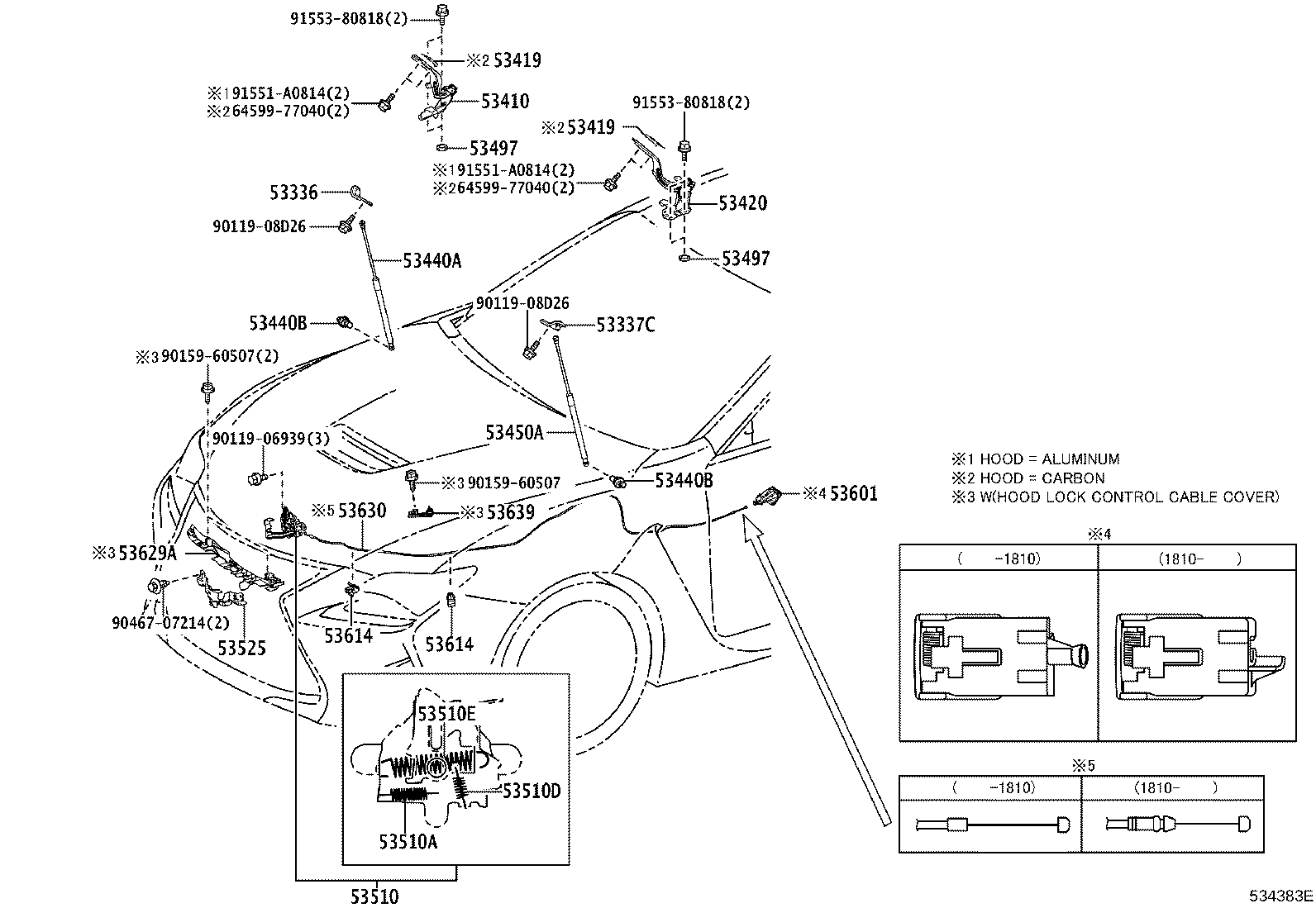

Click highlighted areas on diagram

diagram 53336 53337C 53410 53419 53419 53420 53440A 53440B 53440B 53450A 53497 53497 53510 53510A 53510D 53510E 53525 53601 53614 53614 53629A 53630 53639 6459977040 6459977040 9011906939 9011908D26 9011908D26 9015960507 9015960507 9046707214 91551A0814 91551A0814 9155380818 9155380818
Part # Description Qty Price
53336 - BRACKET, HOOD STAY, RH
53336-24021

USC10..CHI

 1
53337C - BRACKET, HOOD STAY, LH
53337-24021

USC10..CHI

 1
53410 - HINGE ASSY, HOOD, RH
53410-24110

USC10..CHI

 1
53419 - SHIM, HOOD HINGE
53439-24010

USC10..CHI

WITH(CARBON HOOD & CARBON ROOF),RH,T=1.6

 1
53439-24030

USC10..CHI

WITH(CARBON HOOD & CARBON ROOF),T=0.6

 1
53439-24040

USC10..CHI

WITH(CARBON HOOD & CARBON ROOF),T=2.6

 1
53439-24020

USC10..CHI

WITH(CARBON HOOD & CARBON ROOF),LH,T=1.6

 1
53419 - SHIM, HOOD HINGE
53439-24010

USC10..CHI

WITH(CARBON HOOD & CARBON ROOF),RH,T=1.6

 1
53439-24030

USC10..CHI

WITH(CARBON HOOD & CARBON ROOF),T=0.6

 1
53439-24040

USC10..CHI

WITH(CARBON HOOD & CARBON ROOF),T=2.6

 1
53439-24020

USC10..CHI

WITH(CARBON HOOD & CARBON ROOF),LH,T=1.6

 1
53420 - HINGE ASSY, HOOD, LH
53420-24110

USC10..CHI

 1
53440A - SUPPORT ASSY, HOOD, RH
53440-0W310

USC10..CHI

 1
53440-0W300

USC10..CHI

WITH(CARBON HOOD & CARBON ROOF)

 1
53440B - BOLT, HOOD SUPPORT, NO.1
68961-20051

USC10..CHI

 2
53440B - BOLT, HOOD SUPPORT, NO.1
68961-20051

USC10..CHI

 2
53450A - SUPPORT ASSY, HOOD, LH
53450-0W270

USC10..CHI

WITH(CARBON HOOD & CARBON ROOF)

 1
53450-0W280

USC10..CHI

 1
53497 - PAD, HOOD HINGE, NO.1
53497-50020

USC10..CHI

T=1.0

 4
53497-42010

USC10

T=0.5

 4
53497-20070

USC10

T=2.0

 4
53497 - PAD, HOOD HINGE, NO.1
53497-50020

USC10..CHI

T=1.0

 4
53497-42010

USC10

T=0.5

 4
53497-20070

USC10

T=2.0

 4
53510 - LOCK ASSY, HOOD
53510-24120

USC10..CHI

 1
53510A - SPRING, TENSION(FOR HOOD LOCK)
90506-09055

USC10..CHI

WD=0.9,CW=21

 1
53510D - SPRING, TENSION(FOR HOOD LOCK)
90506-12063

USC10..CHI

WD=1.2,CW=8.5

 1
53510E - SPRING, TENSION(FOR HOOD LOCK)
90506-14085

USC10..CHI

WD=1.4,CW=12

 1
53525 - PROTECTOR, HOOD LOCK RELEASE LEVER
53525-30080

USC10..CHI

 1
53601 - LEVER SUB-ASSY, HOOD LOCK CONTROL
53601-30090C1

USC10..CHI

BLACK,TRIM0#,1#,2#,3#

 1
53601-30090C0

USC10..ARL,CHI,GEN

BLACK,TRIM0#,1#,2#,3#,4#

 1
53614 - CLAMP, HOOD LOCK CONTROL CABLE
90959-01369

USC10..CHI

 2
53614 - CLAMP, HOOD LOCK CONTROL CABLE
90959-01369

USC10..CHI

 2
53630 - CABLE ASSY, HOOD LOCK CONTROL
53630-24140

USC10..CHI

 1
Common parts
64599-77040
90119-06939
90119-08D26
90159-60507
90467-07214
91551-A0814
91553-80818
