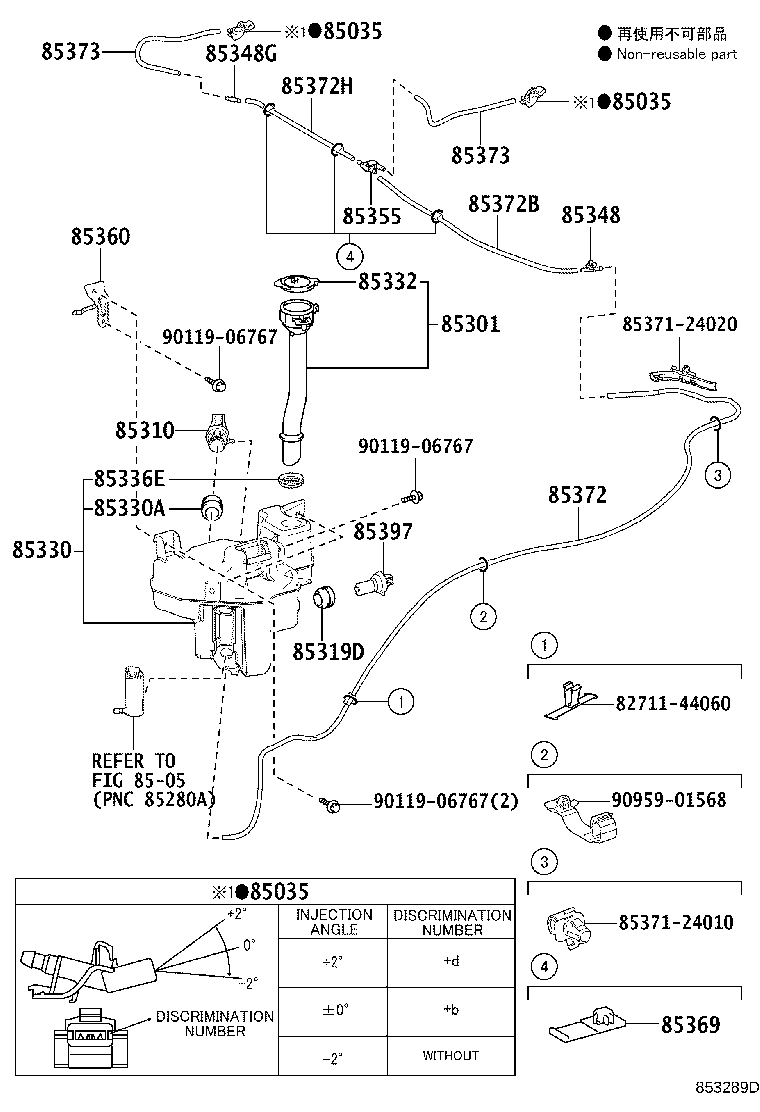

Toyota Lexus rc f USC10 WINDSHIELD WASHER

Part #	Description	Period	Qty
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230	USC10..ARL,GCC,GEN ANGLE -2	09/2014 - 02/2019	2
85381-30220	USC10..ARL,GCC,GEN ANGLE 0	09/2014 - 02/2019	2
85381-30240	USC10..ARL,GCC,GEN ANGLE +2	09/2014 - 02/2019	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230	USC10..ARL,GCC,GEN ANGLE -2	09/2014 - 02/2019	2
85381-30220	USC10..ARL,GCC,GEN ANGLE 0	09/2014 - 02/2019	2
85381-30240	USC10..ARL,GCC,GEN ANGLE +2	09/2014 - 02/2019	2
85035 - NOZZLE SUB-ASSY, WASHER
85381-30230	USC10..ARL,GCC,GEN ANGLE -2	09/2014 - 02/2019	2
85381-30220	USC10..ARL,GCC,GEN ANGLE 0	09/2014 - 02/2019	2
85381-30240	USC10..ARL,GCC,GEN ANGLE +2	09/2014 - 02/2019	2
85301 - INLET SUB-ASSY, WASHER
85301-24070	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER
85330-47010	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
85319D - PACKING, FRONT WASHER
85319-33230	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
85330 - JAR ASSY, WINDSHIELD WASHER
85355-24040	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
85330A - BUSH, WINDSHIELD WASHER JAR
85336-60300	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
85332 - CAP, WINDSHIELD WASHER JAR
85316-24170	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
85336E - PACKING, WINDSHIELD WASHER INLET HOSE
85336-30160	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1
85375-17050	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
85348G - JOINT, WINDSHIELD WASHER HOSE, NO.2
85349-89122	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
85355 - VALVE, WINDSHIELD WASHER HOSE
85321-28020	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
85360 - BRACKET ASSY, WINDSHIELD WASHER
85361-24090	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
85369 - CLAMP
82711-3A540	USC10..ARL,GCC,GEN	09/2014 - 02/2019	3
85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1
90099-33803	USC10..ARL,GCC,GEN *H,L=1680	09/2014 - 02/2019	1
85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2
90099-33080	USC10..ARL,GCC,GEN *H,L=470	09/2014 - 02/2019	1
85372H - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3
90099-33080	USC10..ARL,GCC,GEN *H,L=310	09/2014 - 02/2019	1
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-62087	USC10..ARL,GCC,GEN L=290	09/2014 - 02/2019	2
85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)
90099-62087	USC10..ARL,GCC,GEN L=290	09/2014 - 02/2019	2
85397 - SWITCH ASSY,LEVEL WARNING
85397-30400	USC10..ARL,GCC,GEN	09/2014 - 02/2019	1
Common parts
82711-44060
85371-24010
85371-24020
90119-06767
90959-01568
Linked diagrams
8505

USC10L-FCZRH (2014)

(1409- )
