USC10L-FCZRH (2014)

Toyota Lexus Rc F

Production Sep 2014 - Feb 2019
Engine 2URGSE
Transmission 8FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(1409- )

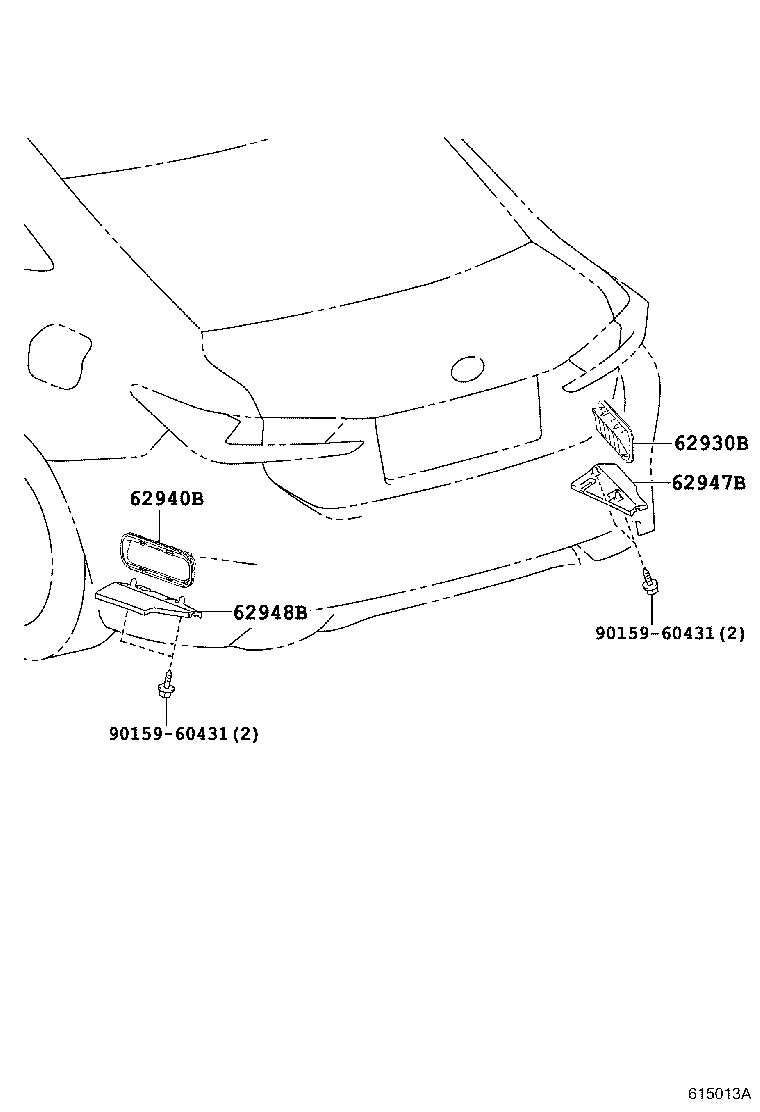

Click highlighted areas on diagram

diagram 62930B 62940B 62947B 62948B 9015960431 9015960431
Part # Description Qty Price
62930B - DUCT ASSY, QUARTER VENT, RH
62940-12180

USC10..ARL,GCC,GEN

 1
62940B - DUCT ASSY, QUARTER VENT, LH
62940-12180

USC10..ARL,GCC,GEN

 1
62947B - SHIELD, QUARTER VENT DUCT WATER, RH
62947-24030

USC10..ARL,GCC,GEN

 1
62948B - SHIELD, QUARTER VENT DUCT WATER, LH
62948-24030

USC10..ARL,GCC,GEN

 1
Common parts
90159-60431
