ZGZ15L-AWXLPC (2014)

Toyota Lexus Nx Series

Production Dec 2014 - Sep 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1412- )ZGZ15

Click highlighted areas on diagram

RH

diagram 04438F 04438G 36113D 41336D 43030 43410 43410C 43410M 43410N 43411E 43447C 43447D 43448C 43448E 43448E 43457 43457A 43457B 43457D 43460 43474D 43474F 43474F
Part # Description Qty Price
04438F - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, RH
04427-42011

ZGZ15

 1
04438G - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH
04438-42180

ZGZ1#

 1
36113D - SEAL, OIL (FOR TRANSFER CASE RH)
90311-35056

AGZ15,ZGZ15

 1
41336D - COVER, FRONT DRIVE SHAFT DUST, RH
41336-52020

ZGZ15

 1
43030 - JOINT ASSY, FRONT DRIVE INBOARD, RH
43030-42060

ZGZ15

 1
43410 - SHAFT ASSY, FRONT DRIVE, RH
43410-42240

ZGZ15

 1
43410C - BEARING (FOR FRONT DRIVE SHAFT)
90363-36006

AGZ15,ZGZ15

 1
43410M - OIL SEAL, FRONT DRIVE SHAFT, RH
90316-34001

AGZ15,ZGZ15

 1
43410N - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)
90520-33008

ZGZ15

 1
43411E - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)
43425-28010

ZGZ1#

 1
43447C - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42120

ZGZ1#

 1
43447D - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)
42345-42110

ZGZ1#

 1
43448C - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-42010

ZGZ1#

TYPE A:REFER ILLUST.

 1
90949-01559

ZGZ1#

TYPE B:REFER ILLUST.

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

ZGZ1#

 1
43448E - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)
42345-12160

ZGZ1#

 1
43457 - BRACKET, DRIVE SHAFT BEARING
43457-42120

ZGZ15

 1
43457A - BOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)
90119-10461

AGZ1#,AYZ1#,ZGZ15

*10-1.25PX19.8-8.3

 1
43457B - RING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)
90521-75002

AGZ15,ZGZ15

 1
43457D - BOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)
90105-10381

AGZ1#,AYZ1#,ZGZ1#

 3
43460 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH
43470-49846

ZGZ15

 1
43474D - DAMPER, FRONT DRIVE SHAFT, RH
43474-48090

ZGZ15

 1
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

ZGZ15

 2
43474F - CLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)
42345-14010

ZGZ15

 2

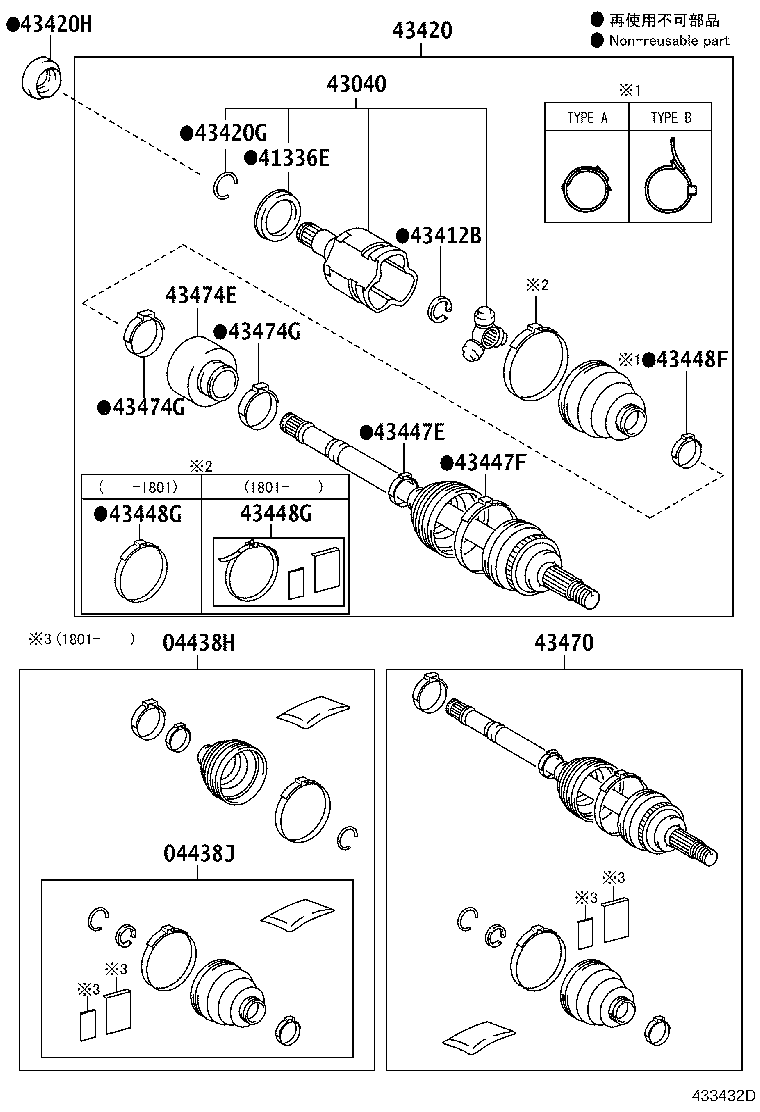

ILLUST NO. 2 OF 2(1412- )ZGZ1#

Click highlighted areas on diagram

LH

diagram 04438H 04438J 41336E 43040 43412B 43420 43420G 43420H 43447E 43447F 43448F 43448G 43448G 43470 43474E 43474G 43474G
Part # Description Qty Price
04438H - BOOT KIT, FRONT DRIVE SHAFT, IN & OUTBOARD, LH
04428-78030

ZGZ1#

 1
04438J - BOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, LH
04438-42180

ZGZ1#

 1
41336E - COVER, FRONT DRIVE SHAFT DUST, LH
41336-28020

ZGZ1#

 1
43040 - JOINT ASSY, FRONT DRIVE INBOARD, LH
43040-28011

ZGZ1#

 1
43412B - RING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER LH)
43425-28010

ZGZ1#

 1
43420 - SHAFT ASSY, FRONT DRIVE, LH
43420-78030

ZGZ1#

 1
43420G - RING, HOLE SNAP (FOR FRONT DRIVE SHAFT LH)
90521-33002

ZGZ1#

 1
43420H - OIL SEAL, FRONT DRIVE SHAFT, LH
90311-50050

ZGZ1#

 1
43447E - CLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42120

ZGZ1#

 1
43447F - CLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT LH)
42345-42110

ZGZ1#

 1
43448F - CLAMP (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-42010

ZGZ1#

TYPE A:REFER ILLUST.

 1
90949-01559

ZGZ1#

TYPE B:REFER ILLUST.

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

ZGZ1#

 1
43448G - CLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT LH)
42345-12160

ZGZ1#

 1
43470 - SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, LH
43470-80343

ZGZ1#

 1
43474E - DAMPER, FRONT DRIVE SHAFT, LH
43474-42030

ZGZ1#

 1
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

ZGZ1#

 2
43474G - CLAMP (FOR FRONT DRIVE SHAFT DAMPER LH)
42345-14010

ZGZ1#

 2
