ZGZ15L-AWXLPC (2014)

Toyota Lexus Nx Series

Production Dec 2014 - Sep 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1412- )AGZ15,ZGZ15

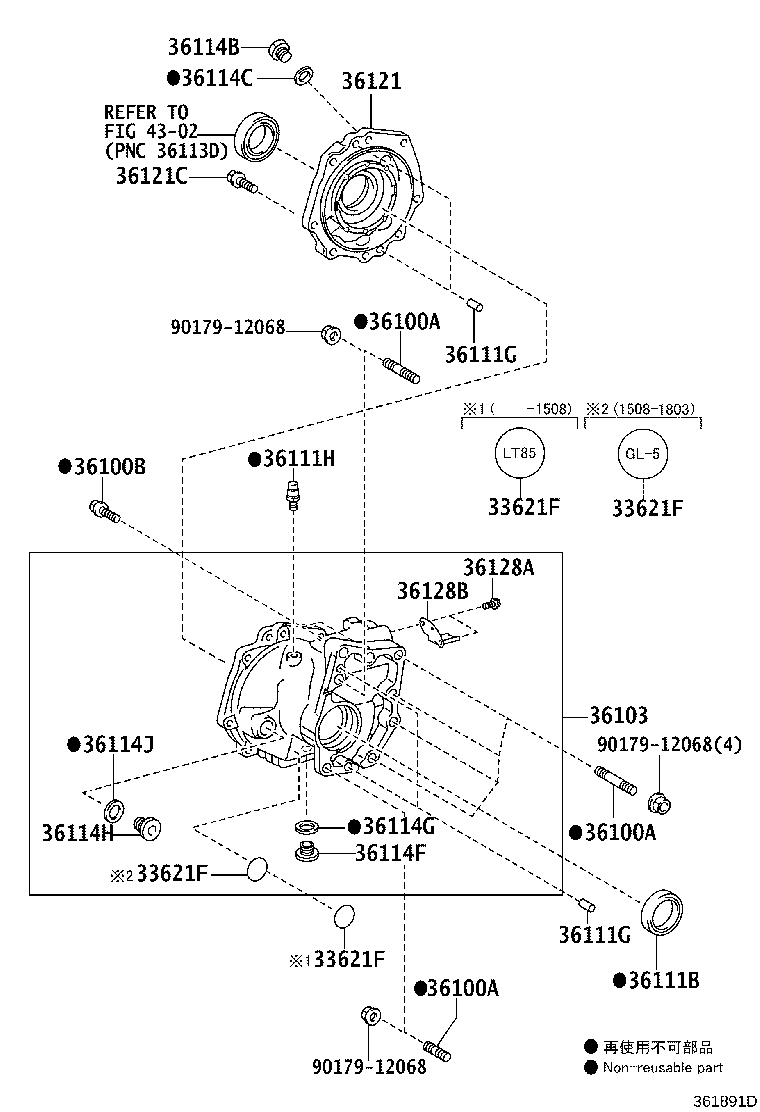

Click highlighted areas on diagram

diagram 33621F 33621F 33621F 33621F 36100A 36100A 36100A 36100B 36103 36111B 36111G 36111G 36111H 36114B 36114C 36114F 36114G 36114H 36114J 36121 36121C 36128A 36128B 4302 9017912068 9017912068 9017912068
Part # Description Qty Price
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-48020

AGZ15,ZGZ15

 1
33621-42030

AGZ15,ZGZ15

 1
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-48020

AGZ15,ZGZ15

 1
33621-42030

AGZ15,ZGZ15

 1
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-48020

AGZ15,ZGZ15

 1
33621-42030

AGZ15,ZGZ15

 1
33621F - LABEL, TRANSAXLE OIL INFORMATION
33621-48020

AGZ15,ZGZ15

 1
33621-42030

AGZ15,ZGZ15

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12041

AGZ15,ZGZ15

S=30 & 22,L=64

 4
90116-12028

AGZ15,ZGZ15

S=22 & 22,L=69

 1
90116-12034

AGZ15,ZGZ15

S=19 & 19,L=47

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12041

AGZ15,ZGZ15

S=30 & 22,L=64

 4
90116-12028

AGZ15,ZGZ15

S=22 & 22,L=69

 1
90116-12034

AGZ15,ZGZ15

S=19 & 19,L=47

 1
36100A - BOLT, STUD (FOR TRANSFER & TRANSAXLE SETTING)
90116-12041

AGZ15,ZGZ15

S=30 & 22,L=64

 4
90116-12028

AGZ15,ZGZ15

S=22 & 22,L=69

 1
90116-12034

AGZ15,ZGZ15

S=19 & 19,L=47

 1
36100B - BOLT (FOR TRANSFER & TRANSAXLE SETTING)
90105-12298

AGZ15,ZGZ15

*12-1.25PX53-35

 2
36103 - CASE SUB-ASSY, TRANSFER
36103-42040

AGZ15,ZGZ15

 1
36103-42041

AGZ15,ZGZ15

 1
36111B - SEAL, OIL (FOR TRANSFER CASE)
90311-55002

AGZ15,ZGZ15

 1
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

AGZ15,ZGZ15

L=20,OD=10

 4
36111G - PIN, STRAIGHT (FOR TRANSFER CASE)
90250-10017

AGZ15,ZGZ15

L=20,OD=10

 4
36111H - PLUG, BREATHER (FOR TRANSFER CASE)
90930-03133

AGZ15,ZGZ15

 1
36114B - PLUG, NO.1 (FOR TRANSFER CASE)
90341-18006

AGZ15,ZGZ15

 1
36114C - GASKET, NO.1 (FOR TRANSFER CASE)
12157-10010

AGZ15,ZGZ15

 1
36114F - PLUG (FOR TRANSFER DRAIN)
90341-18051

AGZ15,ZGZ15

 1
36114G - GASKET (FOR TRANSFER DRAIN PLUG)
12157-10010

AGZ15,ZGZ15

 1
36114H - PLUG, NO.2 (FOR TRANSFER CASE)
90341-18023

AGZ15,ZGZ15

 1
36114J - GASKET, NO.2 (FOR TRANSFER CASE)
12157-10010

AGZ15,ZGZ15

 1
36121 - COVER, TRANSFER CASE, NO.1
36121-52020

AGZ15,ZGZ15

 1
36121C - BOLT, WASHER BASED HEAD HEXAGON (FOR TRANSFER CASE COVE
91552-81030

AGZ15,ZGZ15

 8
36128A - BOLT (FOR BREATHER OIL DEFLECTOR)
91621-60614

AGZ15,ZGZ15

 2
36128B - DEFLECTOR, BREATHER OIL
36128-42010

AGZ15,ZGZ15

 1
Common parts
90179-12068
Linked diagrams
4302
