ZGZ10L-AWXLPC (2017)

Toyota Lexus Nx Series

Production Sep 2017 - Sep 9999
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )

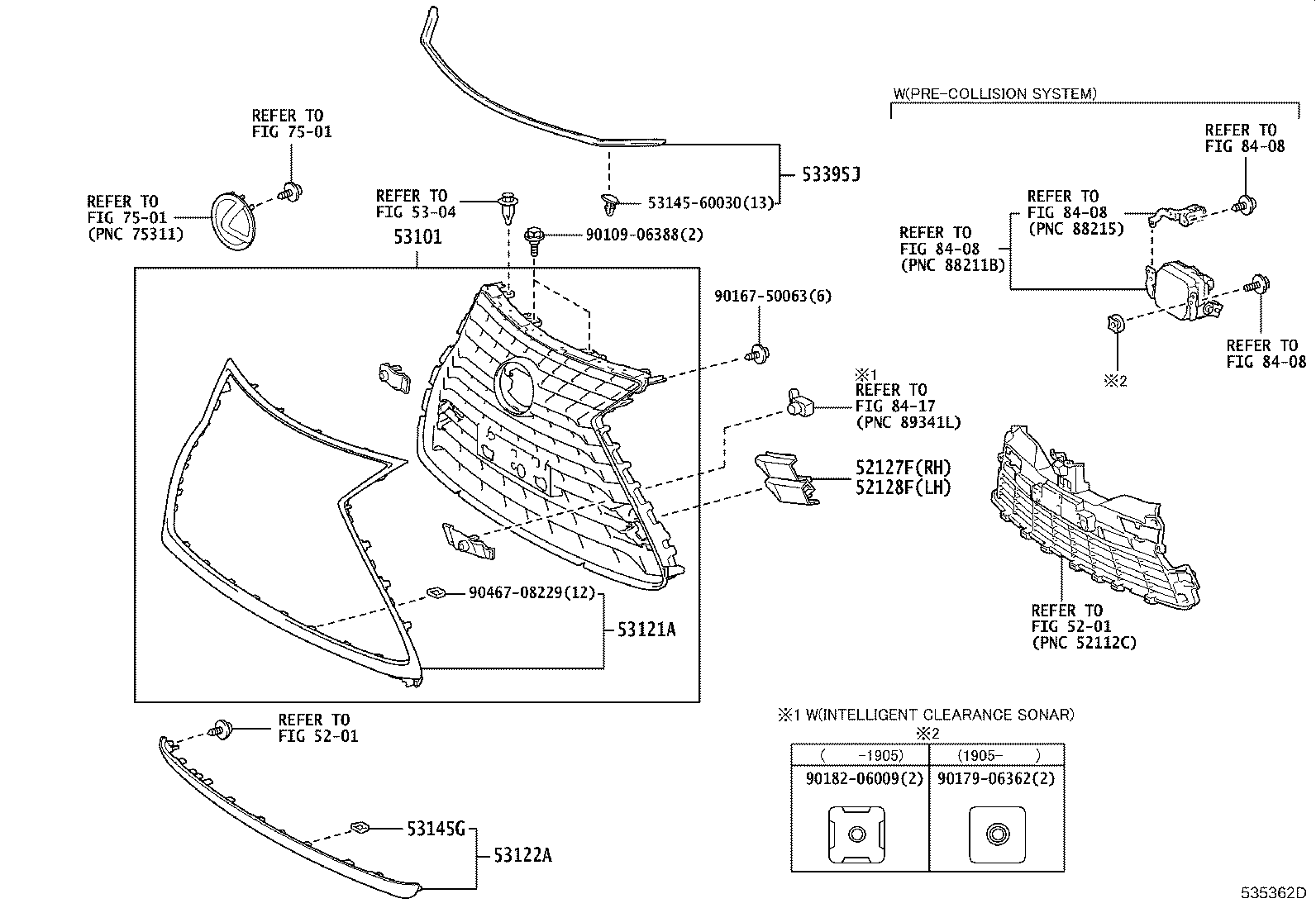

Click highlighted areas on diagram

diagram 5201 5201 52127F 52128F 5304 53101 53121A 53122A 5314560030 53145G 53395J 7501 7501 8408 8408 8408 8408 8417 9010906388 9016750063 9017906362 9018206009 9046708229
Part # Description Qty Price
52127F - COVER, FRONT BUMPER HOLE
52127-78040

AGZ1#,AYZ1#,ZGZ1#

 1
52127-78130

AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN

 1
52128F - COVER, FRONT BUMPER HOLE, LH
52128-78040

AGZ1#,AYZ1#,ZGZ1#

 1
52128-78110

AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-78150

AGZ1#,AYZ1#,ZGZ1#

 1
53101-78200

AGZ1#,AYZ1#,ZGZ1#

 1
53121A - MOULDING, RADIATOR GRILLE
53121-78060

AGZ1#,AYZ1#,ZGZ1#

 1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-78010

AGZ1#,AYZ1#,ZGZ1#

 1
53145G - CLIP, RADIATOR GRILLE
90467-08229

AGZ1#,AYZ1#,ZGZ1#

 13
53395J - SEAL, HOOD TO FRONT END PANEL
53395-78020

AGZ1#,AYZ1#,ZGZ1#

 1
Common parts
53145-60030
90109-06388
90167-50063
90179-06362
90182-06009
90467-08229
Linked diagrams
5201
5304
7501
8408
8417

(1709- )

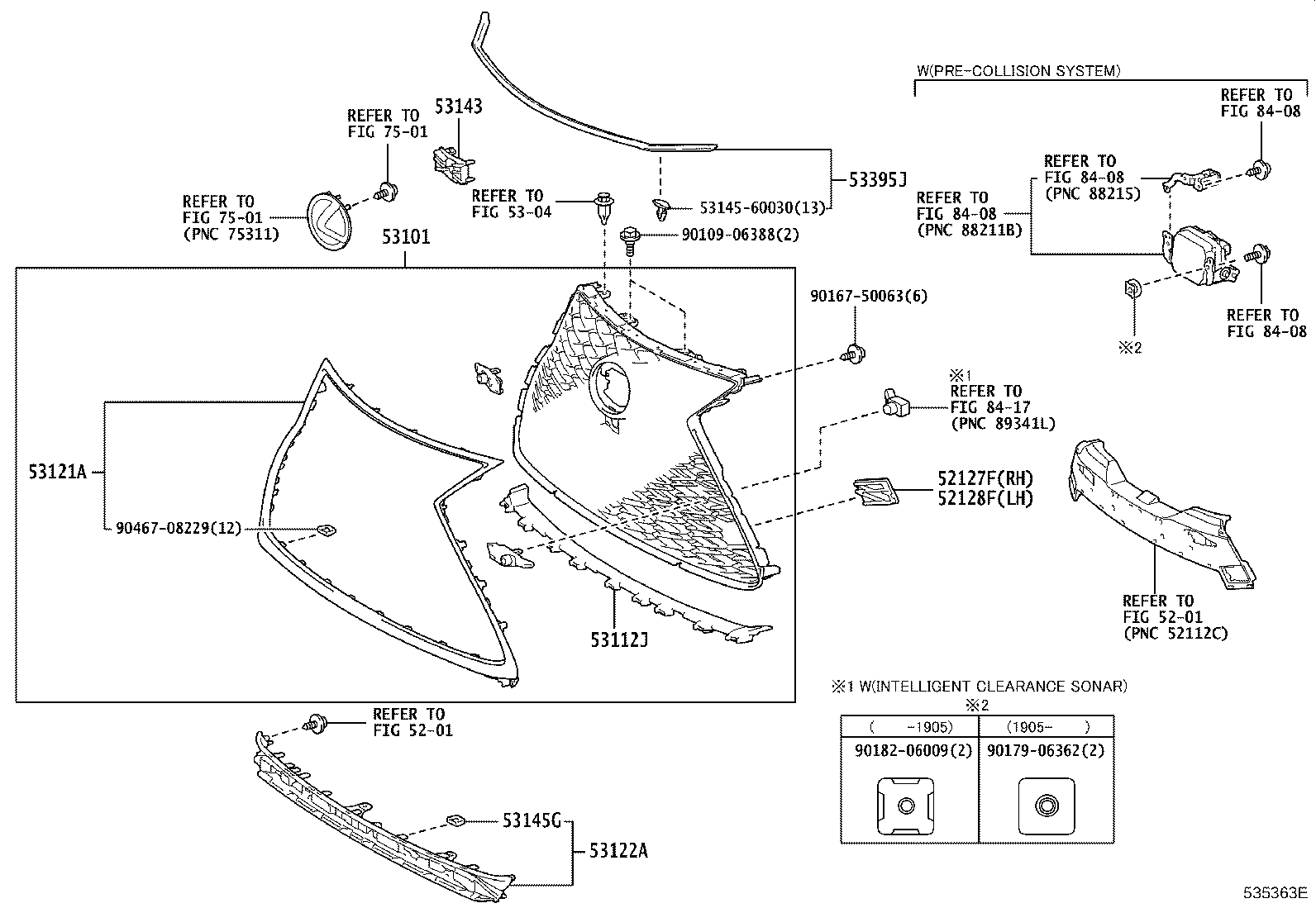

Click highlighted areas on diagram

F SPORT

diagram 5201 5201 52127F 52128F 5304 53101 53112J 53121A 53122A 53143 5314560030 53145G 53395J 7501 7501 8408 8408 8408 8408 8417 9010906388 9016750063 9017906362 9018206009 9046708229
Part # Description Qty Price
52127F - COVER, FRONT BUMPER HOLE
52127-78040

AGZ1#,AYZ1#,ZGZ1#

 1
52127-78130

AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN

 1
52128F - COVER, FRONT BUMPER HOLE, LH
52128-78040

AGZ1#,AYZ1#,ZGZ1#

 1
52128-78110

AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN

 1
53101 - GRILLE SUB-ASSY, RADIATOR
53101-78150

AGZ1#,AYZ1#,ZGZ1#

 1
53101-78200

AGZ1#,AYZ1#,ZGZ1#

 1
53121A - MOULDING, RADIATOR GRILLE
53121-78060

AGZ1#,AYZ1#,ZGZ1#

 1
53122A - MOULDING, RADIATOR GRILLE, LOWER
53122-78010

AGZ1#,AYZ1#,ZGZ1#

 1
53145G - CLIP, RADIATOR GRILLE
90467-08229

AGZ1#,AYZ1#,ZGZ1#

 13
53395J - SEAL, HOOD TO FRONT END PANEL
53395-78020

AGZ1#,AYZ1#,ZGZ1#

 1
Common parts
53145-60030
90109-06388
90167-50063
90179-06362
90182-06009
90467-08229
Linked diagrams
5201
5304
7501
8408
8417
