ZGZ10L-AWXLPC (2014)

Toyota Lexus Nx Series

Production Dec 2014 - Sep 2017
Engine 3ZRFAE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1412- )AGZ1#,ZGZ1#

Click highlighted areas on diagram

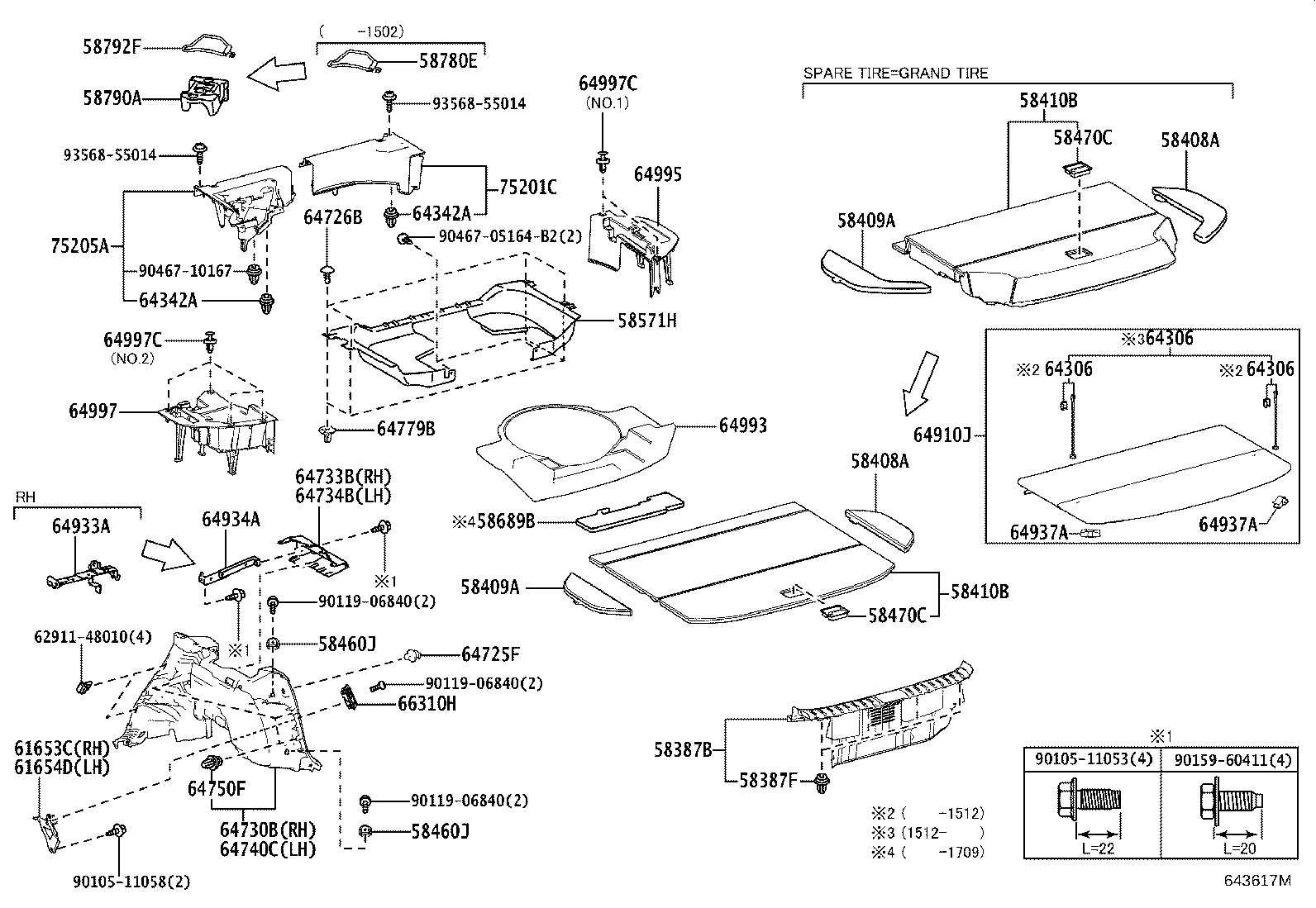

diagram 58387B 58387F 58408A 58408A 58409A 58409A 58410B 58410B 58460J 58460J 58470C 58470C 58571H 58689B 58780E 58790A 58792F 61653C 61654D 6291148010 64306 64306 64306 64342A 64342A 64725F 64726B 64730B 64733B 64734B 64740C 64750F 64779B 64910J 64933A 64934A 64937A 64937A 64993 64995 64997 64997C 64997C 66310H 75201C 75205A 9010511053 9010511058 9011906840 9011906840 9011906840 9015960411 9046705164B2 9046710167 9356855014 9356855014
Part # Description Qty Price
58387B - PLATE, REAR FLOOR FINISH
58038-78010C0

ZGZ10

BLACK,TRIM1#,2#,3#

 1
58387F - CLIP, REAR FLOOR FINISH PLATE
90467-10161

AGZ1#,AYZ1#,ZGZ1#

 4
58408A - BOARD SUB-ASSY, DECK, NO.2
58408-78010C0

ZGZ10

BLACK,TRIM1#,2#,3#

 1
58408A - BOARD SUB-ASSY, DECK, NO.2
58408-78010C0

ZGZ10

BLACK,TRIM1#,2#,3#

 1
58409A - BOARD SUB-ASSY, DECK, NO.3
58409-78010C0

ZGZ10

BLACK,TRIM1#,2#,3#

 1
58409A - BOARD SUB-ASSY, DECK, NO.3
58409-78010C0

ZGZ10

BLACK,TRIM1#,2#,3#

 1
58410B - BOARD ASSY, DECK
58410-78010C0

ZGZ1#

BLACK,TRIM0#,1#,2#,3#,5#

 1
58410B - BOARD ASSY, DECK
58410-78010C0

ZGZ1#

BLACK,TRIM0#,1#,2#,3#,5#

 1
58460J - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

AGZ1#,AYZ1#,ZGZ1#

 4
58460J - STRIKER ASSY, LUGGAGE HOLD BELT
58460-33020

AGZ1#,AYZ1#,ZGZ1#

 4
58470C - HANDLE ASSY, DECK BOARD
58470-78020C0

AGZ1#,AYZ1#,ZGZ1#

BLACK

 1
58470C - HANDLE ASSY, DECK BOARD
58470-78020C0

AGZ1#,AYZ1#,ZGZ1#

BLACK

 1
58571H - CARPET, REAR FLOOR
58571-78040

AGZ1#,ZGZ1#

 1
58571-78041

AGZ1#,ZGZ1#

 1
58689B - WEIGHT, REAR FLOOR
58689-78020

AGZ1#,AYZ1#,ZGZ1#

 1
58780E - BAND ASSY, TOOL BOX
58780-78010

AGZ1#,AYZ1#,ZGZ1#

 1
58790A - CARRIER ASSY, JACK
58790-78010

AGZ1#,AYZ1#,ZGZ1#

 1
58792F - SUPPORT, JACK CARRIER
58792-48010

AGZ1#,AYZ1#,ZGZ1#

 1
58792-48020

AGZ1#,AYZ1#,ZGZ1#

 1
61653C - BRACKET, DECK SIDE TRIM, RH
61653-78010

AGZ1#,AYZ1#,ZGZ1#

 1
61654D - BRACKET, DECK SIDE TRIM, NO.2
61654-78010

AGZ1#,AYZ1#,ZGZ1#

 1
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-78020

AGZ1#,AYZ1#,ZGZ1#

 1
64306-78010

AGZ1#,AYZ1#,ZGZ1#

 2
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-78020

AGZ1#,AYZ1#,ZGZ1#

 1
64306-78010

AGZ1#,AYZ1#,ZGZ1#

 2
64306 - SUSPENDER SUB-ASSY, PACKAGE TRAY TRIM
64306-78020

AGZ1#,AYZ1#,ZGZ1#

 1
64306-78010

AGZ1#,AYZ1#,ZGZ1#

 2
64342A - CLIP
62217-13010

AGZ1#,AYZ1#,ZGZ1#

 2
64342A - CLIP
62217-13010

AGZ1#,AYZ1#,ZGZ1#

 2
64725F - HOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64725-21020C0

ZGZ10

BLACK,TRIM1#,2#,3#

 2
64726B - CLIP, DECK REAR TRIM
64726-26010C1

AGZ1#,ZGZ1#

BLACK

 4
64730B - PANEL ASSY, DECK TRIM SIDE, RH
64730-78030C0

ZGZ10

BLACK,TRIM1#,2#,3#

 1
64733B - BOARD, DECK TRIM SIDE, UPR RH
64733-78010C0

ZGZ10

BLACK,TRIM1#,2#,3#

 1
64734B - BOARD, DECK TRIM SIDE, UPPER LH
64734-78010C0

ZGZ10

BLACK,TRIM1#,2#,3#

 1
64740C - PANEL ASSY, DECK TRIM SIDE, LH
64740-78020C0

ZGZ10

BLACK,TRIM1#,2#,3#

 1
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-10161

AGZ1#,AYZ1#,ZGZ1#

 6
64779B - STOPPER, SPARE WHEEL COVER
64779-26010

AGZ1#,AYZ1#,ZGZ1#

 4
64910J - COVER ASSY, TONNEAU
64910-78011C0

ZGZ10

BLACK,TRIM1#,2#,3#

 1
64910-78010C0

ZGZ1#

BLACK,TRIM0#,1#,2#,3#,5#

 1
64933A - BRACKET, TONNEAU COVER HOLDER, RH
64933-78010

AGZ1#,AYZ1#,ZGZ1#

 1
64934A - BRACKET, TONNEAU COVER HOLDER, LH
64934-78010

AGZ1#,AYZ1#,ZGZ1#

 1
64937A - CAP, TONNEAU COVER HOLDER, NO.1
64937-78010

AGZ1#,AYZ1#,ZGZ1#

 2
64937A - CAP, TONNEAU COVER HOLDER, NO.1
64937-78010

AGZ1#,AYZ1#,ZGZ1#

 2
64993 - BOX, DECK FLOOR, REAR
64993-78011

AGZ1#,AYZ1#,ZGZ1#

 1
64993-78010

AGZ1#,AYZ1#,ZGZ1#

 1
64995 - BOX, DECK FLOOR, RH
64995-78020

AGZ1#,AYZ1#,ZGZ1#

 1
64995-78021

AGZ1#,AYZ1#,ZGZ1#

 1
64997 - BOX, DECK FLOOR, LH
64997-78011

AGZ1#,ZGZ1#

 1
64997-78010

AGZ1#,ZGZ1#

 1
64997C - CLIP(FOR DECK FLOOR BOX)
63399-78010

AGZ1#,AYZ1#,ZGZ1#

NO.2:REFER ILLUST.

 4
63399-78010

AGZ1#,AYZ1#,ZGZ1#

NO.1:REFER ILLUST.

 2
64997C - CLIP(FOR DECK FLOOR BOX)
63399-78010

AGZ1#,AYZ1#,ZGZ1#

NO.2:REFER ILLUST.

 4
63399-78010

AGZ1#,AYZ1#,ZGZ1#

NO.1:REFER ILLUST.

 2
66310H - HOOK ASSY, ROPE
66310-30011C0

AGZ1#,AYZ1#,ZGZ1#

BLACK

 2
66310-30011C1

AGZ1#,AYZ1#,ZGZ1#

BLACK

 2
75201C - BOX SUB-ASSY, TOOL, NO.1
75201-78010

AGZ1#,ZGZ1#

 1
75201-78011

AGZ1#,ZGZ1#

 1
75205A - BOX SUB-ASSY, TOOL, NO.2
75205-78011

AGZ1#,ZGZ1#

 1
75205-78010

AGZ1#,ZGZ1#

 1
Common parts
62911-48010
90105-11053
90105-11058
90119-06840
90159-60411
90467-05164B2
90467-10167
93568-55014
