AYZ15R-AWXLBQ (2014)

Toyota Lexus Nx Series

Production Jul 2014 - Sep 2017
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407-1709)

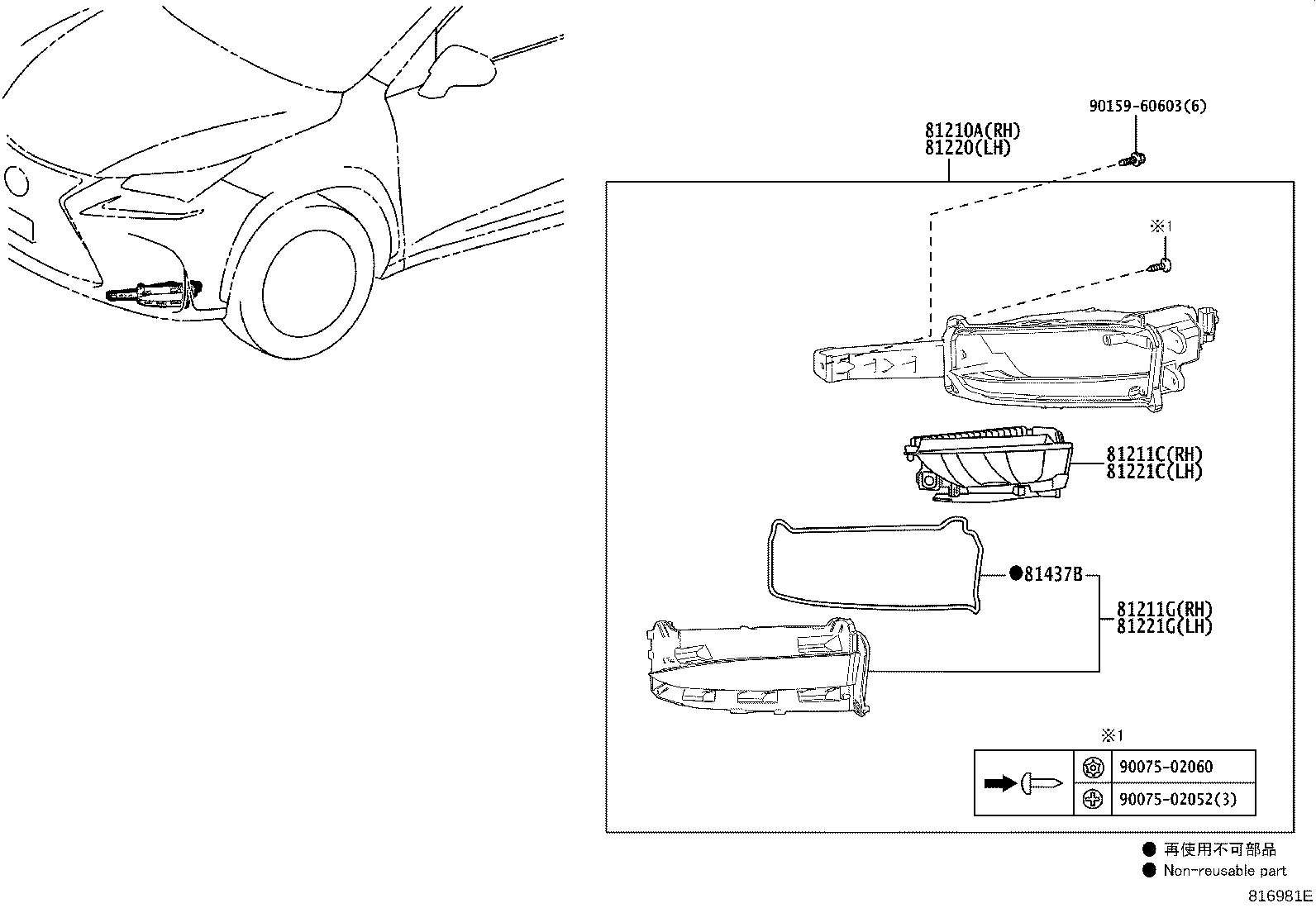

Click highlighted areas on diagram

diagram 81210A 81211C 81211G 81220 81221C 81221G 81437B 9007502052 9007502060 9015960603
Part # Description Qty Price
81210A - LAMP ASSY, FOG, RH
81210-78010

AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81211C - LAMP UNIT, FOG LAMP, RH
81211-78010

AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81211G - LENS, FOG LAMP, RH
81213-78010

AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81220 - LAMP ASSY, FOG, LH
81220-78010

AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81221C - LAMP UNIT, FOG LAMP, LH
81221-78010

AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81221G - LENS, FOG LAMP, LH
81223-78010

AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 1
81437B - GASKET, FOG LAMP
81212-78010

AGZ1#,AYZ1#,ZGZ1#..ARL,CHI,GEN

FRONT FOG LAMP-WITH(FOG & CORNERING LAMP)

 2
Common parts
90075-02052
90075-02060
90159-60603
