AYZ15R-AWXLBQ (2014)
Toyota Lexus Nx Series
(1407- )

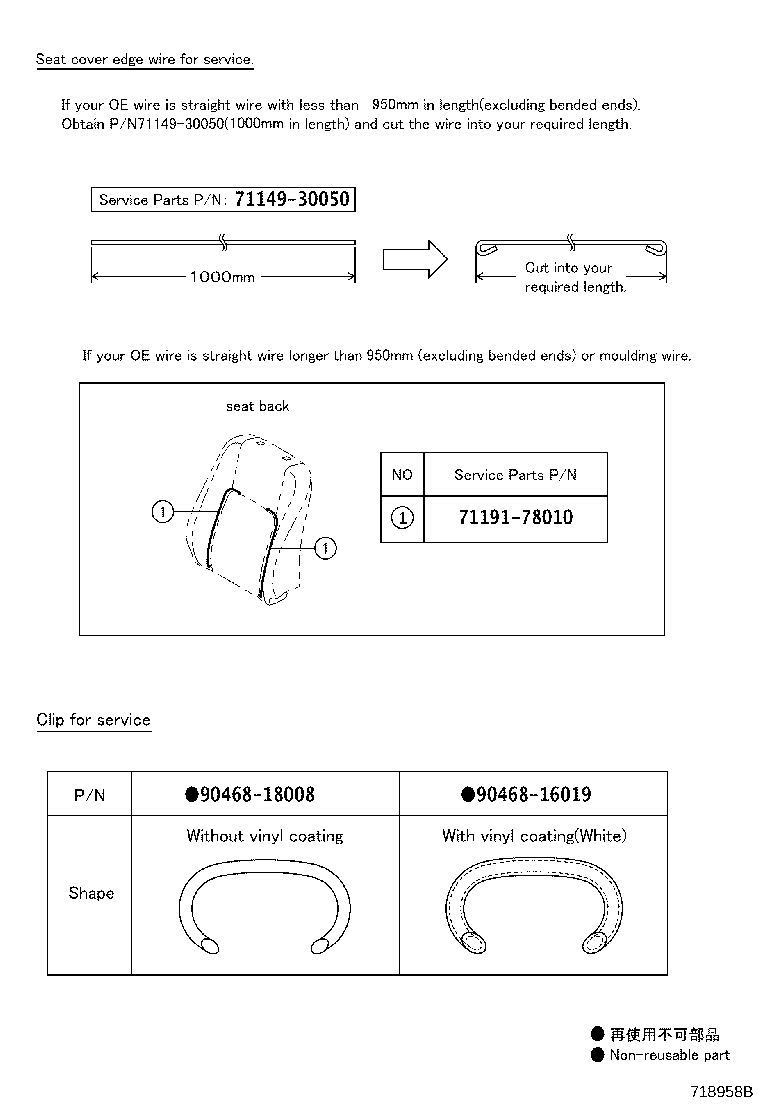

SEAT COVER EDGE WIRE & CLIP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 71149-30050 | ||||
| 71191-78010 | ||||
| 90468-16019 | ||||
| 90468-18008 | ||||
(1407- )

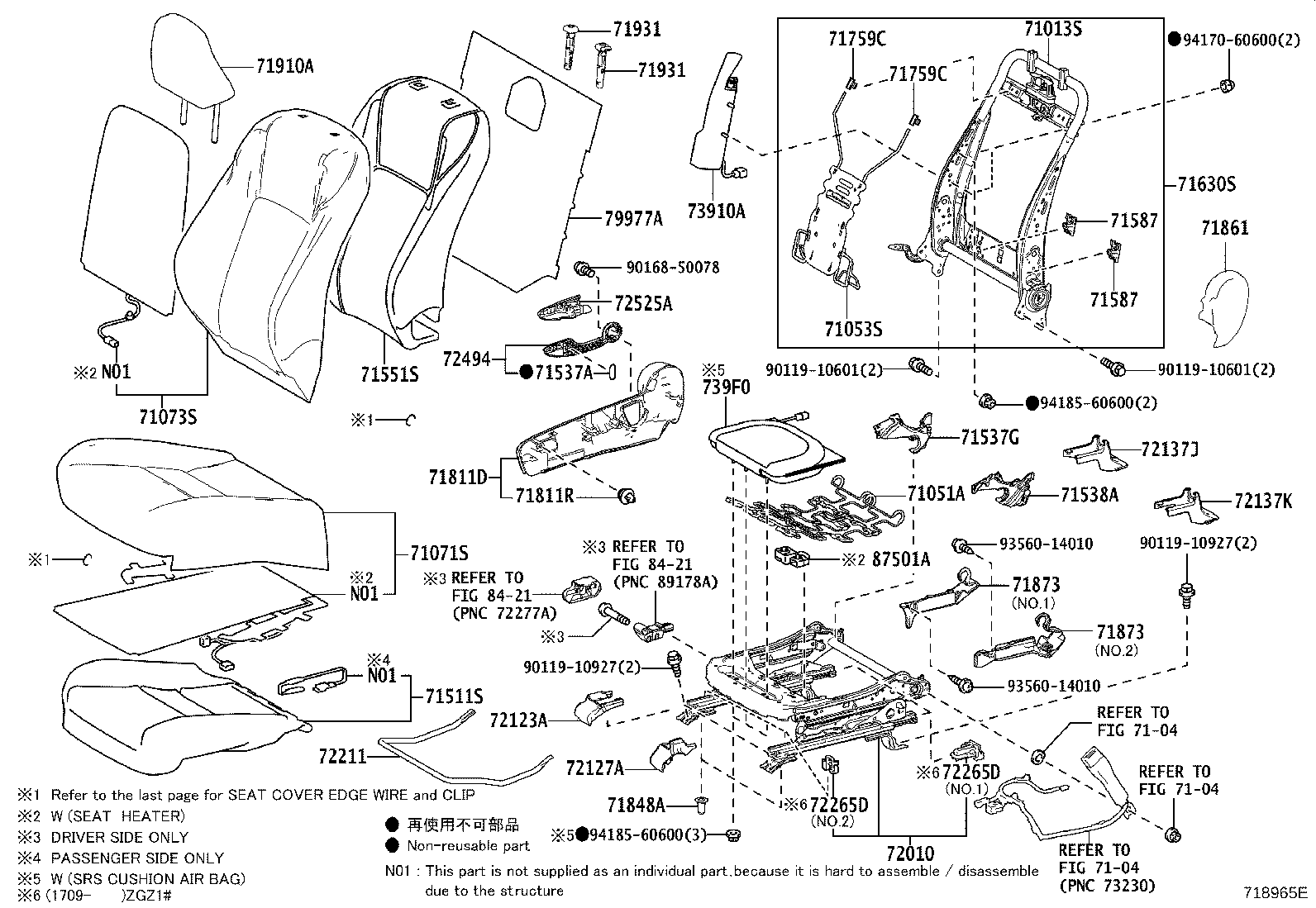

RH SEAT(6WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-78060 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71013-78090 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71013-78030 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71013-78060 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-78090 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71013-78090 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-47060 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71051-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71051-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-78100A3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71071-78100A3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71071-78100C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78100D4 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78100D4 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78100E3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71071-78010C6 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78100C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78010D6 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78020B3 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71071-78020C5 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78100E3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71071-78010B3 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71071-78020D5 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78070D4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78070F4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71071-78070A4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71071-78080A4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BLACK/BEIGE,TRIM0# |
1 | ||
| 71071-78080F4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71071-78070C4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78080C4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78080D5 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78101C5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78101A5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71071-78101D6 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78101D6 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78101E5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71071-78101C5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78101A5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71071-78101E5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-78030B2 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GCC,GEN PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71073-78030C5 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GCC,GEN BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-78040B2 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71073-78030D5 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GCC,GEN GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71073-78040C4 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-78040D4 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71073-78070F3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71073-78080A3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BLACK/BEIGE,TRIM0# |
1 | ||
| 71073-78080C3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-78070C3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-78070A3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BLACK/BEIGE,TRIM0# |
1 | ||
| 71073-78110C2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-78070D3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71073-78080D4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71073-78110A2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71073-78080F3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71073-78110E2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71073-78110D3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71073-78110A2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71073-78110D3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71073-78110E2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71073-78110C2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-78030 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71511-78010 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 71511-78050 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71511-78030 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71511-78050 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
2 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-78060 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71551-78051 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71551-78050 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71551-78061 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71551-78061 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71551-78060 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-78100 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71630-78140 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71630-78030 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71630-78140 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71630-78100 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71630-78140 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-78010C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71811-78020C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71811-78020C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71811-78030C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71811-78030C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71811-78030C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-08010 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-76010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71861-42060C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST. |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST. |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-78060A1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78060C6 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78060F1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78060D1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78060D1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78060A1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78060F1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78050B0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN PLATINUM,TRIM1# |
2 | ||
| 71910-78060C6 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070E3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.SADDLE TAN/IVORY,TRIM4# |
2 | ||
| 71910-78070A3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78090C3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE,TRIM91,94 |
2 | ||
| 71910-78050C5 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN BLACK METAL,TRIM2# |
2 | ||
| 71910-78070D4 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78090D3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/RED,TRIM93,95 |
2 | ||
| 71910-78070C3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070C3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070E3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.SADDLE TAN/IVORY,TRIM4# |
2 | ||
| 71910-78090C4 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM90,92 |
2 | ||
| 71910-78070D4 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78070A3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78050D1 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN GARNET,TRIM3# |
2 | ||
| 71910-78180C0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78180A0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78180F0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78180A0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78180D0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78180F0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78180D0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78180C0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-78070 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78010 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 72010-78070 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78060 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 72010-78060 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-78061 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-78071 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78070 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78071 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78071 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78061 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-42030C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-42030C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-42050C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72158-42020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72211 - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 72494 - HANDLE, VERTICAL ADJUSTING, RH | ||||
| 72494-42020C0 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM1#,2#,3# |
1 | ||
| 72525A - HANDLE, RECLINING ADJUSTER RELEASE, RH | ||||
| 72525-47010C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42060 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-78010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-53010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10927 | ||||
| 90168-50078 | ||||
| 93560-14010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
(1407- )
LH SEAT(6WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-78030 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71014-78060 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71014-78060 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71014-78060 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-78060 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-47060 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71051-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71051-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-78010 |
AYZ1#..ARL,GEN;AGZ1#,ZGZ1#..ARL,CHI,GEN |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-78020B3 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71072-78100A3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71072-78100C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78100D4 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78100A3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71072-78100C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78010C6 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78010D6 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78100E3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71072-78100D4 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78100E3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71072-78010B3 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71072-78020D5 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78020C5 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78070A4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71072-78080D5 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78080A4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BLACK/BEIGE,TRIM0# |
1 | ||
| 71072-78080C4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78070C4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78070D4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78070F4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71072-78101A5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71072-78101C5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78101C5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78080F4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71072-78101D6 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78101E5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71072-78101A5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71072-78101D6 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78101E5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-78030B2 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GCC,GEN PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71074-78040C4 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-78030D5 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GCC,GEN GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71074-78070A3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BLACK/BEIGE,TRIM0# |
1 | ||
| 71074-78040D4 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71074-78080C3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-78080A3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BLACK/GEIGE,TRIM0# |
1 | ||
| 71074-78070D3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71074-78080F3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71074-78040B2 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71074-78070F3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71074-78070C3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-78110C2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-78110C2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-78030C5 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GCC,GEN BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-78110D3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71074-78080D4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71074-78110E2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71074-78110A2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71074-78110A2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71074-78110E2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71074-78110D3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-78020 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71502-78010 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 71502-78020 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71502-78030 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71502-78030 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71537A - PROTECTOR, FRONT SEAT CUSHION | ||||
| 71537-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
2 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-78060 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71552-78060 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71552-78050 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71552-78051 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71552-78061 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71552-78061 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-78030 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-47011 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-47011 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78010C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-08010 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71769-47020 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-76010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42070C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST. |
1 | ||
| 71873-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.1:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST. |
1 | ||
| 71874-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.2:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST. |
1 | ||
| 71873-60030 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST. |
1 | ||
| 71873-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.1:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST. |
1 | ||
| 71874-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.2:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST. |
1 | ||
| 71873-60030 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-78060A1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78060C6 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78060F1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78060D1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78060D1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78060A1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78060F1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78050B0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN PLATINUM,TRIM1# |
2 | ||
| 71910-78060C6 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070E3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.SADDLE TAN/IVORY,TRIM4# |
2 | ||
| 71910-78070A3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78090C3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE,TRIM91,94 |
2 | ||
| 71910-78050C5 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN BLACK METAL,TRIM2# |
2 | ||
| 71910-78070D4 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78090D3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/RED,TRIM93,95 |
2 | ||
| 71910-78070C3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070C3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070E3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.SADDLE TAN/IVORY,TRIM4# |
2 | ||
| 71910-78090C4 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM90,92 |
2 | ||
| 71910-78070D4 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78070A3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78050D1 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN GARNET,TRIM3# |
2 | ||
| 71910-78180C0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78180A0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78180F0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78180A0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78180D0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78180F0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78180D0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78180C0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-78050 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-78050 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78050 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78050 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 72020-78050 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 72020-78010 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-42020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-42030C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-42020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72211C - HANDLE, SEAT TRACK ADJUSTING | ||||
| 72211-47020 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 72495 - HANDLE, VERTICAL ADJUSTING, LH | ||||
| 72495-42020C0 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM1#,2#,3# |
1 | ||
| 72526A - HANDLE, RECLINING ADJUSTER RELEASE, LH | ||||
| 72526-47010C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42060 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 739G0 - AIR BAG ASSY, FRONT SEAT CUSHION, LH | ||||
| 739G0-78020 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 739G0-78030 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 739G0-78010 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 739G0-78030 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 739G0-78030 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 739G0-78020 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-78010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-53010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10927 | ||||
| 90168-50078 | ||||
| 93560-14010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8421 | ||||
(1407-1812)

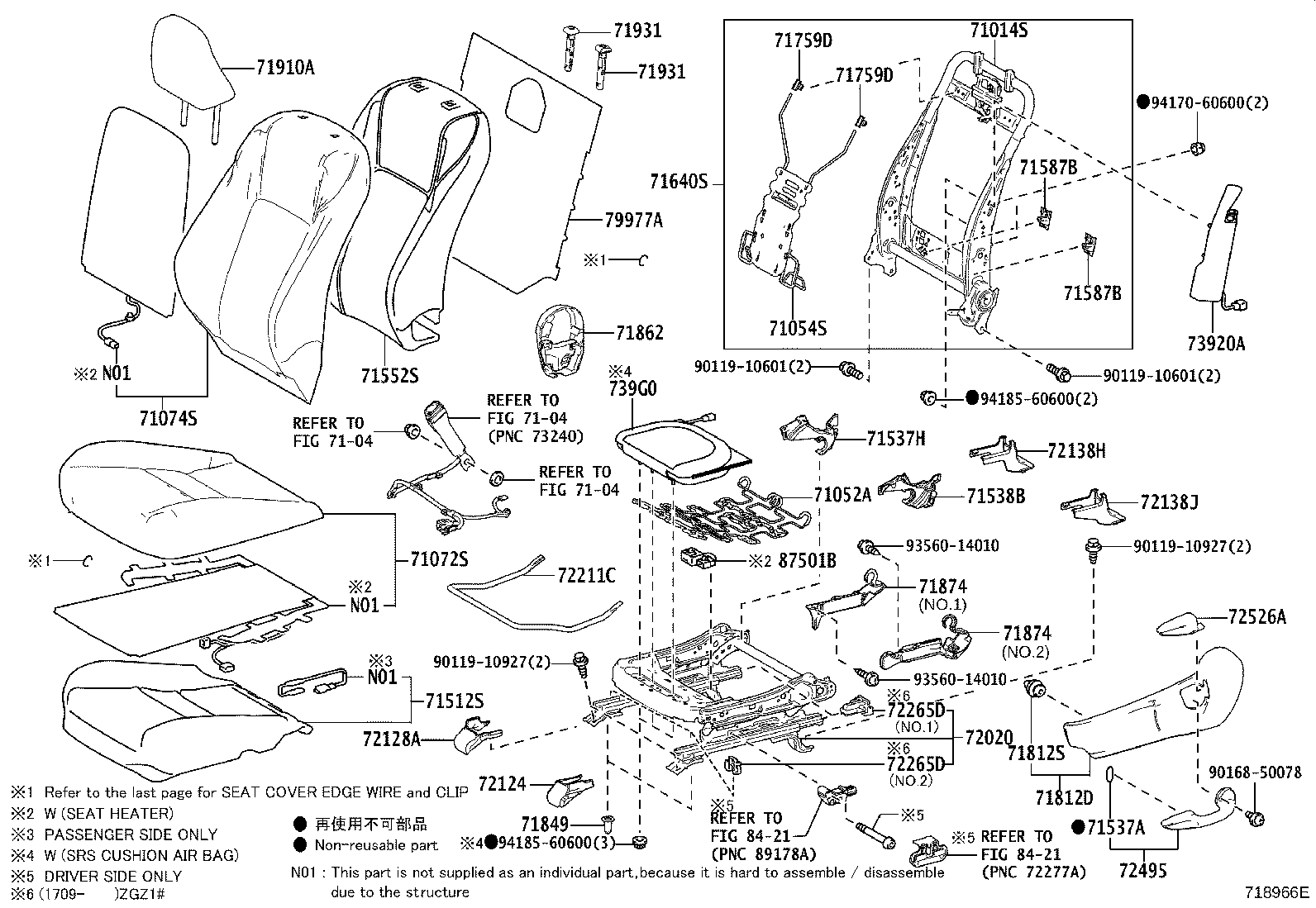

LH SEAT(8WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-78030 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71014-78060 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71014-78060 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71014-78060 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-78060 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-47060 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71051-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71051-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-78010 |
AYZ1#..ARL,GEN;AGZ1#,ZGZ1#..ARL,CHI,GEN |
1 | ||
| 71072S - COVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE) | ||||
| 71072-78020B3 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71072-78100A3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71072-78100C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78100D4 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78100A3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71072-78100C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78010C6 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78010D6 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78100E3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71072-78100D4 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78100E3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71072-78010B3 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71072-78020D5 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78020C5 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78070A4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71072-78080D5 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78080A4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BLACK/BEIGE,TRIM0# |
1 | ||
| 71072-78080C4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78070C4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78070D4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78070F4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71072-78101A5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71072-78101C5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78101C5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71072-78080F4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71072-78101D6 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78101E5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71072-78101A5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71072-78101D6 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71072-78101E5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71074S - COVER, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71074-78030B2 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GCC,GEN PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71074-78040C4 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-78030D5 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GCC,GEN GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71074-78070A3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BLACK/BEIGE,TRIM0# |
1 | ||
| 71074-78040D4 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71074-78080C3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-78080A3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BLACK/GEIGE,TRIM0# |
1 | ||
| 71074-78070D3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71074-78080F3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71074-78040B2 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71074-78070F3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71074-78070C3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-78110C2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-78110C2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-78030C5 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GCC,GEN BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71074-78110D3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71074-78080D4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71074-78110E2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71074-78110A2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71074-78110A2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71074-78110E2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71074-78110D3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71512S - PAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE) | ||||
| 71502-78020 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71502-78010 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 71502-78020 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71502-78030 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71502-78030 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71552S - PAD, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71552-78060 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71552-78060 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71552-78050 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71552-78051 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71552-78061 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71552-78061 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-78030 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-47011 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-47011 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78010C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-08010 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71769-47020 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-76010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42070C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST. |
1 | ||
| 71873-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.1:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST. |
1 | ||
| 71874-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.2:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST. |
1 | ||
| 71873-60030 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST. |
1 | ||
| 71873-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.1:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST. |
1 | ||
| 71874-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.2:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST. |
1 | ||
| 71873-60030 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71868-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71868-78010C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71868-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71868-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71868-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-78060A1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78060C6 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78060F1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78060D1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78060D1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78060A1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78060F1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78050B0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN PLATINUM,TRIM1# |
2 | ||
| 71910-78060C6 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070E3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.SADDLE TAN/IVORY,TRIM4# |
2 | ||
| 71910-78070A3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78090C3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE,TRIM91,94 |
2 | ||
| 71910-78050C5 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN BLACK METAL,TRIM2# |
2 | ||
| 71910-78070D4 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78090D3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/RED,TRIM93,95 |
2 | ||
| 71910-78070C3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070C3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070E3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.SADDLE TAN/IVORY,TRIM4# |
2 | ||
| 71910-78090C4 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM90,92 |
2 | ||
| 71910-78070D4 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78070A3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78050D1 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN GARNET,TRIM3# |
2 | ||
| 71910-78180C0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78180A0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78180F0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78180A0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78180D0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78180F0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78180D0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78180C0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-78050 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-78050 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78050 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78050 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 72020-78050 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 72020-78010 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-42020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-42030C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-42020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42060 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 739G0 - AIR BAG ASSY, FRONT SEAT CUSHION, LH | ||||
| 739G0-78020 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 739G0-78030 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 739G0-78010 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 739G0-78030 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 739G0-78030 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 739G0-78020 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 79968B - CLIP | ||||
| 90467-08186C0 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C0 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C0 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-78010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 85860B - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85860-33040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85860-33040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85860-33040 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85866A - DUCT, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85866-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85866-33010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85866-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85867A - BLOWER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85867-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85867-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85867-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85868A - BRACKET, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85868-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85868-33010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85868-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-53010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10927 | ||||
| 93541-14006 | ||||
| 93560-14010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(1407-1812)
LH SEAT(F SPORT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71014S - FRAME SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71014-78030 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71014-78060 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71014-78060 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71014-78060 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71014-78060 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71052A - SPRING SUB-ASSY, FRONT SEAT CUSHION, LH | ||||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-47060 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71051-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71051-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71054S - SPRING SUB-ASSY, FRONT SEAT BACK, LH | ||||
| 71053-78010 |
AYZ1#..ARL,GEN;AGZ1#,ZGZ1#..ARL,CHI,GEN |
1 | ||
| 71528 - PAD, FRONT SEAT CUSHION W/COVER, LH | ||||
| 71102-78041K1 |
AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE/DK.ROSE,TRIM91,94 |
1 | ||
| 71102-78040U9 |
AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK & WHITE/LT.GRAY,TRIM90,92 |
1 | ||
| 71102-78041K0 |
AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK & WHITE/LT.GRAY,TRIM90,92 |
1 | ||
| 71102-78041K2 |
AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/BLACK/RED,TRIM93,95 |
1 | ||
| 71102-7804041 |
AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/BLACK/RED,TRIM93,95 |
1 | ||
| 71102-7804040 |
AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE/DK.ROSE,TRIM91,94 |
1 | ||
| 71102-78041K3 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK & WHITE/LT.GRAY,TRIM90,92 |
1 | ||
| 71102-78041K5 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/BLACK/RED,TRIM93,95 |
1 | ||
| 71102-78041K4 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE/DK.ROSE,TRIM91,94 |
1 | ||
| 71102-78042K1 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE/DK.ROSE,TRIM91,94 |
1 | ||
| 71102-78042K2 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/BLACK/RED,TRIM93,95 |
1 | ||
| 71102-78042K0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK & WHITE/LT.GRAY,TRIM90,92 |
1 | ||
| 71537H - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT) | ||||
| 71537-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71538B - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT) | ||||
| 71538-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71568A - PAD, FRONT SEAT BACK W/COVER, LH | ||||
| 71402-78030U6 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK & WHITE/LT.GRAY,TRIM90,92 |
1 | ||
| 71402-78030U7 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE/DK.ROSE,TRIM91,94 |
1 | ||
| 71402-78030U8 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/BLACK/RED,TRIM93,95 |
1 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71587B - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71640S - SPRING ASSY, FRONT SEAT BACK, LH(FOR SEPARATE TYPE) | ||||
| 71640-78030 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71640-78090 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-47011 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71759D - HOOK, FRONT SEAT BACK, NO.2 | ||||
| 71759-47011 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71812D - SHIELD, FRONT SEAT CUSHION, LH | ||||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78010C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812-78020C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71812S - CLIP, FRONT SEAT CUSHION SHIELD, LH | ||||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-08010 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71769-47020 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71849 - CAP, SEAT ADJUSTER COVER, LH | ||||
| 71848-76010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71862 - SHIELD, FRONT SEAT CUSHION, INNER LH | ||||
| 71862-42070C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862-42110C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71862B - CLIP(FOR FRONT SEAT SHIELD, LH) | ||||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST. |
1 | ||
| 71873-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.1:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST. |
1 | ||
| 71874-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.2:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST. |
1 | ||
| 71873-60030 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874 - SHIELD, FRONT SEAT CUSHION, LOWER LH | ||||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST. |
1 | ||
| 71873-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.1:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST. |
1 | ||
| 71874-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.2:REFER ILLUST. |
1 | ||
| 71873-60030 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST. |
1 | ||
| 71873-60030 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST. |
1 | ||
| 71874-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874C - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71868-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71868-78010C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71868-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71868-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71868-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-78060A1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78060C6 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78060F1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78060D1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78060D1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78060A1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78060F1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78050B0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN PLATINUM,TRIM1# |
2 | ||
| 71910-78060C6 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070E3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.SADDLE TAN/IVORY,TRIM4# |
2 | ||
| 71910-78070A3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78090C3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE,TRIM91,94 |
2 | ||
| 71910-78050C5 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN BLACK METAL,TRIM2# |
2 | ||
| 71910-78070D4 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78090D3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/RED,TRIM93,95 |
2 | ||
| 71910-78070C3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070C3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070E3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.SADDLE TAN/IVORY,TRIM4# |
2 | ||
| 71910-78090C4 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM90,92 |
2 | ||
| 71910-78070D4 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78070A3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78050D1 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN GARNET,TRIM3# |
2 | ||
| 71910-78180C0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78180A0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78180F0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78180A0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78180D0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78180F0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78180D0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78180C0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 72020 - ADJUSTER ASSY, FRONT SEAT, LH | ||||
| 72020-78050 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-78050 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78050 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78050 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 72020-78050 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 72020-78010 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72020-78051 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72124 - COVER, SEAT TRACK BRACKET, OUTER FRONT LH | ||||
| 72124-42020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72128A - COVER, SEAT TRACK BRACKET, INNER FRONT LH | ||||
| 72128-42030C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72138H - COVER, FRONT SEAT TRACK, LH REAR INNER | ||||
| 72158-42020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72138J - COVER, FRONT SEAT TRACK, LH REAR OUTER | ||||
| 72138-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 73920A - AIR BAG ASSY, FRONT SEAT, LH | ||||
| 73920-42060 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 739G0 - AIR BAG ASSY, FRONT SEAT CUSHION, LH | ||||
| 739G0-78020 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 739G0-78030 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 739G0-78010 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 739G0-78030 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 739G0-78030 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 739G0-78020 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 79968B - CLIP | ||||
| 90467-08186C0 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C0 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C0 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-78010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 85860B - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85860-33040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85860-33040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85860-33040 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85866A - DUCT, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85866-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85866-33010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85866-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85867A - BLOWER, SEAT BACK CLIMATE CONTROL, LH | ||||
| 85867-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85867-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85867-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85868A - BRACKET, SEAT CUSHION CLIMATE CONTROL, LH | ||||
| 85868-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85868-33010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85868-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501B - CONTROL SUB-ASSY, SEAT HEATER, LH | ||||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-53010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10927 | ||||
| 93541-14006 | ||||
| 93560-14010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(1407-1812)
RH SEAT(8WAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-78060 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71013-78090 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71013-78030 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71013-78060 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-78090 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71013-78090 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-47060 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71051-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71051-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 71071S - COVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71071-78100A3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71071-78100A3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71071-78100C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78100D4 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78100D4 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78100E3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71071-78010C6 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78100C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78010D6 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78020B3 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71071-78020C5 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78100E3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71071-78010B3 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71071-78020D5 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78070D4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78070F4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71071-78070A4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71071-78080A4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BLACK/BEIGE,TRIM0# |
1 | ||
| 71071-78080F4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71071-78070C4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78080C4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78080D5 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78101C5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78101A5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71071-78101D6 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78101D6 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71071-78101E5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71071-78101C5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71071-78101A5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71071-78101E5 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71073S - COVER, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71073-78030B2 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GCC,GEN PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71073-78030C5 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GCC,GEN BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-78040B2 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),PLATINUM/BLACK/LT.GRAY,TRIM1# |
1 | ||
| 71073-78030D5 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GCC,GEN GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71073-78040C4 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK METAL/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-78040D4 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71073-78070F3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71073-78080A3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BLACK/BEIGE,TRIM0# |
1 | ||
| 71073-78080C3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-78070C3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-78070A3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BLACK/BEIGE,TRIM0# |
1 | ||
| 71073-78110C2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71073-78070D3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71073-78080D4 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71073-78110A2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71073-78080F3 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/BLACK/C.BROWN,TRIM5# |
1 | ||
| 71073-78110E2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71073-78110D3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71073-78110A2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BLACK/LT.GRAY,TRIM0# |
1 | ||
| 71073-78110D3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/BLACK/LT.GRAY,TRIM3# |
1 | ||
| 71073-78110E2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),SADDLE TAN/BLACK/LT.GRAY,TRIM4# |
1 | ||
| 71073-78110C2 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/BLACK/LT.GRAY,TRIM2# |
1 | ||
| 71511S - PAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE) | ||||
| 71511-78030 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71511-78010 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 71511-78050 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71511-78030 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71511-78050 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71551S - PAD, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71551-78060 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71551-78051 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71551-78050 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71551-78061 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71551-78061 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71551-78060 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-78100 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71630-78140 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71630-78030 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71630-78140 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71630-78100 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71630-78140 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-78010C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71811-78020C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71811-78020C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71811-78030C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71811-78030C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71811-78030C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-08010 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-76010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71861-42060C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST. |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST. |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71867-78010C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71867-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71867-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71867-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71867-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-78060A1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78060C6 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78060F1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78060D1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78060D1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78060A1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78060F1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78050B0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN PLATINUM,TRIM1# |
2 | ||
| 71910-78060C6 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070E3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.SADDLE TAN/IVORY,TRIM4# |
2 | ||
| 71910-78070A3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78090C3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE,TRIM91,94 |
2 | ||
| 71910-78050C5 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN BLACK METAL,TRIM2# |
2 | ||
| 71910-78070D4 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78090D3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/RED,TRIM93,95 |
2 | ||
| 71910-78070C3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070C3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070E3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.SADDLE TAN/IVORY,TRIM4# |
2 | ||
| 71910-78090C4 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM90,92 |
2 | ||
| 71910-78070D4 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78070A3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78050D1 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN GARNET,TRIM3# |
2 | ||
| 71910-78180C0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78180A0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78180F0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78180A0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78180D0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78180F0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78180D0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78180C0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-78070 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78010 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 72010-78070 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78060 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 72010-78060 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-78061 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-78071 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78070 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78071 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78071 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78061 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-42030C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-42030C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-42050C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72158-42020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-78010 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72750-78010 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72750-78010 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42060 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 79968B - CLIP | ||||
| 90467-08186C0 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C0 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C0 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-78010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 85860A - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85860-33020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85860-33020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85860-33020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85866 - DUCT, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85866-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85866-33010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85866-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85867 - BLOWER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85867-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85867-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85867-78010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85868 - BRACKET, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85868-33010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85868-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85868-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-53010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10927 | ||||
| 93541-14006 | ||||
| 93560-14010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
(1407-1812)
RH SEAT(F SPORT)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 71013S - FRAME SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71013-78060 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71013-78090 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71013-78030 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71013-78060 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71013-78090 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71013-78090 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051A - SPRING SUB-ASSY, FRONT SEAT CUSHION, RH | ||||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71051-47060 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71051-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71051-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71053S - SPRING SUB-ASSY, FRONT SEAT BACK, RH | ||||
| 71053-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 71518B - PAD, FRONT SEAT CUSHION W/COVER, RH | ||||
| 71101-7803041 |
AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/BLACK/RED,TRIM93,95 |
1 | ||
| 71101-78030U9 |
AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK & WHITE/LT.GRAY,TRIM90,92 |
1 | ||
| 71101-7803040 |
AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE/DK.ROSE,TRIM91,94 |
1 | ||
| 71101-78031K1 |
AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE/DK.ROSE,TRIM91,94 |
1 | ||
| 71101-78031K3 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK & WHITE/LT.GRAY,TRIM90,92 |
1 | ||
| 71101-78031K2 |
AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/BLACK/RED,TRIM93,95 |
1 | ||
| 71101-78031K0 |
AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK & WHITE/LT.GRAY,TRIM90,92 |
1 | ||
| 71101-78031K4 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE/DK.ROSE,TRIM91,94 |
1 | ||
| 71101-78031K5 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/BLACK/RED,TRIM93,95 |
1 | ||
| 71101-78032K0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK & WHITE/LT.GRAY,TRIM90,92 |
1 | ||
| 71101-78032K1 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE/DK.ROSE,TRIM91,94 |
1 | ||
| 71101-78032K2 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/BLACK/RED,TRIM93,95 |
1 | ||
| 71537G - PROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR RH SEAT) | ||||
| 71537-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71538A - PROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR RH SEAT) | ||||
| 71538-42010C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71558B - PAD, FRONT SEAT BACK W/COVER, RH | ||||
| 71401-78030U7 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE/DK.ROSE,TRIM91,94 |
1 | ||
| 71401-78030U6 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK & WHITE/LT.GRAY,TRIM90,92 |
1 | ||
| 71401-78030U8 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/BLACK/RED,TRIM93,95 |
1 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71587 - PROTECTOR, FRONT SEAT BACK EDGE | ||||
| 71587-52030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71630S - SPRING ASSY, FRONT SEAT BACK, RH(FOR SEPARATE TYPE) | ||||
| 71630-78100 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71630-78140 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71630-78030 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71630-78140 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71630-78100 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71630-78140 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71759C - HOOK, FRONT SEAT BACK, NO.1 | ||||
| 71759-47011 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71811D - SHIELD, FRONT SEAT CUSHION, RH | ||||
| 71811-78010C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71811-78020C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71811-78020C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71811-78030C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71811-78030C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71811-78030C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71811R - CLIP, FRONT SEAT CUSHION SHIELD, RH | ||||
| 71769-08010 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-08010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71848A - CAP, SEAT ADJUSTER COVER, RH | ||||
| 71848-76010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 71861 - SHIELD, FRONT SEAT CUSHION, INNER RH | ||||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71861-42060C0 |
AGZ1#,AYZ1#..ARL,GEN BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71861-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71861B - CLIP(FOR FRONT SEAT SHIELD, RH) | ||||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 71769-47020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 71769-47020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST. |
1 | ||
| 71873 - SHIELD, FRONT SEAT CUSHION, LOWER RH | ||||
| 71873-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71873-78020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.1:REFER ILLUST. |
1 | ||
| 71874-47040 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),NO.2:REFER ILLUST. |
1 | ||
| 71874-60110 |
ZGZ15;AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,NO.2:REFER ILLUST. |
1 | ||
| 71873A - SHIELD, FRONT SEAT CUSHION, LOWER | ||||
| 71867-78010C0 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71867-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71867-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71867-78010C0 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK,TRIM0#,2#,3#,4#,9# |
1 | ||
| 71867-78010C0 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK,TRIM0#,2#,3#,5# |
1 | ||
| 71910A - HEADREST ASSY, FRONT SEAT | ||||
| 71910-78060A1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78060C6 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78060F1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78060D1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78060D1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78060A1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78060F1 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78050B0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN PLATINUM,TRIM1# |
2 | ||
| 71910-78060C6 |
AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070E3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.SADDLE TAN/IVORY,TRIM4# |
2 | ||
| 71910-78070A3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITEOCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78090C3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/DK.ROSE,TRIM91,94 |
2 | ||
| 71910-78050C5 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN BLACK METAL,TRIM2# |
2 | ||
| 71910-78070D4 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78090D3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.ROSE/RED,TRIM93,95 |
2 | ||
| 71910-78070C3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070C3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78070E3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),DK.SADDLE TAN/IVORY,TRIM4# |
2 | ||
| 71910-78090C4 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK/LT.GRAY,TRIM90,92 |
2 | ||
| 71910-78070D4 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78070A3 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78050D1 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GCC,GEN GARNET,TRIM3# |
2 | ||
| 71910-78180C0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71910-78180A0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78180F0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78180A0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,WHITE OCHRE/BEIGE,TRIM0# |
2 | ||
| 71910-78180D0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER,GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78180F0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),TOPAZ BROWN/C.BROWN,TRIM5# |
2 | ||
| 71910-78180D0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),GARNET/LT.GRAY,TRIM3# |
2 | ||
| 71910-78180C0 |
AYZ15..ARL;AGZ1#,AYZ10..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER),BLACK/LT.GRAY,TRIM2# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931 - SUPPORT, FRONT SEAT HEADREST | ||||
| 71930-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 71931-47020C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN W/O(LOCK),BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
2 | ||
| 72010 - ADJUSTER ASSY, FRONT SEAT, RH | ||||
| 72010-78070 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78010 |
ZGZ1#;AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 72010-78070 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78060 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 72010-78060 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-78061 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 72010-78071 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78070 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78071 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78071 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72010-78061 |
AGZ1#,AYZ1#..ARL SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER |
1 | ||
| 72123A - COVER, SEAT TRACK BRACKET, OUTER FRONT RH | ||||
| 72123-42030C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72127A - COVER, SEAT TRACK BRACKET, INNER FRONT RH | ||||
| 72127-42030C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72137J - COVER, FRONT SEAT TRACK, RH REAR OUTER | ||||
| 72137-42050C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72137K - COVER, FRONT SEAT TRACK, RH REAR INNER | ||||
| 72158-42020C0 |
AGZ1#,AYZ1# BLACK,TRIM0#,1#,2#,3#,4#,5#,9# |
1 | ||
| 72750D - ADJUSTER ASSY, LUMBAR SUPPORT, RH | ||||
| 72750-78010 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72750-78010 |
AGZ1#,AYZ1#..ARL F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 72750-78010 |
AGZ1#,AYZ1#..ARL VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 73910A - AIR BAG ASSY, FRONT SEAT, RH | ||||
| 73910-42060 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 79968B - CLIP | ||||
| 90467-08186C0 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C0 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C0 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C3 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 90467-08186C3 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION),BLACK |
2 | ||
| 79977A - FELT, SEAT BACK | ||||
| 79977-78010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 85860A - BLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85860-33020 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85860-33020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85860-33020 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85866 - DUCT, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85866-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85866-33010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85866-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85867 - BLOWER, SEAT BACK CLIMATE CONTROL, RH | ||||
| 85867-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85867-78010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85867-78010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85868 - BRACKET, SEAT CUSHION CLIMATE CONTROL, RH | ||||
| 85868-33010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85868-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 85868-33010 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501A - CONTROL SUB-ASSY, SEAT HEATER, RH | ||||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-53010 |
AGZ1#,AYZ1#..ARL,GEN F SPORT*(F)&SEAT COVER MATERIAL-NATURAL LEATHER(F-SPORT)&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30040 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN SEAT COVER MATERIAL-SYNTHETIC LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER/*PAS:8WAY POWER&SEAT HEATER-WITH(DRIVER & PASSENGER) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&REAR SEAT-6:4 FOLDING(POWER SEAT)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| 87501-30041 |
AGZ1#,AYZ1#..ARL,GEN VERSION L*(L)&SEAT COVER MATERIAL-NATURAL LEATHER&FRONT SEAT VERTICAL ADJUSTER-*DRS:8WAY POWER(MEMORY)/*PAS:8WAY POWER&SEAT HEATER-WITH(HEATER & VENTILATION) |
1 | ||
| Common parts | ||||
| 90119-10601 | ||||
| 90119-10927 | ||||
| 93541-14006 | ||||
| 93560-14010 | ||||
| 94170-60600 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 7104 | ||||
| 8202 | ||||
| 8401 | ||||
| 8421 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
