AYZ15R-AWXLBQ (2017)

Toyota Lexus Nx Series

Production Sep 2017 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 3(1709- )

Click highlighted areas on diagram

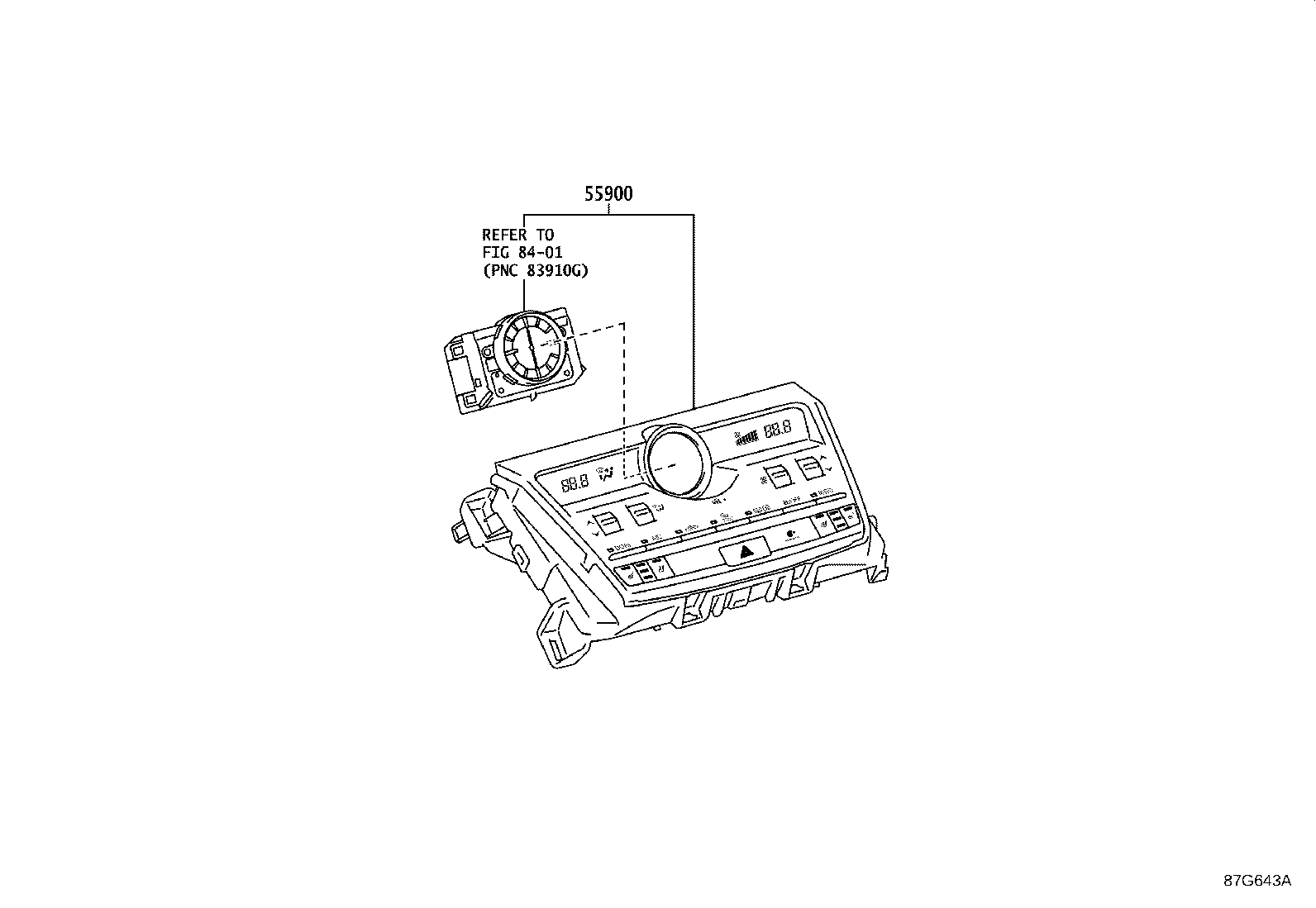

HEATER CONTROL PANEL

diagram 55900 8401
Part # Description Qty Price
55900 - CONTROL ASSY, AIR CONDITIONER
55900-78400

AGZ1#,AYZ15..ARL

SOUTH AFRICA SPEC&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT)

1
55900-78430

AGZ1#,AYZ1#..ARL

SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT)

1
55900-78420

AGZ1#,AYZ15..ARL

SOUTH AFRICA SPEC

1
55900-78440

AGZ1#,AYZ1#..ARL

SEAT HEATER-WITH(FR & RR) & WITH(VENTILATION SEAT)

1
55900-78410

AGZ1#,AYZ15..ARL

SOUTH AFRICA SPEC&SEAT HEATER-WITH(*DRP) & WITH(VENTILATION SEAT)

1
55900-78440

AGZ1#,AYZ1#..ARL

SEAT HEATER-WITH(*DRP) & WITH(VENTILATION SEAT)

1
55900-78410

AGZ1#,AYZ15..ARL

SOUTH AFRICA SPEC&SEAT HEATER-WITH(FR & RR) & WITH(VENTILATION SEAT)

1
55900-78450

AGZ1#,AYZ1#..ARL

1
55900-78680

AGZ15,AYZ15..ARL

SOUTH AFRICA SPEC&SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT)

1
55900-78690

AGZ15,AYZ15..ARL

SOUTH AFRICA SPEC&SEAT HEATER-WITH(*DRP) & WITH(VENTILATION SEAT)

1
55900-78710

AGZ1#,AYZ1#..ARL

SEAT HEATER-WITH(*DRP) & WITHOUT(VENTILATION SEAT)

1
55900-78690

AGZ15,AYZ15..ARL

SOUTH AFRICA SPEC&SEAT HEATER-WITH(FR & RR) & WITH(VENTILATION SEAT)

1
55900-78720

AGZ1#,AYZ1#..ARL

SEAT HEATER-WITH(FR & RR) & WITH(VENTILATION SEAT)

1
55900-78720

AGZ1#,AYZ1#..ARL

SEAT HEATER-WITH(*DRP) & WITH(VENTILATION SEAT)

1
55900-78700

AGZ15,AYZ15..ARL

SOUTH AFRICA SPEC

1
55900-78730

AGZ1#,AYZ1#..ARL

1
