AYZ15R-AWXLBQ (2017)

Toyota Lexus Nx Series

Production Sep 2017 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1407-1910)

Click highlighted areas on diagram

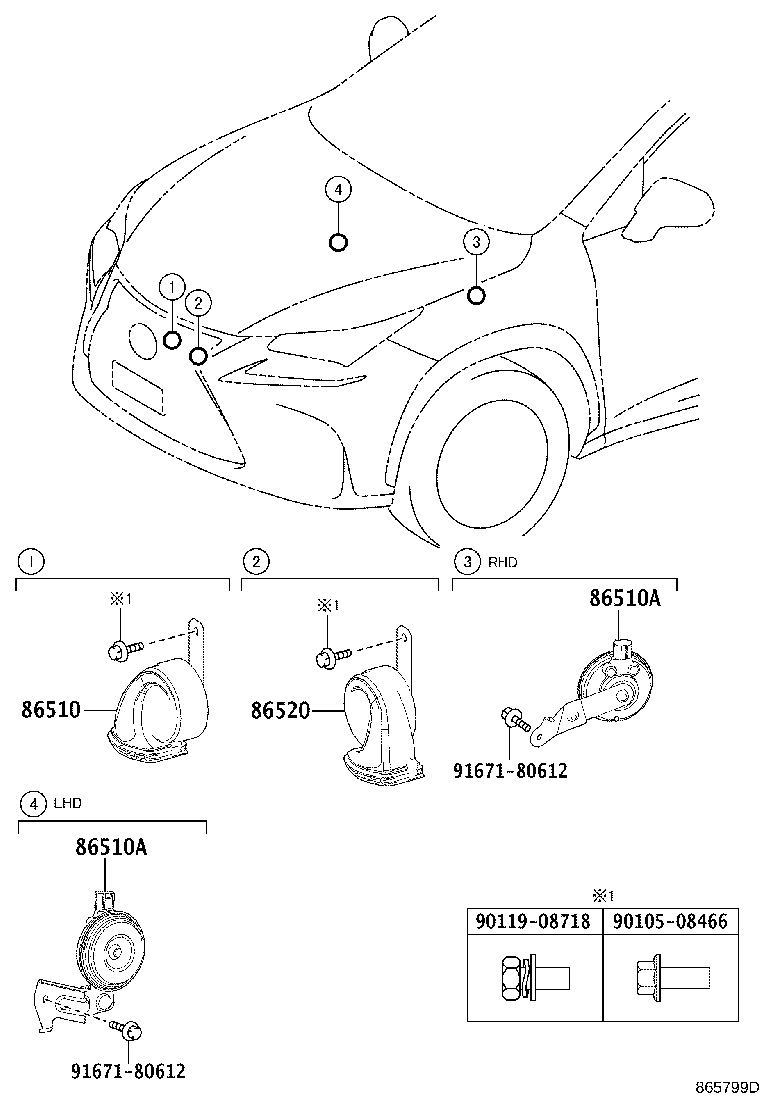

diagram 86510 86510A 86510A 86520 9010508466 9011908718 9167180612 9167180612
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-33230

AGZ15,AYZ15..ARL

SOUTH AFRICA SPEC

 1
86510-48190

AGZ1#,AYZ1#..ARL,GCC,GEN

 1
86510A - HORN ASSY, SECURITY
86560-48020

AGZ1#,AYZ1#..ARL

 1
86510A - HORN ASSY, SECURITY
86560-48020

AGZ1#,AYZ1#..ARL

 1
86520 - HORN ASSY, LOW PITCHED
86520-30670

AGZ1#,AYZ1#..ARL,GCC,GEN

 1
86520-33170

AGZ15,AYZ15..ARL

SOUTH AFRICA SPEC

 1
Common parts
90105-08466
90119-08718
91671-80612

(1910- )

Click highlighted areas on diagram

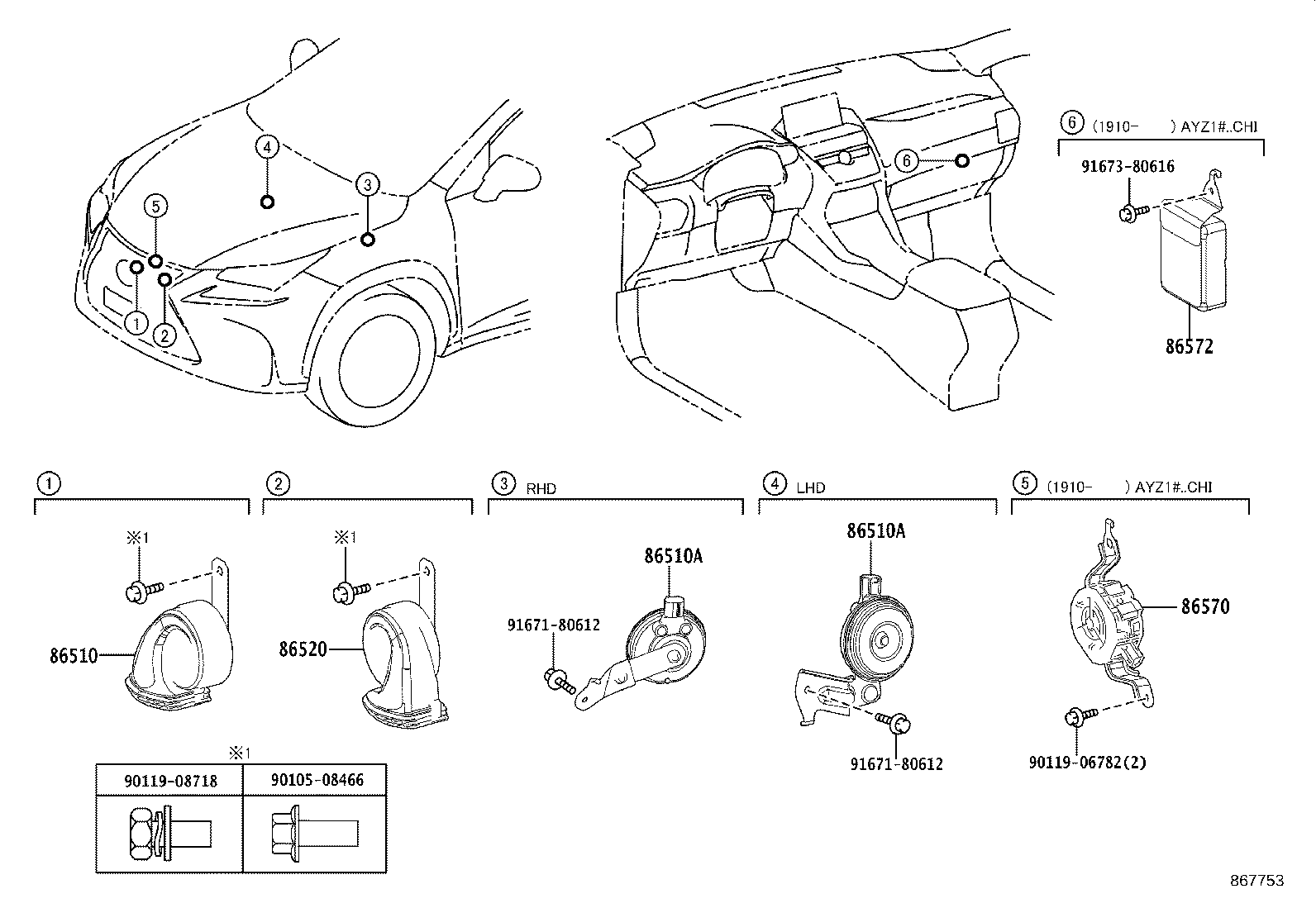

diagram 86510 86510A 86510A 86520 86570 86572 9010508466 9011906782 9011908718 9167180612 9167180612 9167380616
Part # Description Qty Price
86510 - HORN ASSY, HIGH PITCHED
86510-33230

AGZ15,AYZ15..ARL

SOUTH AFRICA SPEC

 1
86510-48190

AGZ1#,AYZ1#..ARL,GCC,GEN

 1
86510A - HORN ASSY, SECURITY
86560-48020

AGZ1#,AYZ1#..ARL

 1
86510A - HORN ASSY, SECURITY
86560-48020

AGZ1#,AYZ1#..ARL

 1
86520 - HORN ASSY, LOW PITCHED
86520-30670

AGZ1#,AYZ1#..ARL,GCC,GEN

 1
86520-33170

AGZ15,AYZ15..ARL

SOUTH AFRICA SPEC

 1
Common parts
90105-08466
90119-06782
90119-08718
91671-80612
91673-80616
