AYZ15R-AWXLBQ (2017)

Toyota Lexus Nx Series

Production Sep 2017 - Sep 9999
Engine 2ARFXE
Transmission CVT
Displacement 2500cc
Power 168 HP (125 kW)

(1709- )

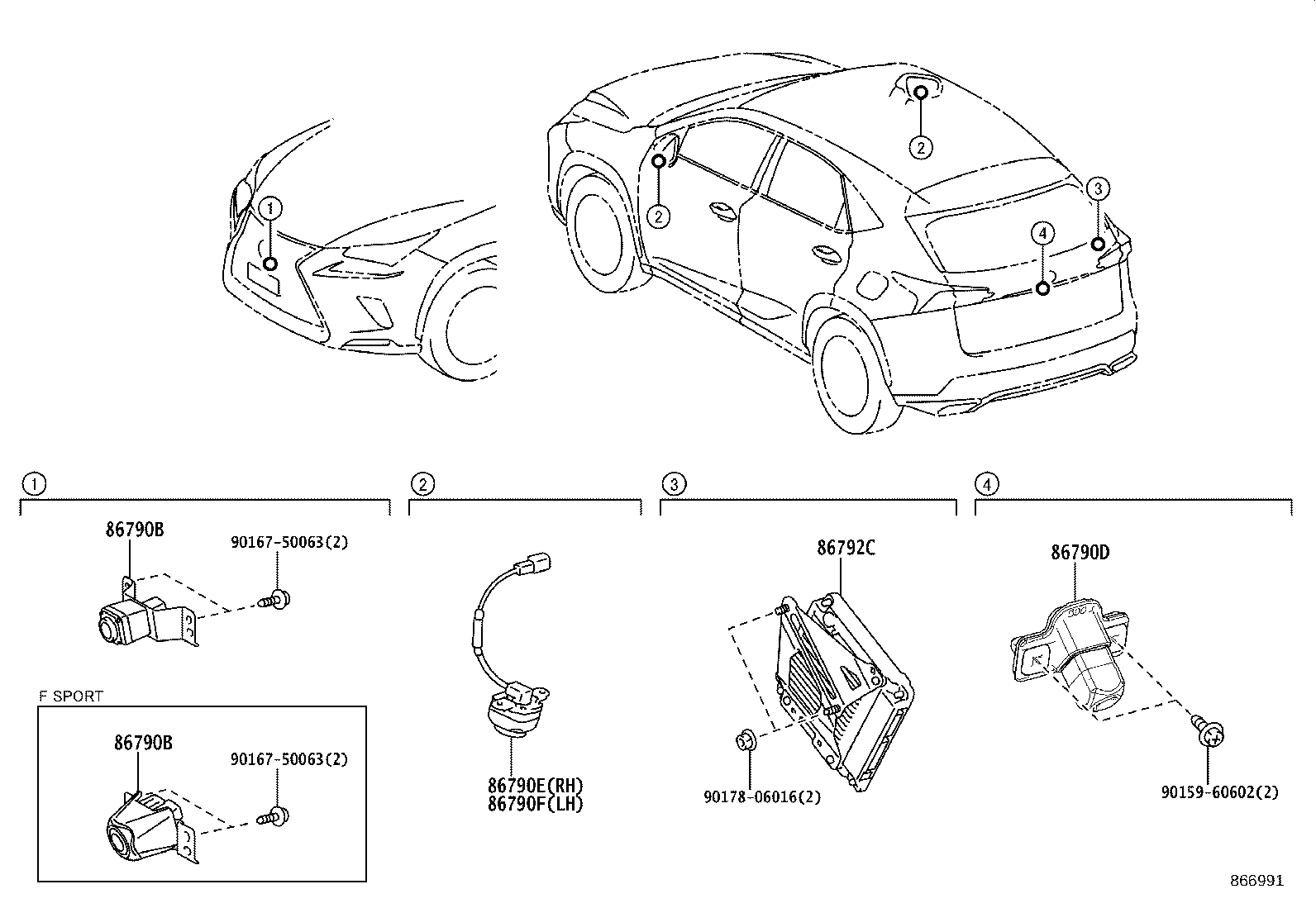

Click highlighted areas on diagram

diagram 86790B 86790B 86790D 86790E 86790F 86792C 9015960602 9016750063 9016750063 9017806016
Part # Description Qty Price
86790B - CAMERA ASSY, TELEVISION, FR
867B0-78060

AYZ15;AGZ10,AYZ10..ARL;AGZ15..ARL,GCC,GEN

F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
867B0-78020

AYZ1#;AGZ10..ARL;AGZ15..ARL,GCC,GEN

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
86790B - CAMERA ASSY, TELEVISION, FR
867B0-78060

AYZ15;AGZ10,AYZ10..ARL;AGZ15..ARL,GCC,GEN

F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
867B0-78020

AYZ1#;AGZ10..ARL;AGZ15..ARL,GCC,GEN

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
86790D - CAMERA ASSY, TELEVISION, RR
867D0-78010

AGZ15,AYZ15..ARL

CLEARANCE & BACK SONAR-WITH

 1
867B0-78031

AGZ15,AYZ15..ARL

AUDIO-*DA(EXTERNAL AMPLIFIER) & 8SPEAKER&CLEARANCE & BACK SONAR-WITH

 1
867B0-78031

AGZ1#,AYZ1#..ARL

CLEARANCE & BACK SONAR-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
867B0-78031

AGZ1#,AYZ1#..ARL

 1
867B0-78031

AGZ1#,AYZ1#..ARL

CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
867D0-78010

AGZ1#,AYZ1#..ARL

CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

 1
867B0-78030

AGZ1#,AYZ1#..ARL

 1
867B0-78031

AGZ1#,AYZ1#..ARL

AUDIO-*DA(EXTERNAL AMPLIFIER) & 8SPEAKER&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR)

 1
86790E - CAMERA ASSY, TELEVISION, SIDE RH
867B0-78050

AGZ15,AYZ15;AGZ10,AYZ10..ARL,CHI

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
86790F - CAMERA ASSY, TELEVISION, SIDE LH
867B0-78040

AGZ15,AYZ15;AGZ10,AYZ10..ARL,CHI

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
86792C - COMPUTER, PARKING ASSIST
86792-78070

AGZ1#,AYZ1#..ARL

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
86792-78071

AGZ1#,AYZ1#..ARL

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
86792-78072

AGZ1#,AYZ1#..ARL

BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

 1
Common parts
90159-60602
90167-50063
90178-06016
