AYZ15R-AWXLBQ (2017)
Toyota Lexus Nx Series

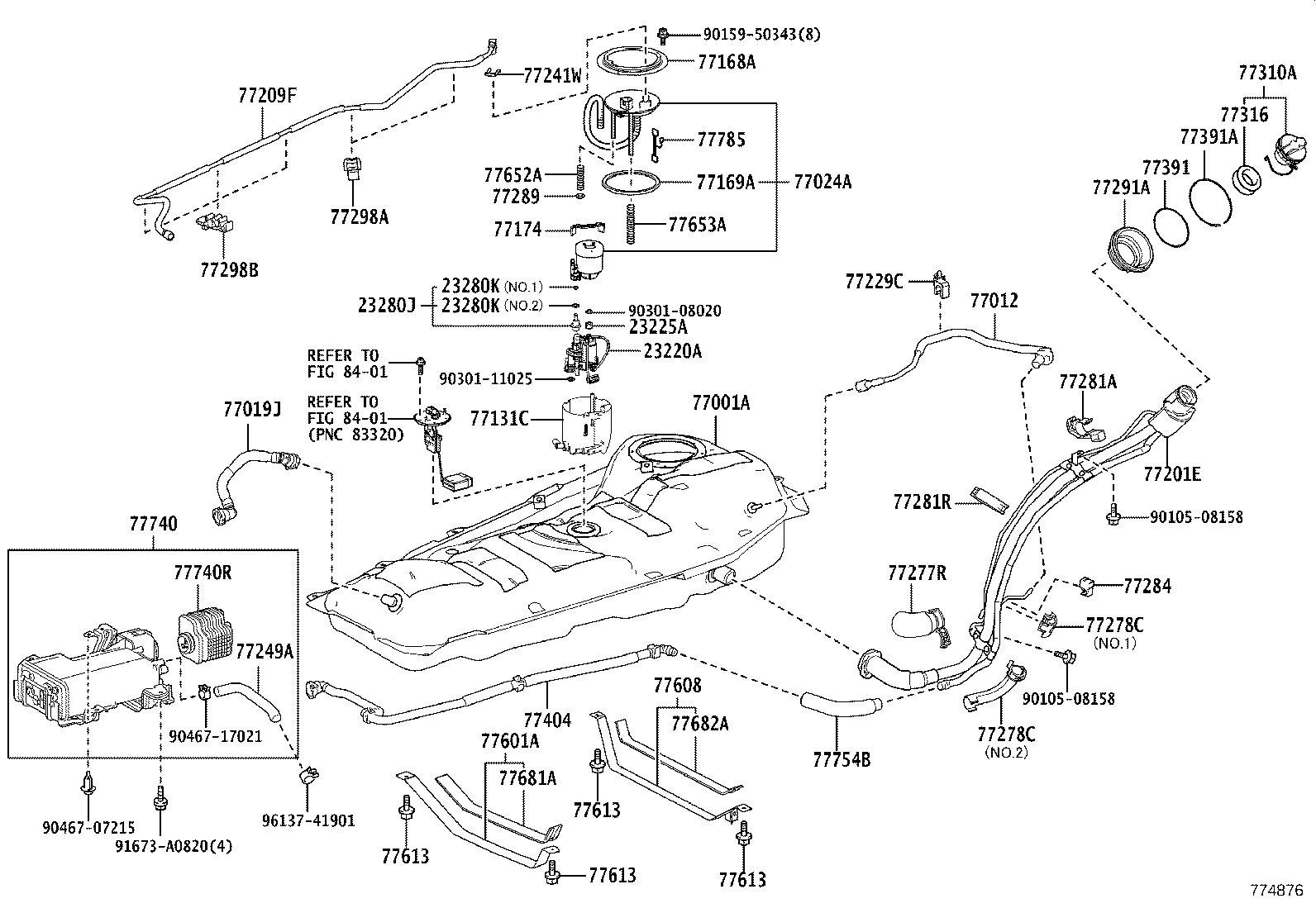

ILLUST NO. 1 OF 3(1905- )AYZ1#
FUEL TANK, W(CHARCOAL CANISTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23220A - PUMP ASSY, FUEL W/FILTER | ||||
| 23220-36011 |
2ARFXE,3ZRFAE..AYZ1#,ZGZ1# |
1 | ||
| 23225A - SPACER, FUEL PUMP | ||||
| 23225-21020 |
2ARFXE,3ZRFAE..AYZ1#,ZGZ1# |
1 | ||
| 23280J - REGULATOR ASSY, FUEL PRESSURE | ||||
| 23280-21010 |
2ARFXE,3ZRFAE..AYZ1#,ZGZ1# |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8ARFTS..AGZ1#..ARL,GCC,GEN;2ARFXE,3ZRFAE..AYZ1#,ZGZ1# NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
8ARFTS..AGZ1#..ARL,GCC,GEN;2ARFXE,3ZRFAE..AYZ1#,ZGZ1# NO.2:REFER ILLUST. |
1 | ||
| 23280K - RING, O(FOR FUEL PRESSURE REGULATOR) | ||||
| 90301-04013 |
8ARFTS..AGZ1#..ARL,GCC,GEN;2ARFXE,3ZRFAE..AYZ1#,ZGZ1# NO.1:REFER ILLUST. |
1 | ||
| 90301-15024 |
8ARFTS..AGZ1#..ARL,GCC,GEN;2ARFXE,3ZRFAE..AYZ1#,ZGZ1# NO.2:REFER ILLUST. |
1 | ||
| 77001A - TANK SUB-ASSY, FUEL | ||||
| 77001-78051 |
AYZ1#..ARL,GCC,GEN |
1 | ||
| 77012 - TUBE SUB-ASSY, FUEL TANK BREATHER | ||||
| 77014-48011 |
AYZ1#..ARL,GCC,GEN |
1 | ||
| 77024A - PLATE SUB-ASSY, FUEL SUCTION | ||||
| 77024-42110 |
AYZ1#..ARL,GCC,GEN |
1 | ||
| 77131C - SUB-TANK, FUEL, NO.1 | ||||
| 77131-52082 |
AYZ1#,ZGZ1# |
1 | ||
| 77168A - PLATE, FUEL TANK VENT TUBE SET | ||||
| 77168-52020 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-52010 |
AGZ1#,AYZ1#..ARL,GCC,GEN |
1 | ||
| 77174 - SUPPORT, FUEL SUCTION, NO.1 | ||||
| 77174-52070 |
AYZ1#,ZGZ1# |
1 | ||
| 77201E - PIPE SUB-ASSY, FUEL TANK FILLER | ||||
| 77201-78030 |
AGZ1#,AYZ1#..ARL,GCC,GEN |
1 | ||
| 77209F - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-48110 |
AYZ1#..ARL,GCC,GEN |
1 | ||
| 77229C - CLAMP, BREATHER TUBE | ||||
| 77229-48060 |
AYZ1# |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 77249A - HOSE, FUEL EMISSION | ||||
| 77249-48090 |
AYZ1#..ARL,GCC,GEN |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-42030 |
AGZ1#,AYZ1#..ARL,GCC,GEN NO.1:REFER ILLUST. |
1 | ||
| 77278-48020 |
AGZ1#,AYZ1#..ARL,GCC,GEN NO.2:REFER ILLUST. |
1 | ||
| 77278C - PROTECTOR, FUEL TANK FILLER PIPE, NO.2 | ||||
| 77278-42030 |
AGZ1#,AYZ1#..ARL,GCC,GEN NO.1:REFER ILLUST. |
1 | ||
| 77278-48020 |
AGZ1#,AYZ1#..ARL,GCC,GEN NO.2:REFER ILLUST. |
1 | ||
| 77281A - CLAMP, FUEL FILLER PIPE | ||||
| 77281-42030 |
AGZ1#,AYZ1#..ARL,GCC,GEN |
1 | ||
| 77281R - CLAMP, FUEL FILLER PIPE, NO.2 | ||||
| 77281-42040 |
AGZ1#,AYZ1#..ARL,GCC,GEN |
1 | ||
| 77284 - CLAMP, FUEL TUBE | ||||
| 89639-28130 |
AGZ1#,AYZ1#..ARL,GCC,GEN |
1 | ||
| 77289 - HOLDER, FUEL TANK PIPE SETTING | ||||
| 77289-52110 |
AYZ1#,ZGZ1# |
1 | ||
| 77291A - SHIELD, FUEL TANK FILLER PIPE | ||||
| 77291-78010 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 77298A - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48120 |
AYZ1# |
2 | ||
| 77298B - CLAMP, FUEL TUBE, NO.4 | ||||
| 77298-48110 |
AYZ1# |
3 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-12020 |
AGZ1#,AYZ1#..ARL,GCC,GEN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-52040 |
AGZ1#,AYZ1#..ARL,GCC,GEN |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-12020 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-30020 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-48130 |
AYZ1# |
1 | ||
| 77608 - BAND SUB-ASSY, FUEL TANK, NO.2 | ||||
| 77602-78020 |
AYZ1# |
1 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
AYZ1# |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
AYZ1# |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
AYZ1# |
4 | ||
| 77613 - BOLT, FUEL TANK BAND SET | ||||
| 90119-10971 |
AYZ1# |
4 | ||
| 77652A - CUSHION, FUEL TANK, NO.2 | ||||
| 77652-42020 |
AYZ1#,ZGZ1# |
1 | ||
| 77653A - CUSHION, FUEL TANK, NO.3 | ||||
| 77652-42030 |
AYZ1#,ZGZ1# |
1 | ||
| 77681A - SEAT, FUEL TANK BAND | ||||
| 77681-60210 |
AYZ1# |
1 | ||
| 77682A - SEAT, FUEL TANK BAND, NO.2 | ||||
| 77681-21010 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 77785 - HARNESS, FUEL PUMP | ||||
| 77785-42050 |
AYZ1#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90105-08158 | ||||
| 90159-50343 | ||||
| 90301-08020 | ||||
| 90301-11025 | ||||
| 90467-07215 | ||||
| 90467-17021 | ||||
| 91673-A0820 | ||||
| 96137-41901 | ||||
| Linked diagrams | ||||
| 8401 | ||||

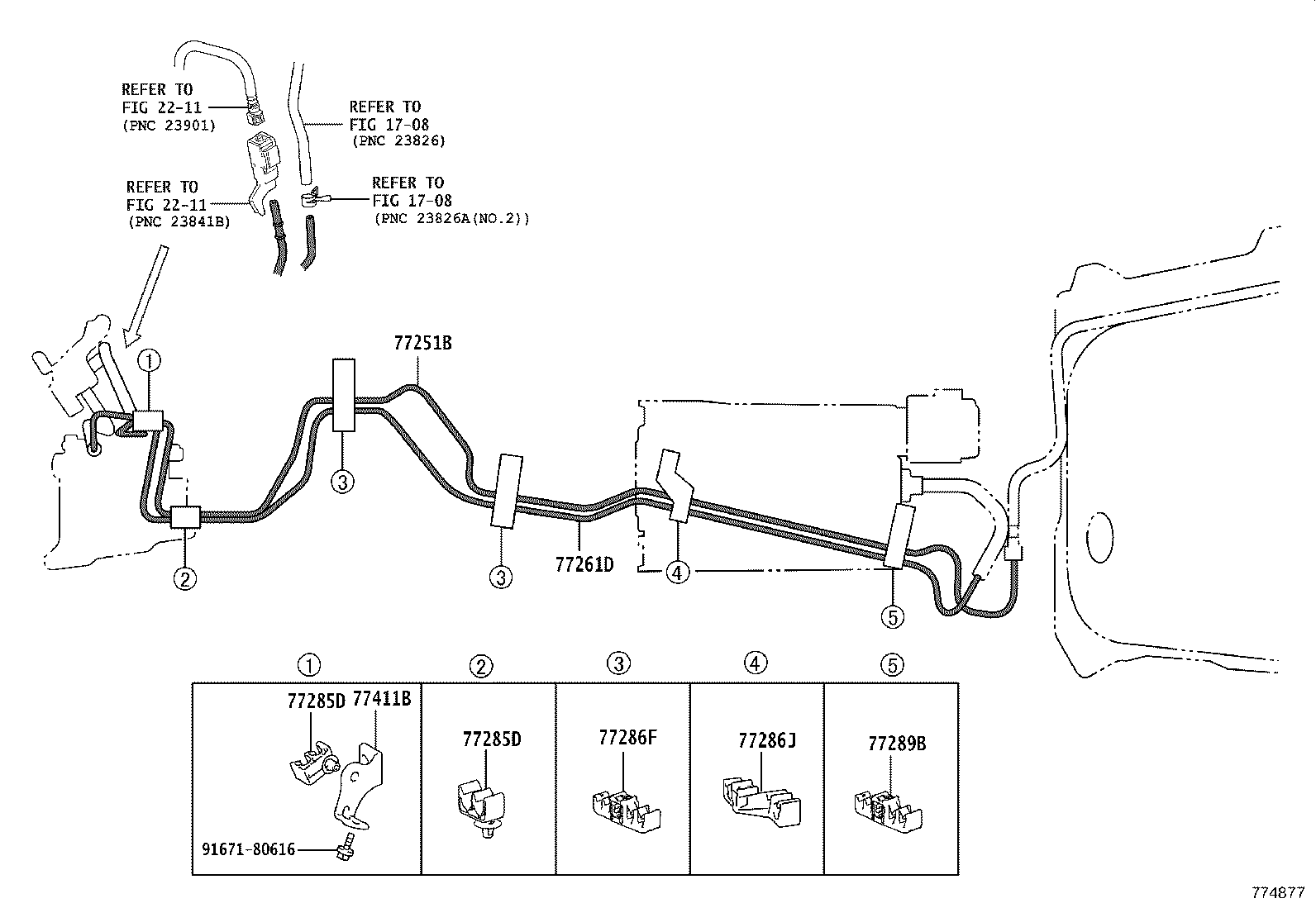

ILLUST NO. 2 OF 3(1905- )AYZ1#
FUEL TUBE, W(CHARCOAL CANISTER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-48240 |
AYZ1# |
1 | ||
| 77261D - TUBE, FUEL TANK TO CANISTER | ||||
| 77261-48250 |
AYZ1#..ARL,GCC,GEN |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-48100 |
AYZ1#..ARL,GCC,GEN |
2 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77286-48100 |
AYZ1#..ARL,GCC,GEN |
2 | ||
| 77286F - CLAMP, FUEL TUBE, NO.2 | ||||
| 77298-68010 |
AYZ1#..ARL,GCC,GEN |
2 | ||
| 77289B - CLAMP, FUEL TUBE, NO.3 | ||||
| 77298-52070 |
AYZ1#..ARL,GCC,GEN |
2 | ||
| 77411B - SUPPORT, FUEL TUBE GROMMET, NO.1 | ||||
| 77411-47010 |
AYZ1# |
1 | ||
| Common parts | ||||
| 91671-80616 | ||||
| Linked diagrams | ||||
| 1708 | ||||
| 2211 | ||||
