AYZ15R-AWXLBQ (2017)
Toyota Lexus Nx Series

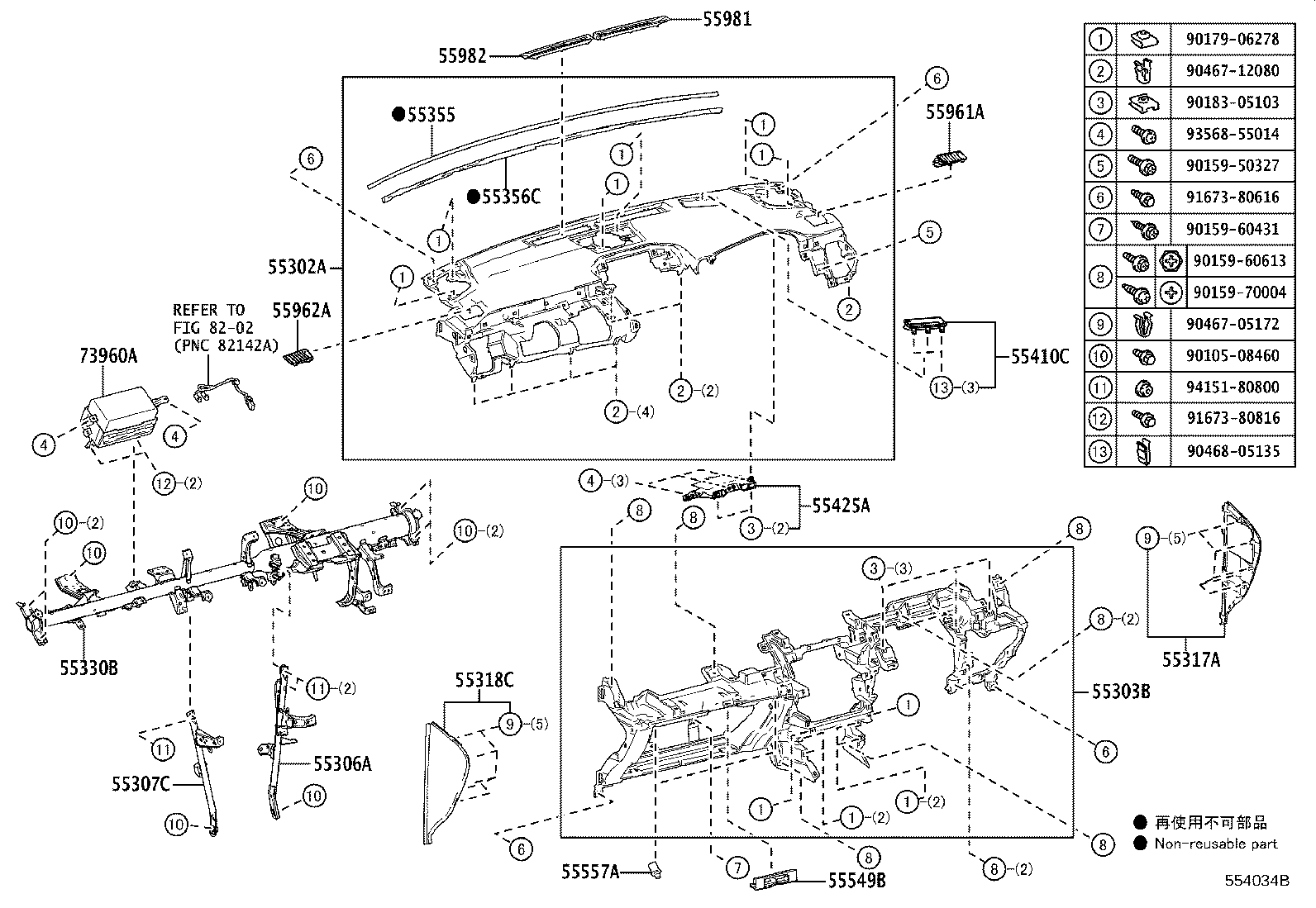

ILLUST NO. 1 OF 2(1709- )ARL
W(HEAD UP DISPLAY)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55302A - PANEL SUB-ASSY, INSTRUMENT, UPPER | ||||
| 55305-78060C2 |
AGZ1#,AYZ1#..ARL BLACK/LT.GRAY,TRIM0#,2#,3#,4#,6#,7#,9# |
1 | ||
| 55305-78080C2 |
AGZ1#,AYZ1#..ARL HEAD-UP DISPLAY-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,6#,7#,9# |
1 | ||
| 55305-78060C1 |
AGZ1#,AYZ1#..ARL BLACK/MUSTARD YELLOW,TRIM5# |
1 | ||
| 55305-78060C2 |
AGZ1#,AYZ1#..ARL BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9# |
1 | ||
| 55305-78080C0 |
AGZ1#,AYZ1#..ARL HEAD-UP DISPLAY-WITH,BLACK/DK.ROSE,TRIM35,36,37 |
1 | ||
| 55305-78060C0 |
AGZ1#,AYZ1#..ARL BLACK/DK.ROSE,TRIM35,36,37 |
1 | ||
| 55305-78080C3 |
AGZ1#,AYZ1#..ARL HEAD-UP DISPLAY-WITH,BLACK/ORANGE,TRIM44,45,46,47 |
1 | ||
| 55305-78080C1 |
AGZ1#,AYZ1#..ARL HEAD-UP DISPLAY-WITH,BLACK/MUSTARD YELLOW,TRIM5# |
1 | ||
| 55305-78080C2 |
AGZ1#,AYZ1#..ARL HEAD-UP DISPLAY-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9# |
1 | ||
| 55305-78060C3 |
AGZ1#,AYZ1#..ARL BLACK/ORANGE,TRIM44,45,46,47 |
1 | ||
| 55303B - PANEL SUB-ASSY, INSTRUMENT, LOWER | ||||
| 55303-78020C0 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-78020 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-78020 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55317A - PANEL, INSTRUMENT SIDE, RH | ||||
| 55317-78011C0 |
AYZ15;AGZ1#,AYZ10..ARL,GCC,GEN BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55318C - PANEL, INSTRUMENT SIDE, LH | ||||
| 55318-78020C0 |
AGZ15,AYZ15..ARL SOUTH AFRICA SPEC,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55318-78011C0 |
AYZ15;AGZ1#,AYZ10..ARL,GCC,GEN BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55330B - REINFORCEMENT ASSY, INSTRUMENT PANEL | ||||
| 55330-78080 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55355 - CUSHION, INSTRUMENT PANEL, NO.1 | ||||
| 55355-78010 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 55356C - CUSHION, INSTRUMENT PANEL, NO.2 | ||||
| 55356-78030 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 55410C - PANEL ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55410-78060C0 |
AGZ1#,AYZ1#..ARL HEAD-UP DISPLAY-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55425A - BRACKET, METER HOOD SET | ||||
| 55425-78030 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 55549B - COVER, INSTRUMENT PANEL HOLE, NO.2 | ||||
| 55549-78010 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55557A - CUSHION, GLOVE COMPARTMENT DOOR CHECK | ||||
| 55557-52030 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
2 | ||
| 55961A - NOZZLE, SIDE DEFROSTER, RH | ||||
| 55961-78020C0 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55962A - NOZZLE, SIDE DEFROSTER, LH | ||||
| 55962-78020C0 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55981 - GARNISH, DEFROSTER NOZZLE, NO.1 | ||||
| 55981-78010 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 55982 - GARNISH, DEFROSTER NOZZLE, NO.2 | ||||
| 55982-78010 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 73960A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR | ||||
| 73960-78050 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| Common parts | ||||
| 90105-08460 | ||||
| 90159-50327 | ||||
| 90159-60431 | ||||
| 90159-60613 | ||||
| 90159-70004 | ||||
| 90179-06278 | ||||
| 90183-05103 | ||||
| 90467-05172 | ||||
| 90467-12080 | ||||
| 90468-05135 | ||||
| 91673-80616 | ||||
| 91673-80816 | ||||
| 93568-55014 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 8202 | ||||

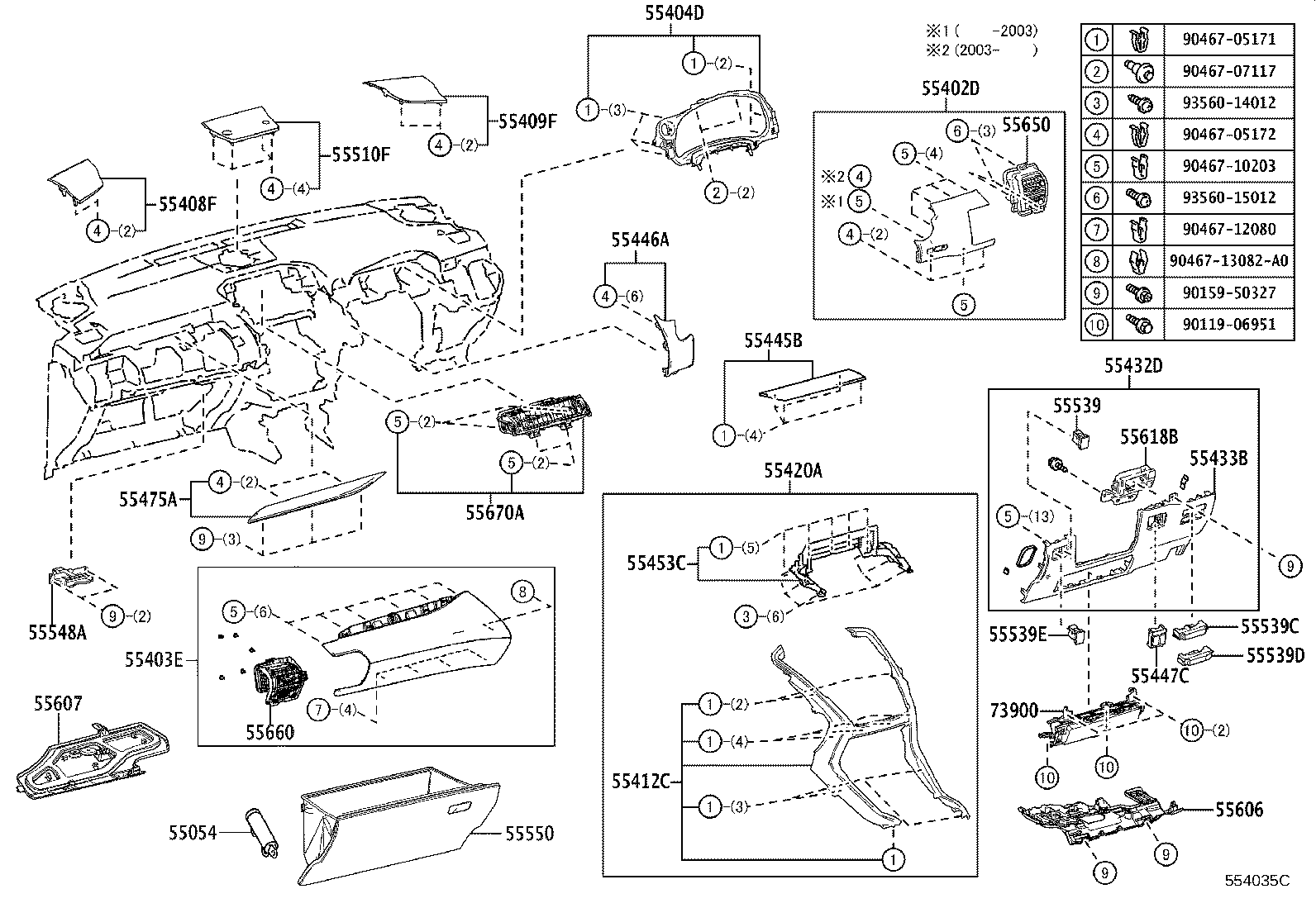

ILLUST NO. 2 OF 2(1709- )ARL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55054 - STOPPER SUB-ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55054-47010 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 55402D - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.1 | ||||
| 55402-78020A3 |
AGZ1#,AYZ1#..ARL RICH CREAM,TRIM6#,7# |
1 | ||
| 55402-78020A2 |
AGZ1#,AYZ1#..ARL WHITE OCHRE,TRIM00,01,02,03 |
1 | ||
| 55402-78021C2 |
AGZ1#,AYZ1#..ARL BLACK,TRIM04,05,06,07,08,09,2#,3#,4#,5# |
1 | ||
| 55402-78020C2 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 55402-78021A3 |
AGZ1#,AYZ1#..ARL RICH CREAM,TRIM6#,7# |
1 | ||
| 55402-78021A2 |
AGZ1#,AYZ1#..ARL WHITE OCHRE,TRIM00,01,02,03 |
1 | ||
| 55403E - PAD SUB-ASSY, INSTRUMENT PANEL SAFETY, NO.2 | ||||
| 55403-78021C5 |
AGZ1#,AYZ1#..ARL BLACK,TRIM04,07,08,09,2#,3#,4#,9# |
1 | ||
| 55403-78021A2 |
AGZ1#,AYZ1#..ARL WHITE OCHRE,TRIM00,01,02,03 |
1 | ||
| 55403-78021A3 |
AGZ1#,AYZ1#..ARL RICH CREAM,TRIM6#,7# |
1 | ||
| 55403-78041C6 |
AGZ1#,AYZ1#..ARL F SPORT,BLACK/DK.ROSE,TRIM3# |
1 | ||
| 55403-78022A2 |
AGZ1#,AYZ1#..ARL WHITE OCHRE,TRIM00,01,02,03 |
1 | ||
| 55403-78041C9 |
AGZ1#,AYZ1#..ARL F SPORT,BLACK/MUSTARD YELLOW,TRIM51,52 |
1 | ||
| 55403-78041C5 |
AGZ1#,AYZ1#..ARL F SPORT,BLACK/LT.GRAY,TRIM0#,2#,51,52 |
1 | ||
| 55403-78042C5 |
AGZ1#,AYZ1#..ARL F SPORT,BLACK/LT.GRAY,TRIM0#,2# |
1 | ||
| 55403-78042C6 |
AGZ1#,AYZ1#..ARL F SPORT,BLACK/DK.ROSE,TRIM3# |
1 | ||
| 55403-78022C5 |
AGZ1#,AYZ1#..ARL BLACK,TRIM04,07,08,09,2#,3#,40,41,42,43 |
1 | ||
| 55403-78022C8 |
AGZ1#,AYZ1#..ARL BLACK/ORANGE,TRIM44,45,46,47 |
1 | ||
| 55403-78042C9 |
AGZ1#,AYZ1#..ARL F SPORT,BLACK/MUSTARD YELLOW,TRIM5# |
1 | ||
| 55403-78022A3 |
AGZ1#,AYZ1#..ARL RICH CREAM,TRIM6#,7# |
1 | ||
| 55404D - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH | ||||
| 55404-78020 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55408F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1 | ||||
| 55408-78090C0 |
AGZ1#,AYZ1#..ARL AUDIO-EMVN & 14SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55408-78080C0 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55409F - PANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2 | ||||
| 55409-78050C0 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55409-78060C0 |
AGZ1#,AYZ1#..ARL AUDIO-EMVN & 14SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55412C - PANEL, INSTRUMENT CLUSTER FINISH, CENTER NO.1 | ||||
| 55412-78040 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55420A - PANEL ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55420-78040 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55432D - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.1 | ||||
| 55432-78020C0 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-78020C0 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55445B - PLATE, INSTRUMENT PANEL FINISH | ||||
| 55445-78020 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 55446A - BASE, SWITCH HOLE, NO.1 | ||||
| 55446-78030A3 |
AGZ1#,AYZ1#..ARL RICH CREAM,TRIM6#,7# |
1 | ||
| 55446-78030A2 |
AGZ1#,AYZ1#..ARL WHITE OCHRE,TRIM00,01,02,03 |
1 | ||
| 55446-78030C2 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 55446-78040A3 |
AGZ1#,AYZ1#..ARL HEAD-UP DISPLAY-WITH,RICH CREAM,TRIM6#,7# |
1 | ||
| 55446-78040A2 |
AGZ1#,AYZ1#..ARL HEAD-UP DISPLAY-WITH,WHITE OCHRE,TRIM00,01,02,03 |
1 | ||
| 55446-78040C2 |
AGZ1#,AYZ1#..ARL HEAD-UP DISPLAY-WITH,BLACK,TRIM0#,2#,3#,4#,5#,9# |
1 | ||
| 55447C - BASE, SWITCH HOLE, NO.2 | ||||
| 55447-78010C0 |
AYZ15;AGZ1#,AYZ10..ARL,GCC,GEN BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55447-78010C0 |
AGZ1#,AYZ1#..ARL,GCC,GEN REAR SEAT-6:4 FOLDING(POWER SEAT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55453C - COVER, INSTRUMENT PANEL SAFETY PAD, NO.2 | ||||
| 55453-78010 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 55475A - GARNISH, INSTRUMENT CLUSTER FINISH PANEL, NO.2 | ||||
| 55475-78020C2 |
AGZ1#,AYZ1#..ARL BLACK METALLIC,TRIM2#,3# |
1 | ||
| 55475-78040B0 |
AGZ1#,AYZ1#..ARL INSTRUMENT FINISH PANEL-FILM,SILVER FILM,TRIM02,08,22,32,42,46,62,72,92 |
1 | ||
| 55475-78081F0 |
AGZ1#,AYZ1#..ARL INSTRUMENT FINISH PANEL-WOOD,NATURAL BROWN,TRIM01,07,21,31,41,45,61,71,91 |
1 | ||
| 55475-78040B1 |
AGZ1#,AYZ1#..ARL INSTRUMENT FINISH PANEL-FILM,F SPORT FILM,TRIM05,26,36,5# |
1 | ||
| 55475-78081C1 |
AGZ1#,AYZ1#..ARL INSTRUMENT FINISH PANEL-WOOD,STEEL WOOD,TRIM0#,2#,30,35,40,44,5#,60,70,90 |
1 | ||
| 55475-78040E0 |
AGZ1#,AYZ1#..ARL INSTRUMENT FINISH PANEL-FILM,DARK FILM,TRIM03,09,23,33,43,47,63,73,93 |
1 | ||
| 55475-78120B0 |
AGZ1#,AYZ1#..ARL F SPORT&INSTRUMENT FINISH PANEL-ALUMINUM,SILVER,TRIM0#,2#,3#,5# |
1 | ||
| 55510F - COVER ASSY, SPEAKER OPENING, NO.1 | ||||
| 55510-78070C0 |
AGZ1#,AYZ1#..ARL AUDIO-EMVN & 14SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55510-78040C0 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55510-78020C0 |
AGZ15,AYZ15..ARL MALAYSIA SPEC&AUDIO-*DA(EXTERNAL AMPLIFIER) & 8SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55510-78020C0 |
AGZ15,AYZ15..ARL SINGAPORE SPEC&AUDIO-*DA(EXTERNAL AMPLIFIER) & 8SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55510-78020C0 |
AGZ15,AYZ15..ARL BRUNEI SPEC&AUDIO-*DA(EXTERNAL AMPLIFIER) & 8SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55510-78020C0 |
AGZ15,AYZ15..ARL SOUTH AFRICA SPEC&AUDIO-*DA(EXTERNAL AMPLIFIER) & 8SPEAKER,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-78030C0 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539C - COVER, SPARE SWITCH HOLE | ||||
| 55539-78010C0 |
AYZ15;AGZ1#,AYZ10..ARL,GCC,GEN BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AYZ15;AGZ1#,AYZ10..ARL,GCC,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(PROJECTOR)&CLEARANCE &BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(TRINOCULAR FULL LED)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(TRINOCULAR FULL LED),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(PROJECTOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(TRINOCULAR FULL LED) &WITH(*AHS),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ15..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(TRINOCULAR FULL LED)&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(PROJECTOR) & WITH(*AHB),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ15..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(TRINOCULAR FULL LED)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(TRINOCULAR FULL LED) &WITH(*AHS)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AYZ15;AGZ1#,AYZ10..ARL,GCC,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AYZ15..ARL,CHI,GEN;AGZ1#,AYZ10..ARL,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(TRINOCULAR FULL LED) &WITH(*AHS)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(TRINOCULAR FULL LED) &WITH(*AHS)&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&HEADLAMP-LED(PROJECTOR) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AYZ15;AGZ1#,AYZ10..ARL,GCC,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(PROJECTOR)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(PROJECTOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AYZ15..ARL,CHI,GEN;AGZ1#,AYZ10..ARL,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR)&BLIND SPOT MONITOR-WITH & WITH(REARCROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(TRINOCULARFULL LED)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(TRINOCULARFULL LED) & WITH(*AHS)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(PROJECTOR)& WITH(*AHB),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(PROJECTOR)& WITH(*AHB)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ15..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(TRINOCULARFULL LED)&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(PROJECTOR)& WITH(*AHB)&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(TRINOCULARFULL LED) & WITH(*AHS)&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(TRINOCULARFULL LED),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ15..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(TRINOCULARFULL LED)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(TRINOCULARFULL LED) & WITH(*AHS),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AYZ15..ARL,CHI,GEN;AGZ1#,AYZ10..ARL,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AYZ15;AGZ1#,AYZ10..ARL,GCC,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(PROJECTOR)& WITH(*AHB)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&HEADLAMP-LED(TRINOCULARFULL LED) & WITH(*AHS)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AYZ15..ARL,CHI,GEN;AGZ1#,AYZ10..ARL,GEN AUTO & EASY CLOSER DOOR-WITH(POWER BACK DOOR & KICK OPEN)&BLIND SPOT MONITOR-WITH& WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL HEADLAMP-LED(PROJECTOR) & WITH(*AHB),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL HEADLAMP-LED(PROJECTOR) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ15..ARL HEADLAMP-LED(TRINOCULAR FULL LED)&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL HEADLAMP-LED(PROJECTOR) & WITH(*AHB)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL HEADLAMP-LED(PROJECTOR) & WITH(*AHB)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL HEADLAMP-LED(TRINOCULAR FULL LED) & WITH(*AHS)&CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL HEADLAMP-LED(TRINOCULAR FULL LED)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ1#..ARL HEADLAMP-LED(PROJECTOR)&CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AGZ1#,AYZ15..ARL HEADLAMP-LED(TRINOCULAR FULL LED)&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AYZ15;AGZ1#,AYZ10..ARL,GCC,GEN CLEARANCE & BACK SONAR-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AYZ15..ARL,CHI,GEN;AGZ1#,AYZ10..ARL,GEN CLEARANCE & BACK SONAR-WITH&BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78010C0 |
AYZ15..ARL,CHI,GEN;AGZ1#,AYZ10..ARL,GEN BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-78020C0 |
AYZ15..ARL BRUNEI SPEC&VERSION L&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78020C0 |
AYZ15..ARL MALAYSIA SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78020C0 |
AGZ10,AYZ15..ARL SINGAPORE SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78020C0 |
AGZ10,AYZ1#..ARL VERSION L,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78020C0 |
AYZ10..ARL;AGZ10,AYZ15 BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78020C0 |
AYZ15..ARL MALAYSIA SPEC&VERSION L&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78020C0 |
AGZ10,AYZ15..ARL SINGAPORE SPEC&VERSION L&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78020C0 |
AYZ10..ARL;AGZ10,AYZ15..ARL,CHI,GCC PRE-COLLISION SYSTEM-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78020C0 |
AYZ15..ARL BRUNEI SPEC&F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78020C0 |
AGZ10,AYZ1#..ARL,GEN VERSION L&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78020C0 |
AYZ10..ARL;AGZ10..ARL,CHI;AYZ15..ARL,CHI,GCC PRE-COLLISION SYSTEM-WITH&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78020C0 |
AYZ15..ARL SOUTH AFRICA SPEC&VERSION L&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539-78020C0 |
AYZ15;AGZ10,AYZ10..ARL,GCC BACK MONITOR-WITH(PANORAMIC VIEW MONITOR),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-78030C0 |
AYZ1#,ZGZ1# BLACK,TRIM0#,2#,3#,4#,6#,7#,9# |
1 | ||
| 55539-78030C0 |
AYZ1# ACTIVE SOUND CONTROL-WITH,BLACK,TRIM0#,2#,3#,4#,6#,7#,9# |
1 | ||
| 55548A - COVER, INSTRUMENT PANEL HOLE | ||||
| 55548-47020C0 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55550 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-78020C0 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-78020 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55607 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.2 | ||||
| 55607-48110 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55618B - BASE, SWITCH HOLE, NO.3 | ||||
| 55618-78020 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-78020 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55650-78021 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55650-78022 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-78022 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55660-78020 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55660-78021 |
AGZ1#,AYZ1#..ARL |
1 | ||
| 55670A - REGISTER ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55670-78021 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 55670-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 73900 - AIR BAG ASSY, INSTRUMENT PANEL, LOWER NO.1 | ||||
| 73900-78020C0 |
AGZ1#,AYZ1#..ARL BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9# |
1 | ||
| Common parts | ||||
| 90119-06951 | ||||
| 90159-50327 | ||||
| 90467-05171 | ||||
| 90467-05172 | ||||
| 90467-07117 | ||||
| 90467-10203 | ||||
| 90467-12080 | ||||
| 90467-13082A0 | ||||
| 93560-14012 | ||||
| 93560-15012 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
