AYZ15R-AWXLBQ (2017)
Toyota Lexus Nx Series

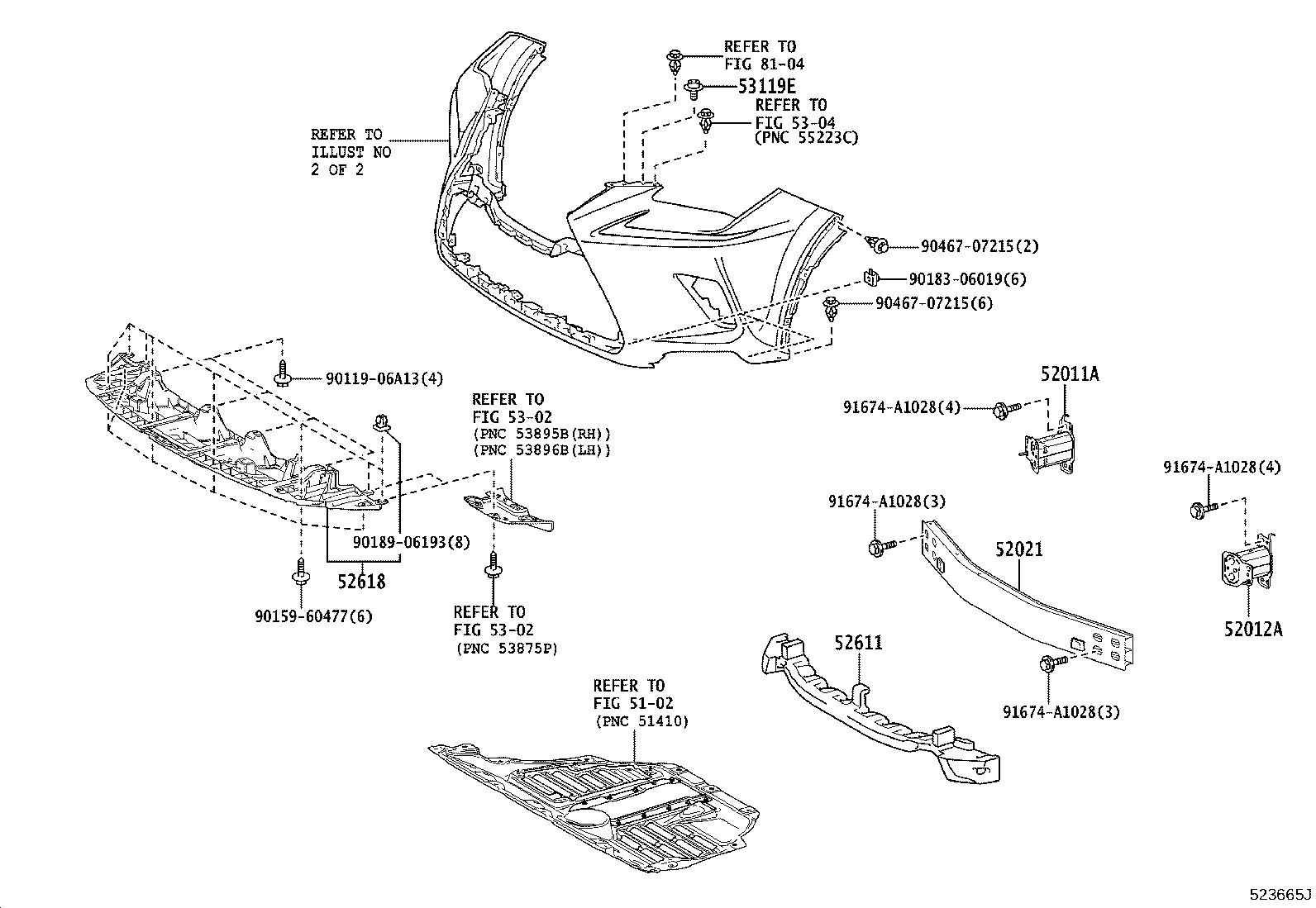

ILLUST NO. 1 OF 2(1709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-78020 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-78030 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52614-78040 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-78010 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| Common parts | ||||
| 90119-06A13 | ||||
| 90159-60477 | ||||
| 90183-06019 | ||||
| 90189-06193 | ||||
| 90467-07215 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 5304 | ||||
| 8104 | ||||

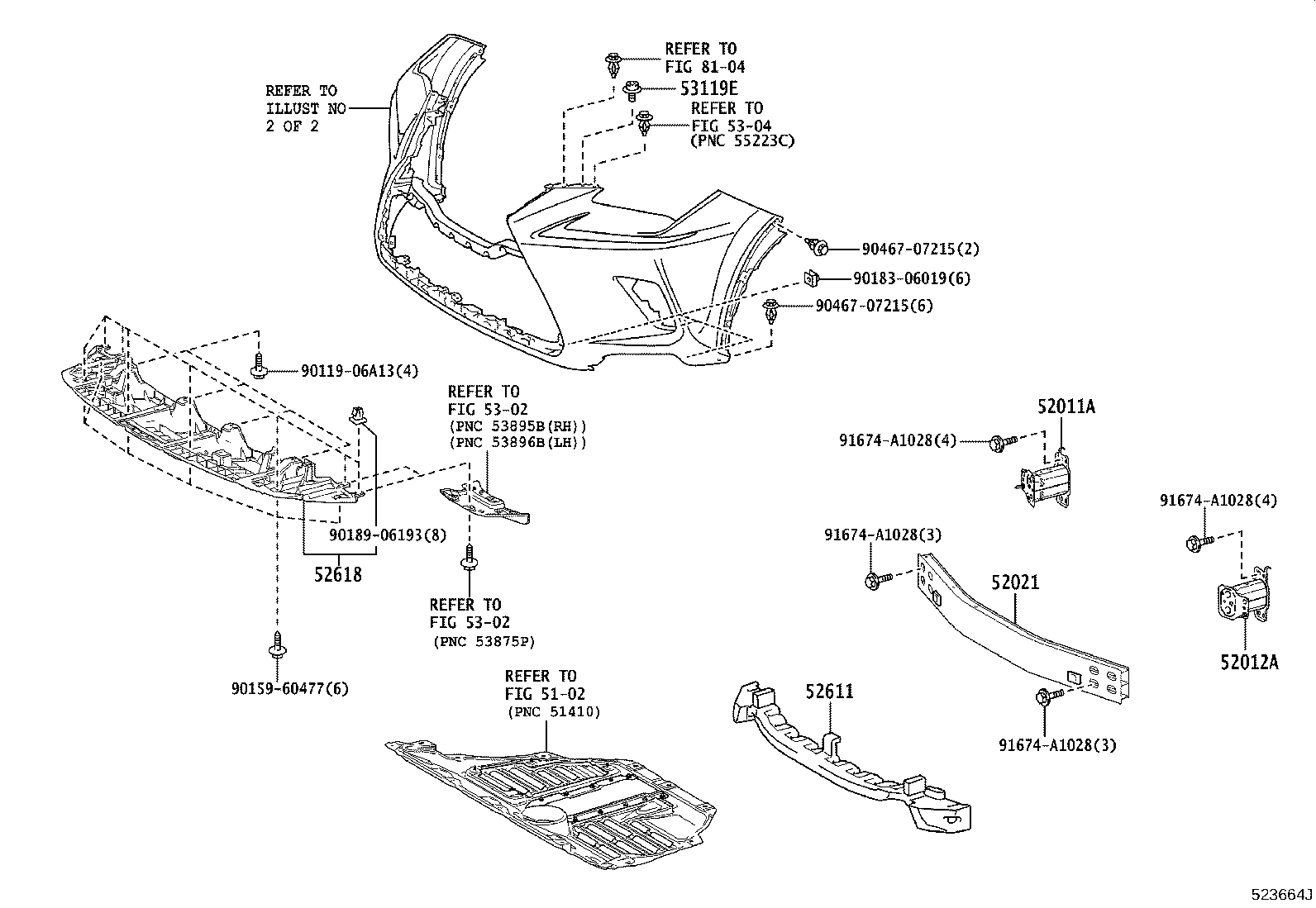

ILLUST NO. 1 OF 2(1709- )
F SPORT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52011A - ARM SUB-ASSY, FRONT BUMPER, RH | ||||
| 52011-78020 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 52012A - ARM SUB-ASSY, FRONT BUMPER, LH | ||||
| 52012-78030 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52614-78040 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 52618 - ABSORBER, FRONT BUMPER, LOWER | ||||
| 52618-78010 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 53119E - PROTECTOR, RADIATOR GRILLE | ||||
| 53119-33141 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| Common parts | ||||
| 90119-06A13 | ||||
| 90159-60477 | ||||
| 90183-06019 | ||||
| 90189-06193 | ||||
| 90467-07215 | ||||
| 91674-A1028 | ||||
| Linked diagrams | ||||
| 5102 | ||||
| 5302 | ||||
| 5304 | ||||
| 8104 | ||||

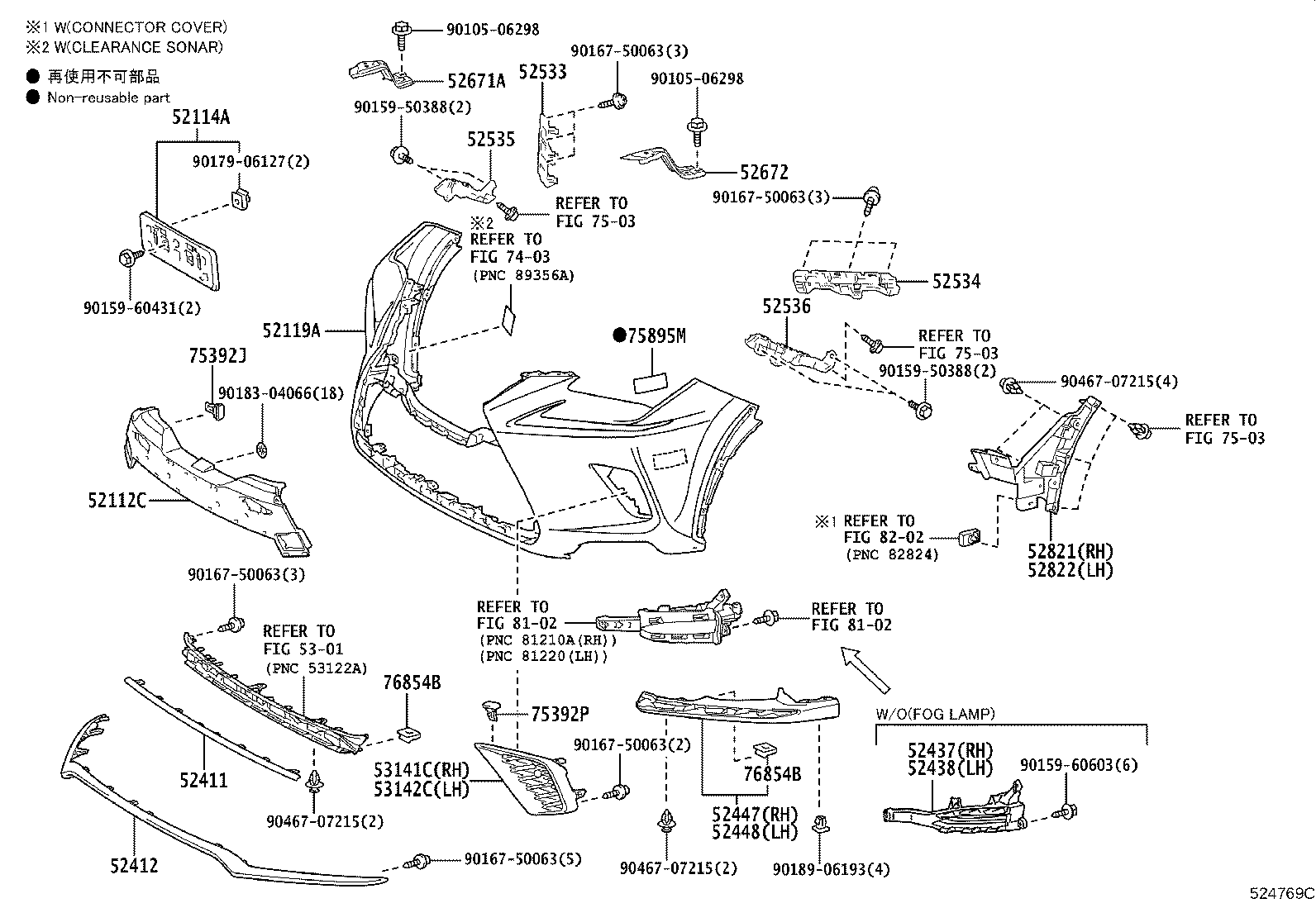

ILLUST NO. 2 OF 2(1709- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52112C - EXTENSION, FRONT BUMPER | ||||
| 52112-78210 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52112-78230 |
AYZ10..ARL;AGZ1#,AYZ15..ARL,CHI,GEN F SPORT&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78310 |
AGZ15,AYZ15;AGZ10,AYZ10..ARL,CHI BACK MONITOR-WITH(PANORAMIC VIEW MONITOR) |
1 | ||
| 52112-78230 |
AYZ10..ARL;AGZ1#,AYZ15..ARL,CHI,GEN F SPORT |
1 | ||
| 52114A - BRACKET, FRONT BUMPER EXTENSION MOUNTING | ||||
| 52114-78130 |
AGZ1#,AYZ1#..ARL,GEN |
1 | ||
| 52114-78180 |
AGZ1#,AYZ1#..ARL,GEN F SPORT |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-78922 |
AYZ1#..ARL,GEN FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 52119-78922 |
ZGZ1#;AYZ1#..ARL,GEN |
1 | ||
| 52119-78923 |
AYZ1#..ARL,GEN HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 52119-78943 |
ZGZ1#;AYZ1#..ARL,GEN PAINT REQ.,HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78923 |
ZGZ1#;AYZ1#..ARL,GEN HEADLAMP CLEANER-WITH |
1 | ||
| 52119-78942 |
AYZ1#..ARL,GEN PAINT REQ.,FRONT FOG LAMP-WITH(FOG & CORNERING LAMP),FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78925 |
AYZ1#..ARL,GEN F SPORT&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 52119-78943 |
AYZ1#..ARL,GEN PAINT REQ.,HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP),FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78932 |
ZGZ1#;AYZ1#..ARL,GEN PAINT REQ. |
1 | ||
| 52119-78945 |
AYZ1#..ARL,GEN PAINT REQ.,F SPORT&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP),FRAME NO.=1,2XXXXXX |
1 | ||
| 52119-78942 |
ZGZ1#;AYZ1#..ARL,GEN PAINT REQ. |
1 | ||
| 52119-78932 |
AYZ1#..ARL,GEN PAINT REQ.,FRONT FOG LAMP-WITH(FOG & CORNERING LAMP),FRAME NO.=5,6XXXXXX |
1 | ||
| 52437 - COVER, FRONT BUMPER GUARD, RH | ||||
| 52437-78030 |
ZGZ1#;AYZ1#..ARL,GEN |
1 | ||
| 52438 - COVER, FRONT BUMPER GUARD, LH | ||||
| 52438-78030 |
ZGZ1#;AYZ1#..ARL,GEN |
1 | ||
| 52447 - PAD, FRONT BUMPER GUARD, NO.2 RH | ||||
| 52447-78020 |
AYZ1#..ARL,GEN F SPORT&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 52447-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52448 - PAD, FRONT BUMPER GUARD, NO.2 LH | ||||
| 52448-78020 |
AYZ1#..ARL,GEN F SPORT&HEADLAMP CLEANER-WITH&FRONT FOG LAMP-WITH(FOG & CORNERING LAMP) |
1 | ||
| 52448-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52533 - BRACKET, FRONT BUMPER RETAINER, NO.1 | ||||
| 52533-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52534 - BRACKET, FRONT BUMPER RETAINER, NO.2 | ||||
| 52534-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52535 - RETAINER, FRONT BUMPER SIDE, RH | ||||
| 52535-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52536 - RETAINER, FRONT BUMPER SIDE, LH | ||||
| 52536-78010 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52671A - EXTENSION, FRONT BUMPER ARM, RH | ||||
| 52671-78010 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 52672 - EXTENSION, FRONT BUMPER ARM, LH | ||||
| 52672-78010 |
AYZ1#,ZGZ1#;AGZ1#..ARL,GCC,GEN |
1 | ||
| 52821 - DUCT, AIR INTAKE, RH | ||||
| 52821-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 52822 - DUCT, AIR INTAKE, LH | ||||
| 52822-78030 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 53141C - GARNISH, RADIATOR GRILLE | ||||
| 53141-78020 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 53141-78010 |
AGZ1#,AYZ1#..ARL,CHI CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-78030 |
AGZ15..ARL;AYZ15..ARL,GCC F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-78030 |
AYZ10..ARL;AGZ1#,AYZ15..ARL,CHI F SPORT&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53141-78010 |
AGZ15..ARL;AYZ15..ARL,GCC CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53141-78040 |
AYZ10..ARL;AGZ1#,AYZ15 F SPORT |
1 | ||
| 53142C - GARNISH, RADIATOR GRILLE, NO.2 | ||||
| 53142-78070 |
AGZ15..ARL;AYZ15..ARL,GCC CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-78090 |
AGZ15..ARL;AYZ15..ARL,GCC F SPORT&CLEARANCE & BACK SONAR-WITH |
1 | ||
| 53142-78070 |
AGZ1#,AYZ1#..ARL,CHI CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-78090 |
AYZ10..ARL;AGZ1#,AYZ15..ARL,CHI F SPORT&CLEARANCE & BACK SONAR-WITH(INTELLIGENT CLEARANCE SONAR) |
1 | ||
| 53142-78100 |
AYZ10..ARL;AGZ1#,AYZ15 F SPORT |
1 | ||
| 53142-78080 |
AGZ1#,AYZ1#,ZGZ1# |
1 | ||
| 75392J - RETAINER, OUTSIDE MOULDING | ||||
| 75392-35220 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 75895M - TAPE, MOULDING, NO.2 | ||||
| 75895-53010 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| 75895-78030 |
AGZ1#,AYZ1#,ZGZ1# |
2 | ||
| Common parts | ||||
| 90105-06298 | ||||
| 90159-50388 | ||||
| 90159-60431 | ||||
| 90159-60603 | ||||
| 90167-50063 | ||||
| 90179-06127 | ||||
| 90183-04066 | ||||
| 90189-06193 | ||||
| 90467-07215 | ||||
| Linked diagrams | ||||
| 5301 | ||||
| 7403 | ||||
| 7503 | ||||
| 8102 | ||||
| 8202 | ||||

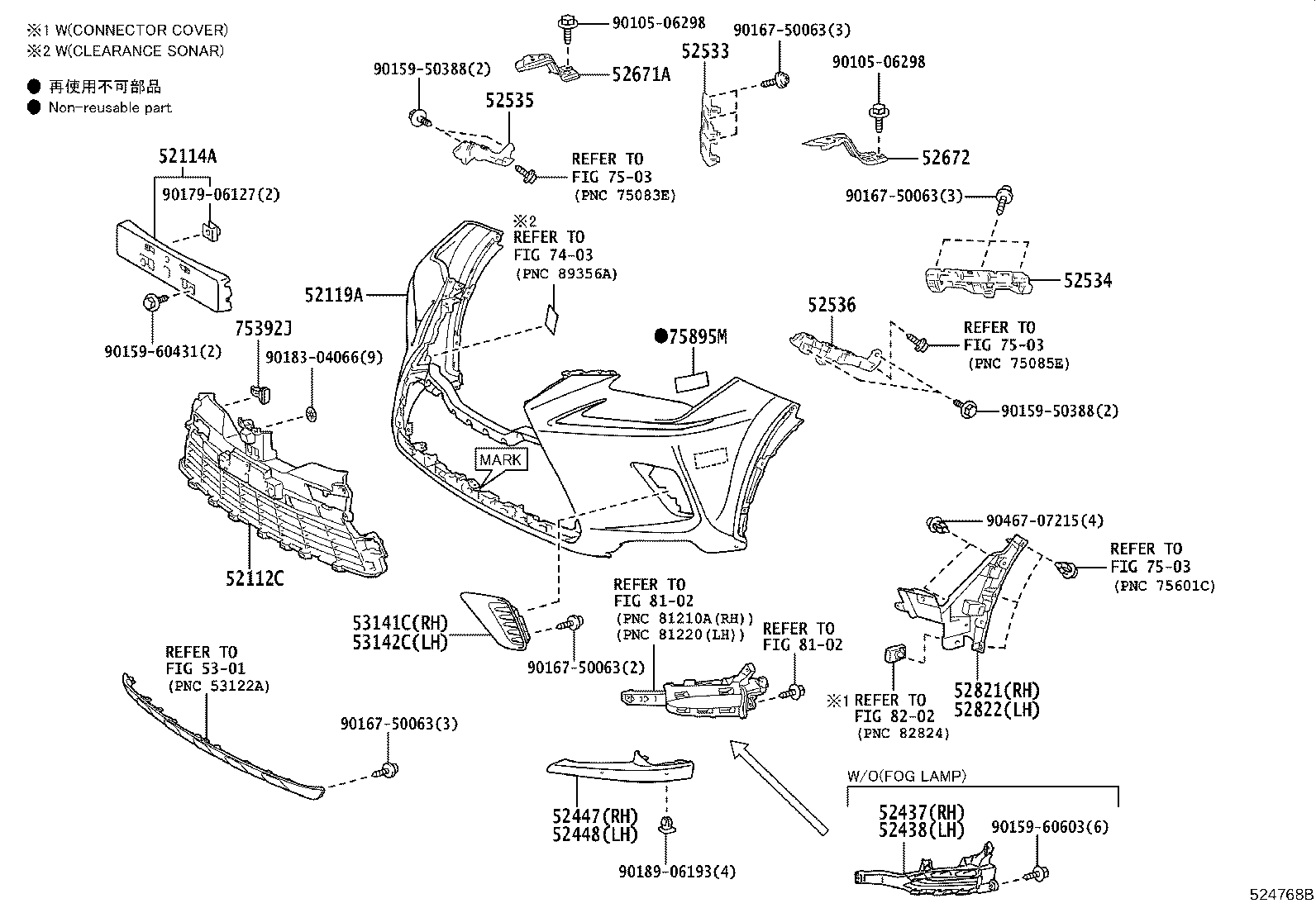

ILLUST NO. 2 OF 2(1709- )
